2021 Bravo Stacker Trailers

In Stock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Stacker Trailers You Deserve the Best!
Stackers Top 600x400

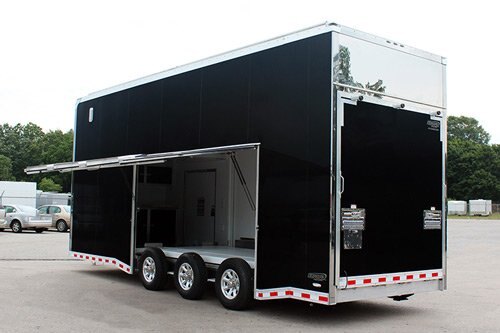

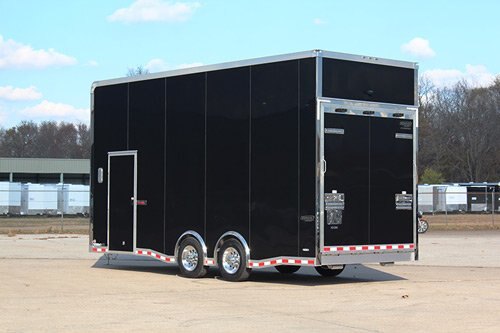

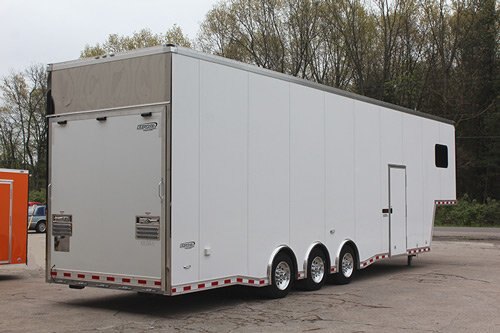

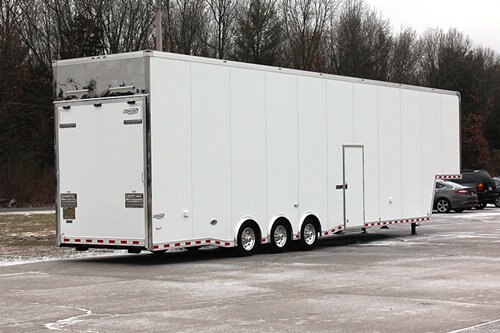

Taking it all with you is a breeze in a BRAVO ICON stacker trailer either in aluminum or steel frames. Whether you’re heading to the Indy or the Grand
Canyon we have the perfect trailer for you. Our stackers load easier, tow better and look great behind your RV. Stackers and coach trailers are available in 20’ to
34’ lengths, tandem or triple axle and heights up to 13’6”. Choose from Bravo’s 1000’s of custom options to build your dream stacker. Bring your garage with you;
carry your car, boat, motorcycles, golf carts, wind surfers and bicycles on your journey.

Picking the Perfect Stacker Trailer Is Easy Stackers Bottom 600x400

Our years of experience pulling stackers make us the experts. Let your dealer know what you plan on putting in your trailer, the more information the better. It’s in the details, positioning of the lift, tie downs, cabinets, upper deck access and overhang that leads to a successful project. An experienced stacker trailer builder will ask those questions to guarantee your stacker works and you love it. Don’t entrust your precious toys to a second class trailer. Let BRAVO build your dream stacker and be proud of what you pull!

Specifications

Model

Stacker Trailers

Category Name

Trailers

Year

2021

Sale Type

New

Manufacturer

Bravo

Color

VICTORY RED , BRANDYWINE , INDIGO BLUE , CARGO GREEN , PENSKE YELLOW* , SCHNEIDER ORANGE* , BLACK , METALLIC CHARCOAL , DOVE GRAY , WINDSTAR SILVER , CHAMPAGNE BEIGE , METALLIC PEWTER , CRYSTAL WHITE , MATTE BLACK* , ARCTIC GREEN*

specs

Details	ICS8524TTA4	ICS8526TTA4	ICS8524TTA5	ICS8526TTA5	ICS8528TTA5	ICS8530TTA5	ICS8532TTA5
Tire Size	16” Radial	16” Radial	16” Radial	16” Radial	16” Radial	16” Radial	16” Radial
Brakes	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Tube Frame	8” Tube	8” Tube	8” Tube	8” Tube	8” Tube	8” Tube	8” Tube
Hitch Ball Size	2-5/16”	2-5/16”	2-5/16”	2-5/16”	2-5/16”	2-5/16”	2-5/16”
Curb Weight	9240#	10010#	9390#	10160#	10930#	11700#	12320#
Hitch Weight	1386#	1501#	1408#	1501#	1640#	1755#	1848#
GVWR	18000#	18000#	21000#	21000#	21000#	21000#	21000#
Payload Capacity	8760#	7990#	11610#	10840#	10070#	9300#	8680#
Overall Length	28’-2”	30’-2”	28’-2”	30’-2”	32’-2”	34’-2”	36’-2”
Overall Width	8’-6”	8’-6”	8’-6”	8’-6”	8’-6”	8’-6”	8’-6”
Overall Height	13’4”	13’4”	13’4”	13’4”	13’4”	13’4”	13’4”
Exterior Box Width	8’-4”	8’-4”	8’-4”	8’-4”	8’-4”	8’-4”	8’-4”
Interior Length	23’-7”	25’-7”	23’-7”	25’-7”	27’-7”	29’-7”	31’-7”
Interior Width	8’-1”	8’-1”	8’-1”	8’-1”	8’-1”	8’-1”	8’-1”
Width B/W Wheel Wells	81-1/2”	81-1/2”	81-1/2”	81-1/2”	81-1/2”	81-1/2”	81-1/2”
Interior Height	11’1″	11’1″	11’1″	11’1″	11’1″	11’1″	11’1″
Platfrom Height/Loading	22″/18″	22″/18″	22″/18″	22″/18″	22″/18″	22″/18″	22″/18″
Rear Door	RAMP	RAMP	RAMP	RAMP	RAMP	RAMP	RAMP
Rear Door Width	92″	92″	92″	92″	92″	92″	92″
Rear Door Height	96″	96″	96″	96″	96″	96″	96″
Side Door Width	48″	48″	48″	48″	48″	48″	48″
Side Door Height	78″	78″	78″	78″	78″	78″	78″
Cross Members O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.
Wall Posts O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.
Roof Members O.C.	16”O.C.	16”O.C.	16”O.C.	16”O.C.	16”O.C.	16”O.C.	16”O.C.

Details	ICG/FS8536TTA6	ICG/FS8538TTA6	ICG/FS8540TTA6	ICG/FS8542TTA6	ICG/FS8544TTA6	ICG/FS8546TTA6	ICG/FS8548TTA6
Tire Size	17.5” Radial	17.5” Radial	17.5” Radial	17.5” Radial	17.5” Radial	17.5” Radial	17.5” Radial
Brakes	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Tube Frame	8” Tube	8” Tube	8” Tube	8” Tube	8” Tube	8” Tube	8” Tube
Hitch Ball Size	2-5/16”	2-5/16”	2-5/16”	2-5/16”	2-5/16”	2-5/16”	2-5/16”
Curb Weight	12816#	13528#	14240#	14952#	15664#	16376#	17088#
Hitch Weight	2563#	2706#	2848#	2990#	3133#	3275#	3418#
GVWR	24000#	24000#	24000#	24000#	24000#	24000#	24000#
Payload Capacity	11184#	10472#	9760#	9048#	8336#	7624#	6912#
Overall Length	36’-6”	38’-6”	40’-6”	42’-6”	44’-6”	46’-6”	48’6”
Overall Width	8’-6”	8’-6”	8’-6”	8’-6”	8’-6”	8’-6”	8’-6”
Overall Height	13’4”	13’4”	13’4”	13’4”	13’4”	13’4”	13’4”
Exterior Box Width	8’-4”	8’-4”	8’-4”	8’-4”	8’-4”	8’-4”	8’-4”
Interior Length	28’	30’	32’	34’	36’	38’	40’
Interior Width	8’-1”	8’-1”	8’-1”	8’-1”	8’-1”	8’-1”	8’-1”
Width B/W Wheel Wells	80-1/2”	80-1/2”	80-1/2”	80-1/2”	80-1/2”	80-1/2”	80-1/2”
Interior Height	11’1″	11’1″	11’1″	11’1″	11’1″	11’1″	11’1″
Platfrom Height/Loading	22″/18″	22″/18″	22″/18″	22″/18″	22″/18″	22″/18″	22″/18″
Rear Door	RAMP	RAMP	RAMP	RAMP	RAMP	RAMP	RAMP
Rear Door Width	92″	92″	92″	92″	92″	92″	92″
Rear Door Height	96″	96″	96″	96″	96″	96″	96″
Side Door Width	48″	48″	48″	48″	48″	48″	48″
Side Door Height	78″	78″	78″	78″	78″	78″	78″
Cross Members O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.
Wall Posts O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.	16″ O.C.
Roof Members O.C.	16”O.C.	16”O.C.	16”O.C.	16”O.C.	16”O.C.	16”O.C.	16”O.C.

icon stacker options

Tag Models Available:
8.5′ X 20′ to 34’L

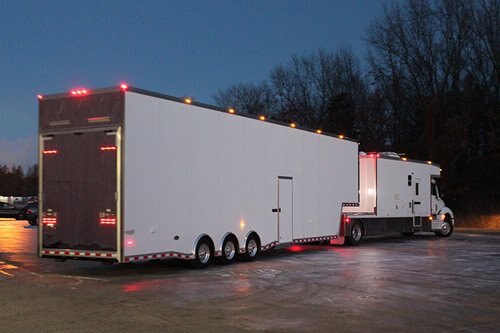

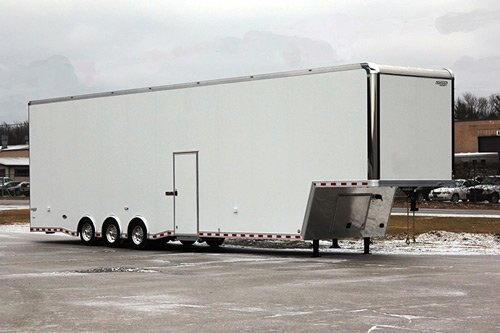

Gooseneck/Fifth Wheel Models Available:
8.5′ X 36′ to 48’L

AWNING
AXLES, RUNNING GEAR & WHEELS BLADE ALUM WHEELS

Aluminum Wheels
Axle Spread Configurations
Electric/Hydraulic Disc Brakes

Exterior Metal Options Scout Colors Atp Finished Under Riser With Led Lights Full Stainless Steel Front End

Exterior Colors
.050 Exterior Metal – White or Black
Stainless Steel Sides
ATP Finished Under Riser with LED Light
Stainless Steel Gooseneck Front-End
ATP Finished Under Riser with LED Lights

Framework Options Reverse Beavertail Atp Covered A Frame Bogey Wheel Skid Roller

ATP Covered A-Frame
Heavy Duty Rear Bogey Wheels
Reverse Beavertail

DOORS

Jacks

Hydraulic Nose Jack for Stacker & Gooseneck
Drop Down Jacks
Set Back Tongue Jack

All Drop Down Jacks 05 017 8k Hydraulic Nose Jack

12V Lighting & Options LED Side Docking Light 12v Kill Switch

LED Side Docking Light
Triple Tail Light with Backup
12V Rear Loading Light
12V Kill Switch
In-Floor 12V Battery

110V ELECTRICAL UPGRADES & PACKAGES

Additional Lighting
Swing-out Quartz Loading Light
500W Quartz Loading Lights

Electrical Service All 110v Electrical 240v Panel

Roof Options Folding Observation Deck With Side Ladder Roof Escape Hatch

Walk-On Roof
Roof Escape Hatch

Spare Tire & Mounts

In-Floor Spare Tire Storage
Tire Racks

Inside Spare Wall Mount All Spare Tire Mount Wall Spare Tire Mount

Tie Downs Wall D Ring Surface Mount

Airline Track
D-Ring & E-Track Tie Downs

Vents

Roof Vents
Aluminum Sidewall Vents

EXTERIOR SIDE DOORS & UPGRADES 60 Dbl Side Door

60″ Double Side Door
RV Side Door w/Window & Screen
Side Door Steps
Aluminum Step Well
54″ Over Wheel Well Door
Swing Up Door w/Removable Wheel Box Aluminum Models

RAMP DOOR OPTIONS Stainless Steel Rear Ramp Door

Aluminum Transition Flap
Aluminum Ramp Door
Cold Curtain
Sliding Rear Glass Doors
Stainless Ext. Rear Ramp Door
Turnkey 10′ Folding Ramps
Dragster Loading Package
Extended Flap for Ramp Door

UTILITY/MISC. DOORS Gn Riser Wall With Sliding Door

Access Doors
Pocket Door in Partition Wall

FINISHED INTERIOR

Insulation
ATP or Carpeted Wheel Boxes
Carpeted Walls & Aluminum Ceiling

GENERATORS Gen Control

Generator Prep
Fuel Tank Under Floor

FLOORING OPTIONS

Spray On Flooring

STORAGE / TOOL BOX Storage Box

WINDOWS All Windows

WINCHES Winch Full

WING ICON REAR Star Wing

CUSTOM OPTIONS

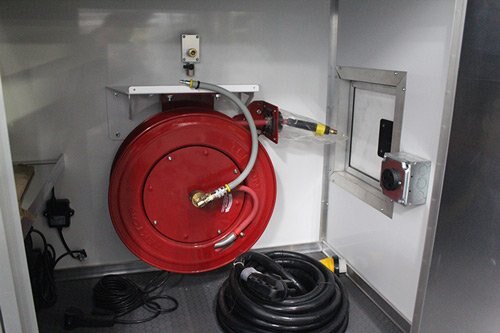

Air Line with Drain
Rear Camera
Sinks, Plumbing & Bathroom
Exterior Marine Speakers
And Much More

Airline W Drain A Frame Mounted LP Tanks With Cover All Sinks Plumbing Bathroom Rear Camera

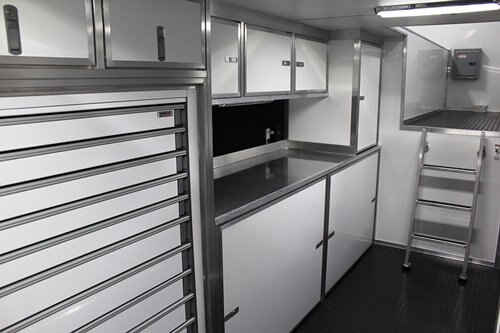

CUSTOM CABINETS, CLOSETS & TOOL BOXES

Alum Shelf Upgrade Cycle With Center Closet Computer Station Premium Aluminum 5 Drawer Tool Box

HVAC

Air Cond Heat

A/C
Heat

icon stacker packages

ICON Stacker Package

Available in Both Tag and Gooseneck or Fifthwheel Models

13’ G3 Car Lift
Recessed 12V Battery & Box
Recessed Hydraulic Pump

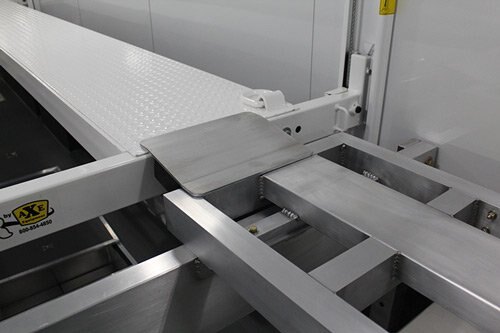

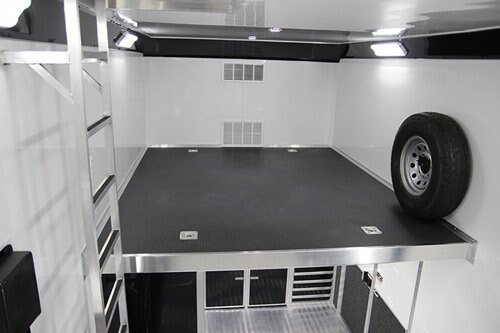

13’ Balcony System w/Cross over Ramps (GN or FW Models Only)
.050 Exterior Metal – Black or White
11’1″ Interior Height

Aluminum ICON Stacker Package

Available in Both Tag and Gooseneck or Fifthwheel Models
13’ G3 Car Lift
Recessed 12V Battery & Box
Recessed Hydraulic Pump
13’ Balcony System w/Cross over Ramps (GN or FW Models Only)
.050 Exterior Metal – Black or White
11’1″ Interior Height

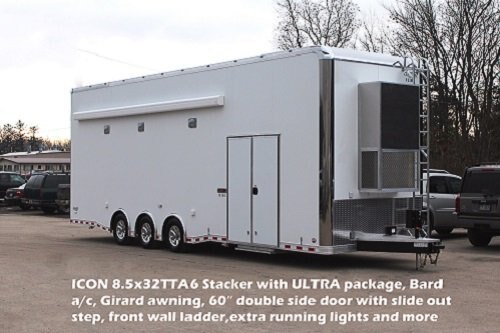

ICON Ultra Stacker Package

Silver Paint on Tongue or Under Riser
4- Angle Mounted 24” 12V LED Light
2 Pair- 12V 3-Way Switches
4- Interior Recepts
1- Exterior GFCI Recept
50A Combination Load Center w/60A Converter & Motorbase Plug
12V Fuse Block
12V Kill Switch
1- 24” 12V LED Light Under Cabinet or Ceiling Mount w/12V Switch
Screwless Interior Walls
Screwless Aluminum Ceiling

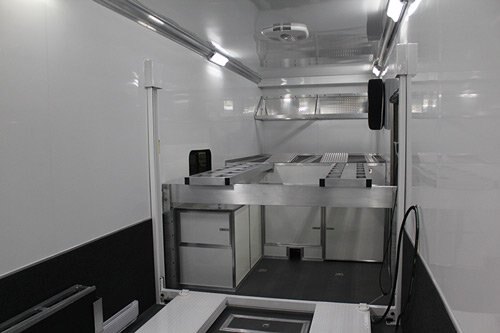

Aluminum Straight Base & Overhead Cabinets w/Stainless Top & Mill Finish Covered Shelf
2- 3” x 7” LED Exterior Surface Mount Mini Scene Lights w/Hi-Lo Switch
Ultra Badging
