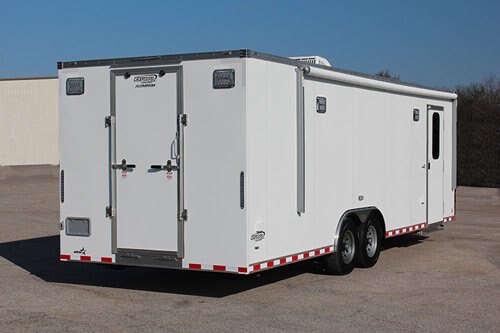

2021 Bravo Custom Commercial/Specialty Trailers

  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
  • 2021 Bravo Custom Commercial/Specialty Trailers
In Stock
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Custom Commercial/Specialty Trailers You Deserve the Best!
BT Hero Government 600x380

Bravo is the perfect partner for your custom commercial or specialty trailer project. Each use has different needs and the Bravo team will work with you to build the perfect trailer in either aluminum or steel. With Bravo’s years of experience you can trust we’ll get it right. Pick from our 1000’s of options and we will create your dream trailer. Bravo commercial trailers work better, tow better, look better, and last longer. We make dreams come true!
Picking the Perfect Custom Commercial/Specialty Trailer Is Easy Custom Bottom 600x361
Contacting your authorized Bravo dealer is a great first step. Working together we will design the perfect custom trailer and make your project a success. Bravo has the resources to build it right and deliver it on time. You will not be disappointed. Our steadfast goal is to exceed your expectations!
Specifications
Model
Custom Commercial/Specialty Trailers
Category Name
Trailers
Year
2021
Sale Type
New
Manufacturer
Bravo
Color
VICTORY RED , BRANDYWINE , INDIGO BLUE , CARGO GREEN , PENSKE YELLOW* , SCHNEIDER ORANGE* , BLACK , METALLIC CHARCOAL , DOVE GRAY , WINDSTAR SILVER , CHAMPAGNE BEIGE , METALLIC PEWTER , CRYSTAL WHITE , MATTE BLACK* , ARCTIC GREEN*
specs
Details ST610SA ST612SA ST712SA ST714TA2 ST716TA2 ST718TA2 ST714TA3
Axles 2990# 2990# 3500# 3500# 3500# 3500# 5200#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial
Brakes Option Option Electric Electric Electric Electric Electric
Tube Frame 3″ Tube 3″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube
Hitch Ball Size 2″ 2″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 1145# 1300# 1825# 2110# 2300# 2530# 2475#
Hitch Weight 155# 160# 195# 315# 345# 379# 372#
GVWR 2990# 2990# 3500# 7000# 7000# 7000# 9990#
Payload Capacity 1845# 1690# 1675# 4890# 4700# 4470# 7515#
Overall Length 14′-2″ 16′-2″ 16′-1″ 18′-1″ 20′-1″ 22′-1″ 18′-1″
Overall Width 7′-8″ 7′-8″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 7′-8″ 7′-8″ 7′-10″ 7′-10″ 7′-10″ 7′-10″ 7′-10″
Exterior Box Width 6′ 6′ 7′ 7′ 7′ 7′ 7′
Interior Length 10′-2″ 12′-2″ 11′-8″ 13′-8″ 15′-8″ 17′-8″ 13′-8″
Interior Lower Deck Length N/A N/A N/A N/A N/A N/A N/A
Interior Upper Deck Length N/A N/A N/A N/A N/A N/A N/A
Interior Width 5′-8″ 5′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″
Width Between W/W N/A N/A N/A N/A N/A N/A N/A
Interior Height 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″ 6′-1″
Interior Riser Wall Height N/A N/A N/A N/A N/A N/A N/A
Interior Attic Height N/A N/A N/A N/A N/A N/A N/A
Platform Height 18″ 18″ 20″ 20″ 20″ 20″ 20″
Rear Doors Double Double Double Double Double Double Double
Rear Door Width 5′-3″ 5′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″ 6′-3″
Rear Door Height 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″ 5′-6″
Side Door Width 32″ 32″ 32″ 32″ 32″ 32″ 32″
Side Door Height 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″ 5′-2″
Cross Members O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.
24″ O.C.





Details ST716TA3 ST718TA3 ST8516TA2 ST8520TA2 ST8524TA2 ST8516TA3 ST8520TA3
Axles 5200# 5200# 3500# 3500# 3500# 5200# 5200#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial
Brakes Electric Electric Electric Electric Electric Electric Electric
Tube Frame 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube
Hitch Ball Size 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 2665# 2855# 2416# 2900# 3384# 2678# 3188#
Hitch Weight 400# 429# 326# 391# 456# 361# 430#
GVWR 9990# 9990# 7000# 7000# 7000# 9990# 9990#
Payload Capacity 7325# 7135# 4584# 4100# 3616# 7312# 6802#
Overall Length 20′-1″ 22′-1″ 20′-2″ 24′-2″ 28′-2″ 20′-2″ 24′-2″
Overall Width 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 7′-10″ 7′-10″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″
Exterior Box Width 7′ 7′ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Length 15′-8″ 17′-8″ 15′-8″ 19′-8″ 23′-8″ 15′-8″ 19′-8″
Interior Lower Deck Length N/A N/A N/A N/A N/A N/A N/A
Interior Upper Deck Length N/A N/A N/A N/A N/A N/A N/A
Interior Width 6′-8″ 6′-8″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″
Width Between W/W N/A N/A 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″
Interior Height 6′-1″ 6′-1″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″
Interior Riser Wall Height N/A N/A N/A N/A N/A N/A N/A
Interior Attic Height N/A N/A N/A N/A N/A N/A N/A
Platform Height 20″ 20″ 20″ 20″ 20″ 20″ 20″
Rear Doors Double Double Double Double Double Double Double
Rear Door Width 6′-3″ 6′-3″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″
Rear Door Height 5′-6″ 5′-6″ 6′ 6′ 6′ 6′ 6′
Side Door Width 32″ 32″ 36″ 36″ 36″ 36″ 36″
Side Door Height 5′-2″ 5′-2″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″
Cross Members O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.
24″ O.C.





Details ST8524TA3 ST8528TA3 STG8536TTA3 STG8540TTA3 STG8544TTA3 STG8536TTA4 STG8540TTA4 STG8544TTA4 STG8548TTA4
Axles 5200# 5200# 5000# 5000# 5000# 6000# 6000# 6000# 6000#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 16″ Radial 16″ Radial 16″ Radial 16″ Radial
Brakes Electric Electric Electric Electric Electric Electric Electric Electric Electric
Tube Frame 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube
Hitch Ball Size 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 3697# 4207# 6655# 7079# 7522# 6948# 7372# 7815# 8231#
Hitch Weight 499# 568# 1664# 1770# 1881# 1737#

1843#

1954#

2058#
GVWR 9990# 9990# 15600# 15600# 15000# 18000# 18000# 18000# 18000#
Payload Capacity 6293# 5783# 8945# 8521#

8078#

11052#

10628#

10185#

9769#
Overall Length 28′-2″ 32′-2″ 36′-6″ 40′-6″ 44′-6″ 36′-6″ 40′-6″ 44′-6″ 48′-6″
Overall Width 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 8′-5″ 8′-5″ 9′ 9′ 9′ 9’1″ 9’1″ 9’1″ 9’1″
Exterior Box Width 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Length 23′-8″ 27′-8″ 28″ 32″

36’

 28′ 32″ 36’ 40′
Interior Lower Deck Length N/A N/A 28′ 32′ 36′ 28′ 32′ 36′ 40′
Interior Upper Deck Length N/A N/A 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Width 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″
Width Between W/W 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″
Interior Height 6′-7″ 6′-7″ 7′ 7′ 7′ 7′ 7′ 7′ 7′
Interior Riser Wall Height N/A N/A 53″ N/A 53″ 53″ 53″ 53″ 53″
Interior Attic Height N/A N/A 31″ N/A 31″ 31″ 31″ 31″ 31″
Platform Height 20″ 20″ 20″ 20″ 20″ 21″ 21″ 21″ 23″
Rear Doors Double Double Double Double Double Double Double Double Double
Rear Door Width 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″
Rear Door Height 6′ 6′ 6′-6″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″ 6′-8″
Side Door Width 36″ 36″ 48″ 48″ 48″ 48″ 48″ 48″ 48″
Side Door Height 5′-10″ 5′-10″ 6′-6″ 78″ 78″ 78″ 78″ 78″ 78″
Cross Members O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.
24″ O.C.
24″ O.C. 24″ O.C.





star custom options

Tag Models Available:
6′ X 10′ to 12’L
7′ X 12′ to 24’L
8.5′ X 14′ to 34’L

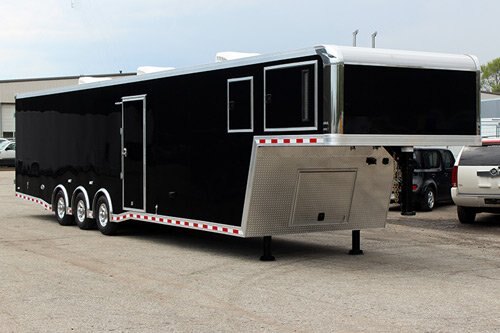

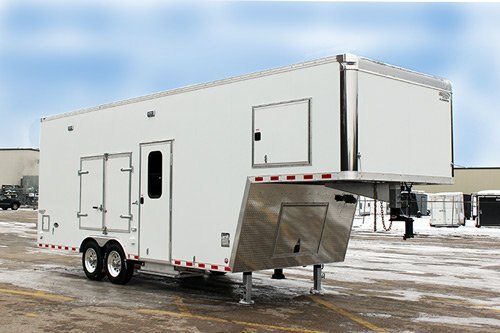

Gooseneck/Fifth Wheel Models Available:
8.5′ X 36′ to 48’L
AWNING
AXLES, RUNNING GEAR & WHEELS BLADE ALUM WHEELS ALUM SERIES WHEELS HeavyDutySteelWheels Aluminum Mod Wheel Hd Surge Brakes W Adj Coupler DexterTorflex
  • Axles Dexter Torsion
  • Aluminum Wheels
  • Heavy Duty Steel Wheels
  • Brakes – Heavy Duty Surge with Adjustable Coupler
  • Electric/Hydraulic Disc Brakes (Available on 6k, 7k or 8k axles)

Exterior Metal Options Scout Colors Fall Colors 6 Red White Blue Cool Color 6 Cool Colors 4

  • Exterior Colors
  • Split Color / Two Tone
  • ATP Rear Crossmember
  • Stainless Steel Gooseneck
  • ATP Finished Under Riser with LED Lights

Framework Options Star Icon Extended A Frame Set Back Jack SHD A Frame Pintle 5K Jack Extended V Nose Tongue Atp Covered A Frame Bogey Wheel Skid Roller

  • Extra Height – 6” – 48” Available. Based on Model Width & GVWR
  • Extended A-Frame
  • Removable A-Frame
  • ATP Covered A-Frame
  • Reverse Beavertail
  • Heavy Duty Rear Bogey Wheels

Front End Styles

  • Slant Wedge
  • V-Nose
Jacks
  • Drop Down
  • Jacks Nose Jacks

All Drop Down Jacks All Power Nose Jack

12V Lighting & Options Rear Loading Light Rear LED Scene Loading Lights Rear Qi Interior Loading Lights 12v Kill Switch

  • Rear Loading Light
  • Swing-out 12V Quartz Loading Light
  • 12V Kill Switch
110V ELECTRICAL UPGRADES & PACKAGES

Electrical Service All 110v Electrical 240v Panel

Roof Options Scout Star Ladder Racks Removable Ladder And Racks Folding Observation Deck With Side Ladder Roof Escape Hatch

  • Roof Ladder Racks
  • Roof Observation Deck w/ Ladder
  • Roof Escape Hatch
  • Roof Translucent

Spare Tire & Mounts

  • Tire Racks

Inside Spare Wall Mount All Spare Tire Mount Wall Spare Tire Mount
Tie Downs Wall D Ring Surface Mount Tie Downs Tie Down Swivel Recessed Wheel Chock
  • D-Ring & E-Track Tie Downs
  • Wheel Chocks
Vents Aluminum Sidewall Vent Roof Vent 002 12 V Power Vent Maxx Air Combo Pic
  • Roof Vents
  • Sidewall Vents Aluminum
EXTERIOR SIDE DOORS & UPGRADES 60 Dbl Side Door Bar Lock Aluminum Foldout Step Icon Slide Out Step Scout Star Vise Lock
  • 60” Double Side Door
  • RV Side Door w/ Window & Screen
  • Side Door Steps
  • Bar Lock & Vise Lock
  • 54” Over Wheel Well Door
  • Swing Up Door w/ Removable Wheel Box Aluminum Models
RAMP OR REAR DOOR OPTIONS Star With Icon Rear Lights Full SteelTransitionFlap Aluminum Transition Flap Double Rear Cam Lock Full Cold Curtain
  • Double Rear Door Cam Lock
  • Rear Ramp Door (Light Duty, Medium Duty w/Flap, Heavy Duty w/Flap)
  • ICON Rear Lights on Ramp Door
  • Transition Flap for Ramp Door
  • Turnkey 10’ Folding Ramps
  • Cold Curtain
  • Sliding Rear Glass Doors
  • Rear Roll-up Style Door
UTILITY/MISC. DOORS All Generator Baggage Door 01 Cable Splicing Door A Frame Mounted Aluminum Generator Box Gn Access Door Open Pocket Door In Partition Wall

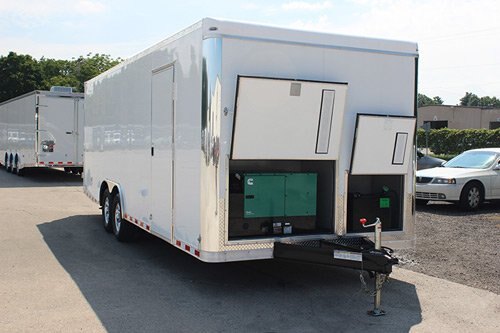

  • Generator / Baggage Doors
  • Cable Splicing Door
  • Gooseneck Access Doors
  • Pocket Door in Partition Wall
FINISHED INTERIOR Spray On Flooring All Insulation Flooring Checkered Board Vinyl Floor
  • Flooring Options
  • Insulation

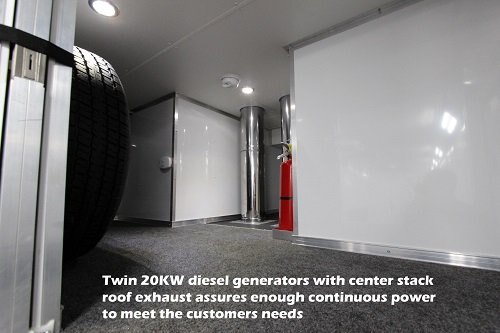

GENERATORS Gen Control Gen W Tank Star Icon Filler Door Under Floor Fuel Tank Gen Control Panel Full
  • Fuel Tank

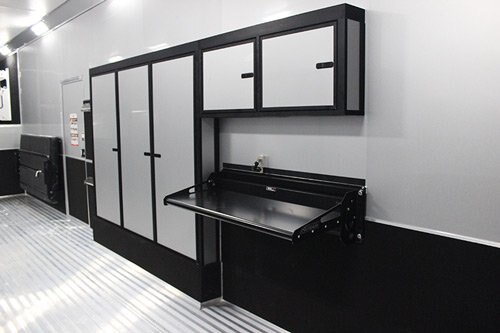

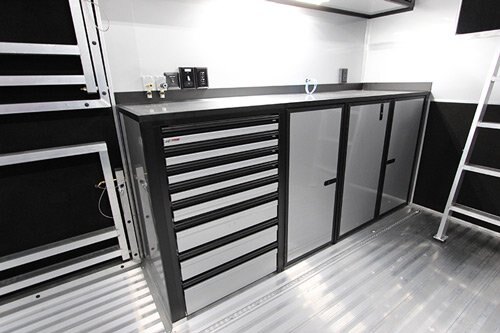

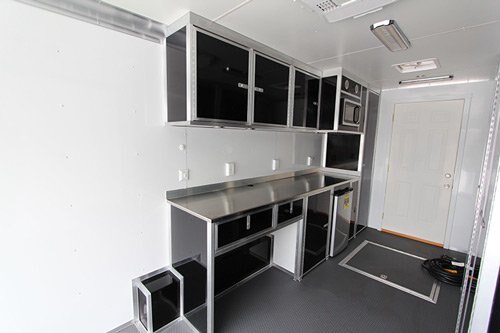

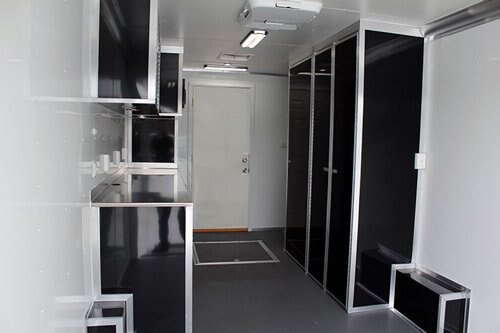

CABINETS

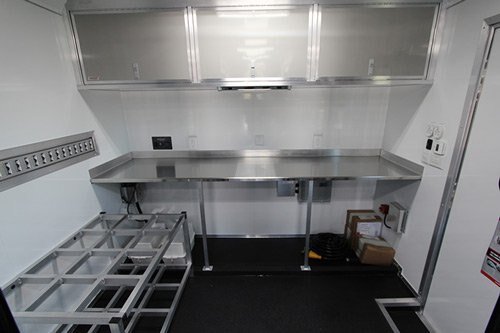

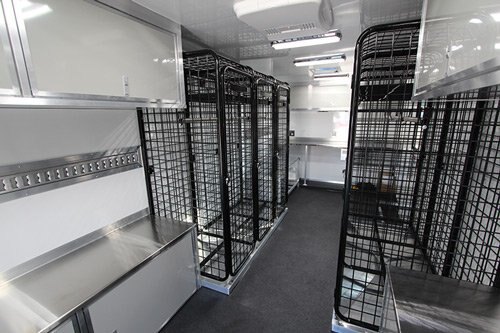

  • Interior Shelving

Star Int Cabinets 01 Star Int Cabinets 02 Alum Shelf Upgrade Gn Interior Super Star Interior Star Shelving
STORAGE / TOOL BOX Storage Box 27 067 ATP Tool Box
WINDOWS All Windows
WINCH OPTIONS Winch Full Winch Wireless Remote Full
WING – STAR REAR Star Wing

CUSTOM OPTIONS

  • Air Line with Drain
  • LP Tanks

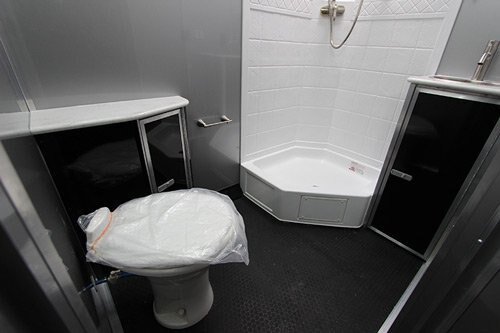

  • Sinks, Plumbing & Bathrooms
  • Outdoor Shower
  • Display Cases with Slat Board Wall
  • Rear Camera

Airline W Drain A Frame Mounted LP Tanks With Cover All Sinks Plumbing Bathroom Rear Camera

CONCESSION DOORS & WINDOWS

  • Exterior Removable Shelf

All Vendor Concession Windows 01 All Vendor Concession Windows 02 Star Vendor Doors MarquisDoors Exterior Removeable Shelf
star custom packages

Midnight Edition Package



Must Include V-Nose & Ramp Door

Black Out Thermocoat items to include:

  • Fenders Inside and Out
  • Top Rail & Bottom Trim
  • Side Door Trim & Stoneguard
  • Cast Aluminum Door Holdbacks
  • Rear Corners
  • Bezels on Fender & Tail Lights
  • Stainless Center Cap if Steel Wheel
  • Black Center Caps if Aluminum Wheel Optioned

Appearance Package

  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps

Super Star Package

Not Available with V-Front

  • Aluminum Wheels
  • Polished Fenders
  • Stainless Steel Center caps
  • Stainless Steel Front Insert
  • Polished Front & Rear Corner Casting
  • Anodized Rear Corner Overlay
  • Chrome Bezels for LED Tail Lights
Documents
