ID # 17220078

2021 Bravo Powersports Trailers

  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
  • 2021 Bravo Powersports Trailers
In Stock
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Powersports Trailers You Deserve the Best!
Powersports Top 600x359

We use what we sell. The owner of Bravo is a toy guy and racer who is passionate about trailers. Unlike other brands we understand what you want in a motorcycle, snowmobile or UTV trailer in both aluminum and steel. Pick from our 1000’s of options and we will create your dream trailer. Whether you choose a Scout, Star, SilverStar or Star ALUMINUM our trailers tow better, look better, load easier and last longer. We make dreams come true!
Picking the Perfect Powersports Trailer Is Easy Powersports Bottom 600x410
Contacting your authorized Bravo dealer is a great first step. They are experts in trailering and will help you choose the best trailer for you. Many times they will have the right trailer for you in stock. If not they will work with you designing the perfect custom trailer and Bravo will build it right and deliver it on time. Our steadfast goal is to exceed your expectations!
Specifications
Model
Powersports Trailers
Category Name
Trailers
Year
2021
Sale Type
New
Manufacturer
Bravo
Color
VICTORY RED , BRANDYWINE , INDIGO BLUE , CARGO GREEN , PENSKE YELLOW* , SCHNEIDER ORANGE* , BLACK , METALLIC CHARCOAL , DOVE GRAY , WINDSTAR SILVER , CHAMPAGNE BEIGE , METALLIC PEWTER , CRYSTAL WHITE , ARCTIC GREEN*
specs
Details SC58SA SC510SA SC610SA SC612SA SC712SA
Axles 2990# 2990# 2990# 2990# 3500#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial
Brakes Optional Optional Optional Optional Electric
Tube Frame 3″ Tube 3″ Tube 3″ Tube 3″ Tube 4″ Tube
Hitch Ball Size 2″ 2″ 2″ 2″ 2-5/16″
Curb Weight 850# 1008# 1080# 1250# 1588#
Hitch Weight 128# 151# 162# 187# 238#
GVWR 2990# 2990# 2990# 2990# 3500#
Payload Capacity 2140# 1982# 1910# 1740# 1912#
Overall Length 12′-2″ 14′-2″ 14′-2″ 16′-2″ 16′-1″
Overall Width 6′-6″ 6′-6″ 7′-6″ 7′-6″ 8′-6″
Overall Height 6′-8″ 6′-8″ 7′-8 7′-8″ 7′-8
Exterior Box Width 5′ 5′ 6′ 6′ 7′
Interior Length 8′-5″ 10′-5″ 10′-5″ 12′-5″ 12′-6″
Interior Width 4′-8″ 4′-8″ 5′-8″ 5′-8″ 6′-9″
Width Between W/W N/A N/A N/A N/A N/A
Interior Height 5′-1″ 5′-1″ 6′-1″ 6′-1″ 6′-1″
Platform Height 18″ 18″ 18″ 18″ 18″
Rear Doors Single Single Double Double Double
Rear Door Width 4′-2″ 4′-2″ 5′-2″ 5′-2″ 6′-3″
Rear Door Height 4′-6″ 4′-6″ 5′-6″ 5′-6″ 5′-6″
Side Door Width N/A N/A 32″ 32″ 32″
Side Door Height N/A N/A 5′-2″ 5′-2″ 5′-2″
Cross Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.





Details SC714TA2 SC716TA2 SC8516TA2 SC8520TA2 SC8524TA2
Axles 3500# 3500# 3500# 3500# 3500#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial
Brakes Electric Electric Electric Electric Electric
Tube Frame 4″ Tube 4″ Tube 6″ Tube 6″ Tube 6″ Tube
Hitch Ball Size 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 2053# 2278# 2416# 2900# 3384#
Hitch Weight 307# 341# 362# 435# 507#
GVWR 7000# 7000# 7000# 7000# 7000#
Payload Capacity 4947# 4722# 4584# 4100# 3616#
Overall Length 18′-1″ 20′-1″ 20′-2″ 24′-2″ 28′-2″
Overall Width 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 7′-8 7′-8 8′-5″ 8′-5″ 8′-5″
Exterior Box Width 7′ 7′ 8′-4″ 8′-4″ 8′-4″
Interior Length 14′-6″ 16′-6″ 16′-6″ 20′-6″ 24′-6″
Interior Width 6′-9″ 6′-9″ 8′ 8′ 8′
Width Between W/W N/A N/A 81-3/4″ 81-3/4″ 81-3/4″
Interior Height 6′-1″ 6′-1″ 6′-7″ 6′-7″ 6′-7″
Platform Height 18″ 18″ 20″ 20″ 20″
Rear Doors Double Double Double Double Double
Rear Door Width 6′-3″ 6′-3″ 7′-7″ 7′-7″ 7′-7″
Rear Door Height 5′-6″ 5′-6″ 6′ 6′ 6′
Side Door Width 32″ 32″ 36″ 36″ 36″
Side Door Height 5′-2″ 5′-2″ 5′-10″ 5′-10″ 5′-10″
Cross Members O.C. 24″ O.C. 24″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.









scout powersports options
Tag Models Available:
5′ X 8′ to 10’L
6′ X 10′ to 12’L
7′ X 12′ to 24’L
8.5′ X 14′ to 24’L
AWNING
AXLES, RUNNING GEAR & WHEELS BLADE ALUM WHEELS ALUM SERIES WHEELS DexterTorflex
  • Axles Dexter Torsion
  • Aluminum Wheels

Exterior Metal Options Scout Colors Scout Two Tone

  • Exterior Colors

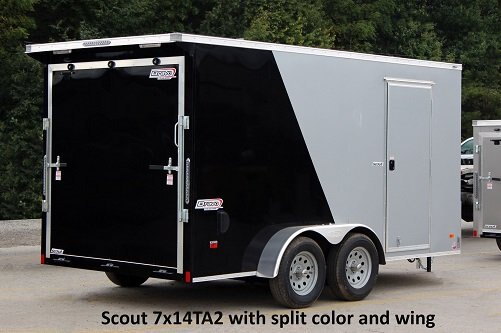

  • Split Color / Two Tone

Framework Options Atp Covered A Frame

  • Extra Height – 6” or 12” (12″ n/a on 8.5’w)
  • ATP Covered A-Frame

Front End Styles

  • Slant Wedge
  • V-Nose
Jacks
  • Fold Down Jacks

Scout 1000 Lb Stabilizer Jack

12V Lighting & Options Rear Loading Light LED Dome Light

  • 12V LED Dome Light
  • 12V Wall Switches (2) 3-Way
  • Rear Loading Light

Roof Options Scout Star Ladder Racks Translucent Ceiling

  • Ladder Racks
  • Roof Translucent

Spare Tire & Mounts

Inside Spare Wall Mount All Spare Tire Mount
Tie Downs Tie Downs Recessed Wheel Chock
  • D-Ring & E-Track Tie Downs

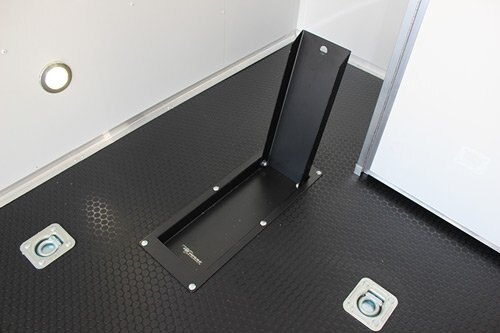

  • Wheel Chocks
Vents Aluminum Sidewall Vent Roof Vent 002
  • Roof Vents
  • Sidewall Vents Aluminum
SIDE & REAR DOOR OPTIONS RV SideDoor WindowandScreen SteelTransitionFlap Scout Star Vise Lock Bar Lock Rear Ramp Door
  • RV Side Door w/ Window & Screen
  • Bar Lock & Vise Lock

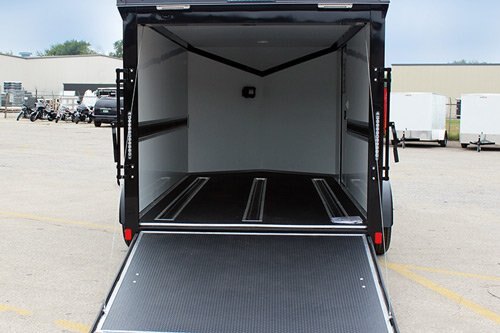

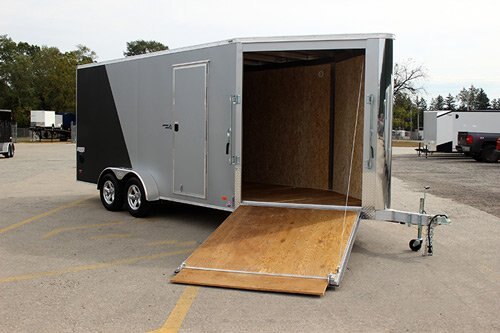

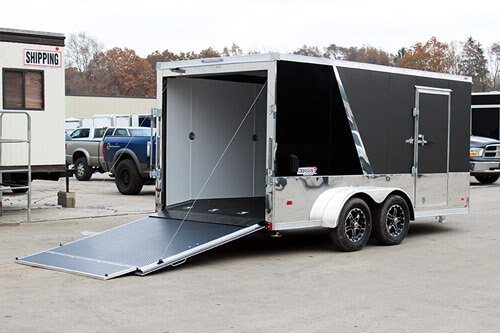

  • Rear Ramp Door (Light, Medium & Heavy Duty w/ Flap)
  • Transition Flap – Steel or Aluminum

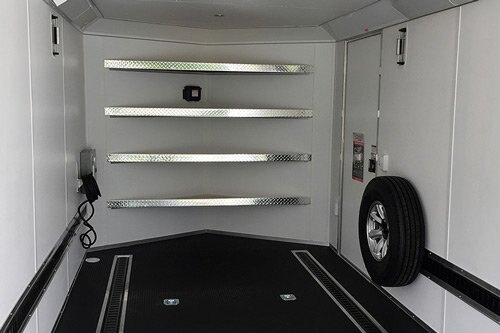

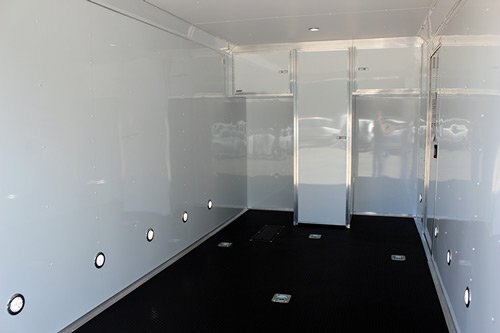

FINISHED INTERIOR Scout Star Finished Interior Flooring
  • Flooring Options
CABINETS Cabinet Base Overhead Tool V Nose Base Overhead Cycle Cab Pkg
WINDOWS All Windows
scout powersports packages

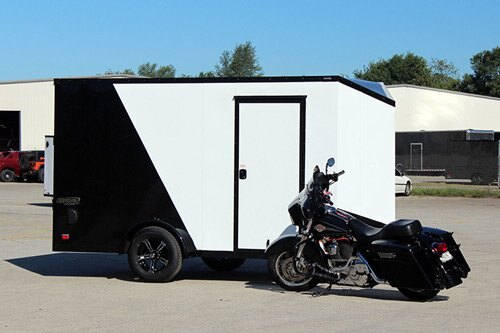

Motorcycle Single Axle Package



Available on 6’ & 7’W Single Axle Models Only

  • Medium Duty Ramp Door w/Flap
  • 1000# Fold Down Jacks
  • 4- 5000# Recessed Floor D-Rings
  • Mounting Plate for Wheel Chock (Chock sold separately)
  • 16” On Center Floor Members

Motorcycle Tandem Axle Package

  • Available on 7’W Tandem Axle Models Only

  • Medium Duty Ramp Door w/Flap
  • 1000# Fold Down Jacks
  • 7- 5000# Recessed Floor D-Rings
  • 2- Mounting Plates for Wheel Chock (Chock sold separately)
  • 16” On Center Floor Members

UTV Package

  • Available on 7’W Tandem Axle Models Only (14′, 16′ & 18’L)

  • Medium Duty Ramp Door w/Flap
  • Stoneguard Top Trim
  • Exterior LED Rear Header Loading Light w/12V Switch
  • Bonded Sidewalls
  • Tube Wall Post 16” On Center ilo Z’s
  • 12” Ex Height
  • 16” On Center Floor Members
  • 30” V-nose
  • 4- 5000# Recessed Floor D-Rings

Appearance Package

  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps

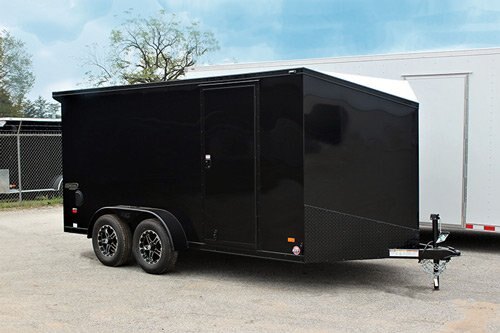

Midnight Edition Package

Must Include V-Nose & Ramp Door

Black Out Thermocoat items to include:

  • Fenders Inside and Out
  • Top Rail & Bottom Trim
  • Side Door Trim & Stoneguard
  • Cast Aluminum Door Holdbacks
  • Rear Corners
  • Bezels on Fender & Tail Lights
  • Stainless Center Cap if Steel Wheel
  • Black Center Caps if Aluminum Wheel Optioned

Street Package

  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps
  • Anodized Strip on ‘V’ Front with V-Nose Option
  • Stoneguard Top Trim with V-Nose Option
  • Anodized Front Vertical Corners on Standard Front
  • Aluminum Wheels
  • Anodized Angled Exterior Strip
  •
