ID # 17219447

2021 Bravo Race Trailers

  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
  • 2021 Bravo Race Trailers
In Stock
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Race Trailers You Deserve the Best! Race Top 600x384

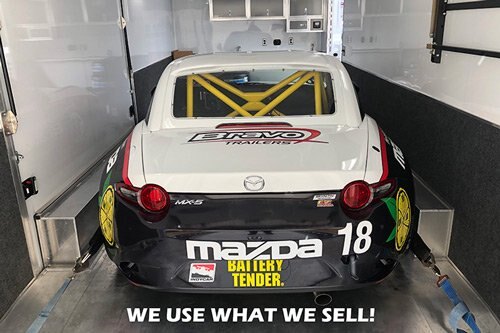

We use what we sell. The owner of Bravo is an avid racer who is passionate about trailers. Unlike other brands we understand what you want in a premium race trailer and deliver it in both aluminum and steel models. Pick from our racer tested options and we will create your dream trailer. Whether you choose a Star, SilverStar or ICON our trailers tow better, look better, load easier and last longer. We make dreams come true!
Picking the Perfect Race Trailer Is Easy Race Bottom 600x388
Contacting your authorized Bravo dealer is a great first step. They are experts in race car trailering and will help you choose the best trailer for you. Many times they will have the right trailer for you in stock. If not they will work with you designing the perfect custom car trailer and Bravo will build it right and deliver it on time. Our steadfast goal is to exceed your expectations!
Specifications
Model
Race Trailers
Category Name
Trailers
Year
2021
Sale Type
New
Manufacturer
Bravo
Color
VICTORY RED , BRANDYWINE , INDIGO BLUE , CARGO GREEN , PENSKE YELLOW* , SCHNEIDER ORANGE* , BLACK , METALLIC CHARCOAL , DOVE GRAY , WINDSTAR SILVER , CHAMPAGNE BEIGE , METALLIC PEWTER , CRYSTAL WHITE , MATTE BLACK* , ARCTIC GREEN*
specs
Details ST8516TA2 ST8520TA2 ST8524TA2 SC8520TA3 ST8520TA3 ST8524TA3 ST8528TA3
Axles 3500# 3500# 3500# 5200# 5200# 5200# 5200#
Tires 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial 15″ Radial
Brakes Electric Electric Electric Electric Electric Electric Electric
Tube Frame 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube
Hitch Ball Size 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 2416# 2900# 3384# 2678# 3188# 3697# 4207#
Hitch Weight 362# 391# 456# 361# 430# 499# 568#
GVWR 7000# 7000# 7000# 9990# 9990# 9990# 9990#
Payload Capacity 4584# 4100# 3616# 7312# 6802# 6293# 5783#
Overall Length 20′-2″ 24′-2″ 28′-2″ 20′-2″ 24′-2″ 28′-2″ 32′-2″
Overall Width 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″ 8′-5″
Exterior Box Width 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Length 15′-8″ 19′-8″ 23′-8″ 15′-8″ 19′-8″ 23′-8″ 27′-8″
Interior Lower Deck Length N/A N/A N/A N/A N/A N/A N/A
Interior Upper Deck Length N/A N/A N/A N/A N/A N/A N/A
Interior Width 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″
Width Between W/W 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″
Interior Height 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″ 6′-7″
Interior Riser Wall Height N/A N/A N/A N/A N/A N/A N/A
Interior Attic Height N/A N/A N/A N/A N/A N/A N/A
Platform Height 20″ 20″ 20″ 20″ 20″ 20″ 20″
Rear Doors Double Double Double Double Double Double Double
Rear Door Width 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″
Rear Door Height 6′ 6′ 6′ 6′ 6′ 6′ 6′
Side Door Width 36″ 36″ 36″ 36″ 36″ 36″ 36″
Side Door Height 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″ 5′-10″
Cross Members O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.
24″ O.C.





Details STG8536TTA3 STG8540TTA3 STG8544TTA3 STG8536TTA4 STG8540TTA4 STG8544TTA4 STG8548TTA4
Axles 5200# 5200# 5200# 6000# 6000# 6000# 6000#
Tires 15″ Radial 15″ Radial 15″ Radial 16″ Radial 16″ Radial 16″ Radial 16″ Radial
Brakes Electric Electric Electric Electric Electric Electric Electric
Tube Frame 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 6″ Tube 8″ Tube
Hitch Ball Size 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
Curb Weight 6655# 7079# 7522# 6948# 7372# 7815# 8231#
Hitch Weight 1664# 1770# 1881# 1737# 1843# 1954# 2058#
GVWR 15600# 15600# 15600# 18000# 18000# 18000# 18000#
Payload Capacity 8945# 8521# 8078# 11052# 10628# 10185# 9769#
Overall Length 36′-6″ 40′-6″ 44′-6″ 36′-6″ 40′-6″ 44′-6 48′-6″
Overall Width 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″ 8′-6″
Overall Height 9′ 9′ 9′ 9’1″ 9’1″ 9’1″ 9’3″
Exterior Box Width 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Length 28′ 32′ 36’ 28′ 32′ 36’ 40′
Interior Lower Deck Length 28′ 32′ 36′ 28′ 32′ 36′ 40′
Interior Upper Deck Length 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″ 8′-4″
Interior Width 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″
Width Between W/W 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″ 81-1/2″
Interior Height 7′ 7′ 7′ 7′ 7′ 7′ 7′
Interior Riser Wall Height 53″ 53″ 53″ 53″ 53″ 53″ 51″
Interior Attic Height 31″ 31″ 31″ 31″ 31″ 31″ 31″
Platform Height 20″ 20″ 20″ 21″ 21″ 21″ 23″
Rear Doors Double Double Double Double Double Double Double
Rear Door Width 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″ 7′-7″
Rear Door Height 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″
Side Door Width 48″ 48″ 48″ 48″ 48″ 48″ 48″
Side Door Height 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″
Cross Members O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Wall Posts O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C. 16″ O.C.
Roof Members O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C. 24″ O.C.
24″ O.C.





star race options

Tag Models Available:
8.5′ X 24′ to 34’L

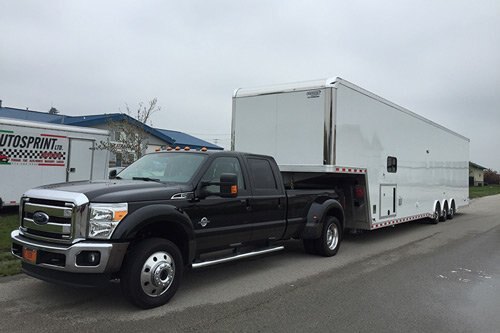

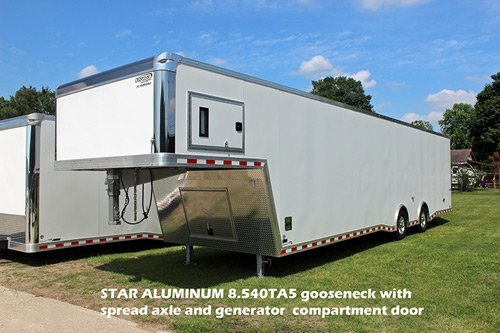

Gooseneck/Fifth Wheel Models Available:
8.5′ X 36′ to 48’L
Awning - Axles, Running Gear & Wheels BLADE ALUM WHEELS ALUM SERIES WHEELS HeavyDutySteelWheels Aluminum Mod Wheel Disc Brake 8k Axle DexterTorflex
  • Axles Dexter Torsion
  • Aluminum Wheels
  • Heavy Duty Steel Wheels
  • Electric/Hydraulic Disc Brakes (Available on 6k, 7k or 8k axles)

Exterior Metal Options Scout Colors Fall Colors 6 Red White Blue Cool Color 6 Atp Rear Crossmember Atp Finished Under Riser With Led Lights Full

  • Exterior Colors
  • Split Color / Two Tone
  • ATP Rear Crossmember
  • Stainless Steel Gooseneck
  • ATP Finished Under Riser with LED Lights

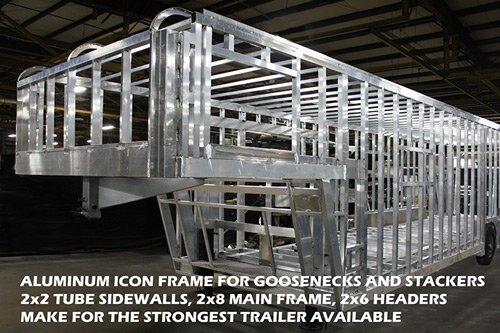

Framework Options Star Icon Extended A Frame Set Back Jack SHD A Frame Pintle 5K Jack Extended V Nose Tongue Reverse Beavertail Atp Covered A Frame Bogey Wheel Skid Roller

  • Extra Height – 6” – 48” Available. Based on Model Width & GVWR
  • Extended A-Frame
  • ATP Covered A-Frame
  • Reverse Beavertail
  • Heavy Duty Rear Bogey Wheels

Front End Styles

  • Bull Nose
Jacks
  • Drop Down
  • Nose Jacks

All Drop Down Jacks All Power Nose Jack 05 017 8k Hydraulic Nose Jack

12V Lighting & Options Rear Loading Light Rear LED Scene Loading Lights Rear Qi Interior Loading Lights Rear Wing LED Lighting Icon Star Swing Out Loading Light 12v Kill Switch Star Wing

  • Rear Loading Light
  • Swing-out 12V Quartz Loading Light
  • 12V Kill Switch
110V ELECTRICAL UPGRADES & PACKAGES

Electrical Service All 110v Electrical 240v Panel
DOORS

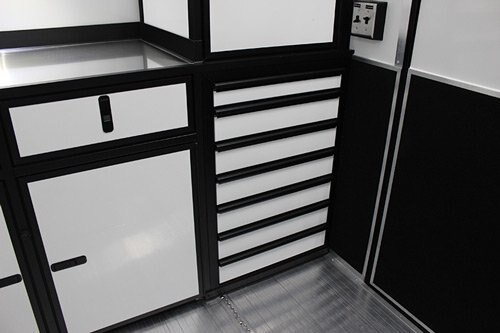

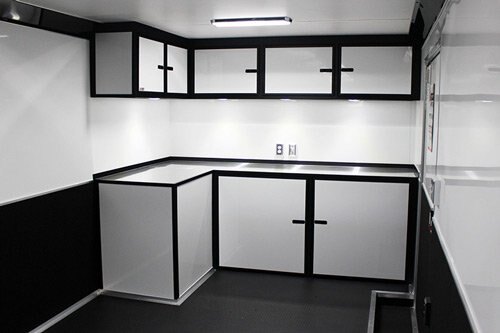

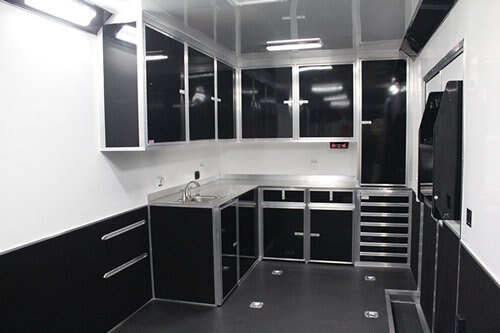

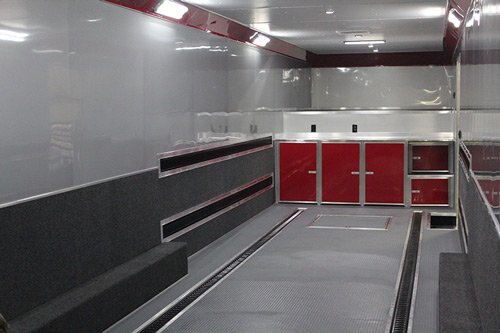

Cabinets

  • Interior Shelving

Star Int Cabinets 01 Star Int Cabinets 02 Alum Shelf Upgrade Cycle With Center Closet Over Wheel Well Cabinets V Nose Cabinets Mobile Lab Workshop Star Shelving Star Landscape Shelf

Roof Options Removable Ladder And Racks Scout Star Ladder Racks Folding Observation Deck With Side Ladder Roof Escape Hatch Translucent Ceiling

  • Roof Ladder Racks

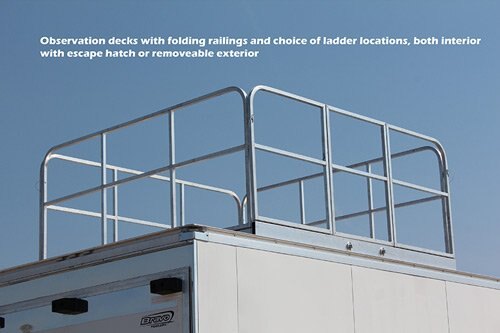

  • Roof Observation Deck w/ Ladder
  • Roof Escape Hatch
  • Roof Translucent

Spare Tire & Mounts

  • Tire Racks

Inside Spare Wall Mount All Spare Tire Mount Wall Spare Tire Mount Folding Tire Rack
Tie Downs Wall D Ring Surface Mount Tie Downs Tie Down Swivel Recessed Wheel Chock

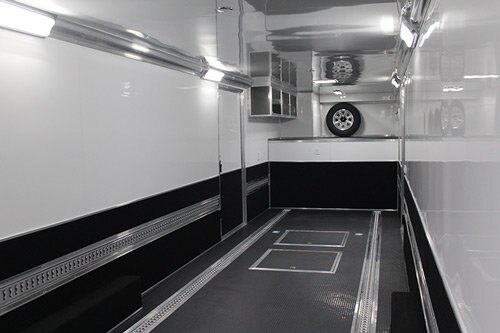

  • D-Ring & E-Track Tie Downs
  • Wheel Chocks
Vents Aluminum Sidewall Vent Roof Vent 002 12 V Power Vent Maxx Air Vent Full
  • Roof Vents
  • Sidewall Vents Aluminum
CONCESSION DOORS & WINDOW All Vendor Concession Windows 01 All Vendor Concession Windows 02 Exterior Removeable Shelf Star Vendor Doors
  • Exterior Removable Shelf
EXTERIOR SIDE DOORS & UPGRADES 60 Dbl Side Door RV SideDoor WindowandScreen Aluminum Foldout Step Icon Slide Out Step Scout Star Vise Lock 02 Swing Door Open No Box 1024x683

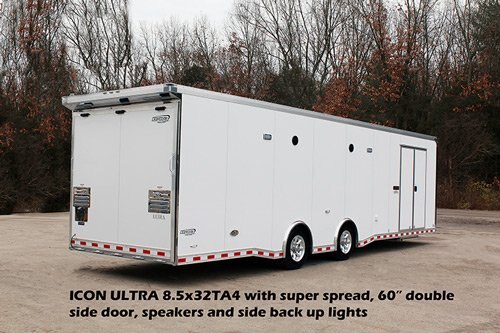

  • 60” Double Side Door
  • RV Side Door w/ Window & Screen
  • Side Door Steps
  • Bar Lock & Vise Lock
  • 54” Over Wheel Well Door
  • Swing Up Door w/ Removable Wheel Box
RAMP DOOR OPTIONS Stainless Steel Rear Ramp Door Star With Icon Rear Lights Full SteelTransitionFlap Star Icon Turnkeyramps1 Cold Curtain Sliding Doors Stowed

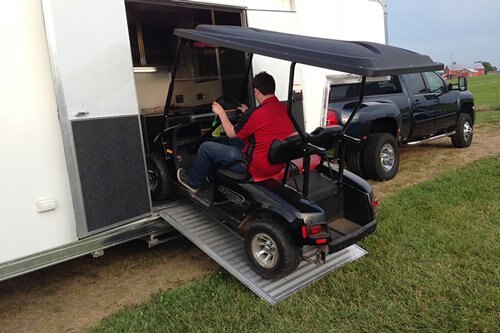

  • Rear Ramp Door
  • ICON Rear Lights on Ramp Door
  • Transition Flap for Ramp Door
  • Turnkey 10’ Folding Ramps
  • Cold Curtain
  • Sliding Rear Glass Doors

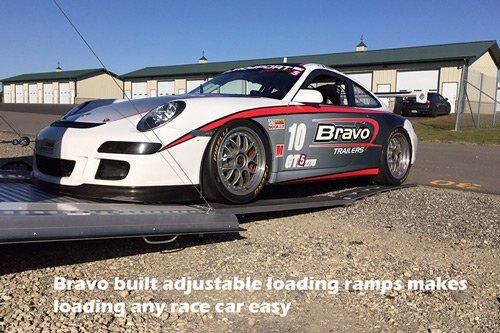

RAMP OVER WHEEL WELLS & RAMP UPS Aluminum Ramp Overs Aluminum Ramp Overs 2 Star Icon Removable Rampups
UTILITY/MISC. DOORS All Generator Baggage Door 01 Cable Splicing Door Gn Access Door Open Pocket Door In Partition Wall
  • Generator / Baggage Doors
  • Cable Splicing Door
  • Gooseneck Access Doors
  • Pocket Door in Partition Wall

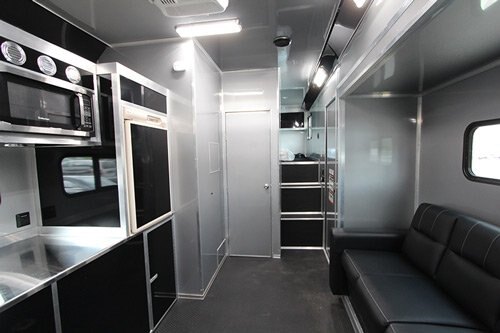

FINISHED INTERIOR Flooring Scout Star Finished Interior All Insulation Checkered Board Vinyl Floor
  • Flooring Options
  • Insulation
GENERATORS Gen Control Gen W Tank 50kw Gen Gen Control Panel Full
  • Fuel Tank
CUSTOM OPTIONS Airline W Drain A Frame Mounted LP Tanks With Cover All Sinks Plumbing Outdoor Shower

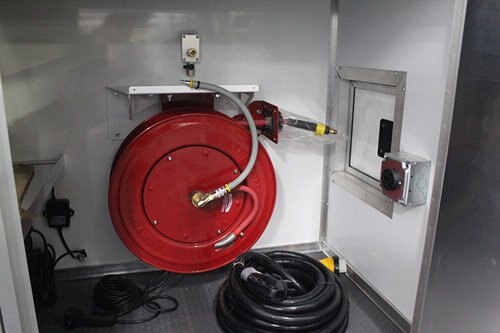

  • Air Line with Drain
  • LP Tanks

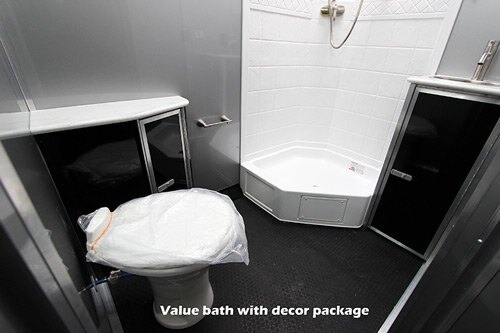

  • Sinks, Plumbing & Bathrooms
  • Outdoor Shower
  • Rear Camera
Windows All Windows

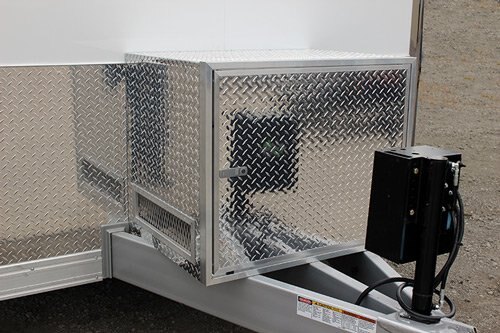

STORAGE / TOOL BOX Storage Box 27 067 ATP Tool Box
WINCH OPTIONS Winch Full Winch Wireless Remote Full
WING – STAR REAR Star Wing
star race packages

Auto Hauler Package

  • Heavy Duty Ramp Door w/Flap
  • Rubber Hinge Cover
  • Beavertail
  • 4- 5000# Recessed Floor D-Rings

Midnight Edition Package

Must Include V-Nose & Ramp Door

Black Out Thermocoat items to include:

  • Fenders Inside and Out
  • Top Rail & Bottom Trim
  • Side Door Trim & Stoneguard
  • Cast Aluminum Door Holdbacks
  • Rear Corners
  • Bezels on Fender & Tail Lights
  • Stainless Center Cap if Steel Wheel
  • Black Center Caps if Aluminum Wheel Optioned

Appearance Package

  • Chrome Bezel for LED Tail Lights
  • Stainless Steel Center Caps

Super Star Package

Not Available with V-Front

  • Aluminum Wheels
  • Polished Fenders
  • Stainless Steel Center caps
  • Stainless Steel Front Insert
  • Polished Front & Rear Corner Casting
  • Anodized Rear Corner Overlay
  • Chrome Bezels for LED Tail Lights
