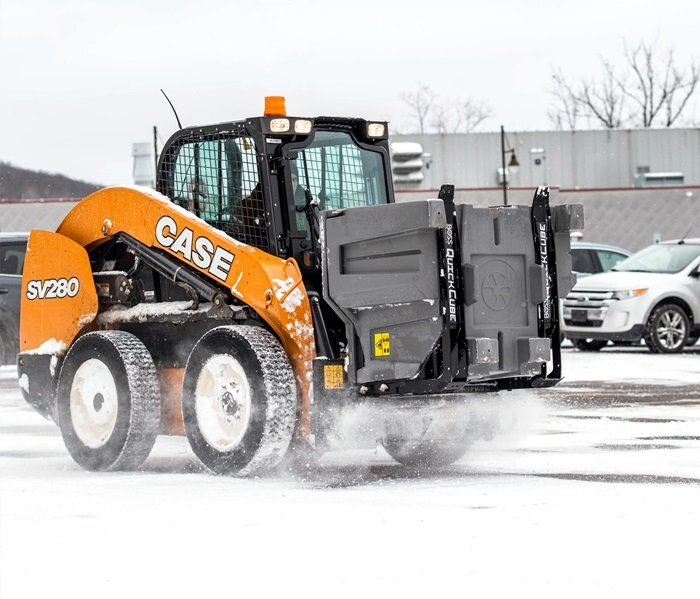

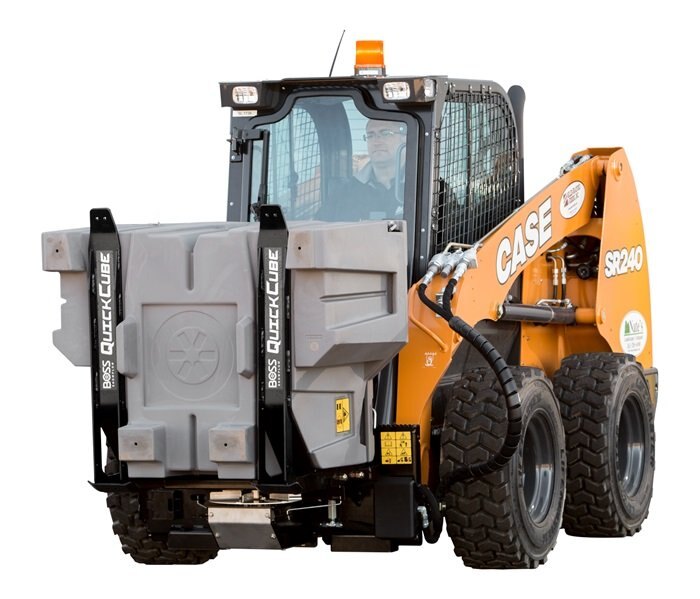

BOSS Snowplow introduces QuickCube™--- a revolutionary new approach for ice control and a completely NEW WAY for professionals to manage their snow and ice removal business. The QuickCube™ System lowers fuel costs, improves response times to job sites, expands your labor pool and increases your bottom line! Watch the video to see the benefits the QuickCube™ system can add to your business!
|

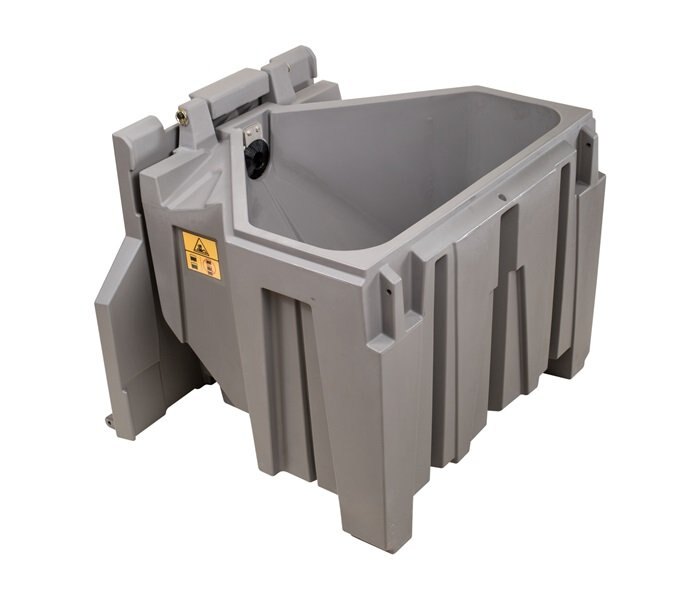

CUBETought, weather resistant cube to protect material. . |
HEAVY-DUTY SPINNERHeavy-duty 14.25" diameter stainless steel spinner provides years of reliable operation and excellent spread pattern. |
STACKABLE DESIGNStackable design for ease of use and storage at job sites. |
SIMPLE DESIGNSimple design for ease of maintenance, very few moving parts and no electric motors. |
PADLOCK HOLEprovides locking capabilities to prevent material theft. |
| Specifications | QuickCube |
|---|---|
| Cube Length | 38 in ( 97 cm) |
| Cube Height | 38 in (97 cm) |
| Cube Width | 46 in (117 cm) |
| Cube Weight (Empty) | 100 lb (45 kg) |
| Cube Construction | Gray HDPE (High-density polyethylene) |
| Cover Construction | Gray HDPE (High-density polyethylene) |

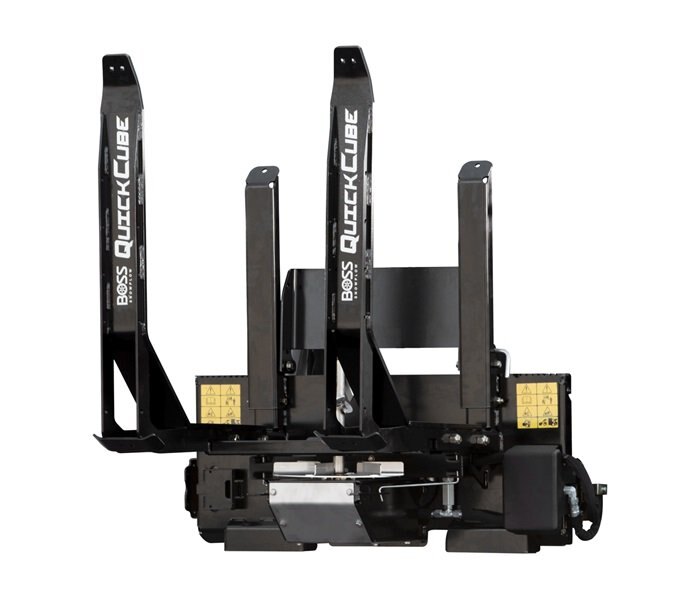

| Spreader Weight | 420 lb (190 kg) |
| Spreader Construction | High Strength Steel |
| Fork Construction | AR400 & High Strength Steel |
| Spreading Width | 2 ft-40 ft(0.6 m- 12.2m) |
| Max Feed Rate | 2 cu ft (0.057 cu m) per minute |
| Hydraulic Motor | 3010 in-lb Torque MAX, 600 RPM MAX |
| Flow Control Block | Standard |
| Control | Skid Steer Auxiliary Controls |
| Hydraulic Coupler Type/Size | Standard -10 ORB Flush Face Quick Couplings |
| Hydraulic Hose Type/Size | -08 and -10 JIC & ORB, Parker 387, ISO 18752-DC |
| Adjustable Deflector | Standard |
| Cube Capacity | 1/2 cubic yd (0.38 cubic m) |
| Spinner | 14.25" (36.2 cm) Diameter Stainless Steel Spinner |
