Overview

A NEW WAY TO WORK

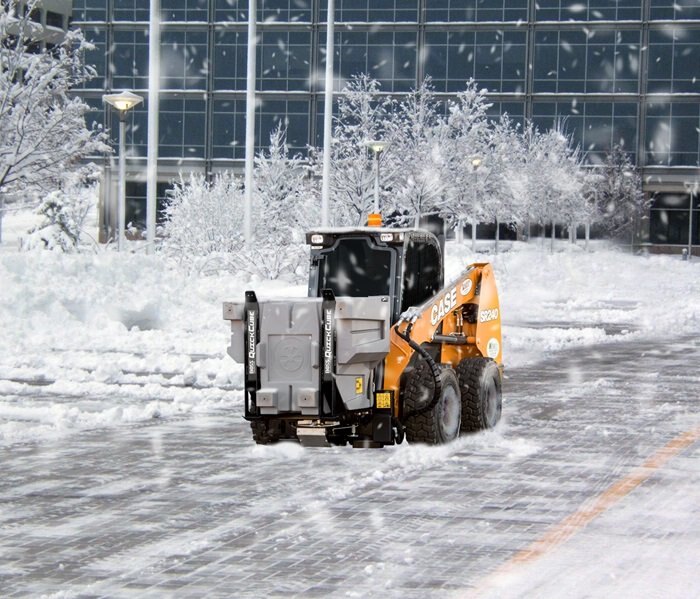

BOSS Snowplow introduces QuickCube™--- a revolutionary new approach for ice control and a completely NEW WAY for professionals to manage their snow and ice removal business. The QuickCube™ System lowers fuel costs, improves response times to job sites, expands your labor pool and increases your bottom line! Watch the video to see the benefits the QuickCube™ system can add to your business!
  • Gravity-fed, weather-resistant, aesthetically pleasing stackable cubes can hold approximately 1,000 lbs. of salt, replace the need for remote salt piles, tarps and temporary shelters.

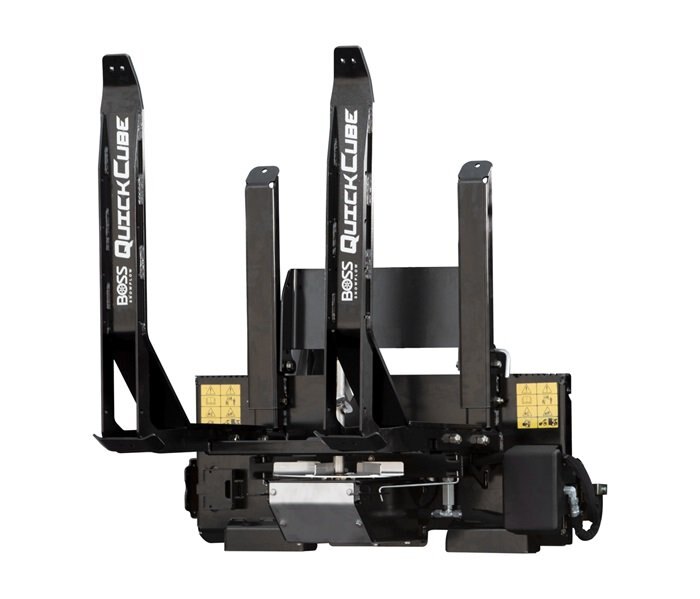

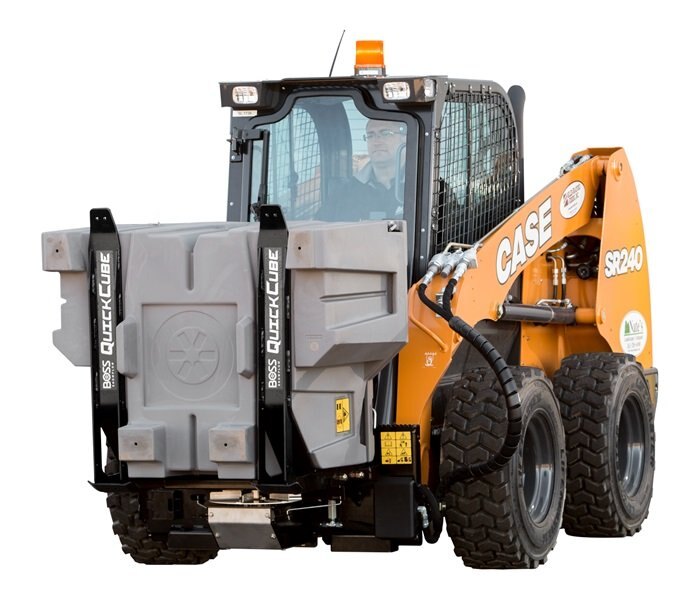

  • Easy skid-steer hookup for quickly switching from box plow to QuickCube™ making it the ultimate snow and ice control machine.
  • Improved customer response time stage a skid-steer, a QuickCube system and a box plow at the job site and hire operators that live close to those job sites. Operators travel directly to the site and begin servicing the customer.
  • Reduce travel of costly truck and spreader rigs during dangerous driving conditions- save fuel costs, wear and tear on trucks and reduce accident risk by staging QuickCubes when the sun is shining.
  Features

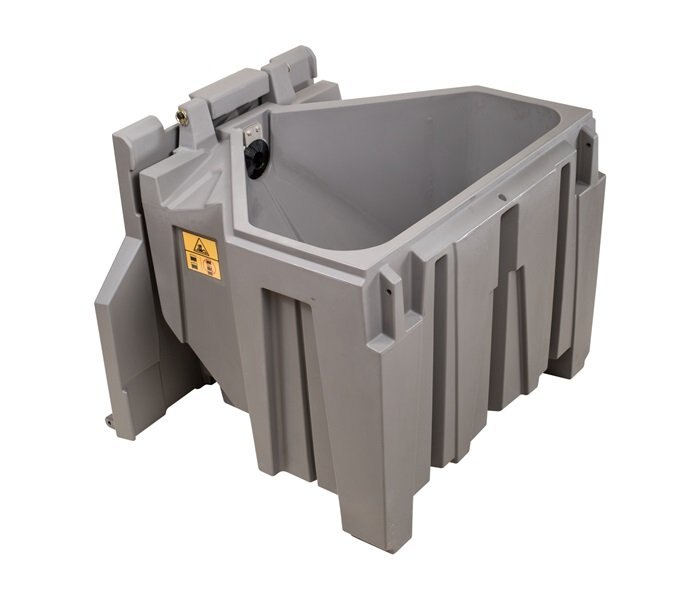

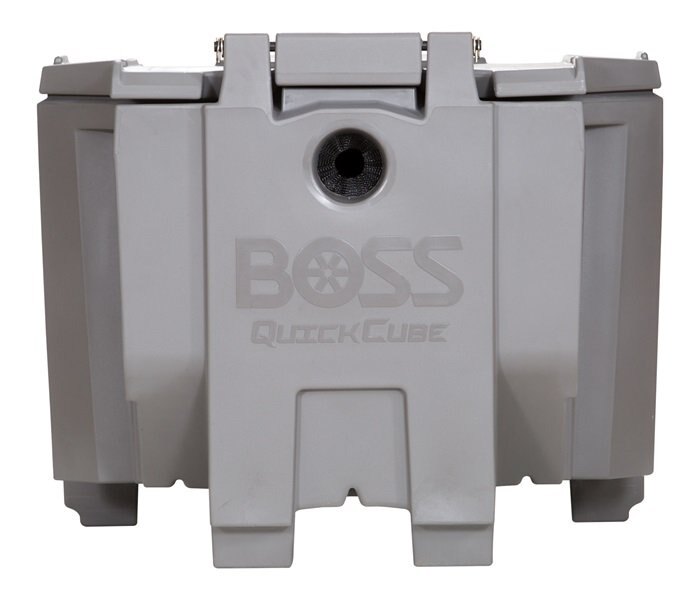

Cube
Tought, weather resistant cube to protect material.
Heavy-Duty Spinner
Heavy-duty 14.25" diameter stainless steel spinner provides years of reliable operation and excellent spread pattern.



Stackable Design
Stackable design for ease of use and storage at job sites.

Simple Design
Simple design for ease of maintenance, very few moving parts and no electric motors.






Padlock Hole
provides locking capabilities to prevent material theft.









  Specifications

Specifications QuickCube
Cube Length 38 in ( 97 cm)
Cube Height 38 in (97 cm)
Cube Width 46 in (117 cm)
Cube Weight (Empty) 100 lb (45 kg)
Cube Construction Gray HDPE (High-density polyethylene)
Cover Construction Gray HDPE (High-density polyethylene)
Spreader Weight 420 lb (190 kg)
Spreader Construction High Strength Steel
Fork Construction AR400 & High Strength Steel
Spreading Width 2 ft-40 ft(0.6 m- 12.2m)
Max Feed Rate 2 cu ft (0.057 cu m) per minute
Hydraulic Motor 3010 in-lb Torque MAX, 600 RPM MAX
Flow Control Block Standard
Control Skid Steer Auxiliary Controls
Hydraulic Coupler Type/Size Standard -10 ORB Flush Face Quick Couplings
Hydraulic Hose Type/Size -08 and -10 JIC & ORB, Parker 387, ISO 18752-DC
Adjustable Deflector Standard
Cube Capacity 1/2 cubic yd (0.38 cubic m)
Spinner 14.25" (36.2 cm) Diameter Stainless Steel Spinner



Specifications
Model
QuickCube™
Category Name
Snow Equipment
Year
2021
Sale Type
New
Manufacturer
Boss
