Overview

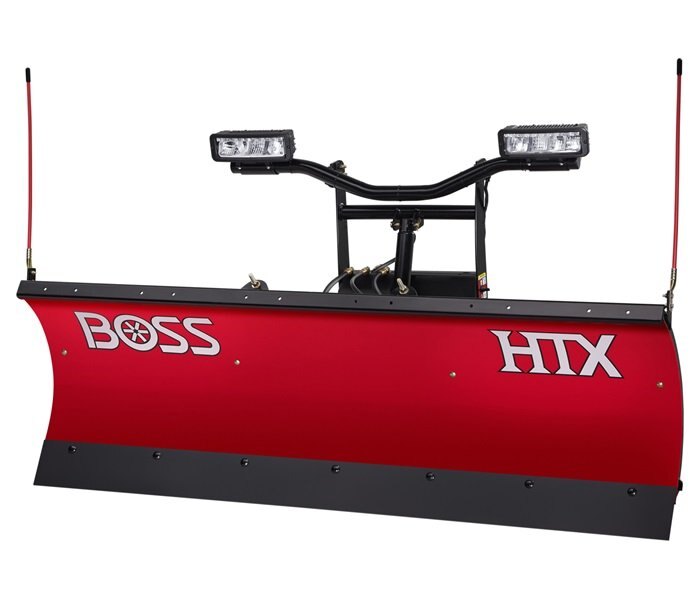

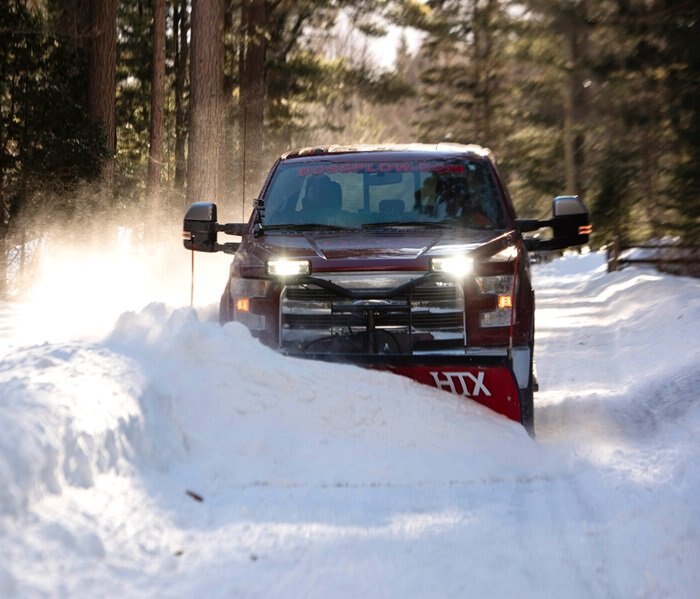

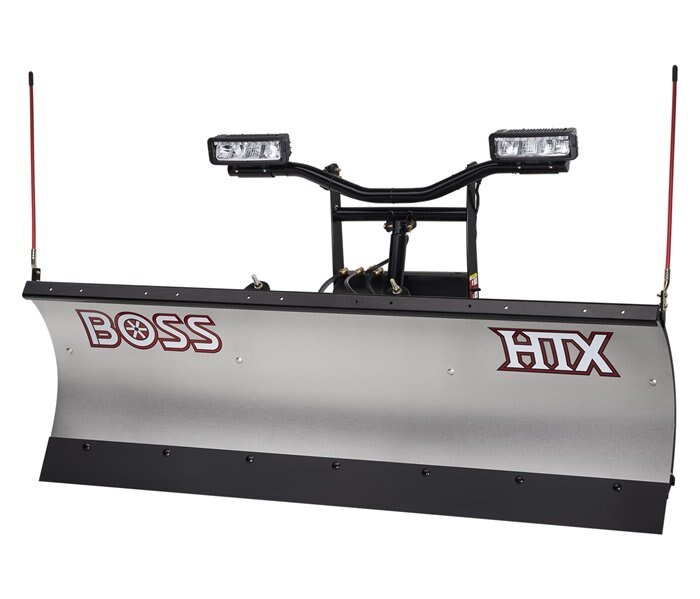

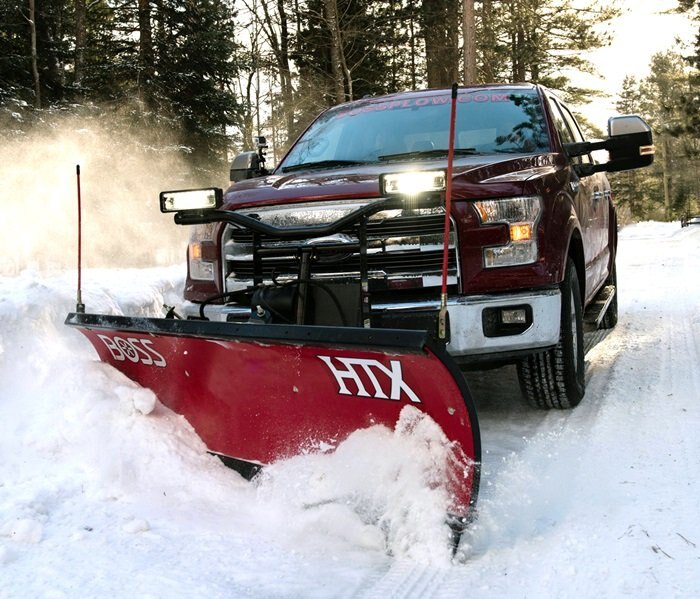

Our full line of HTX plows brings all the power and innovation to BOSS Straight-Blades to your light-duty truck. With today's contractor and homeowner in mind, BOSS has engineered the HTX line for today's lighter-duty and half-ton trucks by putting just the right amount of steel in exactly the right place for the best combination of strength and weight. The precisely crafted, ultra-efficient HTX line is built to handle the biggest of jobs. Because when you need to RESTORE ORDER with your lighter-duty truck, BOSS is always there to BACK YOU UP.
  • Variety of Blade Materials choose from mild steel, stainless steel or poly.

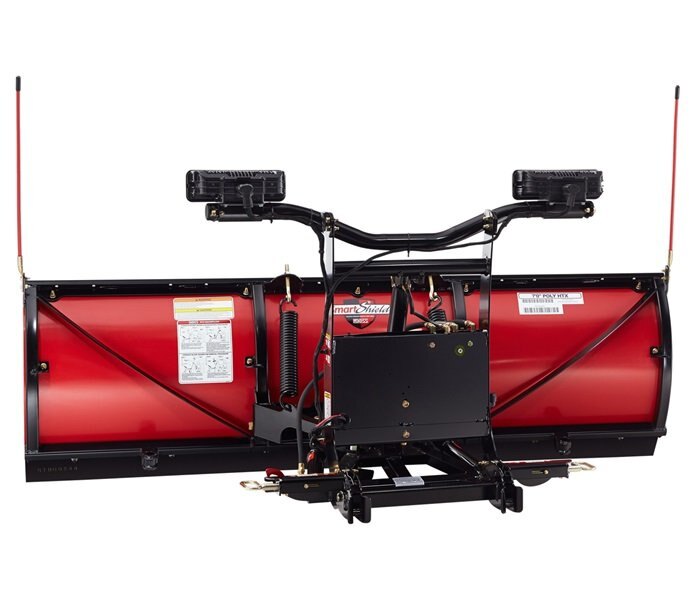

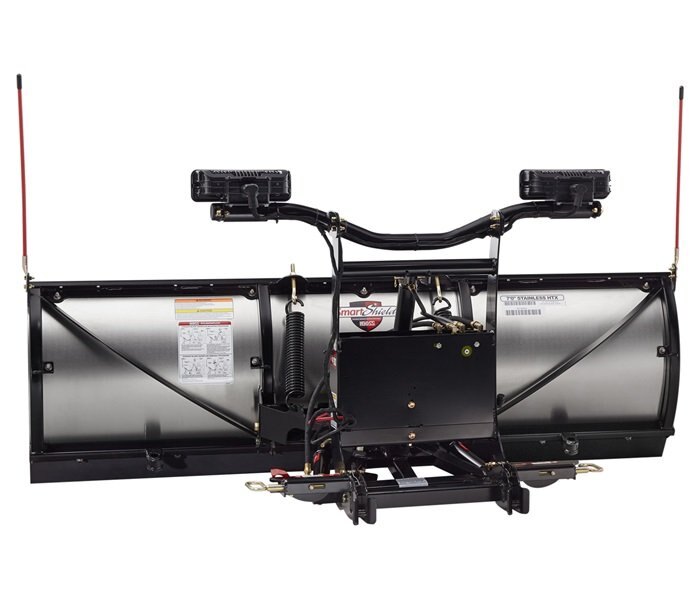

  • Reinforced Moldboard Diagonal cross-bracing and formed bottom channel increase blade rigidity.
  • Full Moldboard Trip Design The entire blade trips forward when obstacles are encountered to protect the truck and plow from damage.
  • Enclosed High-performance Hydraulic System delivers speed and reliability and is protected from the elements to prevent corrosion and hydraulic freeze-up.
  Features

SL3 L.E.D. with Ice Shieldhttps://cdn2.toro.com/en/-/media/Images/Boss/Features/SL3_Lights.ashx?mw=700&mh=599&hash=ADFB0DA10C3796D42B7E19BD15533D8C6989A5F9

SL3 headlight package, standard on every BOSS truck plow, shines brighter and farther than traditional halogen packages and is equipped with Ice Shield Technology. With best-in-class 100% LED lighting, integrated with Ice Shield Technology to prevent snow and ice build-up on the lens, these headlights use half the amperage of halogen systems and have an 8-10 year life expectancy. The SL3 headlights are also 40% smaller than SmartLight2 lights and yet much more powerful with the signature BOSS premium look you expect.

SmartHitch 2

Designed to be simple and easy to use. Flip, plug, click. The three-step attachment process makes it easy to switch between plows.

SmartShield

Made to last the SmartShield paint system delivers superior corrosion protection and a long-lasting, high-gloss shine.

SmartTouch 2 Controller

Advanced control technology combined with ergonomic control features and large backlit buttons make BOSS controls highly intuitive and easy to use. Attach the versatile SmartTouch2 Handheld Control to a pedestal mount or mount it on your dash (with or without handle).

Enclosed Hydraulics

Delivers speed and reliability and is protected from the elements to prevent corrosion and hydraulic freeze-up.

Reinforced Moldboard

Diagonal cross-bracing and formed bottom channel increase blade rigidity.

Chainless Hydraulic Lift

The chainless hydraulic cylinder lifting system from BOSS uses a chainless, hydraulic lift system, which greatly reduces snowplow bounce and provides full float capabilities.

https://cdn2.toro.com/en/-/media/Images/Boss/Features/SL3_Lights.ashx?mw=700&mh=599&hash=ADFB0DA10C3796D42B7E19BD15533D8C6989A5F9 Full Moldboard Trip

The entire blade trips forward when obstacles are encountered to protect the truck and plow from damage.

D-Force

D-Force maintains consistent hydraulic down force through the use of a hydraulic accumulator to improve scraping performance while backdragging. D-Force is an optional accessory on new truck plow purchases. Available for select Straight-Blade truck plow models including Super-Duty and HTX Straight-Blade plows. (Excludes EXT, Heavy-Duty and Trip-Edge plows.)

2-Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.


  Specifications

Specifications 7'0" HTX Stainless 7'0" HTX Poly 7'0" HTX Steel 7'6" HTX Stainless 7'6" HTX Poly 7'6" HTX Steel
Attachment System SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2
Blade Height 26" (66 cm) 26" (66 cm) 26" (66 cm) 26" (66 cm) 26" (66 cm) 26" (66 cm)
Blade Thickness 14-ga (.19 cm) Stainless Steel ¼" (.6 cm) Poly 14-ga (.19 cm) Mild Steel 14-ga (.19 cm) Stainless Steel ¼" (.6 cm) Poly 14-ga (.19 cm) Mild Steel
Blade Width (Straight) 84" (213 cm) 84" (213 cm) 84" (213 cm) 90" (229 cm) 90" (229 cm) 90" (229 cm)
Cutting Edge ¼" x 6" (.6 cm x 15 cm) ¼" x 6" (.6 cm x 15 cm) ¼" x 6" (.6 cm x 15 cm) ?" x 6" (1 cm x 15 cm) ?" x 6" (1 cm x 15 cm) ?" x 6" (1 cm x 15 cm)
Lift Cylinder 1 ¾" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 1 ¾" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 1 ¾" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 1 ¾" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 1 ¾" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 1 ¾" x 1 ? " x 10" (5 cm x 3 cm x 25 cm)
Lighting SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology
Plow Shoes Optional Optional Optional Optional Optional Optional
Plowing Width @ 30° Angle 73" (185 cm) 73" (185 cm) 73" (185 cm) 78" (198 cm) 78" (198 cm) 78" (198 cm)
Reinforcement Ribs 4 vertical, 2 diagonal 4 vertical, 2 diagonal 4 vertical, 2 diagonal 6 vertical, 2 diagonal 6 vertical, 2 diagonal 6 vertical, 2 diagonal
Trip Springs 2 2 2 2 2 2
Weight 393 lb (178 kg) 367 lb (166 kg) 393 lb (178 kg) 440 lb (200 kg) 416 lb (188 kg) 440 lb (200 kg)
