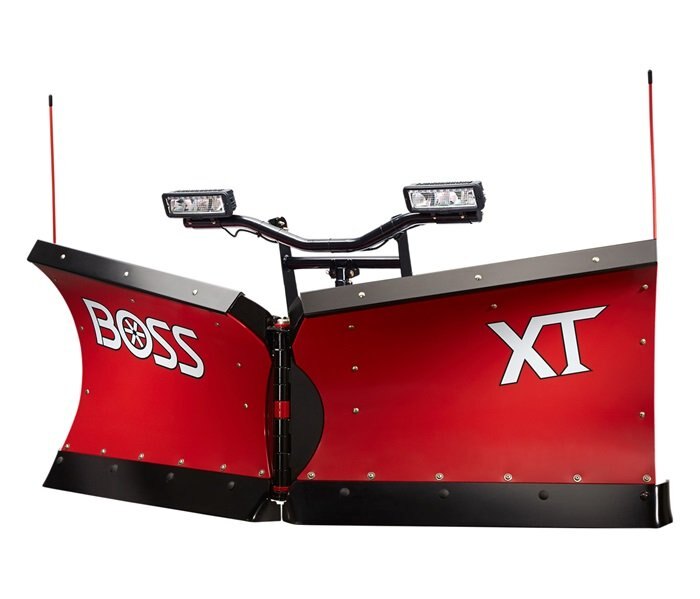

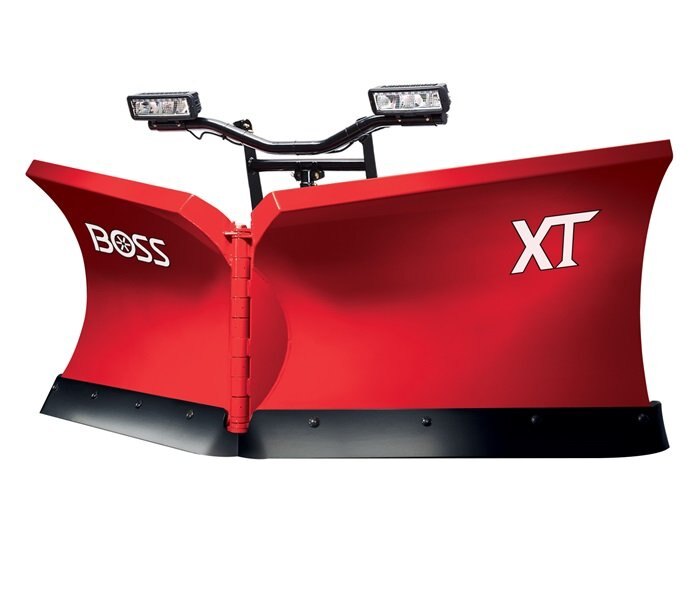

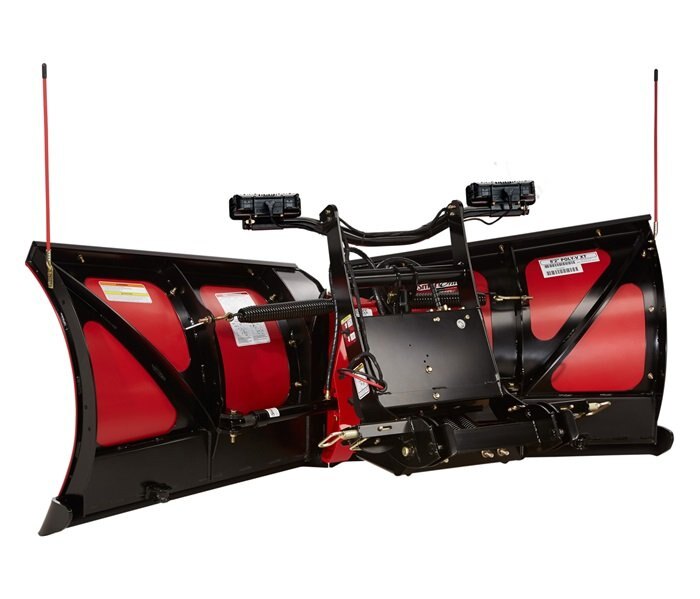

Boss V XT Plows

  • Boss V XT Plows
  • Boss V XT Plows
  • Boss V XT Plows
  • Boss V XT Plows
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The BOSS XT is built to perform with innovated flared blade wings and an enhanced curl design that throws snow higher and farther than conventional plows. The superslick polyethylene surface of the Poly XT keeps snow from sticking. The durable steel plows feature a baked-on powder-coat paint finish with exclusive zinc primer to resist corrosion and outlast the elements. The BOSS XT is just another innovation helping you to RESTORE ORDER.
  • Full Moldboard Trip Design helps to prevent plow damage when an obstacle is encountered.
  • SmartLight 3 uses 100% LED lights with an 8-10 year life expectancy and Ice Shield Technology to prevent snow and ice build-up.
  • Chainless Hydraulic Cylinder Lifting System greatly reduces bounce during transport and provides full float capability.
  • Patented Snow Catcher in the center section is designed to catch snow at the plow's pivot point, so no snow lines are left behind.
  Features

SL3 L.E.D. with Ice Shield SL3 L.E.D. with Ice Shield

SL3 headlight package, standard on every BOSS truck plow, shines brighter and farther than traditional halogen packages and is equipped with Ice Shield Technology. With best-in-class 100% LED lighting, integrated with Ice Shield Technology to prevent snow and ice build-up on the lens, these headlights use half the amperage of halogen systems and have an 8-10 year life expectancy. The SL3 headlights are also 40% smaller than SmartLight2 lights and yet much more powerful with the signature BOSS premium look you expect.

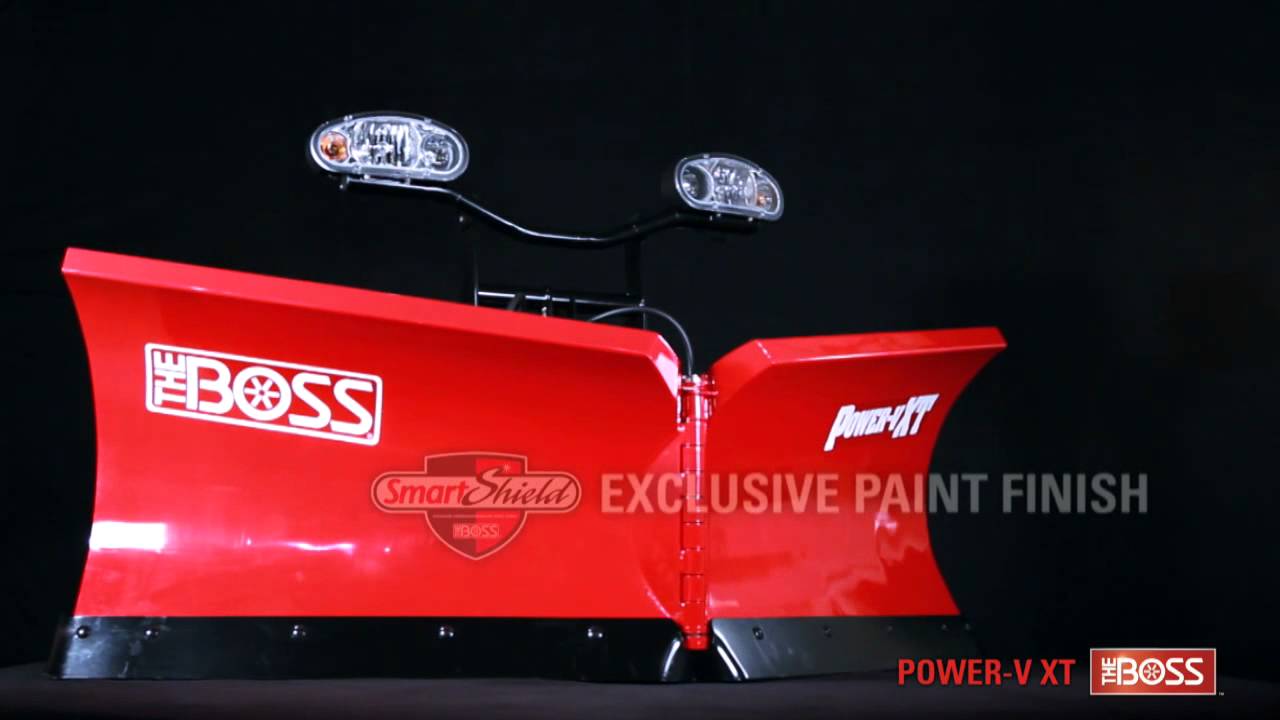

SL3 L.E.D. with Ice Shield SmartShield

Made to last the SmartShield paint system delivers superior corrosion protection and a long-lasting, high-gloss shine.

SmartTouch 2 Controller

Advanced control technology combined with ergonomic control features and large backlit buttons make BOSS controls highly intuitive and easy to use. Attach the versatile SmartTouch2 Handheld Control to a pedestal mount or mount it on your dash (with or without handle).

SmartHitch 2

Designed to be simple and easy to use. Flip, plug, click. The three-step attachment process makes it easy to switch between plows.

SmartLock

SmartLock® Cylinders hydraulically hold the cylinder in position when back dragging. These single acting cylinders only run the hydraulic system to extend the wings forward. To return the wings, wing return springs do the work. This is a much simpler design with less moving parts and less wear on the hydraulic system.

Chainless Hydraulic Lift

The chainless hydraulic cylinder lifting system from BOSS uses a chainless, hydraulic lift system, which greatly reduces snowplow bounce and provides full float capabilities.

Snow Catcher

A proven patented snow catcher in the center section on every BOSS V-plow ensures that no snow lines are left behind.

XT Cutting Edge

built using Hardox wear plate to provide extended wear resistance and comes with built-in curb guards and patented snow catcher.

XT Full Moldboard Trip

The entire blade trips forward when obstacles are encountered to protect the truck and plow from damage.

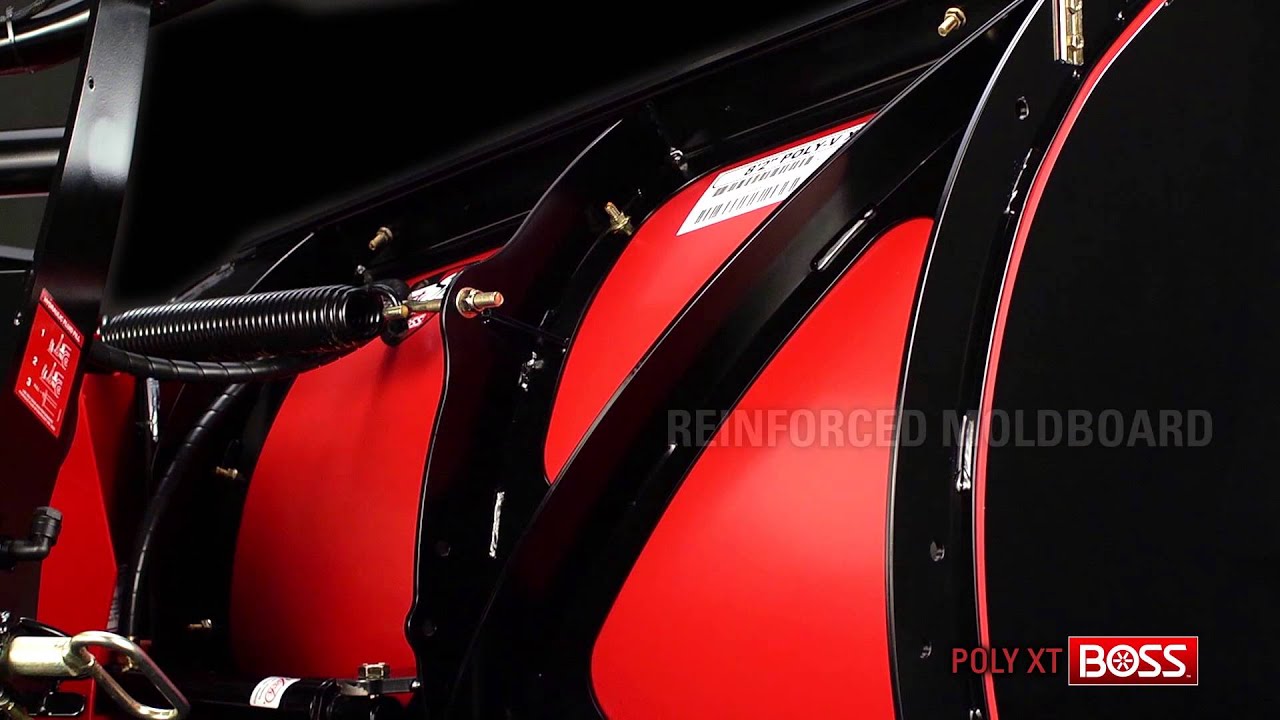

XT Reinforced Moldboard

Diagonal cross-bracing and formed bottom channel increase blade rigidity.

Enclosed Hydraulics

Delivers speed and reliability and is protected from the elements to prevent corrosion and hydraulic freeze-up.

2-Year Limited Warranty

The BOSS 2-Year Limited Warranty protects against material defects for peace of mind.

  Specifications

Specifications 7'6" XT Steel 8'2" XT Poly 8'2" XT Stainless Steel 8'2" XT Steel 9'2" XT Stainless Steel 9'2" XT Poly 9'2" XT Steel
Blade Width (Straight) 90" (229 cm) 98" (249 cm) 98" (249 cm) 98" (249 cm) 110" (279 cm) 110" (279 cm) 110" (279 cm)
Plowing Width (Scoop) 74" (188 cm) 81" (206 cm) 81" (206 cm) 81" (206 cm) 92" (234 cm) 92" (234 cm) 92" (234 cm)
Plowing Width (V position) 81" (206 cm) 88" (224 cm) 88" (224 cm) 88" (224 cm) 99" (252 cm) 99" (252 cm) 99" (252 cm)
Plowing Width @ 30° Angle 77" (196 cm) 85" (216 cm) 85" (216 cm) 85" (216 cm) 95" (241 cm) 95" (241 cm) 95" (241 cm)
Blade Height 36" (91 cm) at end, 30" (76 cm) at center 37" (94 cm) at end, 30" (76 cm) at center 37" (94 cm) at end, 30" (76 cm) at center 37" (94 cm) at end, 30" (76 cm) at center 38" (96.52 cm) at end, 30" (76 cm) at center 38" (96.52 cm) at end, 30" (76 cm) at center 38" (96.52 cm) at end, 30" (76 cm) at center
Blade Thickness 14-ga Steel ?" (1cm) Poly 12-ga 304 Stainless 11-ga Steel 12-ga 304 Stainless ?" (1cm) Poly 11-ga Steel
Cutting Edge ½" x 6" (1.3 cm x 15 cm) ½" x 6" (1.3 cm x 15 cm) High Performance ½" x 6" (1.3 cm x 15 cm) ½" x 6" (1.3 cm x 15 cm) High Performance ½" x 6" (1.3 cm x 15 cm) ½" x 6" (1.3 cm x 15 cm) High Performance ½" x 6" (1.3 cm x 15 cm) High Performance
Reinforcement Ribs 6 vertical, 2 diagonal 6 vertical, 2 diagonal 6 vertical, 2 diagonal 6 vertical, 2 diagonal 8 vertical, 2 diagonal 8 vertical, 2 diagonal 8 vertical, 2 diagonal
Plow Shoes Optional Optional Optional Optional Optional Optional Optional
Trip Springs 4 4 4 4 4 4 4
Lift Cylinder 2" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 ? " x 10" (5 cm x 3 cm x 25 cm) 2" x 1 ? " x 10" (5 cm x 3 cm x 25 cm)
SmartLock® Cylinders 1 ¾" x 10" (5 cm x 25 cm) 1 ¾" x 10" (5 cm x 25 cm) 1 ¾" x 10" (5 cm x 25 cm) 1 ¾" x 10" (5 cm x 25 cm) 1 ¾" x 10" (5 cm x 25 cm) 1 ¾" x 10" (5 cm x 25 cm) 1 ¾" x 10" (5 cm x 25 cm)
Attachment System SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2 SmartHitch 2
Weight 713 lb (323 kg) 795 lb (361 kg) 823 lb (374 kg) 785 lb (356 kg) 882 lb (400 kg) 852 lb (387 kg) 842 lb (382 kg)
Lighting SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology SL3 L.E.D. with Ice Shield Technology




Specifications
Model
V XT Plows
Category Name
Snow Equipment
Year
2018
Sale Type
New
Manufacturer
Boss
Videos Documents
