Boss ATV Plows
Videos
Overview
|
Specifications |
| |
|
Model |

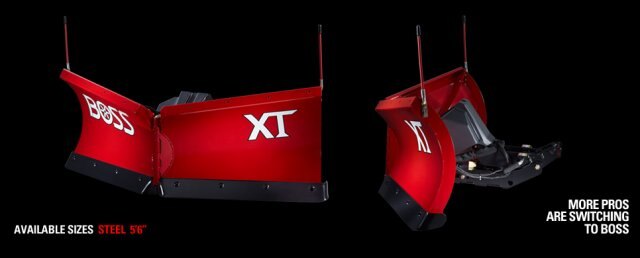

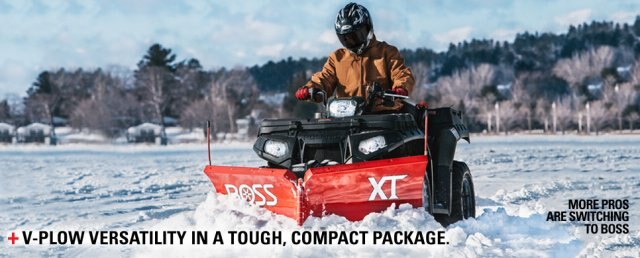

5'6" Steel Power-V XT |
|
Blade Width (Straight) |
66" (168 cm) |
|
Blade Width (Vee) |
58-1/2" (149 cm) |
|
Blade Width (Scoop) |
55-13/16" (142 cm) |
|
Plowing Width @ 30° Angle |
57-1/8" (145 cm) |
|
Blade Height |
18-3/8" inside to 23-3/16" outside (47 cm to 59 cm) |
|
Blade Material |
14 guage steel |
|
Reinforcement Ribs |
4 vertical, 1 diagonal |
|
Trip Return Springs |
2 |
|
Hardox® Steel Cutting Edge |
1/4" (0.64 cm) x 4" (10.16 cm) |
|

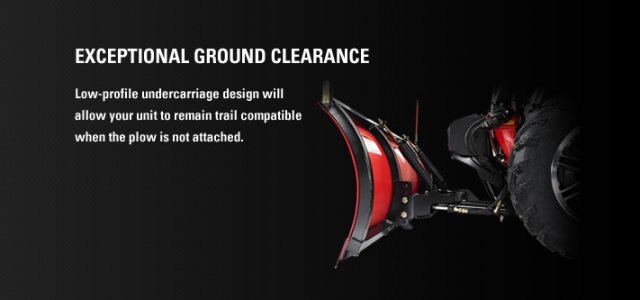

Undercarriage |
Low profile (trail compatible) |
|

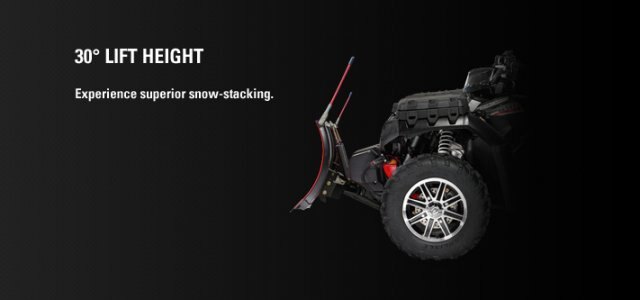

Plow Lifting |
Hydraulic |
|
Plow Angling |
Hydraulic |
|

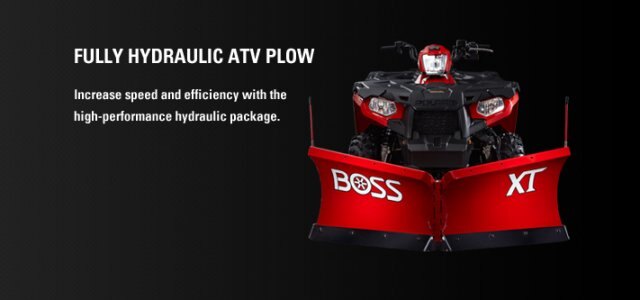

Hydraulic Package |
High performance (comes off with the plow) |
|

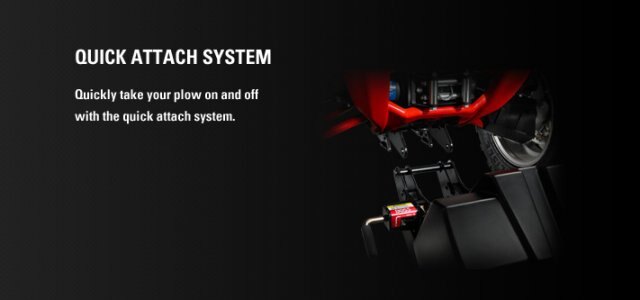

Quick Attach System |
Quick Attach |
|
Paint Finish |
SmartShield |
|

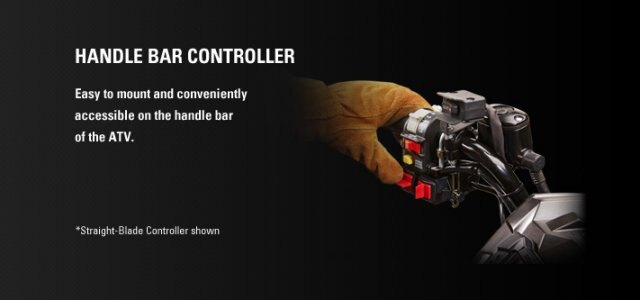

Controller |
Switch Box |
|
Weight Complete |
245 lb (111 kg) |
|
Tripping Mechanism |
Full-blade trip design |
|
Warranty |
2-year limited warranty |
|
Blade Shoes |
Optional |
|
Snow Deflector |
Optional | |
| |
|
Model |

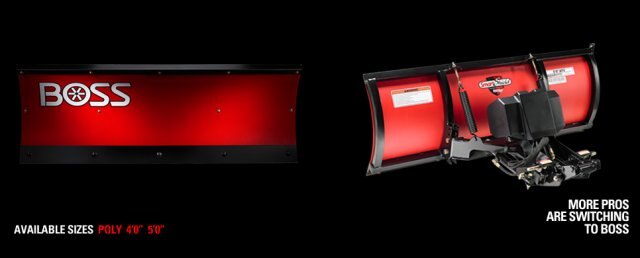

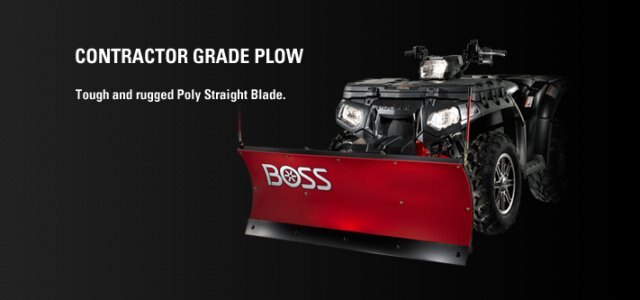

4'0" Poly Straight |
5'0" Poly Straight |
|
Blade Width (Straight) |
48" (121.92 cm) |
60" (152.40 cm) |
|
Blade Width @ 30° Angle |
NA |
52" (132.08 cm) |
|
Blade Height |
22" (55.88 cm) |
22" (55.88 cm) |
|
Blade Material |
1/8" poly (0.32 cm) |
1/8" poly (0.32 cm) |
|
Vertical Support Ribs |
4 |
4 |
|
Trip Return Springs |
2 |
2 |
|
Cutting Edge |
1/4" (0.64 cm) x 4" (10.16 cm) Reversible |
1/4" (0.64 cm) x 4" (10.16 cm) Reversible |
|
Undercarriage |
Low profile (trail compatible) |
Low profile (trail compatible) |
|
Plow Lifting |
Hydraulic |
Hydraulic |
|
Plow Angling |
Hydraulic |
Hydraulic |
|
Hydraulic Package |
High performance (comes off with the plow) |
High performance (comes off with the plow) |
|
Quick Attach System |
Quick Attach |
Quick Attach |
|
Paint Finish |
SmartShield |
SmartShield |
|
Controller |
Switch Box |
Switch Box |
|
Weight Complete |
170 lb (77 kg) |
190 lb (86 kg) |
|
Tripping Mechanism |
Full-blade trip design |
Full-blade trip design |
|
Warranty |
2-year limited warranty |
2-year limited warranty |
|
Snow Deflector |
Optional |
Optional | |
