Boss Snowrator

  Back
ID # 13613748

Boss Skid-steerplows

  • Boss Skid steerplows
  • Boss Skid steerplows
  • Boss Skid steerplows
  • Boss Skid steerplows
  • Boss Skid steerplows
  • Boss Skid steerplows
  • Boss Skid steerplows
  • Boss Skid steerplows
  • Boss Skid steerplows
  • Boss Skid steerplows
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  Specifications

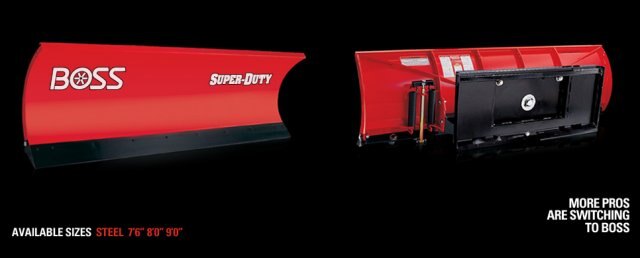

Model 7'6" Steel 8' Steel 9' Steel
Blade Width (Straight) 90" (229 cm) 96" (244 cm) 108" (274 cm)
Plowing Width @ 30° Angle 78" (198 cm) 83" (211 cm) 93 1/2" (238 cm)
Blade Height 31" (79 cm) 31" (79 cm) 31" (79 cm)
Blade Thickness 11-ga Steel 11-ga Steel 11-ga Steel
Base Angle 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)		 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)		 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)
Cutting Edge (optional) 1/2" x 6"
(1.3 cm x 15 cm)		 1/2" x 6"
(1.3 cm x 15 cm)		 1/2" x 6"
(1.3 cm x 15 cm)

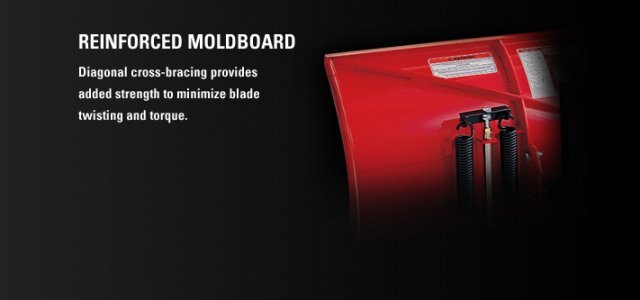

Reinforcement Ribs 6 vertical
2 diagonal		 6 vertical
2 diagonal		 8 vertical
2 diagonal
Plow Shoes Cast iron Cast iron Cast iron
Trip Springs 4 4 4
Trip Pivot Pin Diameter 1" (3 cm) 1" (3 cm) 1" (3 cm)

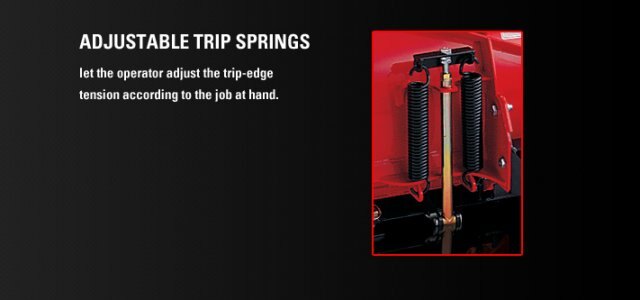

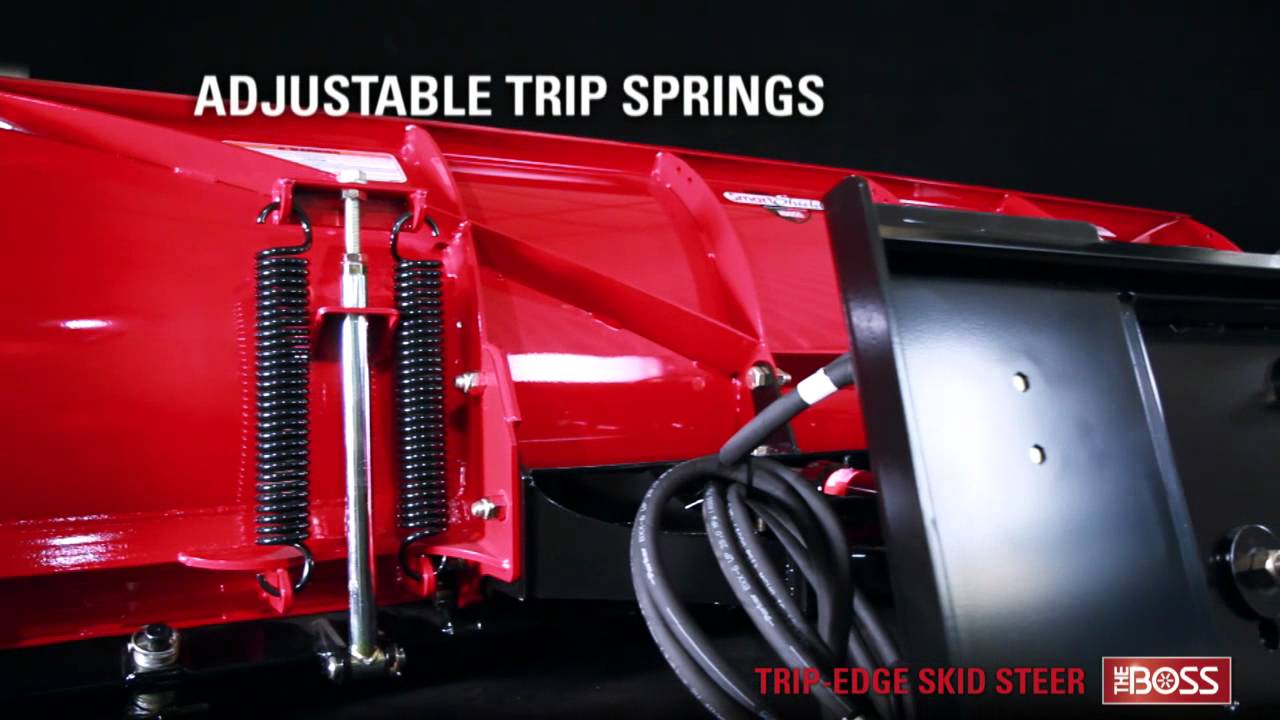

Trip Spring Type 3/8" (1 cm) hooked
extension spring		 3/8" (1 cm) hooked
extension spring		 3/8" (1 cm) hooked
extension spring

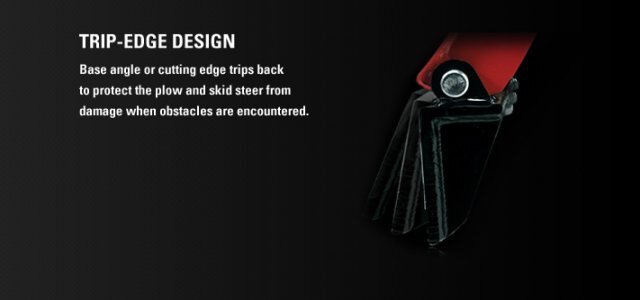

Trip-Edge Adjustable Standard Standard Standard

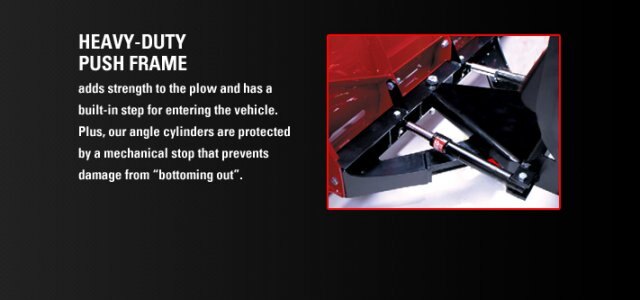

Angle Cylinders 1 1/2" x 10"
(4 cm x 25 cm)		 1 1/2" x 10"
(4 cm x 25 cm)		 1 1/2" x 10"
(4 cm x 25 cm)
Lift Cylinder 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)		 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)		 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)
Attachment System Universal tool carrier Universal tool carrier Universal tool carrier
Plow Weight* 812 lb (368 kg) 829 lb (376 kg) 882 lb (400 kg)

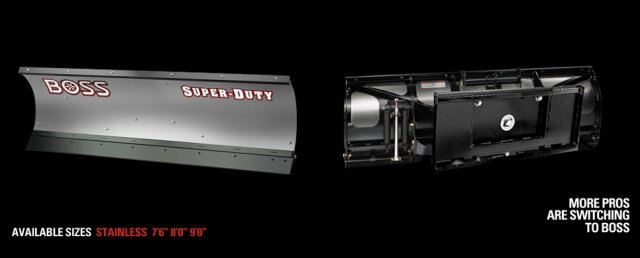

Model 7'6" Stainless 8' Stainless 9' Stainless
Blade Width (Straight) 90" (229 cm) 96" (244 cm) 108" (274 cm)
Plowing Width @ 30° Angle 78" (198 cm) 83" (211 cm) 93 1/2" (238 cm)
Blade Height 31" (79 cm) 31" (79 cm) 31" (79 cm)
Blade Thickness 14-ga 304 Stainless 14-ga 304 Stainless 14-ga 304 Stainless
Base Angle 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)		 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)		 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)
Cutting Edge (optional) 1/2" x 6"
(1.3 cm x 15 cm)		 1/2" x 6"
(1.3 cm x 15 cm)		 1/2" x 6"
(1.3 cm x 15 cm)
Reinforcement Ribs 6 vertical
2 diagonal		 6 vertical
2 diagonal		 8 vertical
2 diagonal
Plow Shoes Cast iron Cast iron Cast iron
Trip Springs 4 4 4
Trip Pivot Pin Diameter 1" (3 cm) 1" (3 cm) 1" (3 cm)
Trip Spring Type 3/8" (1 cm) hooked
extension spring		 3/8" (1 cm) hooked
extension spring		 3/8" (1 cm) hooked
extension spring
Trip-Edge Adjustable Standard Standard Standard
Angle Cylinders 1 1/2" x 10"
(4 cm x 25 cm)		 1 1/2" x 10"
(4 cm x 25 cm)		 1 1/2" x 10"
(4 cm x 25 cm)
Lift Cylinder 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)		 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)		 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)
Attachment System Universal tool carrier Universal tool carrier Universal tool carrier
Plow Weight* 862 lb (391 kg) 881 lb (400 kg) 939 lb (426 kg)




Specifications
Model
Skid-steerplows
Category Name
Snow Equipment
Year
2017
Sale Type
New
Manufacturer
Boss
