Boss Snowrator

  Back
ID # 13492823

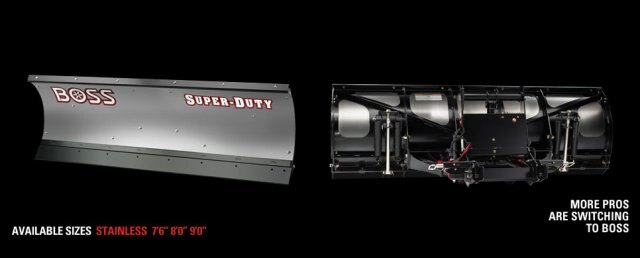

Boss Trip-edge-plows

  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows
  • Boss Trip edge plows

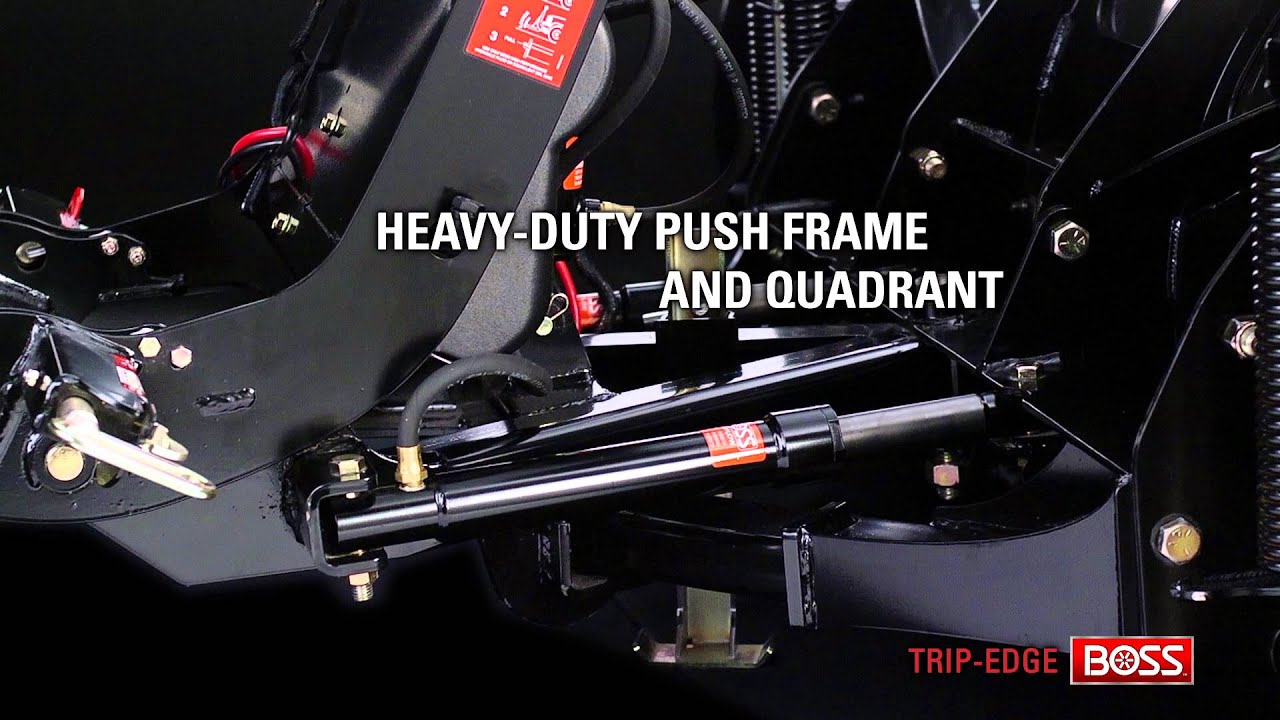

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  Specifications

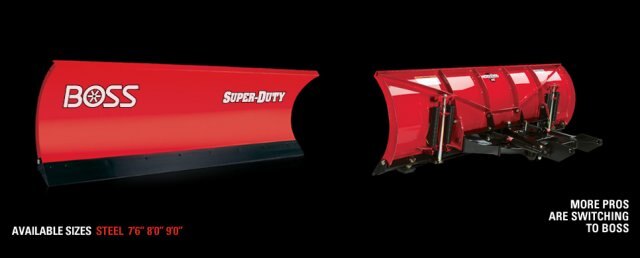

Model 7'6" Steel 8' Steel 9' Steel**
Blade Width (Straight) 90" (229 cm) 96" (244 cm) 108" (274 cm)
Plowing Width @ 30° Angle 78" (198 cm) 83" (211 cm) 93 1/2" (238 cm)
Blade Height 31" (79 cm) 31" (79 cm) 31" (79 cm)
Blade Thickness 11-ga Steel 11-ga Steel 11-ga Steel
Base Angle 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)		 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)		 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)
Cutting Edge (optional) 1/2" x 6"
(1.3 cm x 15 cm)		 1/2" x 6"
(1.3 cm x 15 cm)		 1/2" x 6"
(1.3 cm x 15 cm)

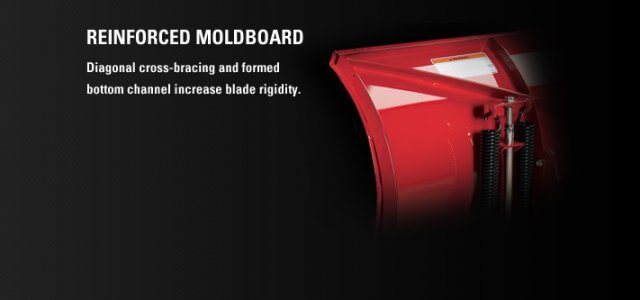

Reinforcement Ribs 6 vertical
2 diagonal		 6 vertical
2 diagonal		 8 vertical
2 diagonal
Plow Shoes Cast iron Cast iron Cast iron
Trip Springs 4 4 4
Trip Pivot Pin Diameter 1" (3 cm) 1" (3 cm) 1" (3 cm)
Trip Spring Type 3/8" (1 cm) hooked
extension spring		 3/8" (1 cm) hooked
extension spring		 3/8" (1 cm) hooked
extension spring
Trip-Edge Adjustable Standard Standard Standard
Angle Cylinders 1 1/2" x 10"
(4 cm x 25 cm)		 1 1/2" x 10"
(4 cm x 25 cm)		 1 1/2" x 10"
(4 cm x 25 cm)
Lift Cylinder 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)		 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)		 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)
Attachment System SmartHitch 2 SmartHitch 2 SmartHitch 2
Plow Weight* 772 lb (350 kg) 788 lb (357 kg) 828 lb (376 kg)
Plow Lights SmartLight 2 (SL3 L.E.D. Optional) SmartLight 2 (SL3 L.E.D. Optional) SmartLight 2 (SL3 L.E.D. Optional)

Model 7'6" Stainless 8' Stainless 9' Stainless
Blade Width (Straight) 90" (229 cm) 96" (244 cm) 108" (274 cm)
Plowing Width @ 30° Angle 78" (198 cm) 83" (211 cm) 93 1/2" (238 cm)
Blade Height 31" (79 cm) 31" (79 cm) 31" (79 cm)
Blade Thickness 14-ga 304 Stainless 14-ga 304 Stainless 14-ga 304 Stainless
Base Angle 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)		 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)		 1/2" x 6" x 3 1/2"
(1.3 cm x 15 cm x 9 cm)
Cutting Edge (optional) 1/2" x 6"
(1.3 cm x 15 cm)		 1/2" x 6"
(1.3 cm x 15 cm)		 1/2" x 6"
(1.3 cm x 15 cm)
Reinforcement Ribs 6 vertical
2 diagonal		 6 vertical
2 diagonal		 8 vertical
2 diagonal
Plow Shoes Cast iron Cast iron Cast iron
Trip Springs 4 4 4
Trip Pivot Pin Diameter 1" (3 cm) 1" (3 cm) 1" (3 cm)
Trip Spring Type 3/8" (1 cm) hooked
extension spring		 3/8" (1 cm) hooked
extension spring		 3/8" (1 cm) hooked
extension spring
Trip-Edge Adjustable Standard Standard Standard
Angle Cylinders 1 1/2" x 10"
(4 cm x 25 cm)		 1 1/2" x 10"
(4 cm x 25 cm)		 1 1/2" x 10"
(4 cm x 25 cm)
Lift Cylinder 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)		 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)		 2" x 1 1/8" x 10"
(5 cm x 3 cm x 25 cm)
Attachment System SmartHitch 2 SmartHitch 2 SmartHitch 2
Plow Weight* 831 lb (377 kg) 849 lb (385 kg) 897 lb (407 kg)
Plow Lights SmartLight 2 (SL3 L.E.D. Optional) SmartLight 2 (SL3 L.E.D. Optional) SmartLight 2 (SL3 L.E.D. Optional)




Specifications
Model
Trip-edge-plows
Category Name
Snow Equipment
Year
2016
Sale Type
New
Manufacturer
Boss
