Boss Power-V DXT Plows
Videos
Overview
|
Specifications |
| |
|
Model |
8'2" Steel DXT |
9'2" Steel DXT |
|
Blade Width(Straight) |
98" (249 cm) |
110" (279 cm) |
|
Blade Width(Vposition) |
88" (224 cm) |
99" (251 cm) |
|
Blade Width (Scoop) |
81" (206 cm) |
92" (234 cm) |
|
PlowingWidth@30°Angle |
85" (216 cm) |
95" (241 cm) |
|
Blade Height |
30" (76 cm) at center, 37 1/2" (95 cm) at end |
30" (76 cm) at center, 38 1/2" (98 cm) at end |
|
Blade Thickness |
11-ga Steel |
11-ga Steel |
|
Base Angle |
1/2" x 6" (1.3 cm x 15 cm)** |
1/2" x 6" (1.3 cm x 15 cm)** |
|

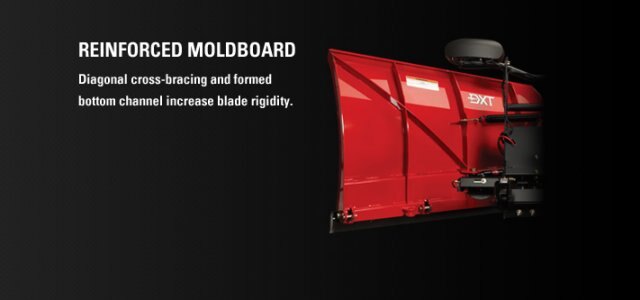

Reinforcement Ribs |
6 vertical, 2 diagonal |
8 vertical, 2 diagonal |
|
Plow Shoes |
Optional |
Optional |
|

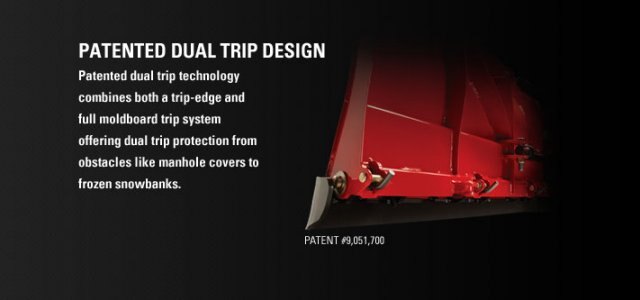

Trip Springs (Moldboard) |
4 Extension Springs |
4 Extension Springs |
|
TripSprings(CuttingEdge) |
3 Torsion Springs (per blade half) |
3 Torsion Springs (per blade half) |
|

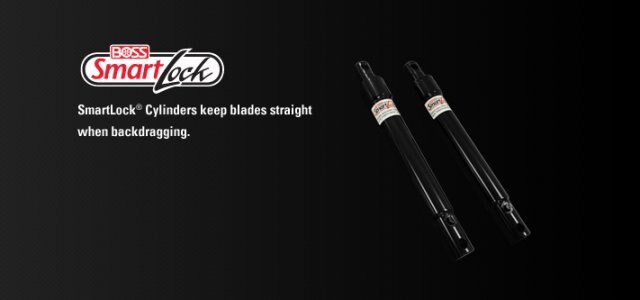

Angle Cylinders |
1 1/2" x 10" (4 cm x 25 cm) |
1 1/2" x 10" (4 cm x 25 cm) |
|

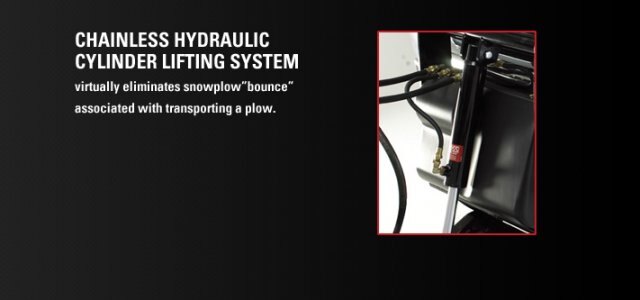

Lift Cylinder |
2" x 1 1/8" x 10" (5 cm x 3 cm x 25 cm) |
2" x 1 1/8" x 10" (5 cm x 3 cm x 25 cm) |
|
Attachment System |
SmartHitch 2 |
SmartHitch 2 |
|
Plow Weight* |
868 lb (394 kg) Steel |
925 lb (420 kg) Steel |
|

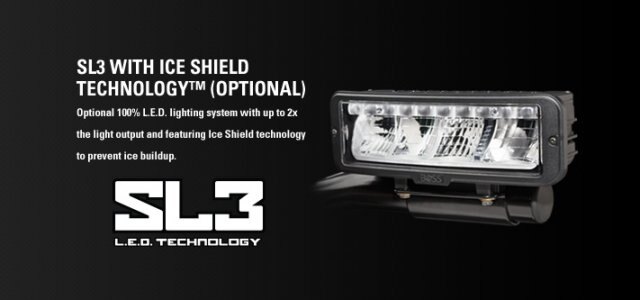

Plow Lights |
SmartLight 2 (SL3 L.E.D. Optional) |
SmartLight 2 (SL3 L.E.D. Optional) | |
| |
| Model |

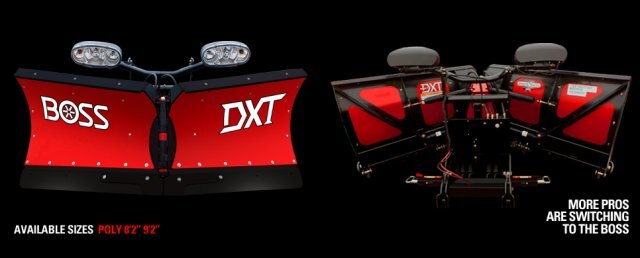

8'2" Poly DXT |
9'2" Poly DXT |
|
Blade Width (Straight) |
98" (249 cm) |
110" (279 cm) |
|
Blade Width(Vposition) |
88" (224 cm) |
99" (251 cm) |
|
Blade Width (Scoop) |
81" (206 cm) |
92" (234 cm) |
|
PlowingWidth@30°Angle |
85" (216 cm) |
95" (241 cm) |
|
Blade Height |
30" (76 cm) at center, 37 1/2" (95 cm) at end |
30" (76 cm) at center, 38 1/2" (98 cm) at end |
|
Blade Thickness |
3/8" Poly |
3/8" Poly |
|

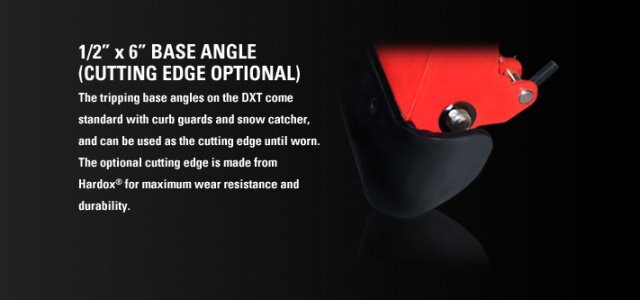

Base Angle |
1/2" x 6" (1.3 cm x 15 cm)** |
1/2" x 6" (1.3 cm x 15 cm)** |
|
Reinforcement Ribs |
6 vertical, 2 diagonal |
8 vertical, 2 diagonal |
|
Plow Shoes |
Optional |
Optional |
|
Trip Springs (Moldboard) |
4 Extension Springs |
4 Extension Springs |
|
Trip Springs (Cutting Edge) |
3 Torsion Springs (per blade half) |
3 Torsion Springs (per blade half) |
|
Angle Cylinders |
1 1/2" x 10" (4 cm x 25 cm) |
1 1/2" x 10" (4 cm x 25 cm) |
|
Lift Cylinder |
2" x 1 1/8" x 10" (5 cm x 3 cm x 25 cm) |
2" x 1 1/8" x 10" (5 cm x 3 cm x 25 cm) |
|
Attachment System |
SmartHitch 2 |
SmartHitch 2 |
|
Plow Weight* |
878 lb (398 kg) Steel |
935 lb (424 kg) Steel |
|
Plow Lights |
SmartLight 2 (SL3 L.E.D. Optional) |
SmartLight 2 (SL3 L.E.D. Optional) | |
| |
| Model |

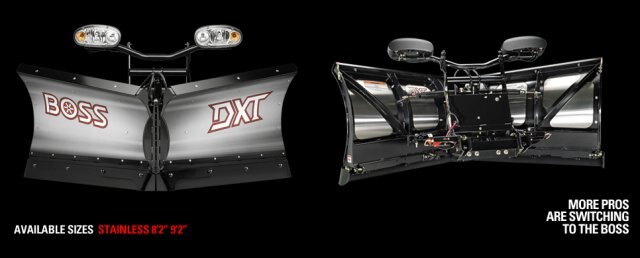

8'2" Stainless DXT |
9'2" Stainless DXT |
|
Blade Width (Straight) |
98" (249 cm) |
110" (279 cm) |
|
Blade Width(Vposition) |
88" (224 cm) |
99" (251 cm) |
|
Blade Width (Scoop) |
81" (206 cm) |
92" (234 cm) |
|
PlowingWidth@30°Angle |
85" (216 cm) |
95" (241 cm) |
|
Blade Height |
30" (76 cm) at center, 37 1/2" (95 cm) at end |
30" (76 cm) at center, 38 1/2" (98 cm) at end |
|
Blade Thickness |
12-ga 304 Stainless |
12-ga 304 Stainless |
|
Base Angle |
1/2" x 6" (1.3 cm x 15 cm)** |
1/2" x 6" (1.3 cm x 15 cm)** |
|
Reinforcement Ribs |
6 vertical, 2 diagonal |
8 vertical, 2 diagonal |
|
Plow Shoes |
Optional |
Optional |
|
Trip Springs (Moldboard) |
4 Extension Springs |
4 Extension Springs |
|
TripSprings(CuttingEdge) |
3 Torsion Springs (per blade half) |
3 Torsion Springs (per blade half) |
|
Angle Cylinders |
1 1/2" x 10" (4 cm x 25 cm) |
1 1/2" x 10" (4 cm x 25 cm) |
|
Lift Cylinder |
2" x 1 1/8" x 10" (5 cm x 3 cm x 25 cm) |
2" x 1 1/8" x 10" (5 cm x 3 cm x 25 cm) |
|
Attachment System |
SmartHitch 2 |
SmartHitch 2 |
|
Plow Weight* |
920 lb (417 kg) Steel |
977 lb (433 kg) Steel |
|
Plow Lights |
SmartLight 2 (SL3 L.E.D. Optional) |
SmartLight 2 (SL3 L.E.D. Optional) | |
| |
| Model |
10'0" Steel Heavy-Duty DXT |
|
Blade Width (Straight) |
120" (305 cm) |
|
Blade Width (V position) |
107" (272 cm) |
|
Blade Width (Scoop) |
102" (259 cm) |
|
Plowing Width@30°Angle |
104" (264 cm) |
|
Blade Height |
35" (88 cm) at center, 45" (114 cm) at end |
|
Blade Thickness |
11-ga Steel |
|
Base Angle |
1/2" x 6" (1.3 cm x 15 cm)** |
|
Reinforcement Ribs |
8 vertical, 2 diagonal |
|
Plow Shoes |
Optional |
|
Trip Springs (Moldboard) |
4 Extension Springs |
|
Trip Springs (Cutting Edge) |
3 Torsion Springs (per blade half) |
|
Angle Cylinders |
2" x 10" (5.08 cm x 25.4 cm) |
|
Lift Cylinder |
2 1/4" x 1 1/8" x 12" (5.72 cm x 2.86 cm x 30.48 cm) |
|
Attachment System |
SmartHitch 2 |
|
Plow Weight* |
1205 lb (546.58 kg) |
|
Plow Lights |
SmartLight 2 (SL3 L.E.D. Optional) | |
| |
