ID # 39236334

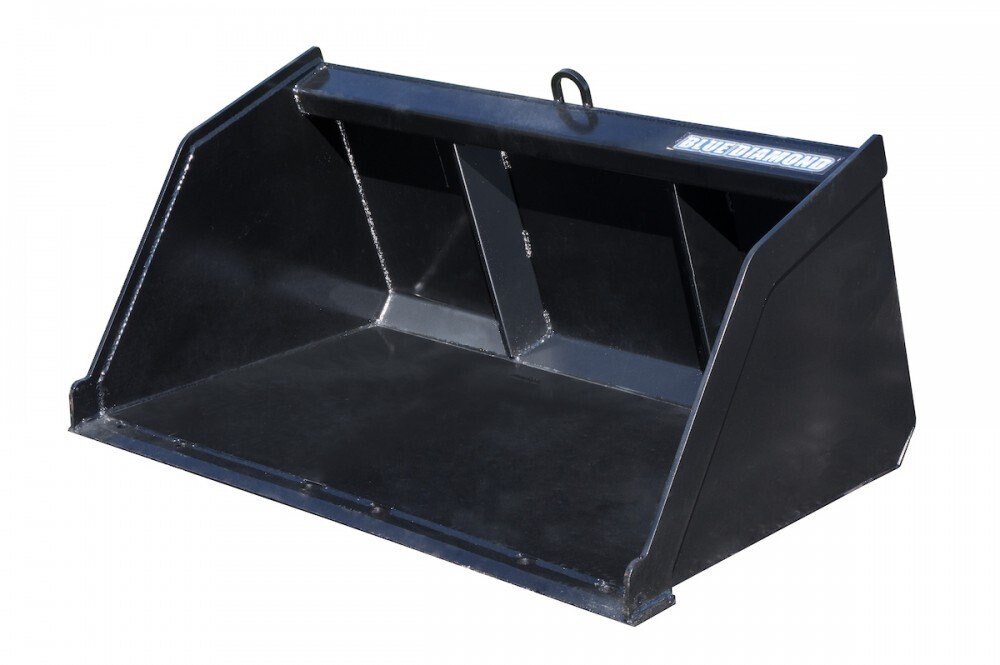

Blue Diamond MINI SNOW AND MULCH BUCKET

  • Blue Diamond MINI SNOW AND MULCH BUCKET
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The Blue Diamond® Mini Snow & Mulch Bucket is ideal for handling bulky items with your mini skid steer. This bucket will survive the toughest conditions with its reinforced bracing in the main frame, wear bars on the underside, and quality construction. It is made of 3/16” steel and comes standard with a D-ring.
Specifications
Model
MINI SNOW AND MULCH BUCKET
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • Available to fit most mini skid steers
  • Standard widths: 36″, 44″, & 52″
  • Optional bolt-on cutting edge
  • Reinforced frame
  • 22″ tall
  • Standard D-ring

technical data
Part Number Model Struck Cap. Weight
108503 34” Bucket, Snow/Mulch, 22” Back 8.51 CU FT 101 lbs
108505 36” Bucket, Snow/Mulch, 22” Back 9.41 CU FT 218 lbs
108510 44” Bucket, Snow/Mulch, 22” Back 11.50 CU FT 317 lbs
108512 48” Bucket, Snow/Mulch, 22” Back 12.09 CU FT 325 lbs
108515 50” Bucket, Snow/Mulch, 22” Back 12.55 CU FT 310 lbs
108517 52” Bucket, Snow/Mulch, 22” Back 13.64 CU FT 321 lbs
108518 54” Bucket, Snow/Mulch, 22” Back 14.09 CU FT 340 lbs
108520 60” Bucket, Snow/Mulch, 3/16” Wrap 15.17 CU FT 450 lbs
108685 44” Bucket, Snow/Mulch, High Back W/Mesh 12.31 CU FT 244 lbs
108690 48” Bucket, Snow/Mulch, High Back W/Mesh 13.5 CU FT 266 lbs
108513 48” Bucket, Snow/Mulch 1 YARD 507 lbs
108612 48” Bucket, Snow/Mulch, 1/4 Wrap 1 YARD 620 lbs
