Blue Diamond MINI FRONT DUMP BUCKET

  • Blue Diamond MINI FRONT DUMP BUCKET
  • Blue Diamond MINI FRONT DUMP BUCKET
  • Blue Diamond MINI FRONT DUMP BUCKET
  • Blue Diamond MINI FRONT DUMP BUCKET
  • Blue Diamond MINI FRONT DUMP BUCKET
  • Blue Diamond MINI FRONT DUMP BUCKET
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

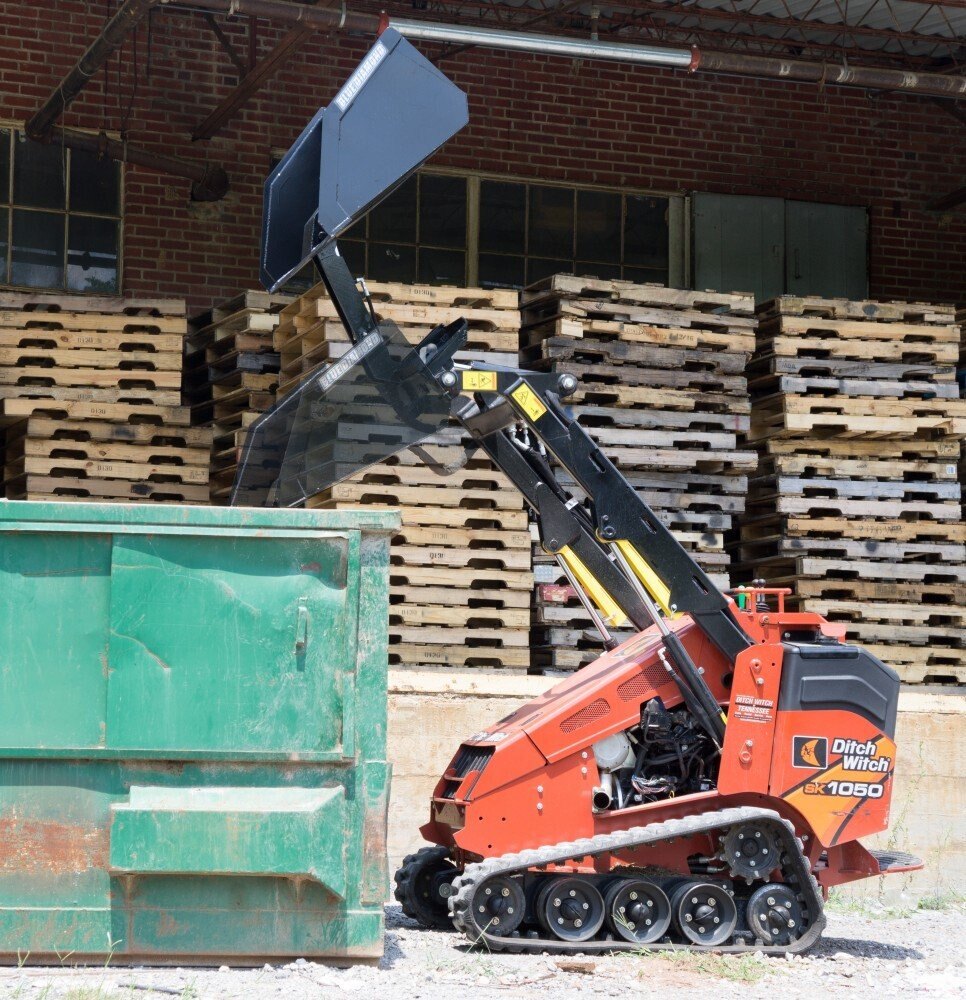

The Blue Diamond® Mini Skid Steer Front Dump Bucket allows you to load trucks and dumpsters you normally could not reach on your own. You gain up to 43” when fully extended.
Specifications
Model
MINI FRONT DUMP BUCKET
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • Available widths: 36”, 38”, 42”, 44”, and 50”
  • Gain up to 43” height
  • Single cylinder
  • Greaseable pivot pins

technical data
Part Number Model Struck Cap. Weight
108990 36” Bucket, Front Dump 5.89 CU FT 340 lbs
108992 38” Bucket, Front Dump 6.1 CU FT 350 lbs
108994 42” Bucket, Front Dump 7.3 CU FT 360 lbs
108996 44” Bucket, Front Dump 7.43 CU FT 375 lbs
108998 50” Bucket, Front Dump 8.6 CU FT 395 lbs
literature
Name Link
Brochure Download



Documents
