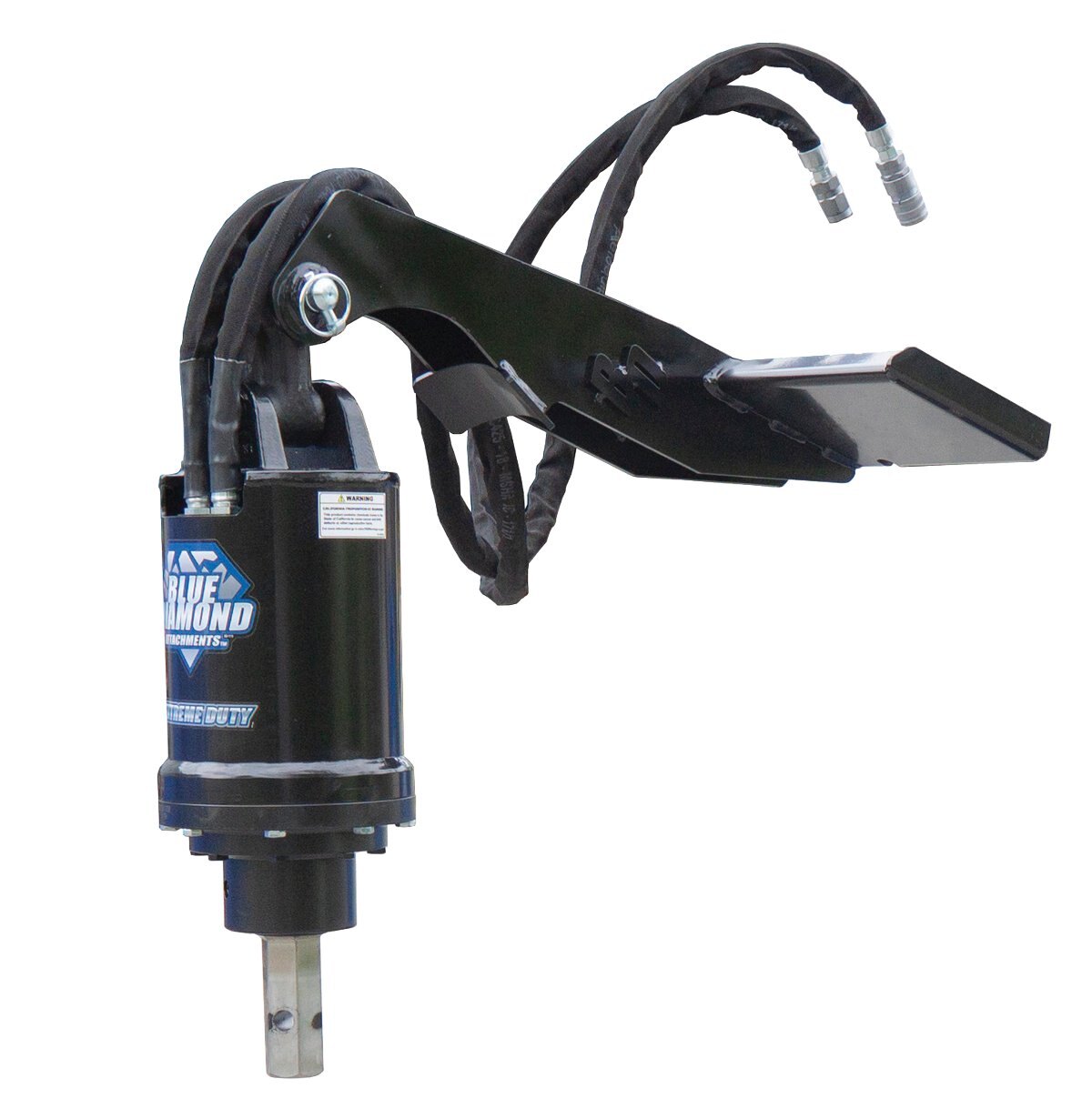

Blue Diamond MINI Auger DRIVE - Extreme Duty Series 2

Videos
Call for Price
Overview

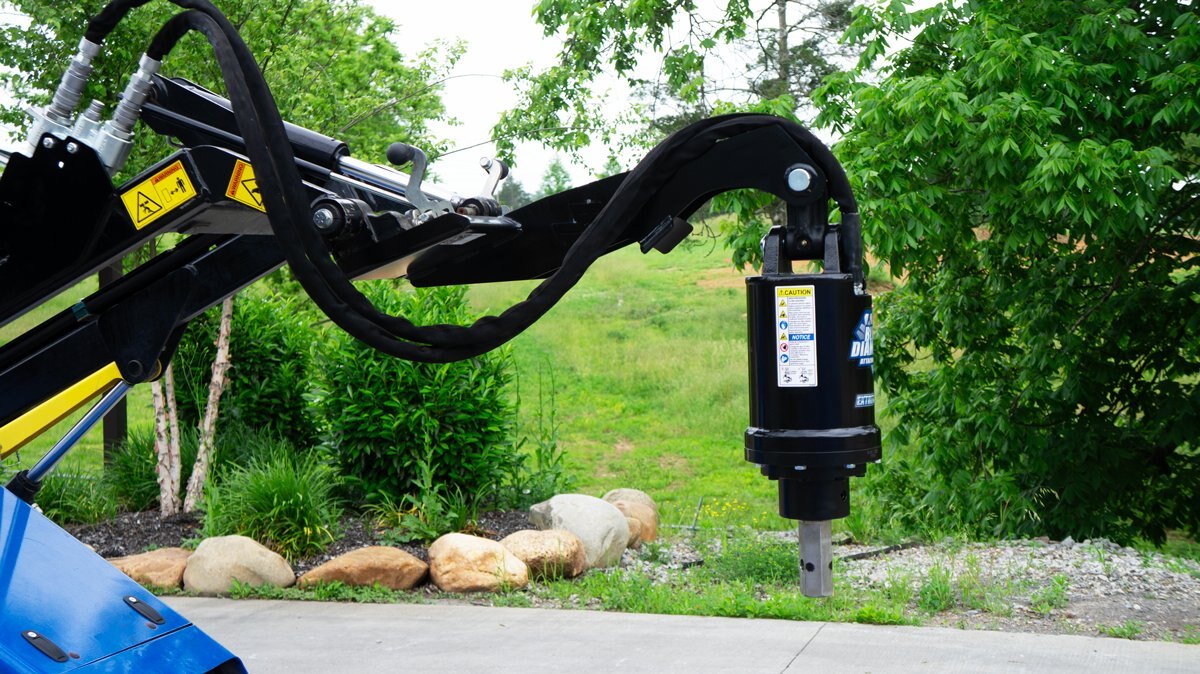

The Blue Diamond® Mini Skid Steer Extreme Duty Series 2 Auger Drive offers the ultimate in performance, quality, and cost-effectiveness for digging post holes and drilling soil with mini skid steer machines. Designed with high-grade materials and innovation, this attachment allows the gearbox to go down the hole, maximizing drilling depth while eliminating downtime. Blue Diamond skid steer auger attachments are perfect for drilling in most ground conditions. Available to fit most mini-walk behind skid steers and compact track loaders.

Specifications
Model
MINI Auger DRIVE - Extreme Duty Series 2
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • Compact high torque manufactured gearbox
  • 2 piece shaft design ensuring maximum side load ratings
  • 5-year gearbox warranty, 3-year motor warranty, and lifetime shaft pull-out warranty

technical data
Model EX1 EX2 EX3 EX4
Part Number 305706 305709 305713 305716
Torque ft-lbs @ 3000 Ps 1467 2254 2829 3275
Max Torque ft-lbs 3500 Psi 1712 2630 3300 3821
Recommended Flow (GPM) 6-16 10-26 10-30 10-30
Peak Efficiency (GPM) 8-11 12-16 17-20 19-23
Motor Type Eaton Eaton Eaton Eaton
Max Pressure – Do Not Exceed 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 16 gpm
Max Flow – Do Not Exceed 30 gpm @ 1800 psi 30 gpm @ 1800 psi 30 gpm @ 1800 psi 30 gpm @ 1800 psi
Max HP 33 33 33 33
Pressure Relief Valve N/A N/A N/A N/A
Standard Output Shaft 2″ Hex 24” 24” 24”
Max Drilling Diameter Clay/Shale 12″ 24” 24” 24”
Max Drilling Diameter Earth 24” 30” 30” 30”
Weight (lbs) 101 123 123 123
Overall Length (in) 24.5″ 25.9″ 25.9″ 25.9″
Diameter (in) 7.4″ 9.4″ 9.4″ 9.4″
Max Diameter (shale/clay) 12” 24” 24” 24”
Max Diameter (dirt) 24” 30” 30” 30”
