ID # 39142074

Blue Diamond SNOW BLOWER – EXTREME DUTY

  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Blue Diamond SNOW BLOWER – EXTREME DUTY
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

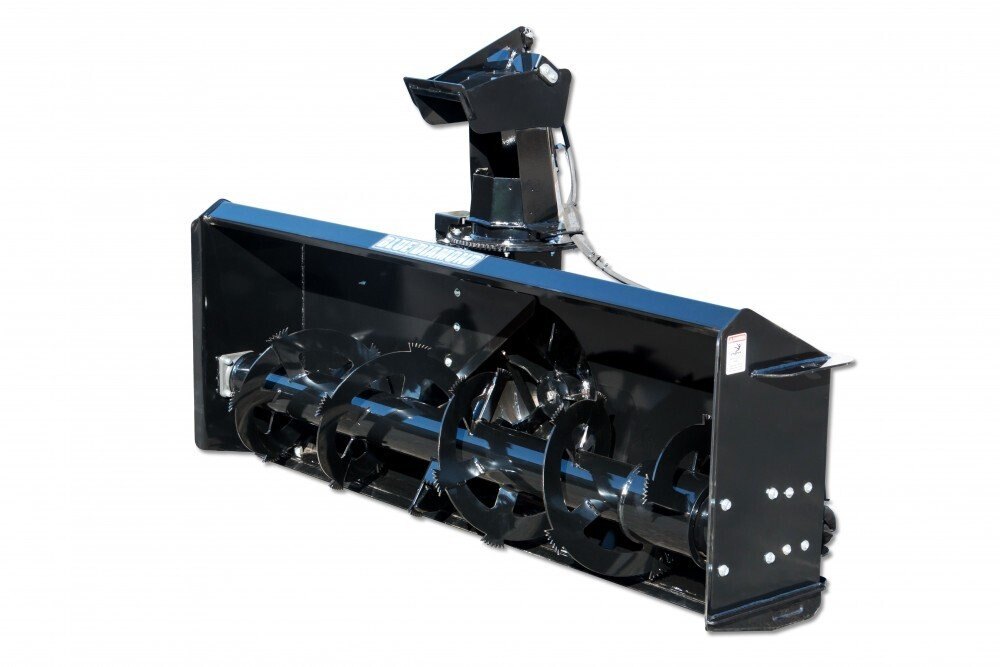

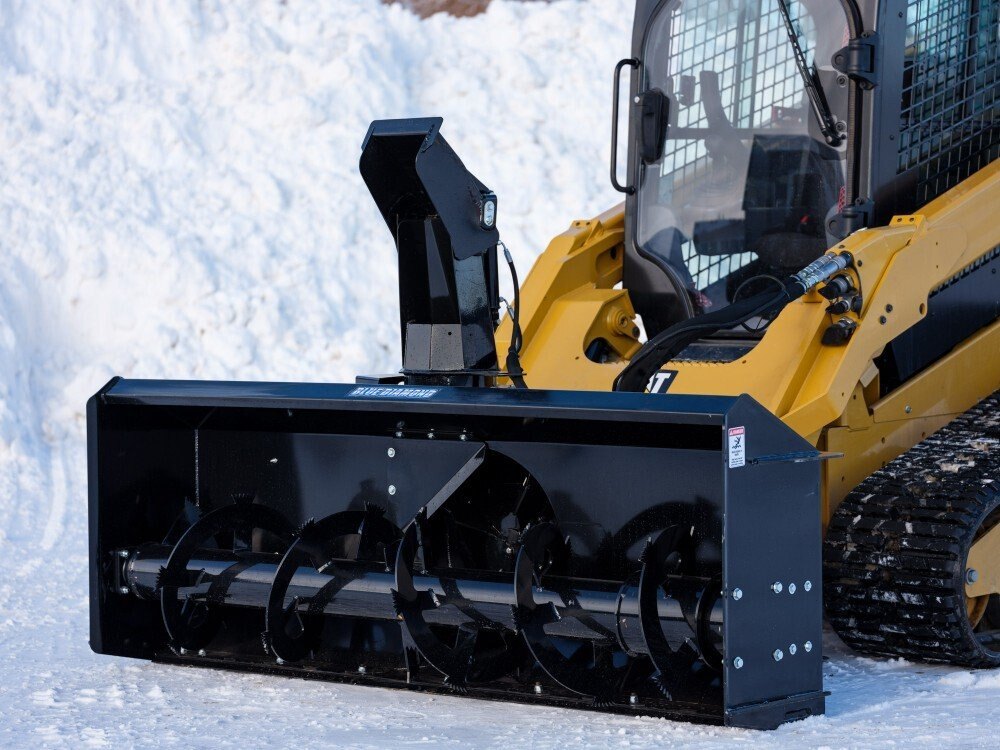

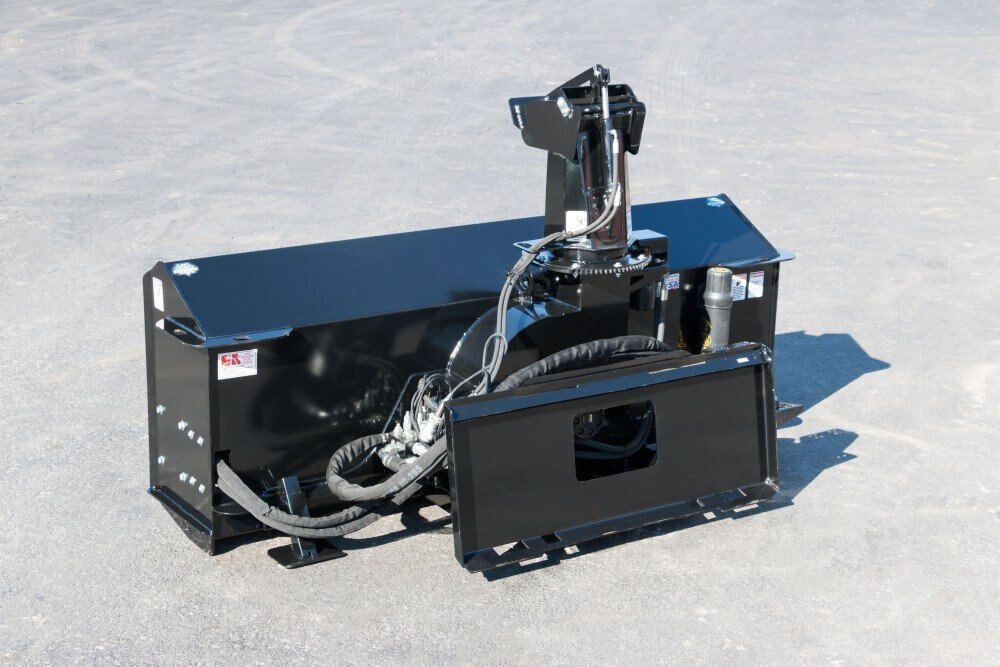

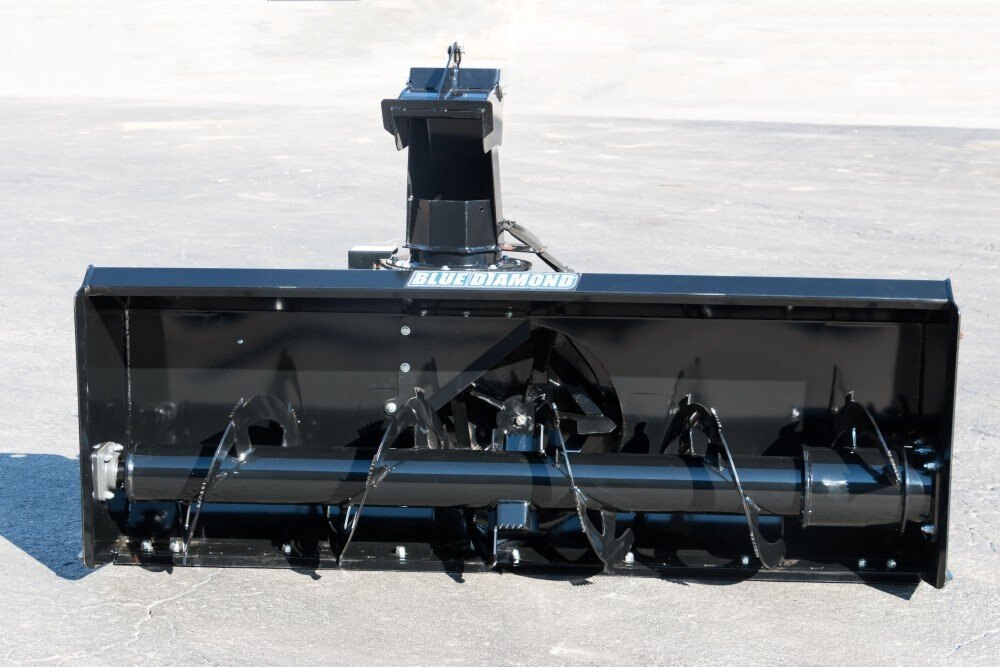

The Blue Diamond® Extreme Duty Skid Steer Snow Blower is engineered for years of use. A high pressure bypass relief system eliminates the need for shear pins during sudden stops. With a choice of widths and motor packages, you can find the optimal sized snow blower to match your skid steer’s capacity.
Specifications
Model
SNOW BLOWER – EXTREME DUTY
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
Blue Diamond
features & benefits

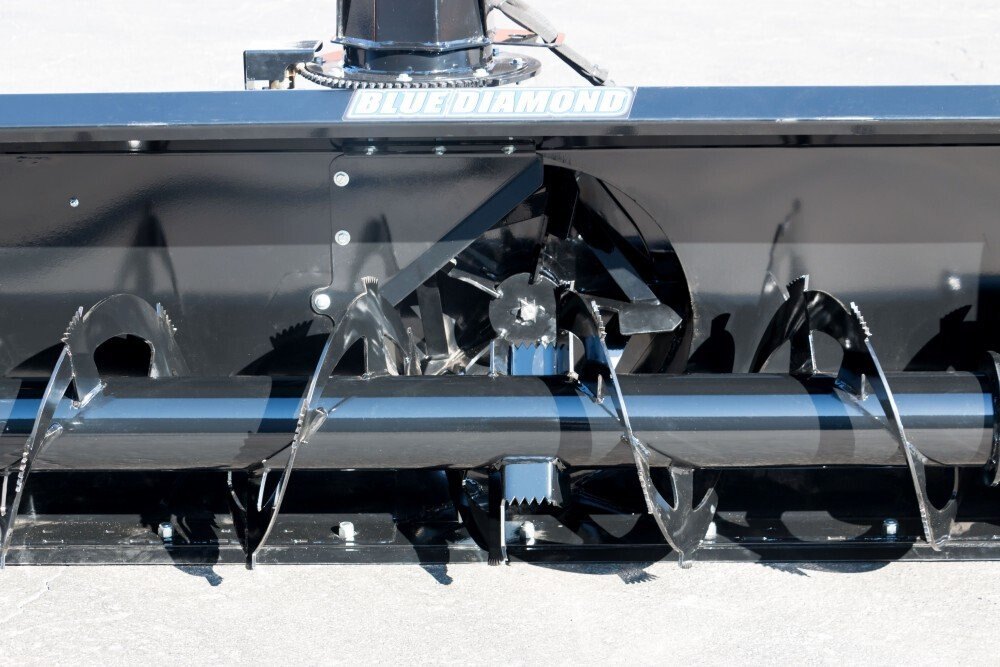

  • Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting
  • 4 blade fan, 22″ diameter, 6 1/2″ deep

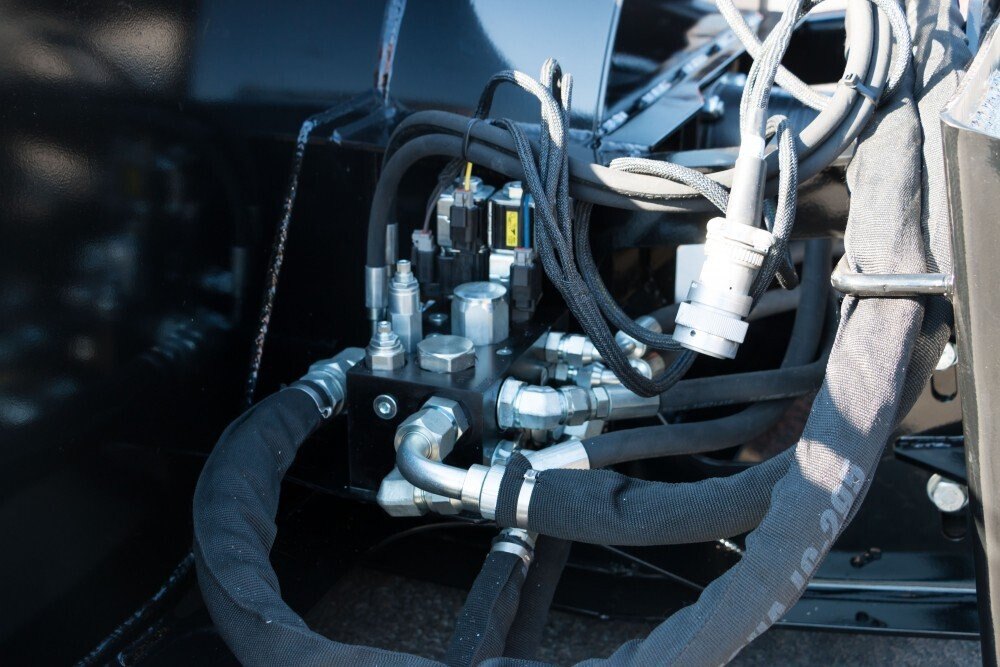

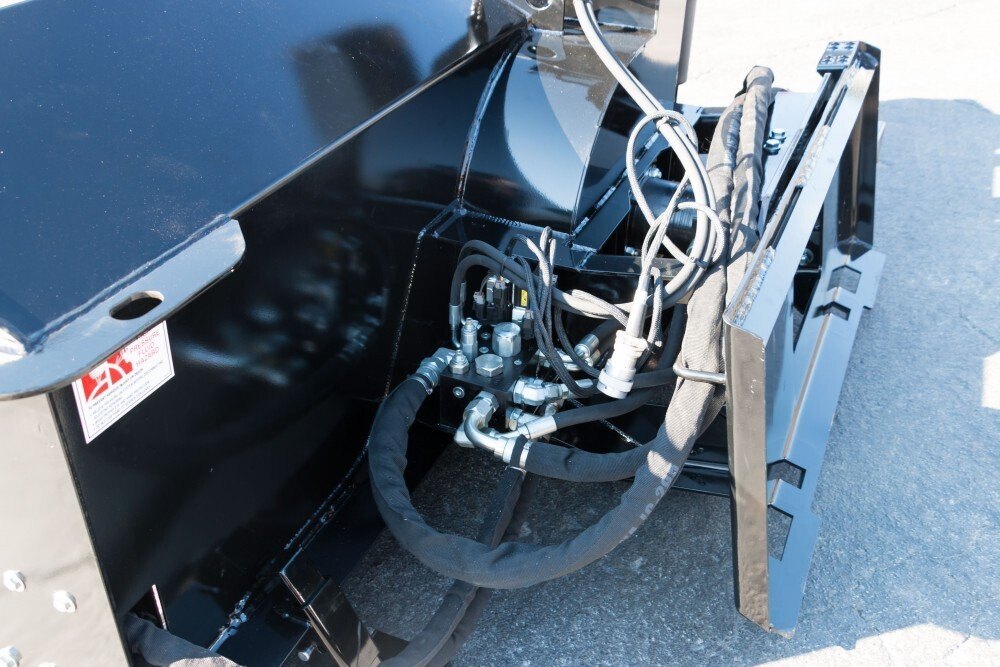

  • No shear pins; high pressure bypass relief system
  • No chains; direct drive auger and fan

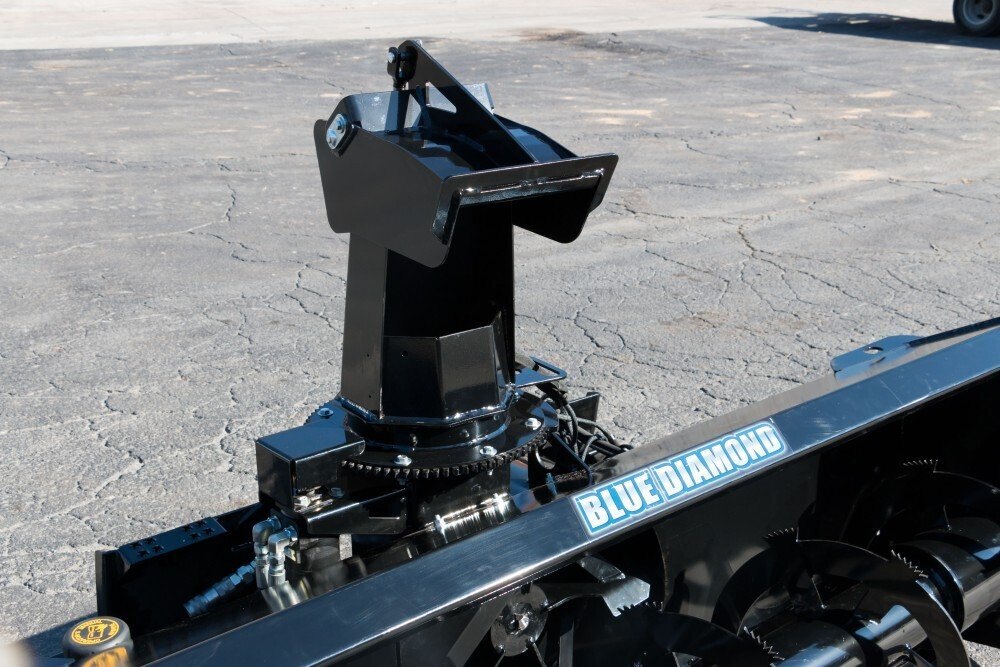

  • 270◦ hydraulic rotary chute with 7” opening
  • Hydraulic chute deflector
  • Adjustable hardened steel skid shoes
  • 7 gauge steel fan housing
  • 10 gauge steel blower shell
  • 1/4″ end plates
  • High strength corner bracing
  • Heavy duty polyurethane idler wheels
  • Bolt-on grader cutting edge

technical data
Part Number Model Best Flow Cut Width Cut Height Overall Width Overall Height Weight
119100 68″ 21-23 GPM 69.7″ 29.5″ 73.5″ 60.5″ 915 lbs
119103 72″ 17-20 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs
119104 72″ 21-23 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs
119105 72″ 24-25 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs
119106 72″ 26-29 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs
119107 72″ 30-40 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs
119109 84″ 21-23 GPM 85.7″ 29.5″ 89.5″ 60.5″ 1050 lbs
119110 84″ 24-25 GPM 85.7″ 29.5″ 89.5″ 60.5″ 1050 lbs
119111 84" 26-29 GPM 85.7" 29.5" 89.5" 60.5" 1,050 lbs
119112 84" 30-40 GPM 85.7" 29.5" 89.5" 60.5" 1,050 lbs
