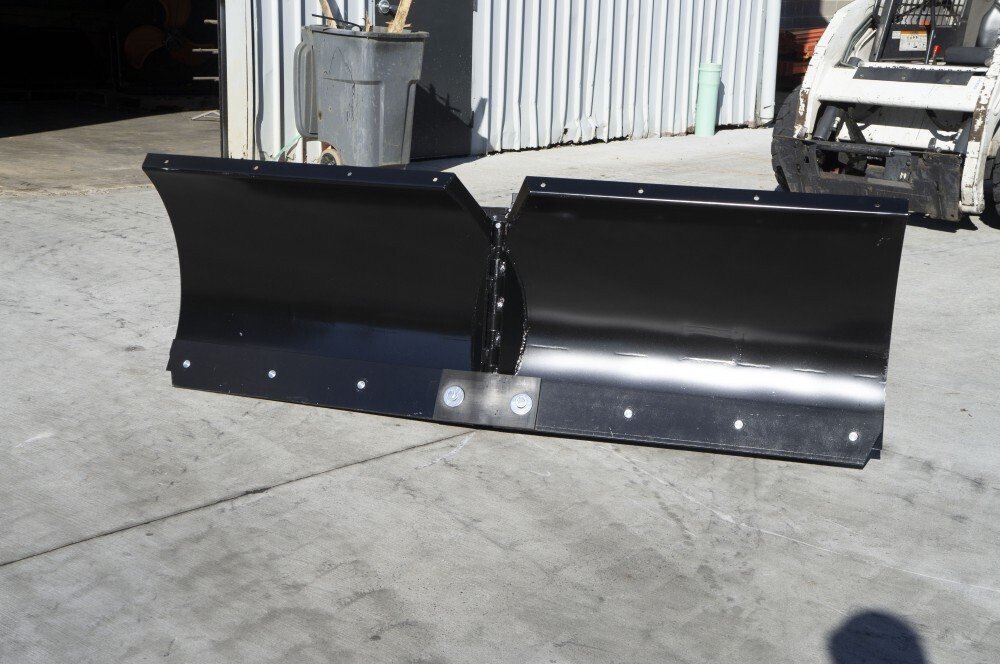

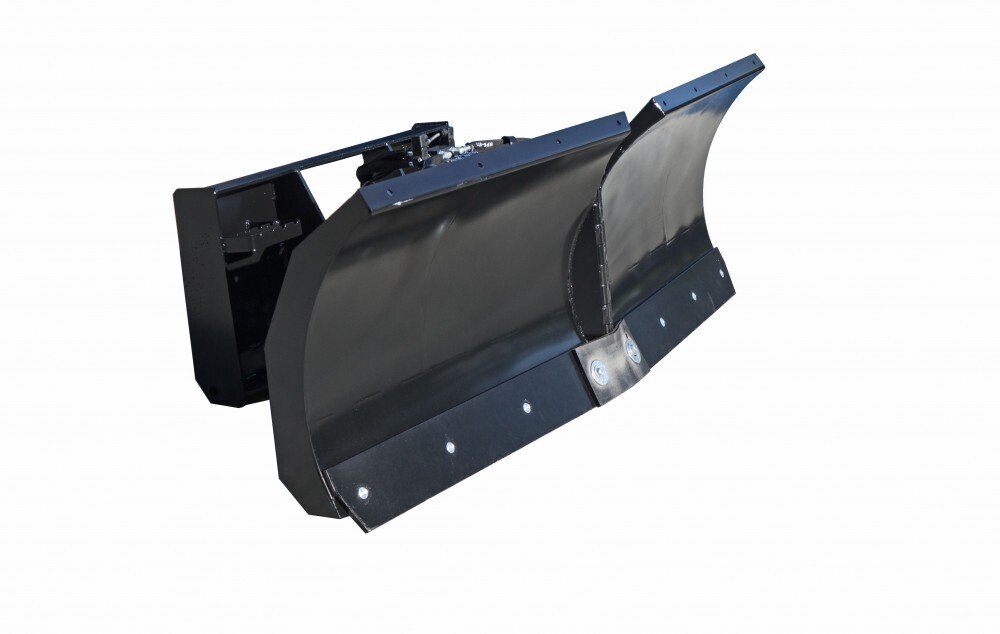

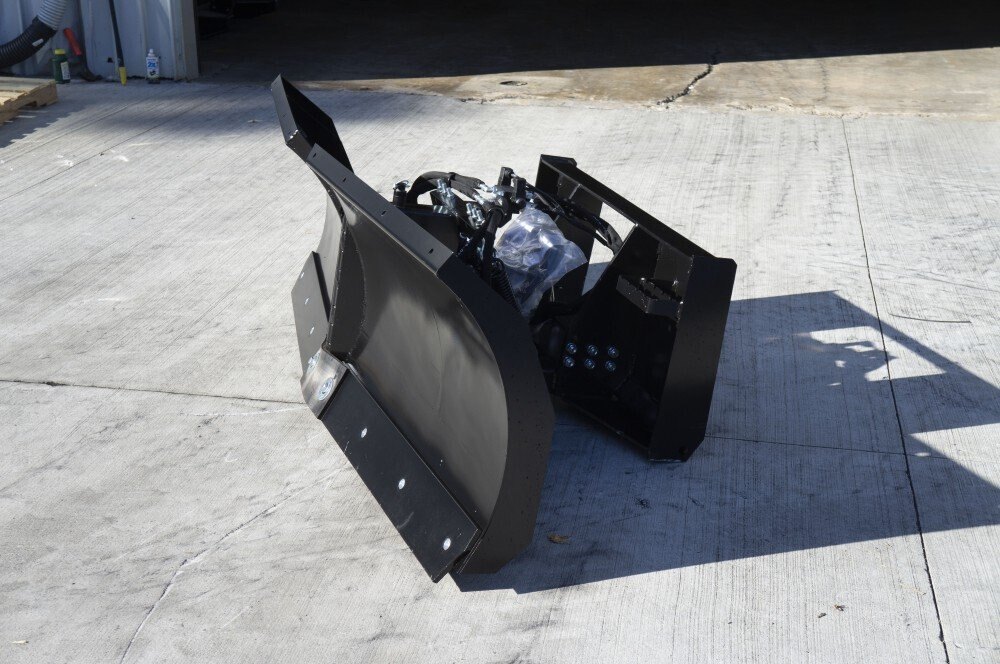

Blue Diamond SNOW PLOW V-BLADE

Call for Price
Overview

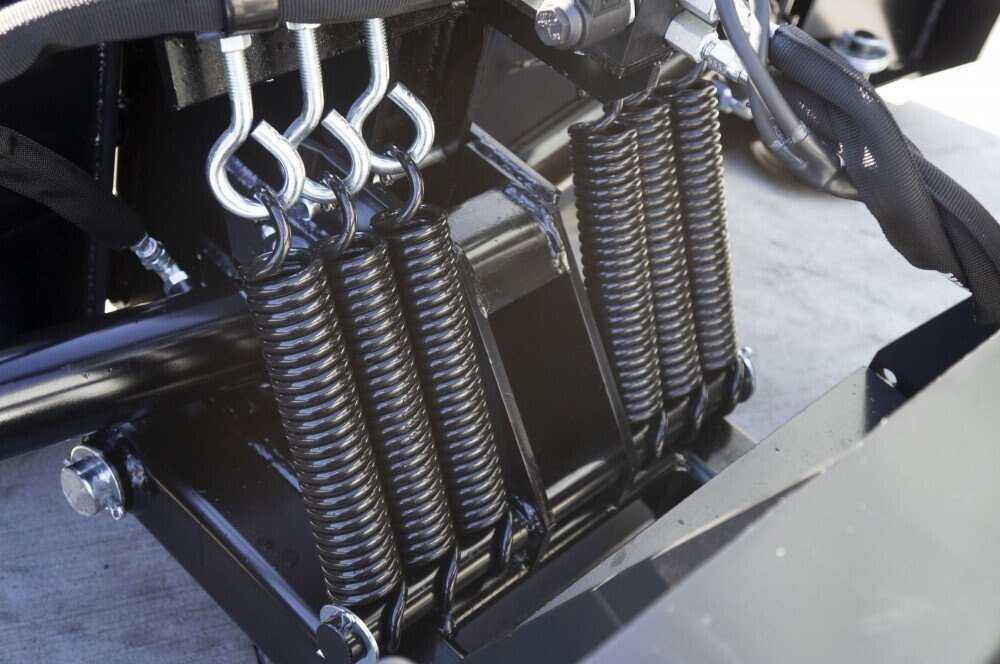

The Blue Diamond® Skid Steer V-Blade is extremely versatile and can be used in many applications. Its two prime functions are snow removal and backfilling dirt into trenches. It can be angled left and right or used straight by easy manual adjustments. The V-feature allows snow to be moved to both sides or use it in scoop mode to carry snow away from the edges. This blade’s trip feature can be locked or unlocked allowing the blade to either trip or be locked for dirt work such as back filling trenches and spreading dirt.

Specifications
Model
SNOW PLOW V-BLADE
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
Blue Diamond
features & benefits

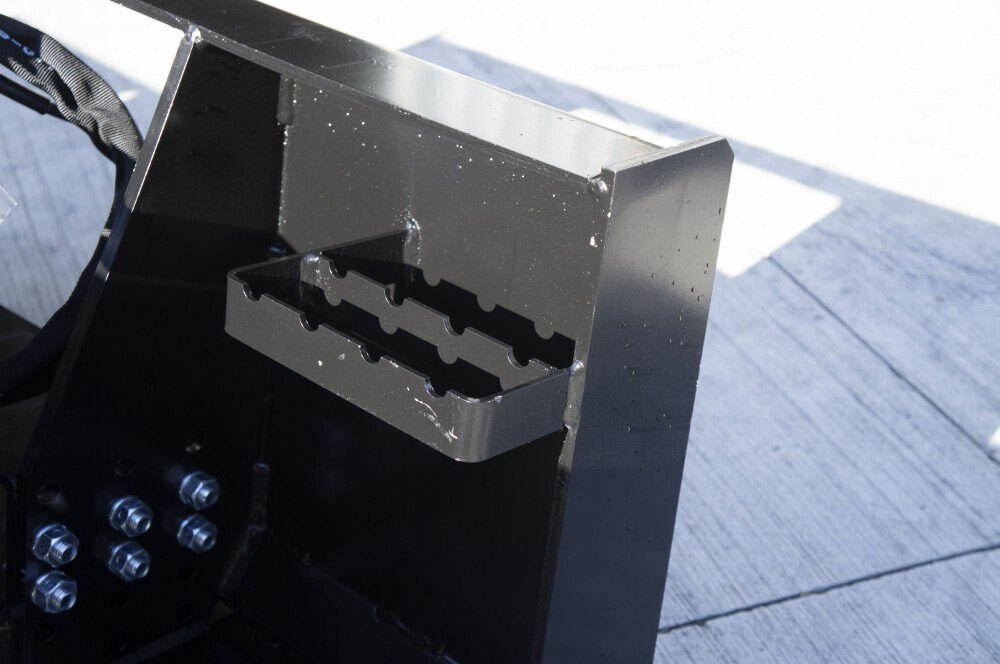

  • Universal Mount – allows for one standard attachment for skid steers and mini skid steers, no need for special hook ups or attachments
  • Electric Hydraulic Controls – electric controls over hydraulics make it easy to position the blade with a different angle or tilt
  • Double Hydraulic Cylinders – quick connect couplers allow easy for access to any skid steer or mini skid steer machine
  • Adjustable Depth Guides – manually adjust the spacers on the skid shoes to modify the blade height to allow control over blade height and surface contact

technical data
Part Number Model Angle Width Weight
120500 6’ Without Float 63.87” 823 lbs
120505 6’ W/Float 63.87” 823 lbs
120510 7’ Without Float 78.38” 863 lbs
120515 7’ W/Float 78.38” 863 lbs
120520 8’ Without Float 84.87” 903 lbs
120525 8’ W/Float 84.87” 903 lbs
120530 9’ Without Float 95.38” 943 lbs
120535 9’ W/Float 95.38” 943 lbs
