ID # 39142061

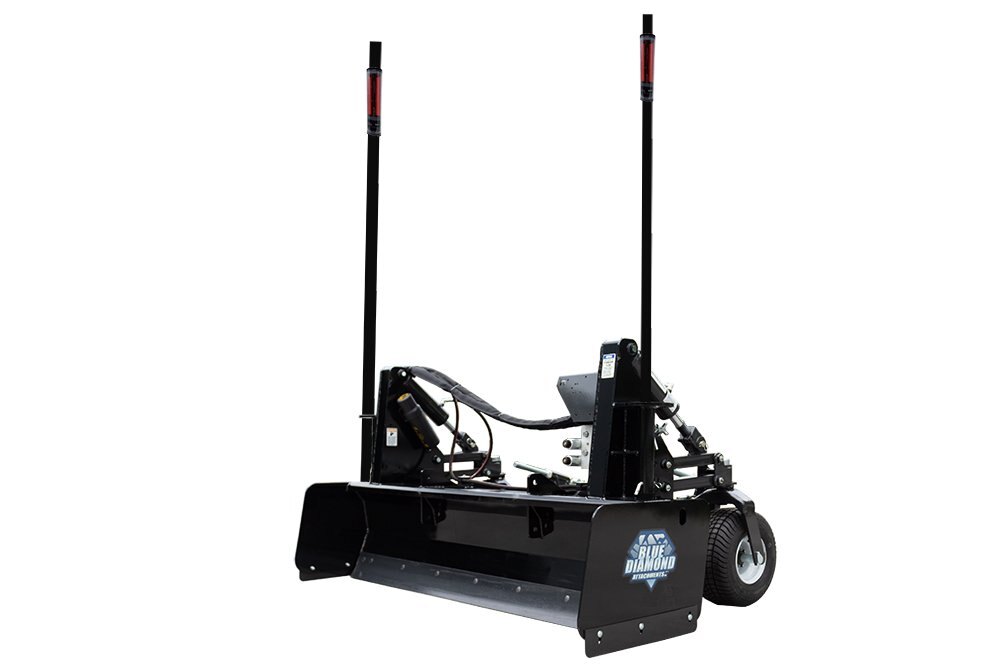

Blue Diamond LAND GRADER - HEAVY DUTY
Videos
Overview

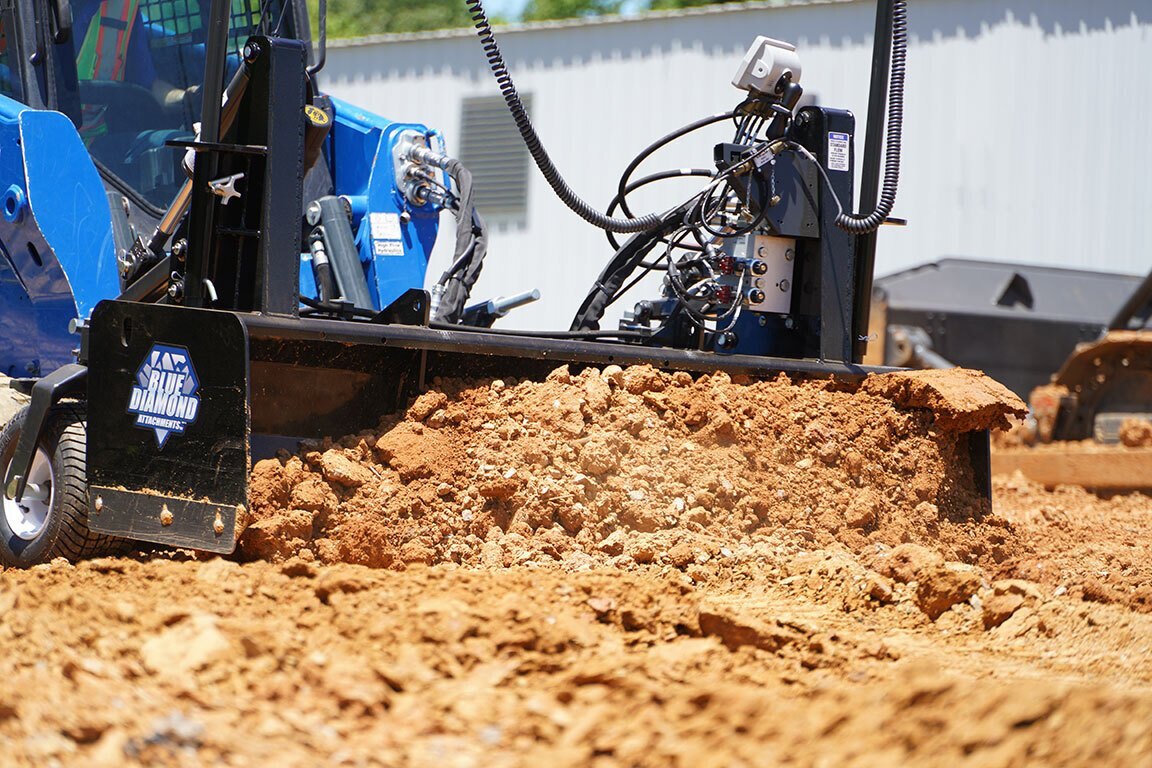

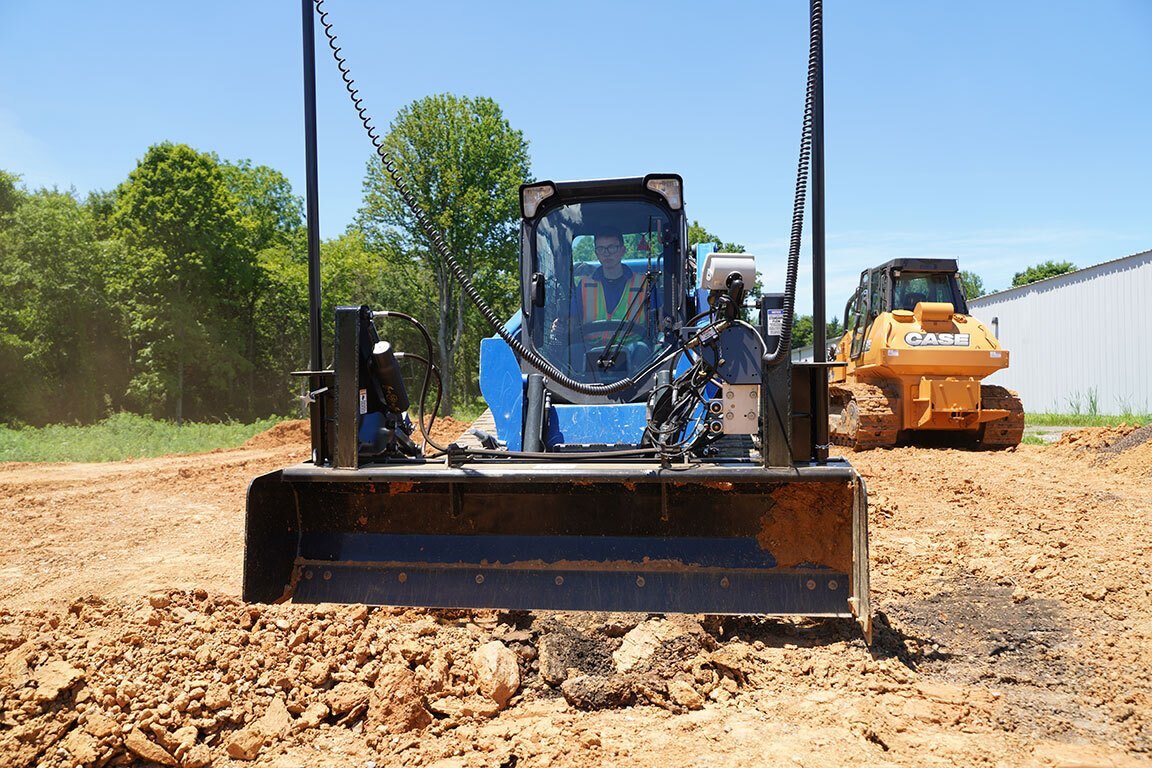

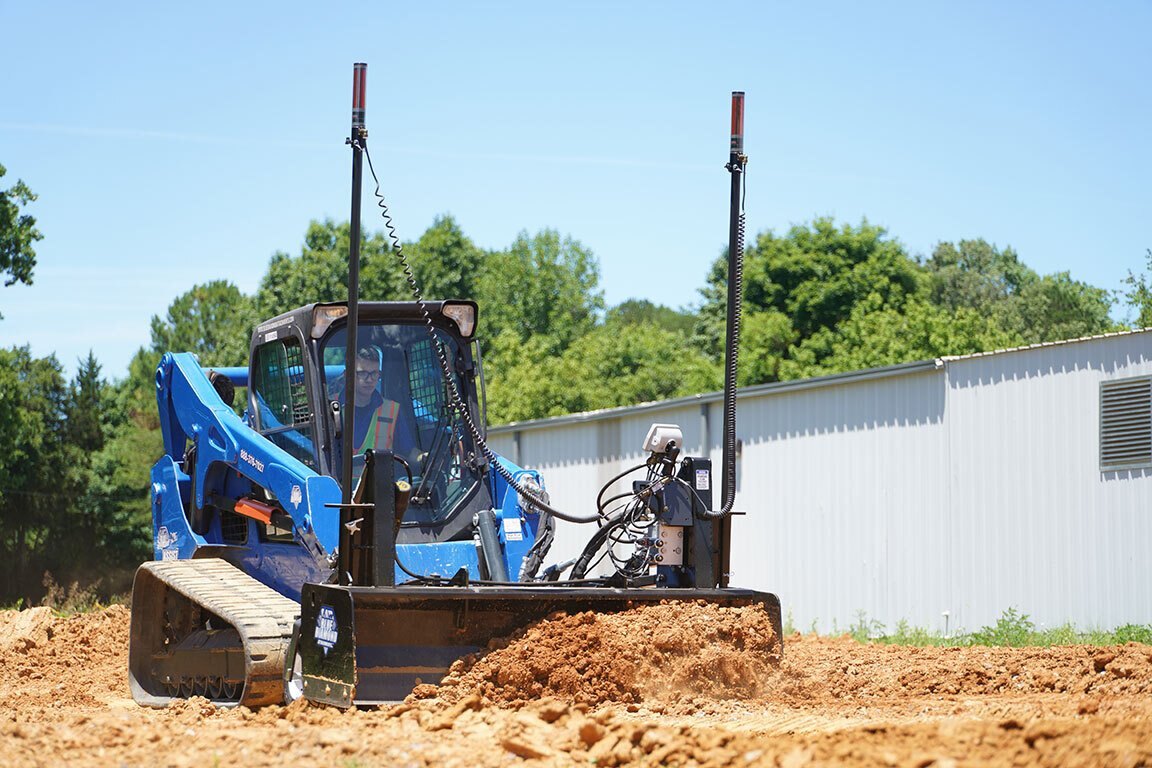

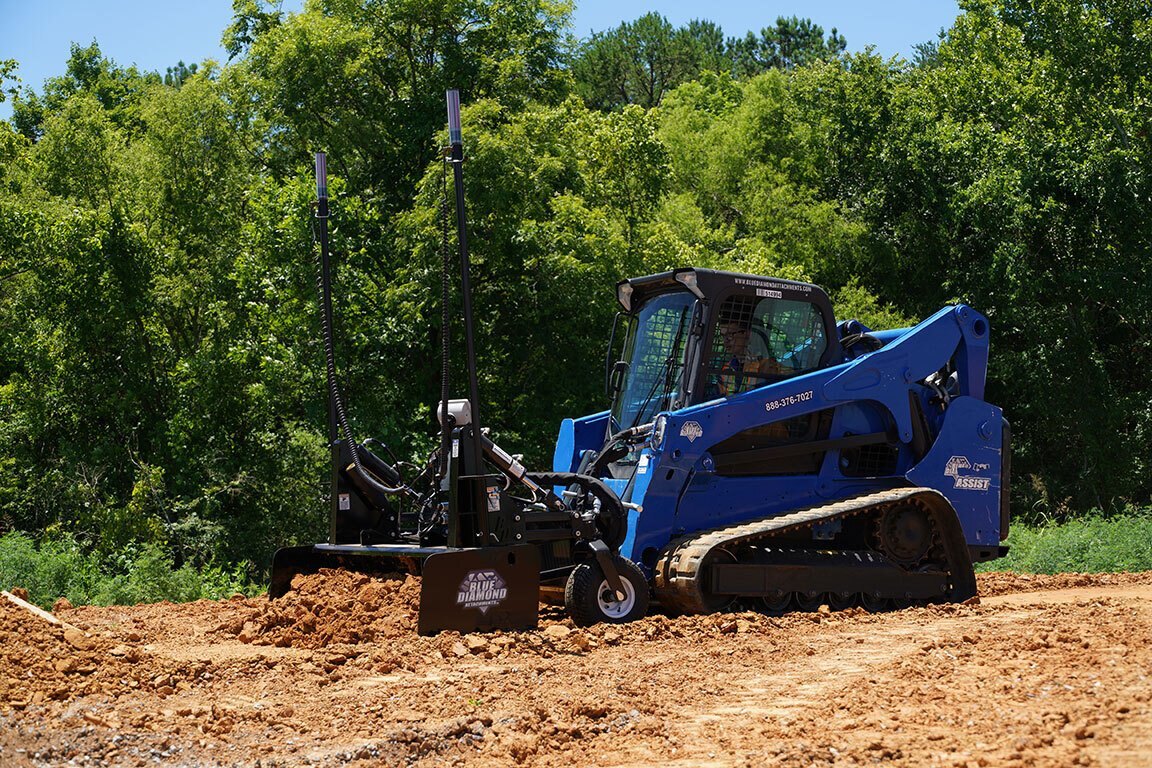

The Blue Diamond® Heavy Duty Land Grader provides fast and accurate laser grading, saving you time and money. High capacity front and rear boxes combined with rear mounted wheels allow you to move and spread material efficiently. This attachment reduces labor and material costs, and improves the overall quality of site preparation! Pair with a bolt-on automatic grade control system and sit back and let the grader do the work!
Specifications
Model
LAND GRADER - HEAVY DUTY
Category Name
Attachments
Manufacturer
Blue Diamond
features & benefits
Features & Benefits

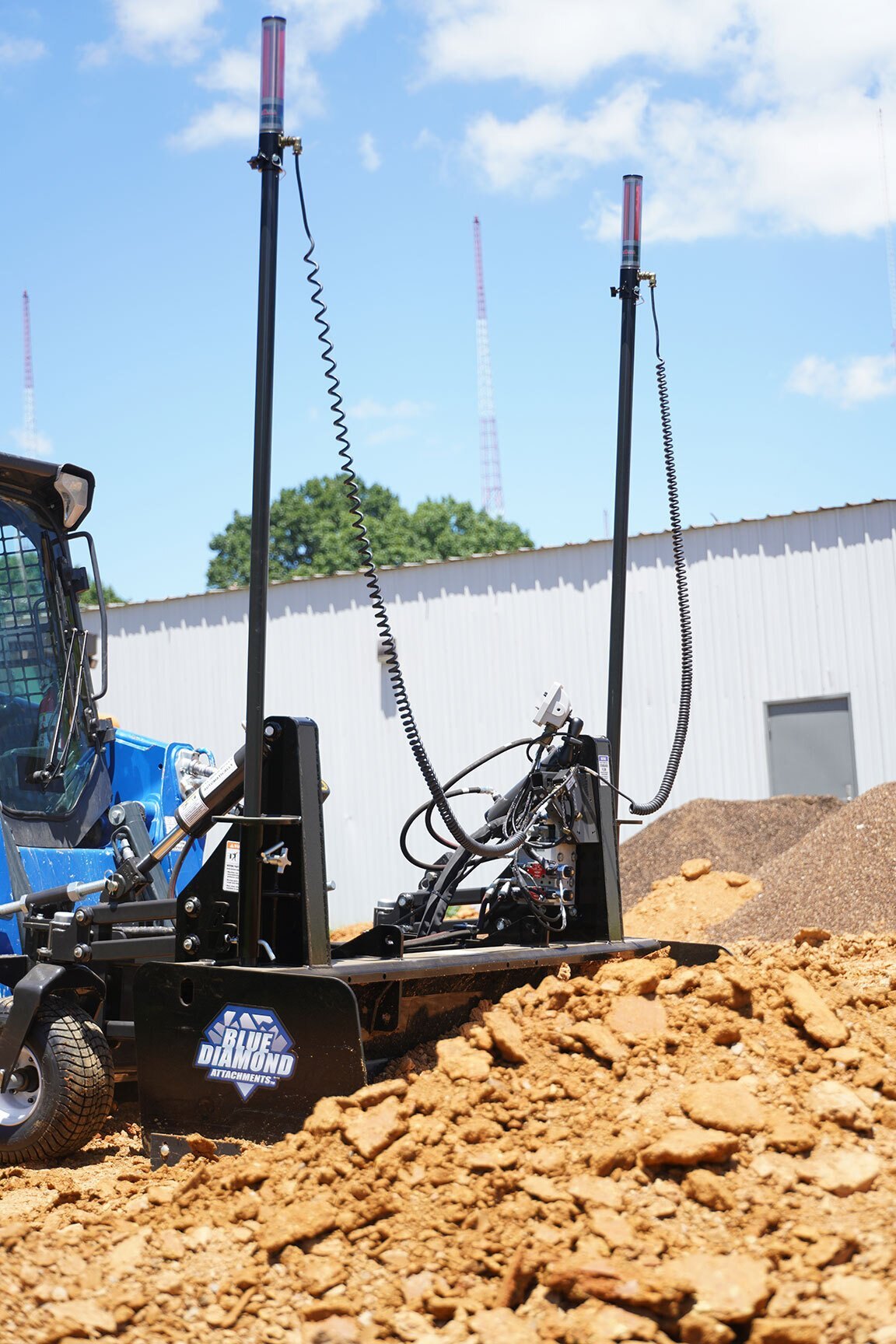

Rear mounted wheels with air-filled tires mounted behind the blade Front and rear cutting edges allow you to push or pull material for precise placement while traveling in either direction Bolt-on front and rear cutting edges are ½” thick hardened steel and replaceable. Side edges are adjustable and replaceable Blade attachment can self-articulate up to 8 inches independently of the skid steer on either side Ball joints and parallel links allow up/down and side to side movement independent from the machine creating a precision graded surface Operating width 84 with a 19” box height 17 cubic foot front box and 10 cubic foot rear box capacity 3/16” (7 gauge) steel wrap with rib reinforcements, 3/8" steel side plates Max 25 GPM, standard flow only, 55 HP minimum required Hoses and couplers included Laser receiver kit optional (laser beacon not included)
technical data
Technical Data
Part Number
Model
Box Height
Weight
Front Box Capacity
Rear Box Capacity
Min HP Required
Laser Receiver Kit
123515
84"
19″
1,472 lbs.
17 cu. ft.
10 cu. ft.
55
Optional
Bobcat requires a 7-pin adapter (160416)
