Can Am

ID # 39142060

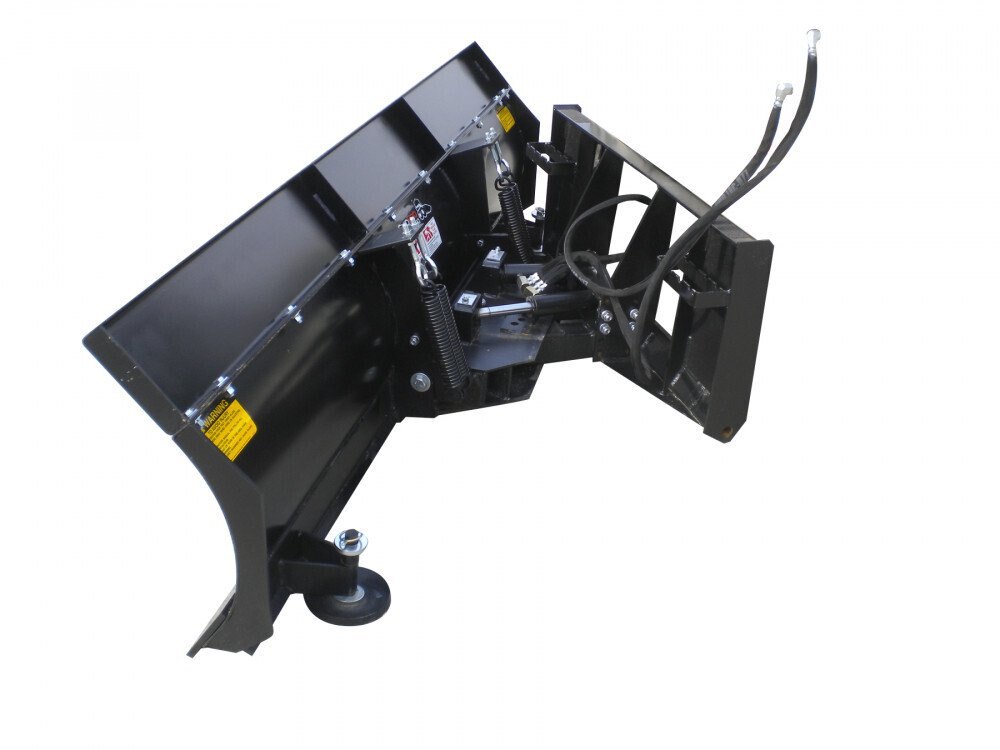

Blue Diamond HEAVY DUTY SERIES 2 MULTI-PURPOSE BLADE

Call for Price
Overview

The Blue Diamond® Heavy Duty Series 2 Multi-Purpose Blade is great for snow and light dirt work. At 22” tall, this blade is a great fit for most users and has an optional 8” height extension that can be bolted on for high-volume applications. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade for dirt applications.

*Only compatible with tractors that have a skid steer mount

Specifications
Model
HEAVY DUTY SERIES 2 MULTI-PURPOSE BLADE
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • Available in 84”, 96”, 108”, and 120” widths
  • 28” blade height
  • Optional bolt-on 8” height extension
  • Full-trip mouldboard
  • Steel cutting edge
  • Hydraulic angle

technical data
Part Number Straight Width Angled Width Angle Height Weight
123470 84” 72 1/2" 30° 28" 901 lbs
123475 96" 82 7/8" 30° 28" 946 lbs
123480 108" 93 3/8" 30° 28" 986 lbs
123485 120" 104 1/8" 30° 28" 1,016 lbs
