Can Am

ID # 39137267

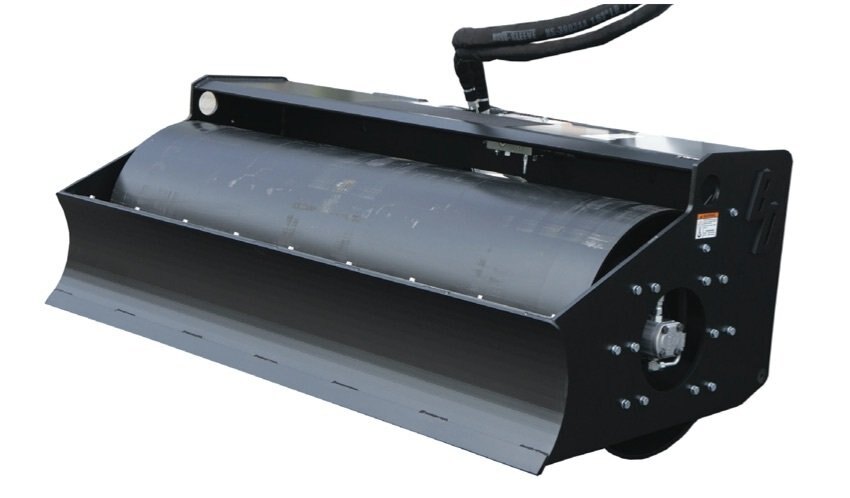

Blue Diamond VIBRATORY ROLLER

Call for Price
Overview

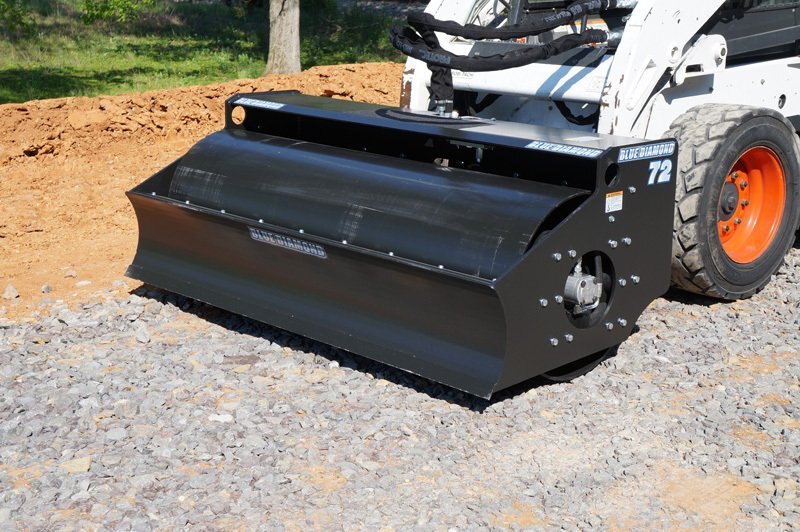

The Blue Diamond® Vibratory Rollers are available in 73″ and 84″ working widths. All models feature hydraulically powered exciter systems designed with oil-mist lubrication. All models minimize exciter shaft deflection, lower operating temperatures, and provide our customers with the industry’s lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame, minimizing transmission of vibration to the host machine. All models come with a universal quick-attach system. Smooth or pad foot drum options are available.

Specifications
Model
VIBRATORY ROLLER
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
Blue Diamond
features & benefits
  • Industry leading bearing design
  • Integral knockdown blade
  • Smooth or pad foot models
  • Exciter systems are oil mist lubricate

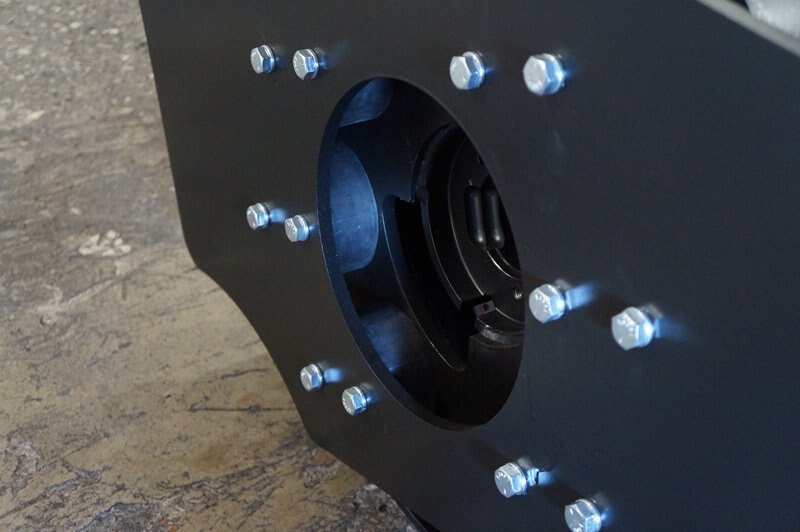

  • Vibrating drums are effectively isolated from the roller frame
  • 12 heavy duty rubber shock mounts
  • Control valve block compensates for the correct flow of oil to prevent over speeding andover pressure of the exciter shaft
  • Universal adapter plate

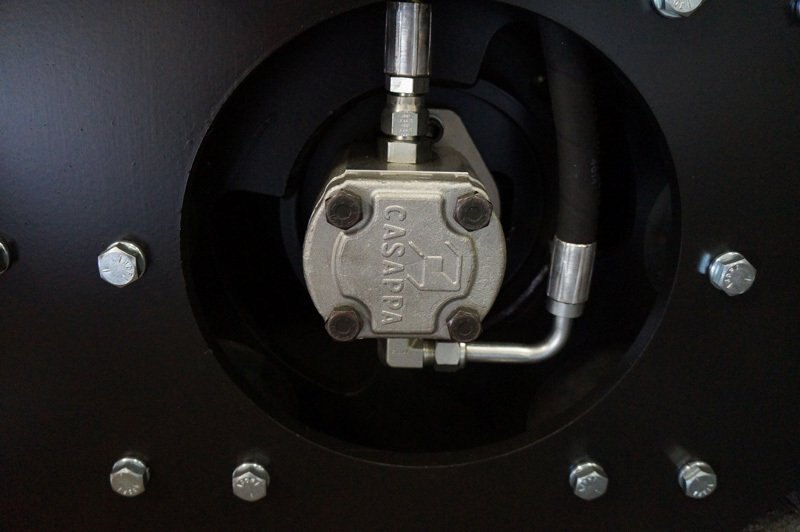

  • Drive motor is inside a heavy duty steel frame



technical data
Part Number Model Drum Diameter Weight
124010 73” Vibratory Roller, Smooth 24" 2,050 lbs
124015 73” Vibratory Roller, Pad Foot 26 3/4" 2,096 lbs
124030 84” Vibratory Roller, Smooth 24" 2,321 lbs
124035 84” Vibratory Roller, Pad Foot 26 3/4" 2,450 lbs
literature
Name Link
Brochure Download



Documents
