Bill Goat AE400 Series 19” Mechanical

Videos
Call for Price
Overview

AE400 Series 19” Mechanical
Core Aerator: 19” Wide
Model #: AE401 (Briggs) / AE401H (Honda)



This unit completely eliminates the conventional and cumbersome center wheel and center drum designs found on other units, which are prone to wear, vibration and damage. Billy Goat’s outboard drive wheels also eliminate center wheel slip and abuse from ramp loading with the tines engaged.

Additionally, the AE401 also eliminates bulky steel weights, in favor of a simple to use water weight positioned directly over the tines for better aeration depth (full tank = 50 lbs.). The unit features the industry’s softest tine engagement and exclusive Lift N Lock™ disengagement for best in class comfort and productivity. After use and during transport, tilt up serviceability, removable tine stars, and Fold-n-Go™ handles, and easy adjust drive chains make service and transport convenient and simple.

  Features
  • Outboard drive wheels
  • Fold-n-Go™ handles
  • Thick O-ring style chain
  • Proprietary water tank adds 50 lbs.when full
  • Lift n Lock™ tine disengagement

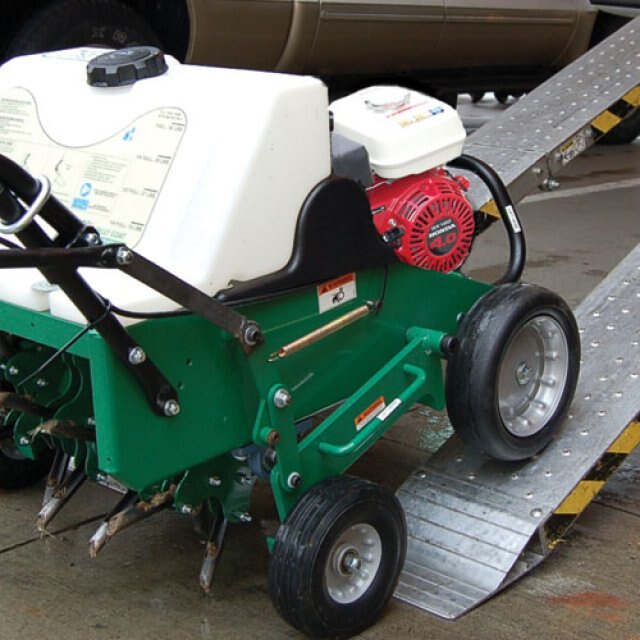

http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg Outboard Drive Wheels

Eliminate both center wheel slip and abuse from ramp loading with the tines engaged.




http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg Industry’s Softest Tine Engagement and Exclusive Lift-n-Lock™ Disengagement

For best in class comfort and productivity. Proprietary water tank eliminates bulky side weights.



http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpgFold-n-Go™ Handles

Are excellent for transport and storage and fold without tools.

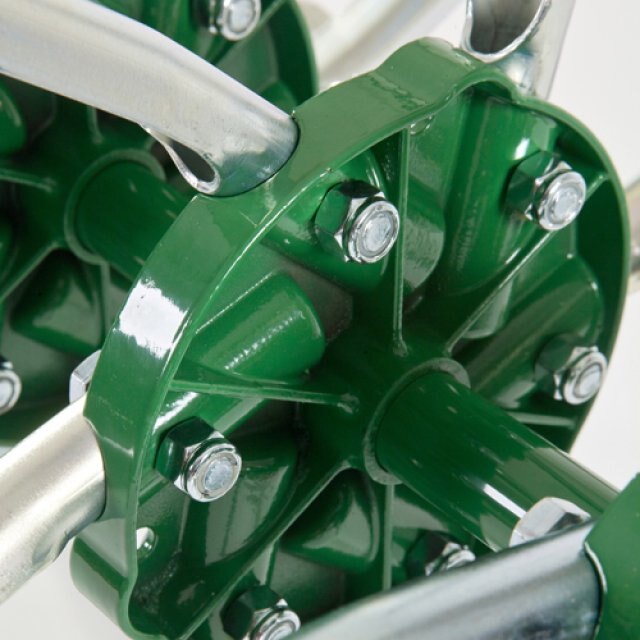

http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpgSingle Bolt Tine Fastener

Rock solid and easy to service.





http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg AE Warranty

1-year machine










Specifications
Model
AE400 Series 19” Mechanical
Category Name
Lawn / Garden
Year
2016
Sale Type
New
Manufacturer
Billy Goat
Engine
118 cc Honda (AE401H); 205 cc Briggs (AE401)
Weight
242 lbs dry (AE401H); 240 lbs dry (AE401)
Length
57''
Width
29''
Height
52.5''
Tines
24
Tine Pattern
4.5'' x 7''
Coring Tines
.625'' x 3.5''
Wheels
Semi-pneumatic
