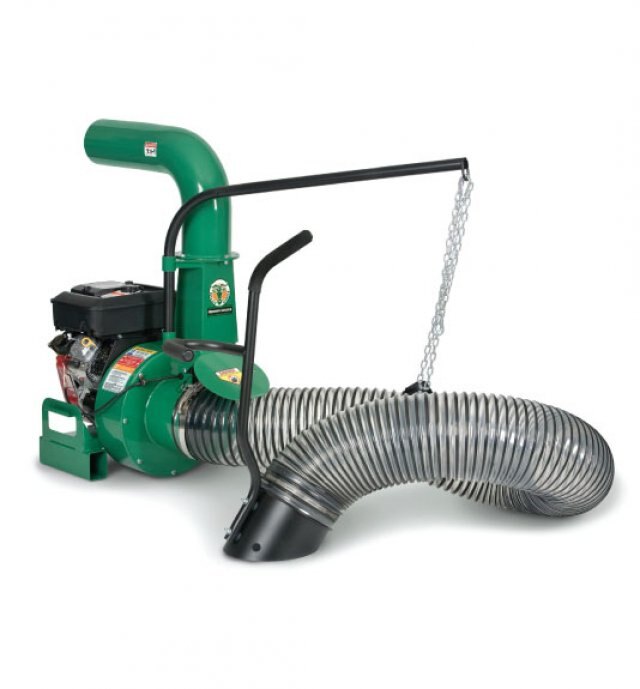

DL14/18 Series Midsize Contractor
Debris Loader
Model #: DL1801V (Vanguard) Pull start
DL1401SE (Subaru) / DL1801VE (Vanguard) E-Start


These units are ideal for mid to large property managers, contractors and mid-sized municipal applications. These heavy-duty units feature a dual shredding 16” diameter armor plate impeller with Piranha™ blade that reduces debris up to 12:1 and maximizes trailer loading across multiple properties before dumping, saving you time and dump fees. This unit has CustomFit™ features that allow you to customize the loader to your truck. In addition, the units can be mounted in one of three ways: Tailgate mounted with optional hanger kit, truck hitch mounted with the optional swing away hitch, or skid mounted to a trailer or truck. The 10” intake hose is a 10’ long, best in class, clear poly helical coil so your crew can visually see if a blockage occurs, for a quick fix. A replaceable steel liner and 12-gauge housing is standard for long life and durability. E-Start 14 HP reduces fatigue and saves time!

  Features
  • Dual shredding technology
  • 12-gauge steel housing with replaceable 10-gauge steel liner
  • Multiple mounting options
  • Electric start option
  • CustomFit features for truck customization
  • Electric start option

http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg

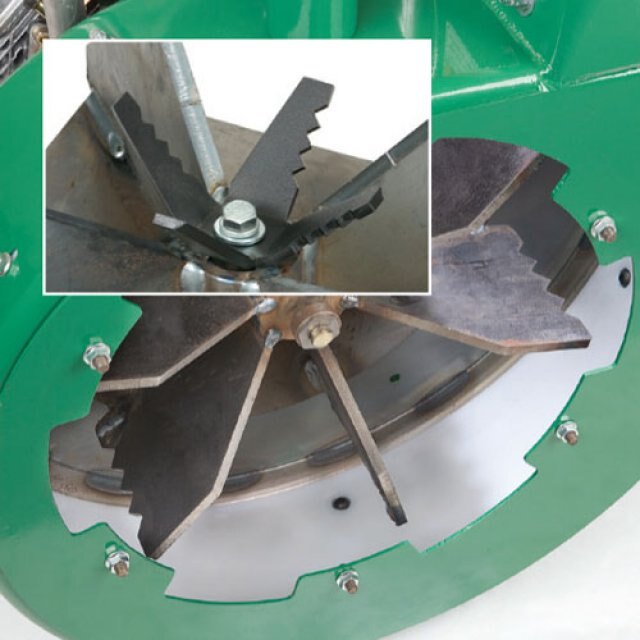

Dual Shredding System with Piranha Blade™

For extra shredding. Replaceable steel liner and serrated blades with cutting points for maximum truck loading and debris reduction up to 12:1.


http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg

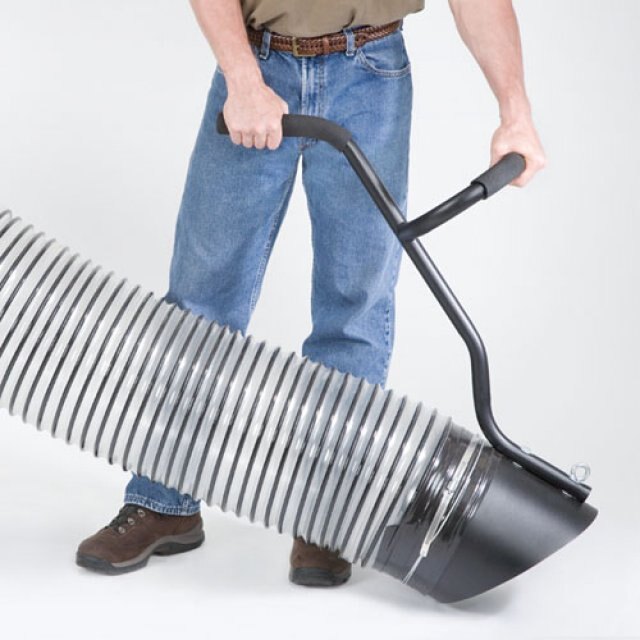

Urethane Metallic Hose Kit


Clear hose allows for visual inspection and quick removal of hose clogs.

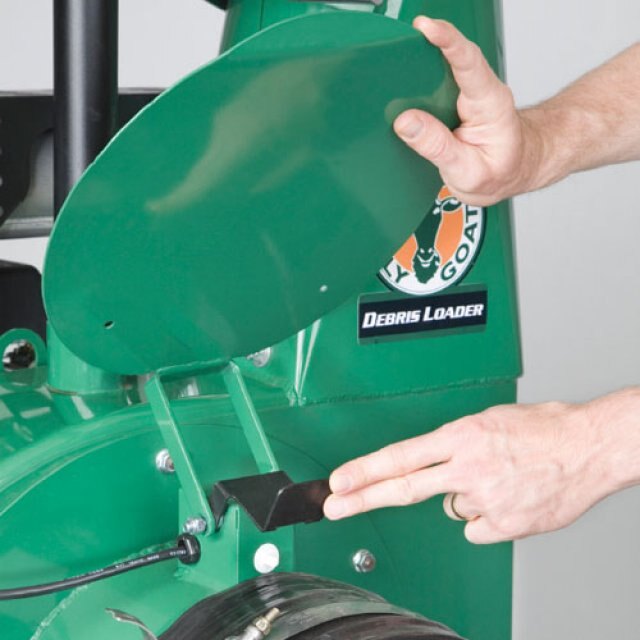

http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg Safety Kill Switch

Quick connect / release hose clamp with safety interlock.

.

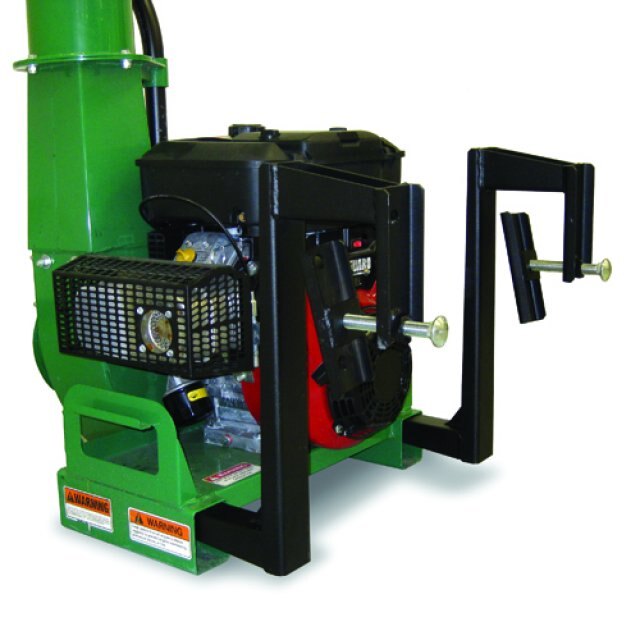

http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg Custom Fit Mounting Options

Optional tailgate hanger kit, swing-away hitch or skid mounted to a trailer or truck bed.






http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg
DL Optional Electric Start

Available on the DL1401SE and DL1801VE for quick start and ease of operation. (Battery not included on DL1801VE)




Specifications
Model
DL14/18 Series Midsize Contractor
Category Name
Lawn / Garden
Year
2016
Sale Type
New
Manufacturer
Billy Goat
Discharge
7''
Engine
14 HP Subaru (DL1401SE); 18 HP Vanguard (DL1801V, DL1801VE)
Weight
290 lbs (DL1801V); 295 (DL1801VE); 244 lbs (DL1401SE)
Length
31''
Width
27''
Height
48''
CFM
3700 cfm
Hose Dimensions
10'' x 10' clear urethane
Impeller
4 blades, 8 cutting points
