billy goat

ID # 13467530

Bill Goat DL13 Series Entry

Videos
Call for Price
Overview

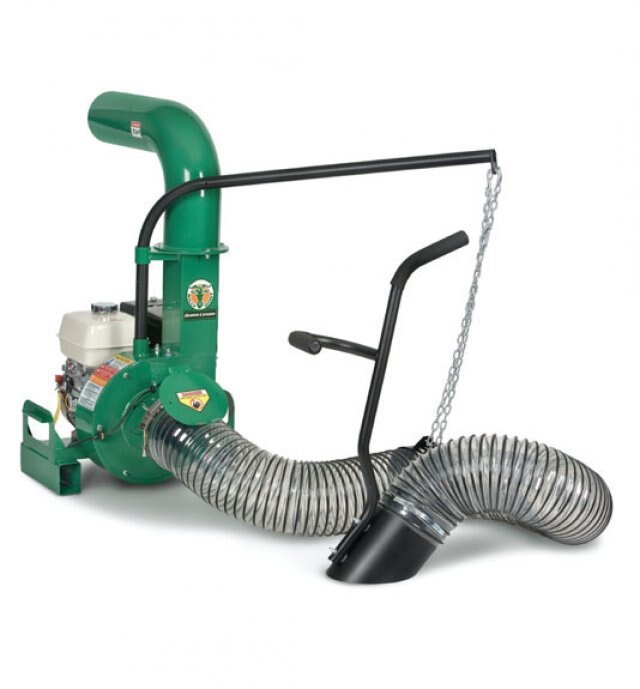

DL13 Series Entry
Model #:DL1301H (Honda)


An ideal combination of power and size, at 2,000 cfm of commercial suction, these units are perfect for small to mid-size jobs and crews. Light weight and low overall cost, this unit will get you into the game of production leaf or debris removal. A dual shredding 14.25” diameter armor plate impeller with Piranha™ blade that reduces debris up to 12:1 and maximizes trailer loading across multiple properties before dumping, saving you time and dump fees. This unit has CustomFit™ features that allow you to customize the loader to your truck. In addition, the units can be mounted in one of three ways: Tailgate mounted with optional hanger kit; truck hitch mounted with the optional swing away hitch; or skid mounted to a trailer or truck. The 8” intake hose is a 10’ long, best in class, clear poly helical coil so your crew can visually see if a blockage occurs, for quick fix. A replaceable steel liner and 12-gauge housing is standard for long life and durability.

  Features
  • Dual shredding 14.25” armor plate impeller with Piranha shredder
  • 12-gauge steel housing with replaceable 10-gauge steel liner
  • 8” x 10’ clear intake hose
  • Custom Fit features for truck customization
  • Multiple mounting options

http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg

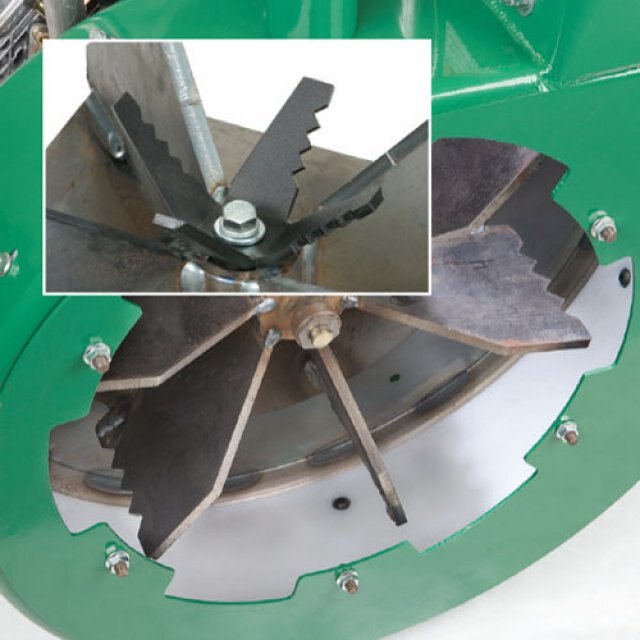

Dual Shredding System with Piranha Blade™

For extra shredding. Replaceable steel liner and serrated blades with cutting points for maximum truck loading and debris reduction up to 12:1.


http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg

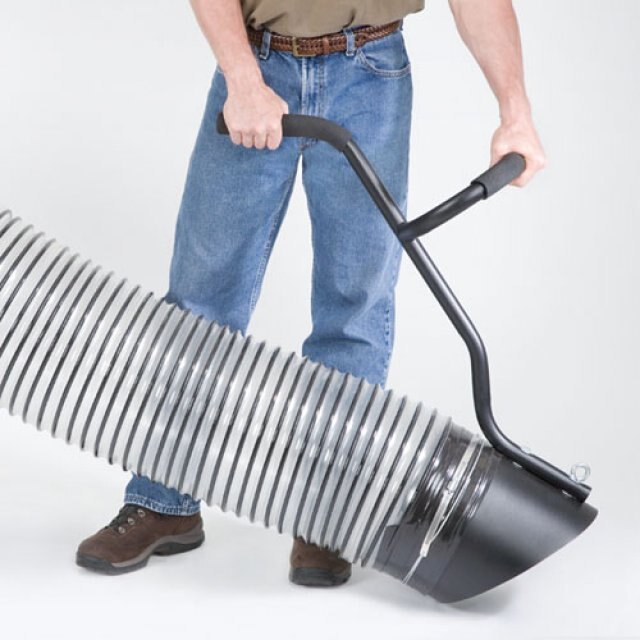

Urethane Metallic Hose Kit


Clear hose allows for visual inspection and quick removal of hose clogs.

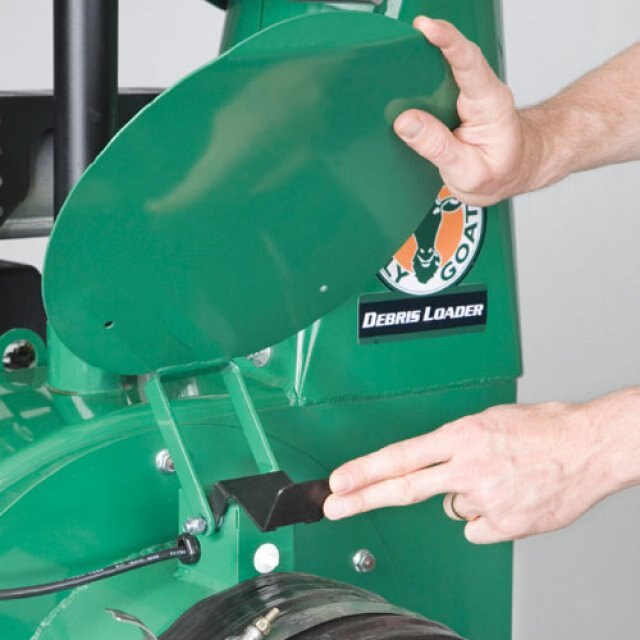

http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg Safety Kill Switch

Quick connect / release hose clamp with safety interlock.

.

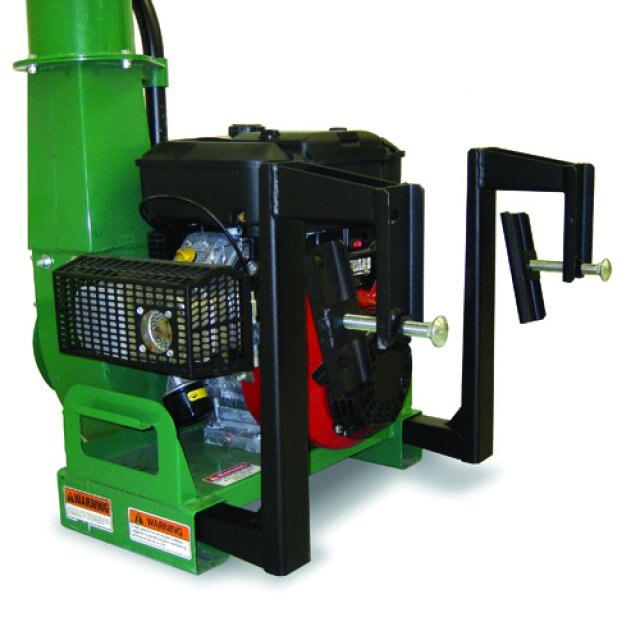

http://www.billygoat.com/Resource_/Product/2/Image/F601_534x575.jpg Custom Fit Mounting Options

Optional tailgate hanger kit, swing-away hitch or skid mounted to a trailer or truck bed.






Specifications
Model
DL13 Series Entry
Category Name
Lawn / Garden
Year
2016
Sale Type
New
Manufacturer
Billy Goat
Discharge
7''
Engine
13 HP Honda (DL1301H)
Weight
235 lbs (DL1201L); 238 lbs (DL1301H)
Length
31''
Width
27''
Height
48''
CFM
2013 cfm (DL1201L); 2100 cfm (DL1301H)
Hose Dimensions
8'' x 10'
Impeller
4 blades, 8 cutting points
