ID # 23902029

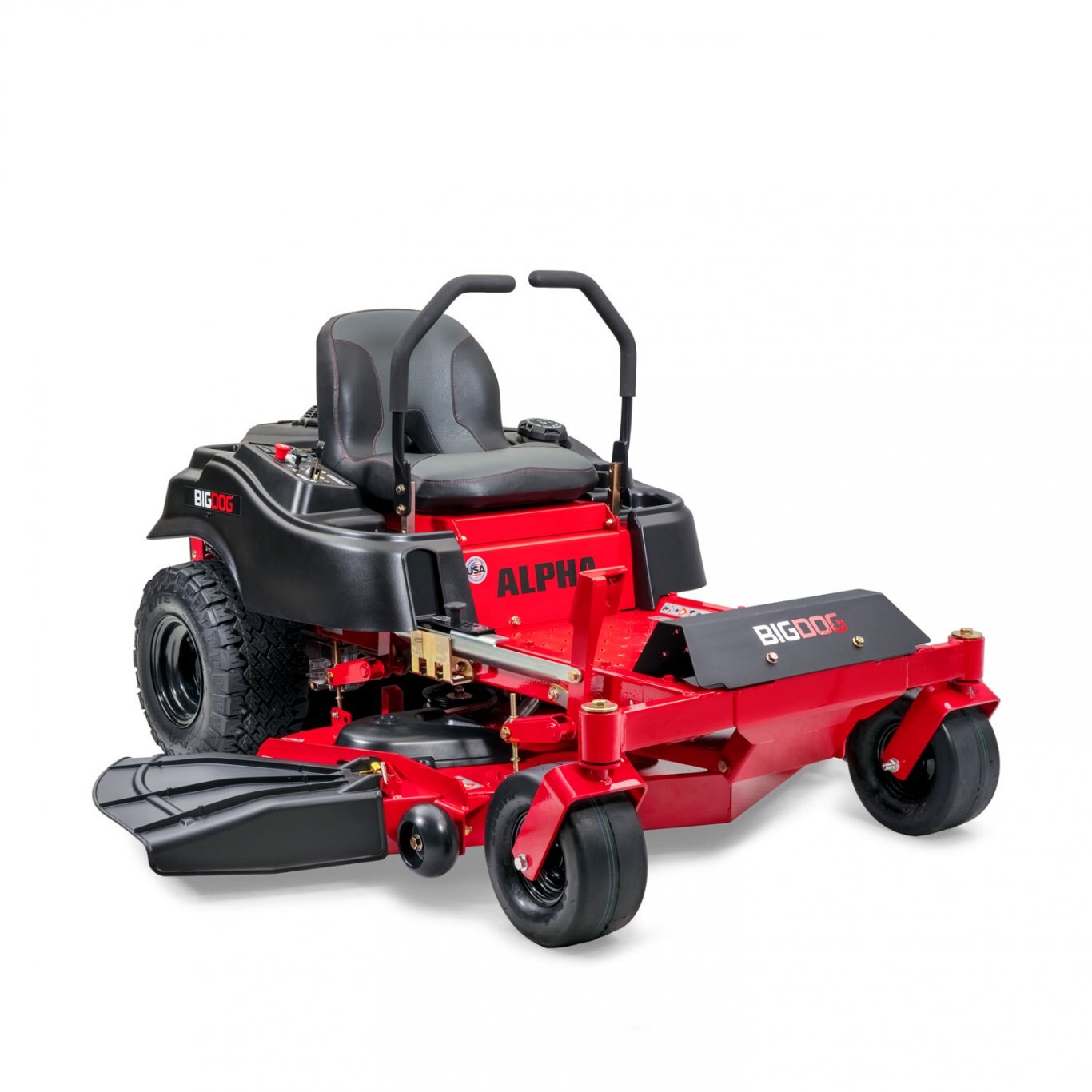

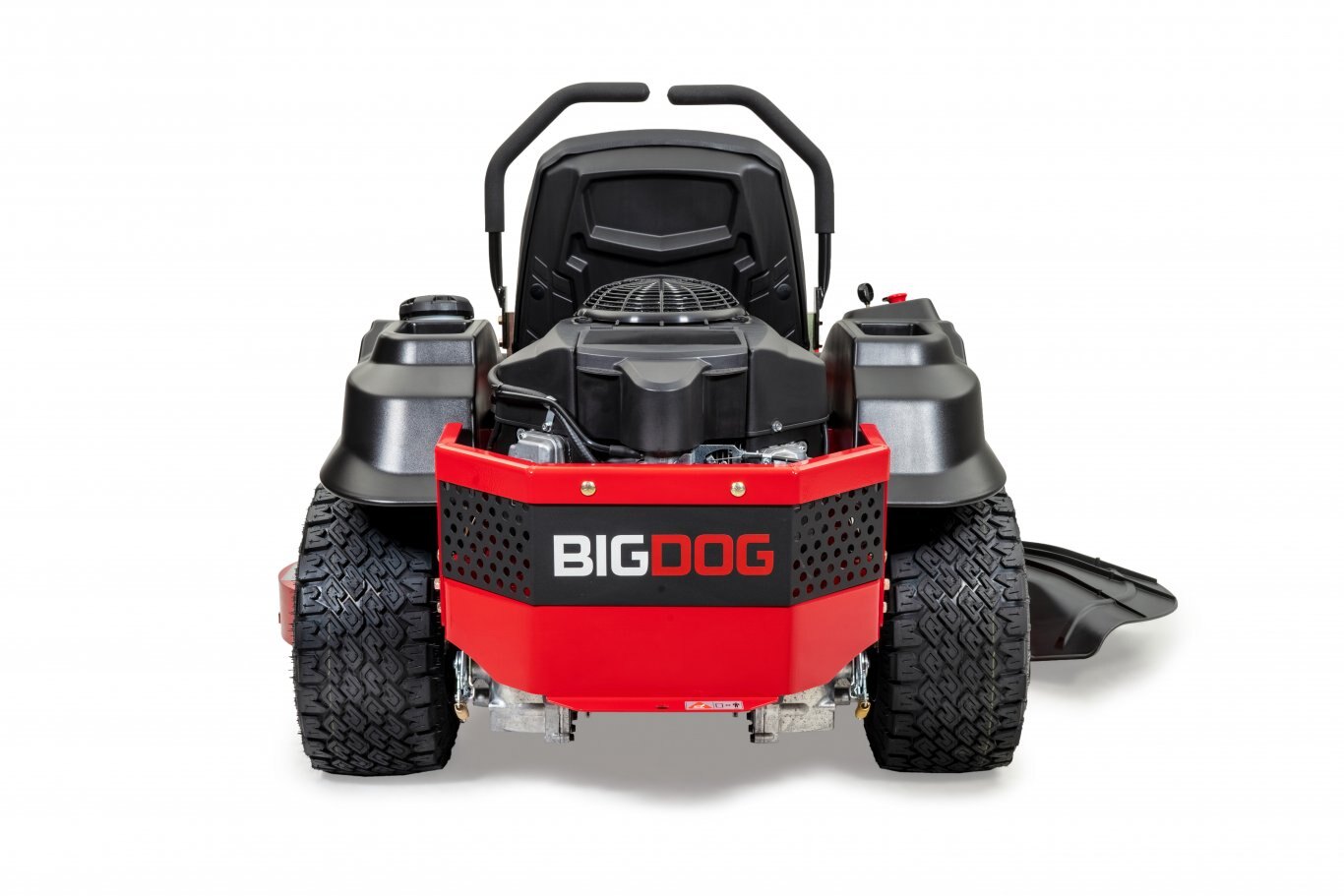

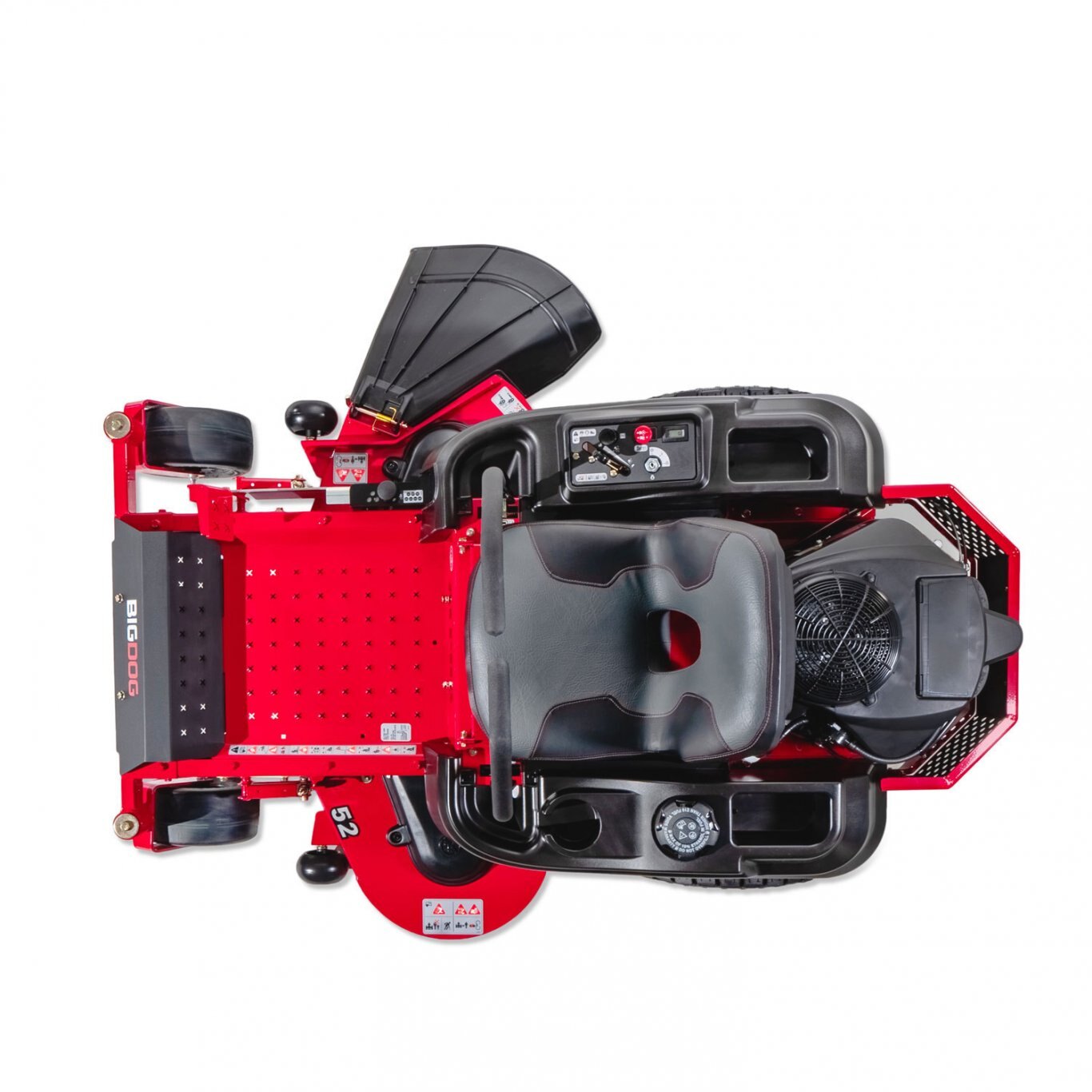

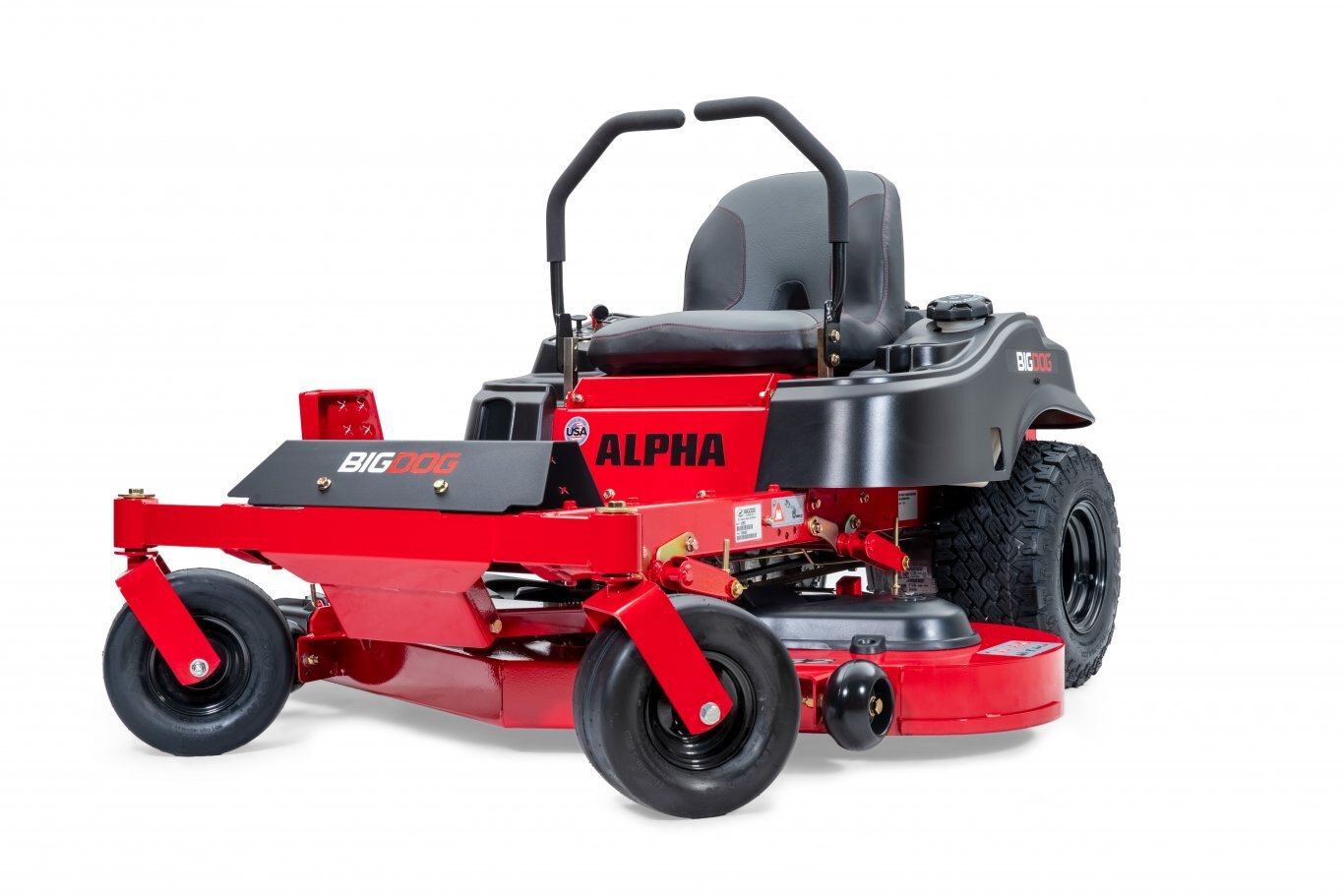

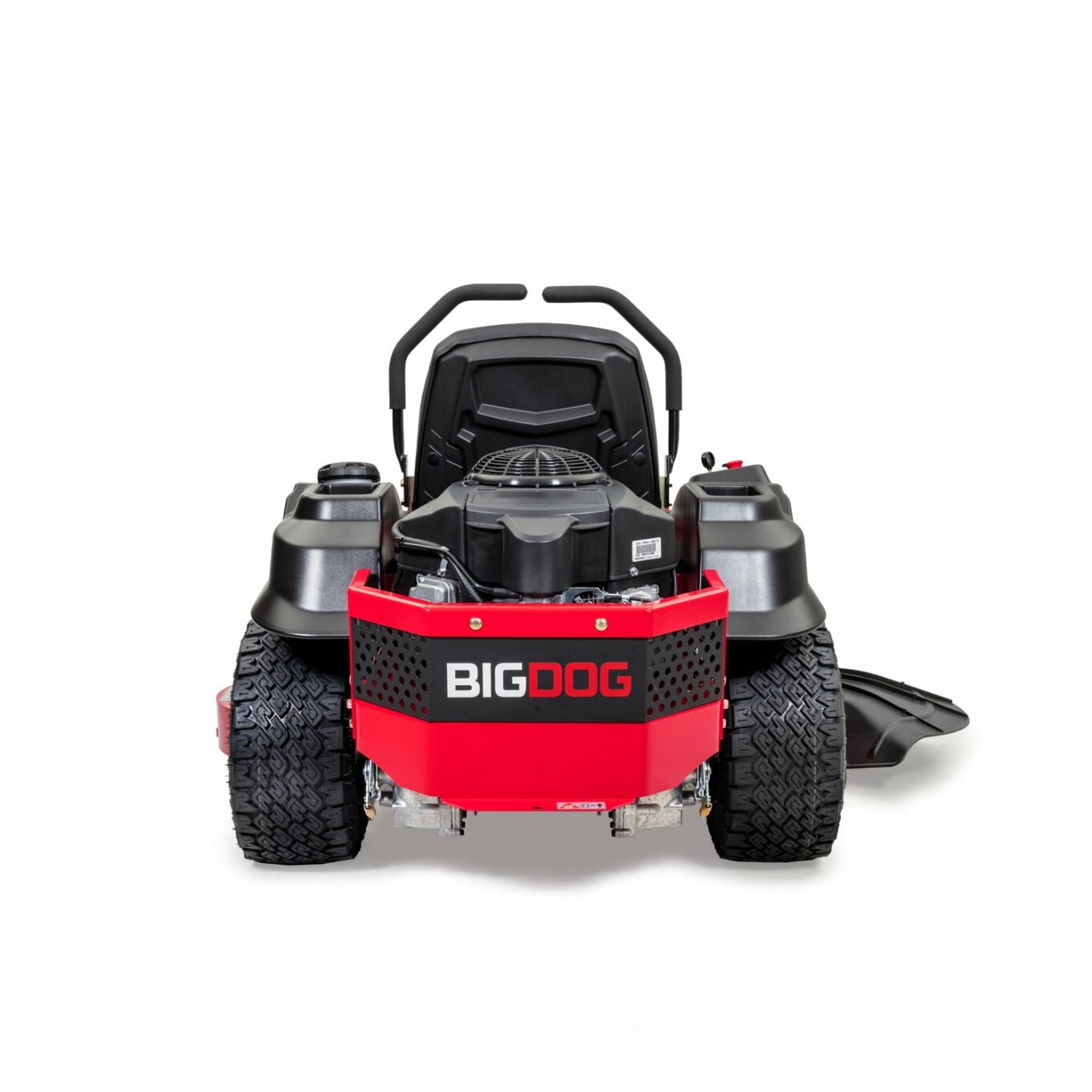

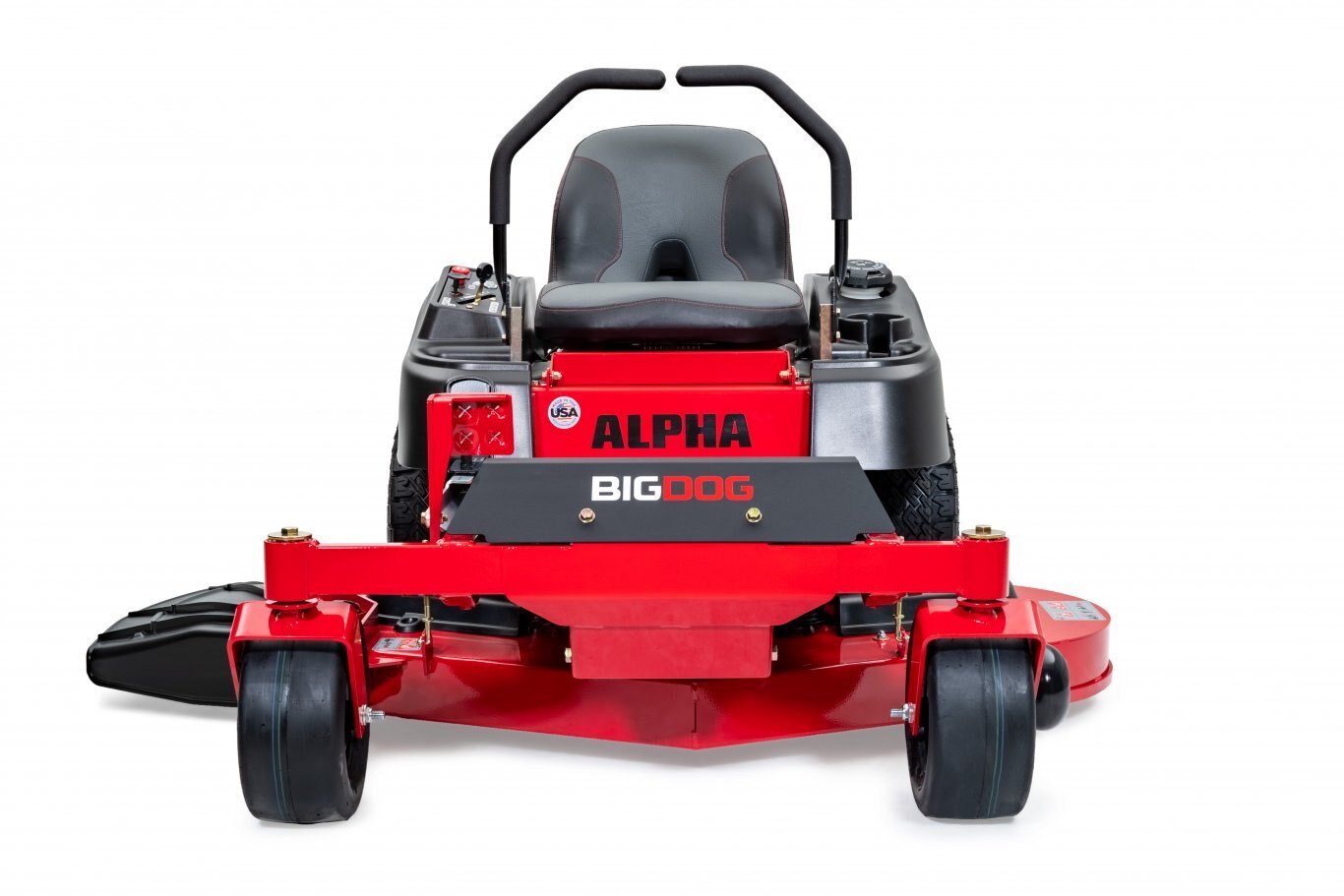

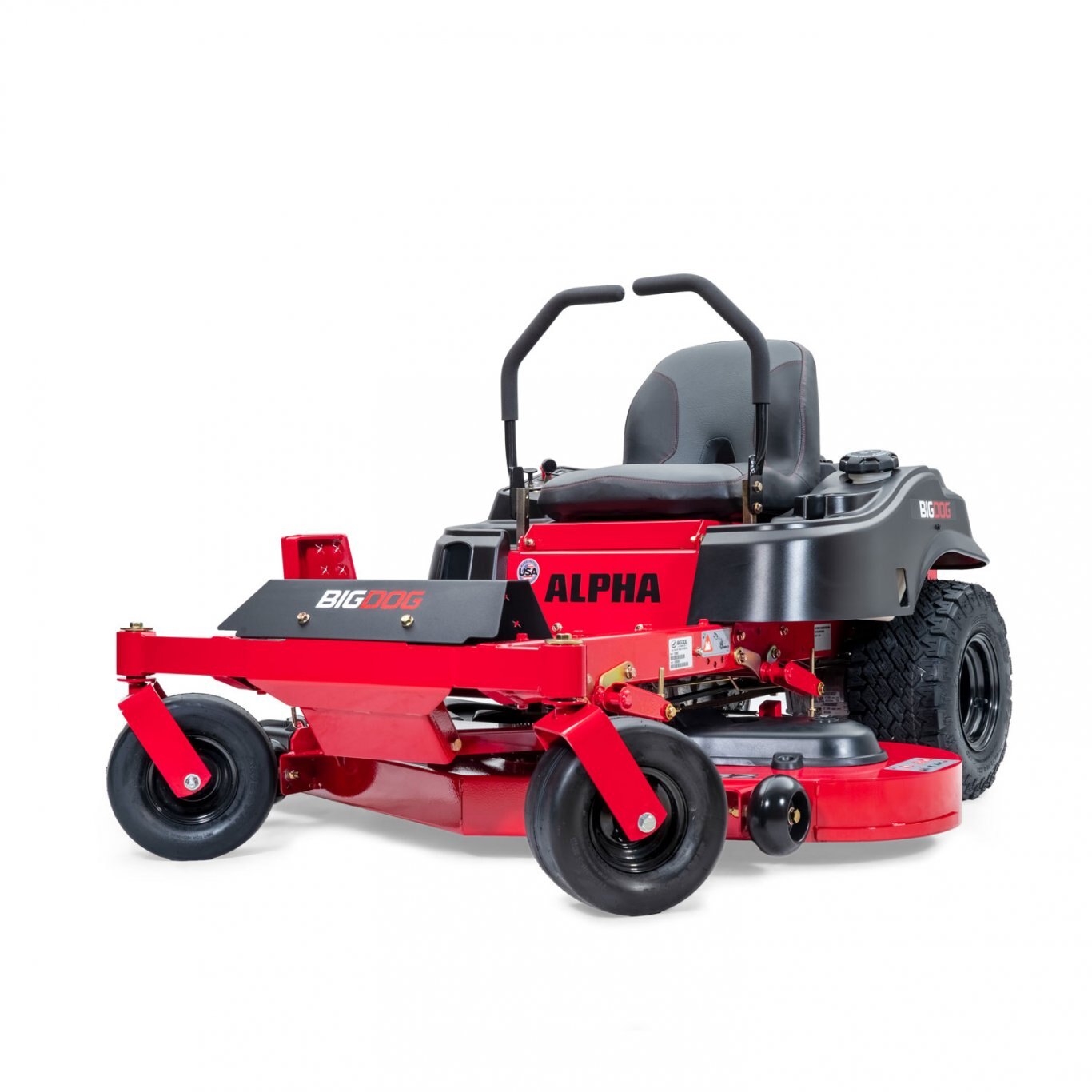

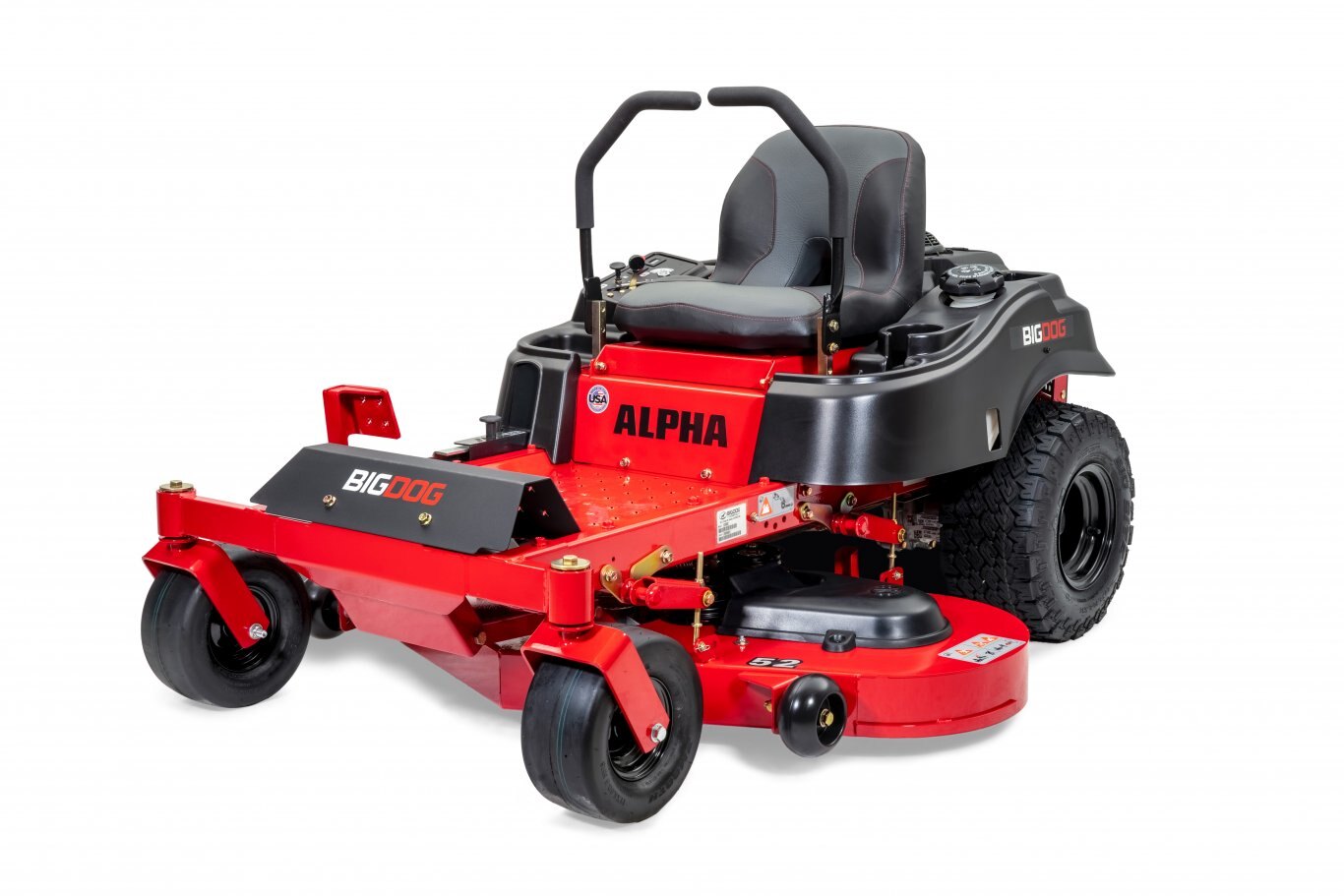

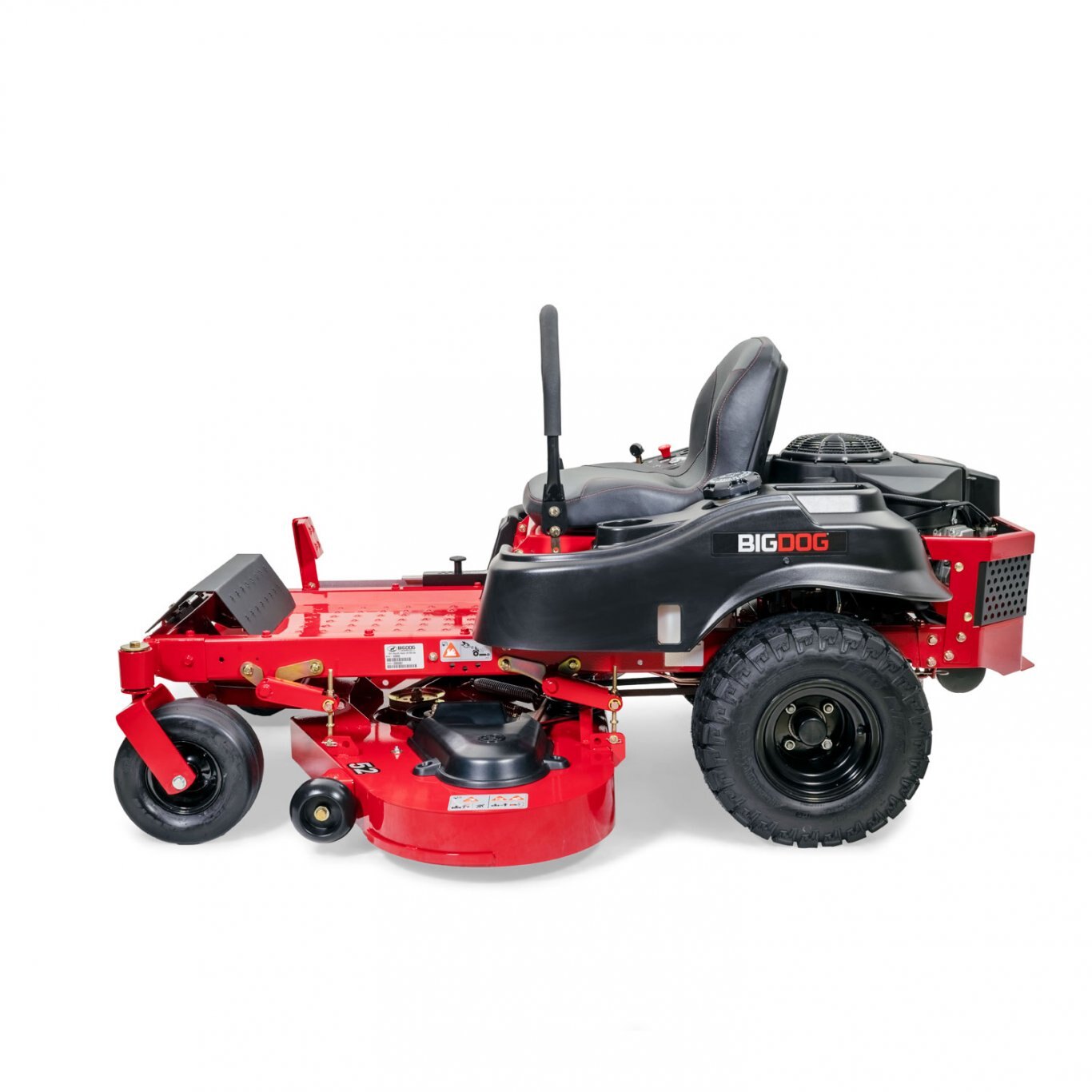

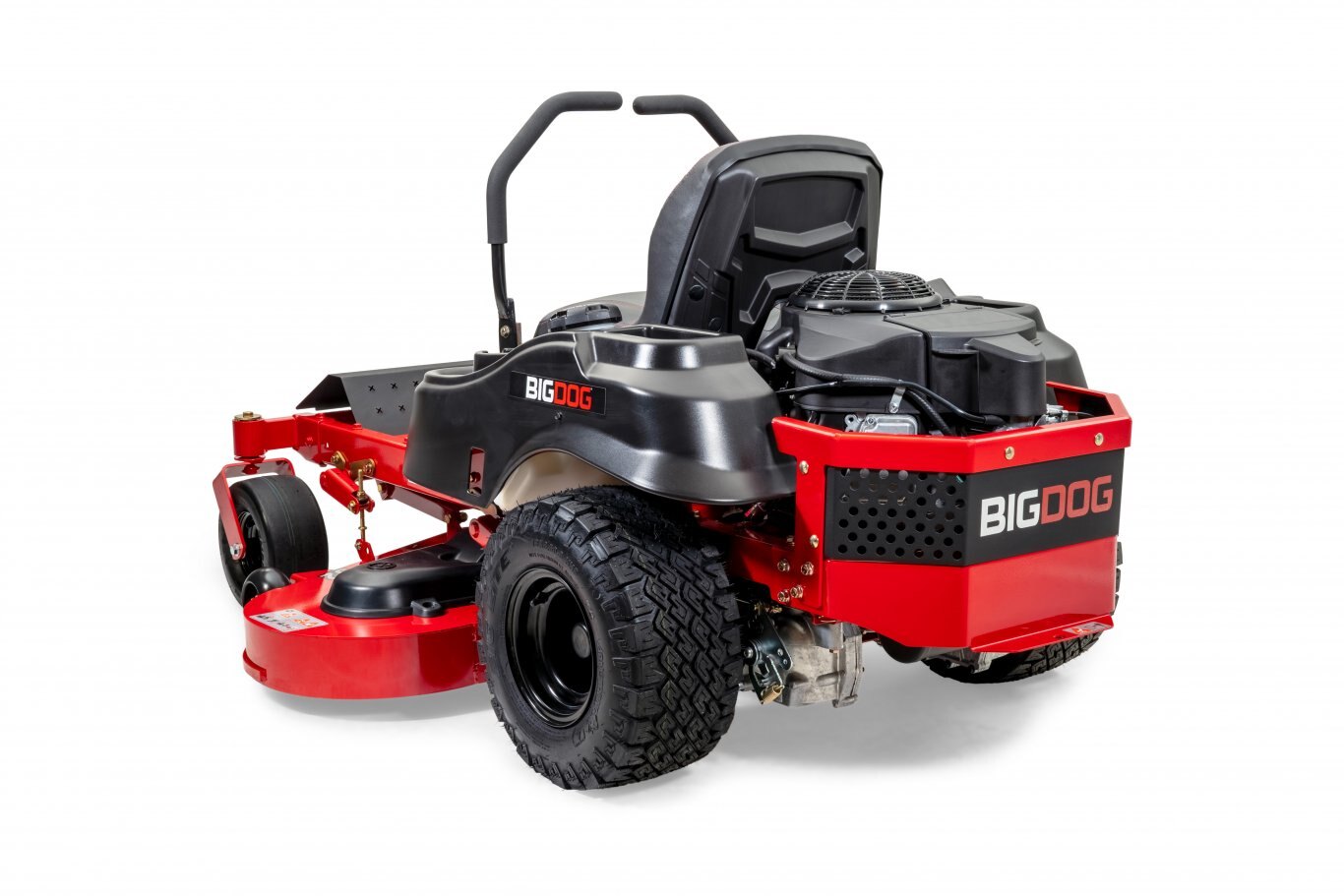

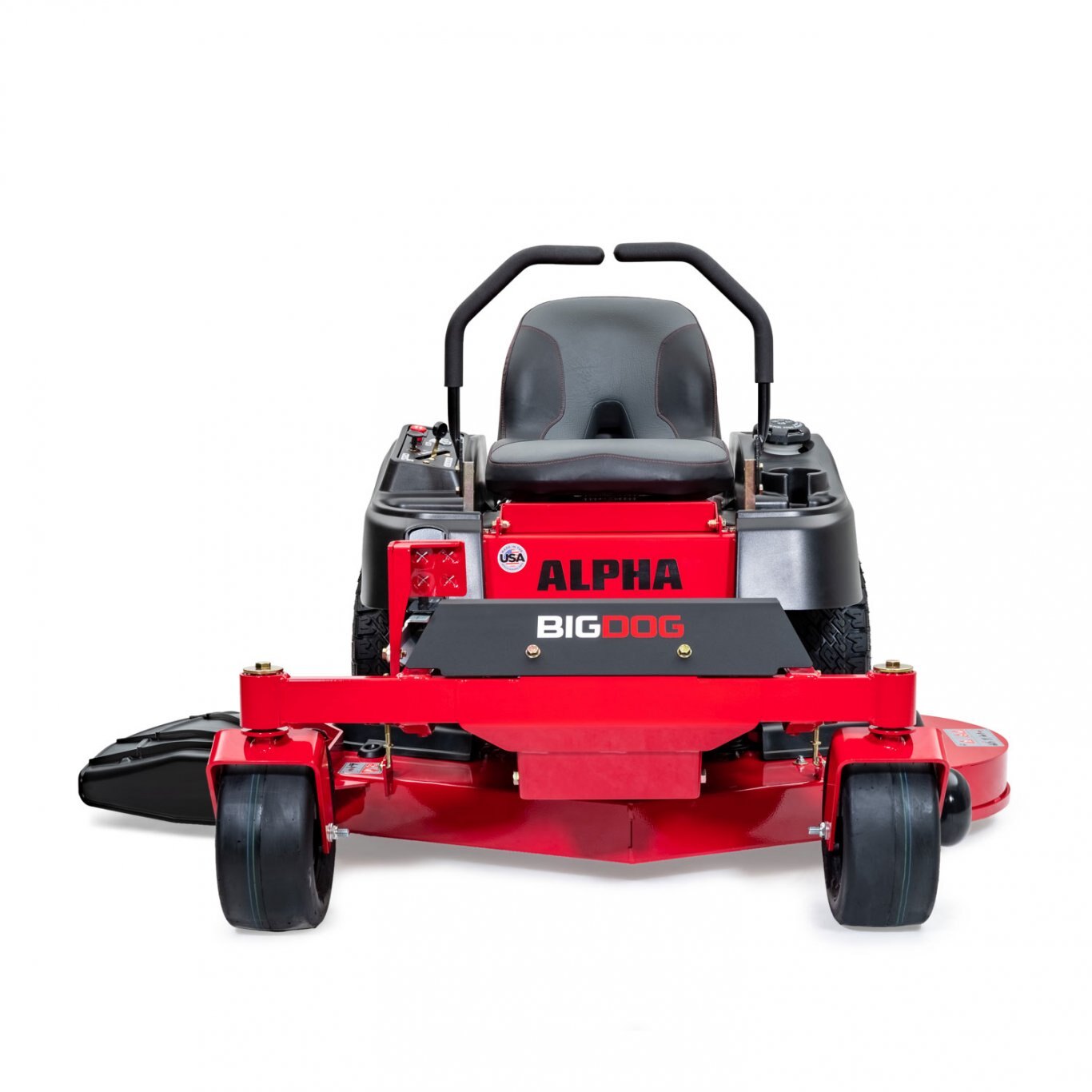

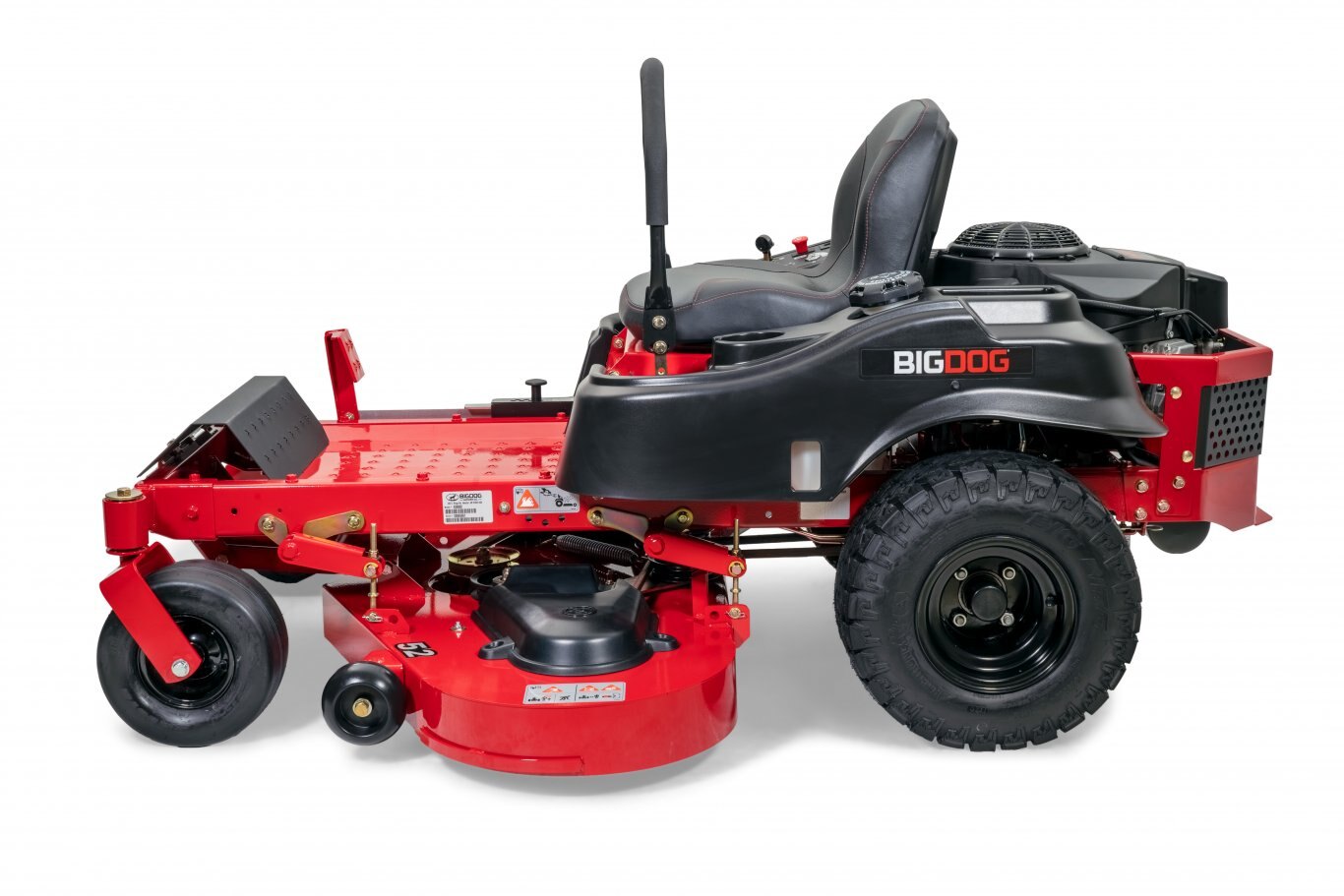

Big Dog -Alpha 36

  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
  • Big Dog Alpha 36
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 18hp, 20hp, 23hp Briggs&Stratton Engines

  • 36”, 42” & 52” decks

  • 6.5mph mowing speed

  • 7-year / 300 hour limited warranty

A high performance zero-turn at great value.

The Alpha leads its class with top-quality cutting, power and style. Welded steel deck. Standard with rugged engine guard and super-comfortable seat.



Specifications
Model
Alpha
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
18HP - Briggs & Stratton PXi
Deck Sizes
36
features

Comfortable Seat

Features a premium seat with built-in lumbar support and natural air flow.Big Dog Alpha 36



BigBite Rear Tires

18" BigBite™ rear tires for a smooth ride and enhanced traction.Big Dog Alpha 36

Foot-Operated Deck Lift

Easy, hands-free deck height adjustment.Big Dog Alpha 36





key specs
WARRANTY
7 Year/300 hour Limited
DRIVE TIRE
18 X 7-8, BigBite
FRONT TIRE
11 X 4 smooth tread
TRANSMISSION
Hydro-Gear® ZT-2100
CUTTING WIDTH
36
FUEL CAPACITY
3 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
18
GROUND SPEED (FWD)
Up to 6.5 mph
ENGINE MANUFACTURER
Briggs & Stratton PXi
engine
COOLING
Air Cooled
DISPLACEMENT
656cc
ENGINE WARRANTY
2 Year Warranty
ENGINE HORSEPOWER
18
ENGINE MANUFACTURER
Briggs & Stratton PXi
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear® ZT-2100
FUEL CAPACITY
3 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 6.5 mph
deck
SPINDLES
Aluminum with 3/4" shaft and triple protection sealed ball bearings
DECK LIFT
Operated
DECK DEPTH
4.1
BLADE LENGTH
17.86
CUTTING WIDTH
36
DECK MATERIAL
11 ga. fabricated steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
14 ga. steel
BLADE TIP SPEED
18,600
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
2
IMPANCT TRIM AREA
1/4" x 3/4" steel bar
accessories

Side Grass Bagger

Mesh side-bagger holds 2 bushels.Big Dog Alpha 36

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Alpha 36

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.Big Dog Alpha 36

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.Big Dog Alpha 36

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Alpha 36



construction
FRAME
1.5" X 3.25" steel C-channel
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER WHEEL
Sealed ball bearings
Sealed Ball Bearings
Fabricated 1/4" steel
dimensions
WEIGHT
465
HEIGHT (INCHES)
39
LENGTH (INCHES)
73
DRIVE TIRE (INCHES)
18 X 7-8, BigBite
FRONT TIRE (INCHES)
11 X 4 smooth tread
WIDTH W/ CHUTE UP (INCHES)
38.3
TIRE-TO-TIRE WIDTH (INCHES)
37.7
PRODUCTIVITY (ACRES PER HOUR)
1.89
warranty
WARRANTY
7 Year/300 hour Limited
dimensions with catcher
CATCHER STYLE
2-bag
CATCHER CAPACITY
5.4 bushel
POWERED / NON-POWERED
NON-POWERED
MOWER WIDTH W/ CATCHER
54.9
MOWER LENGTH W/ CATCHER
96.4
