ID # 23902023

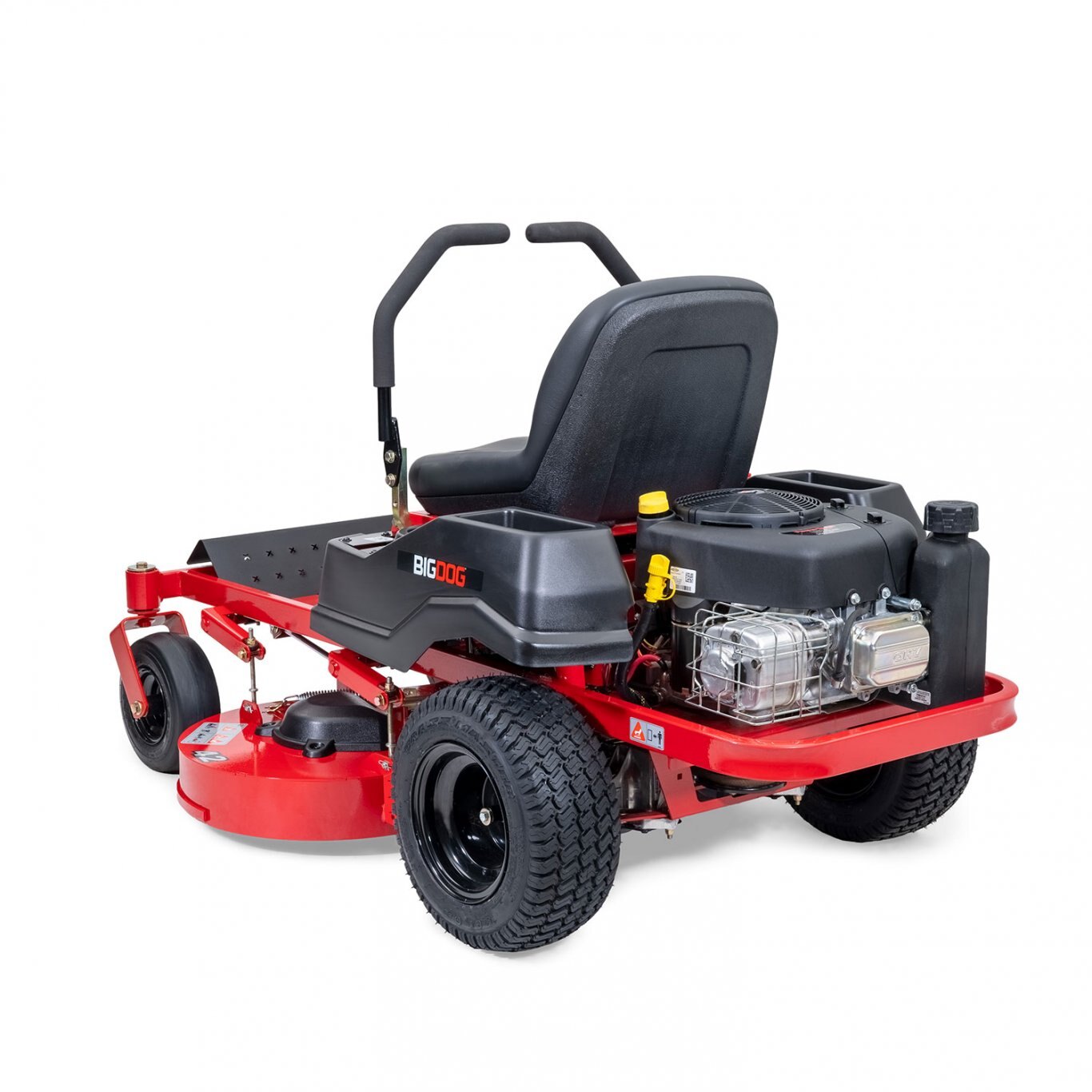

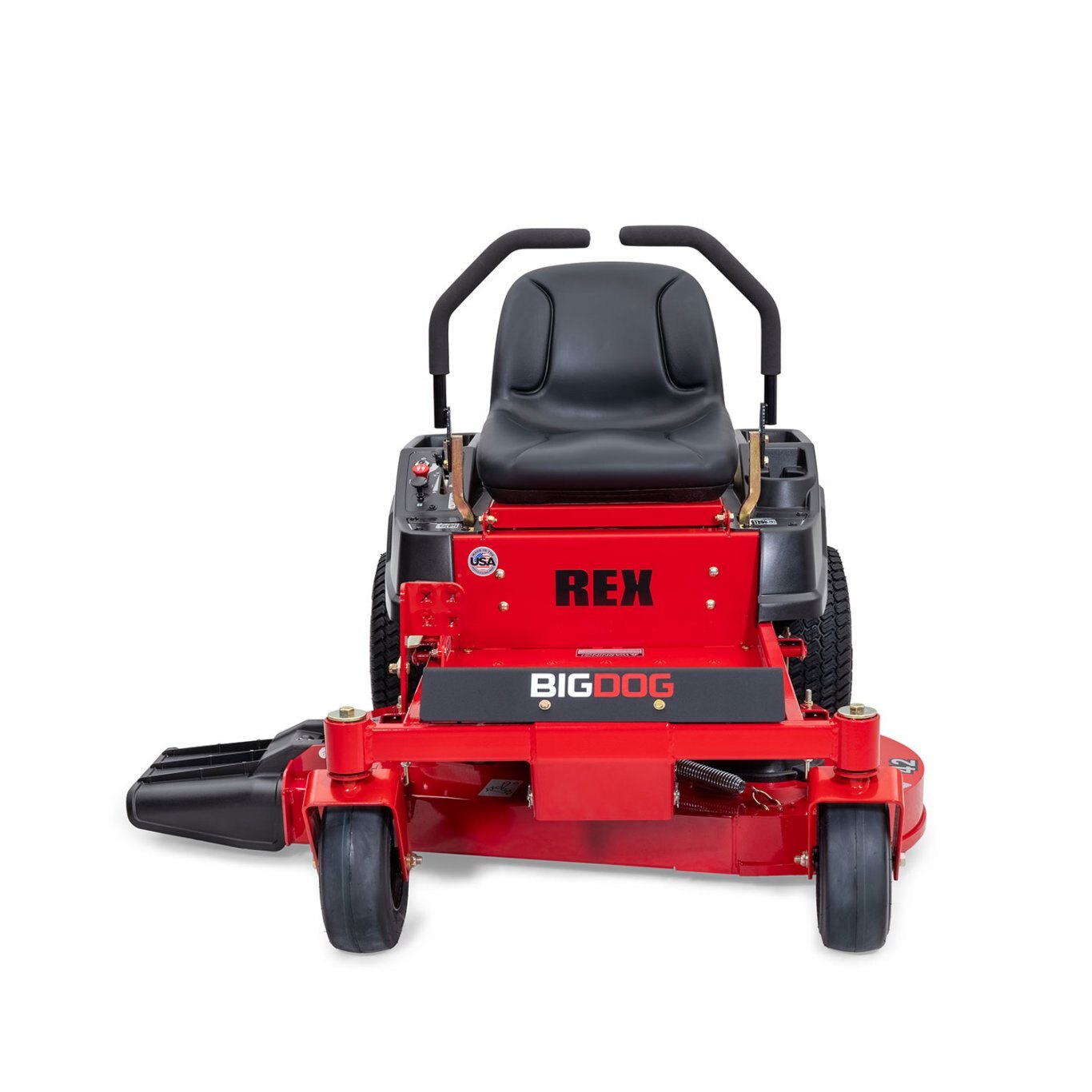

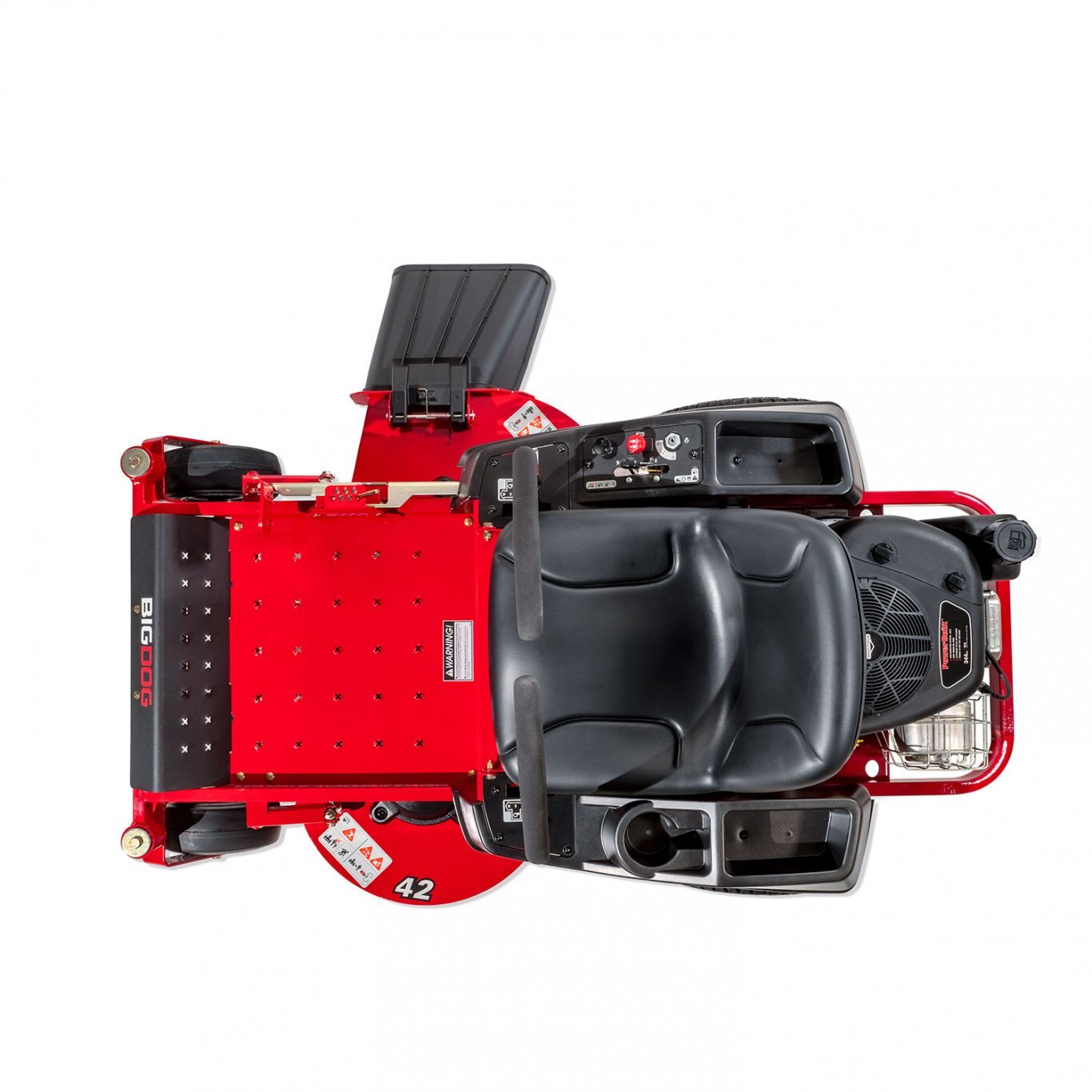

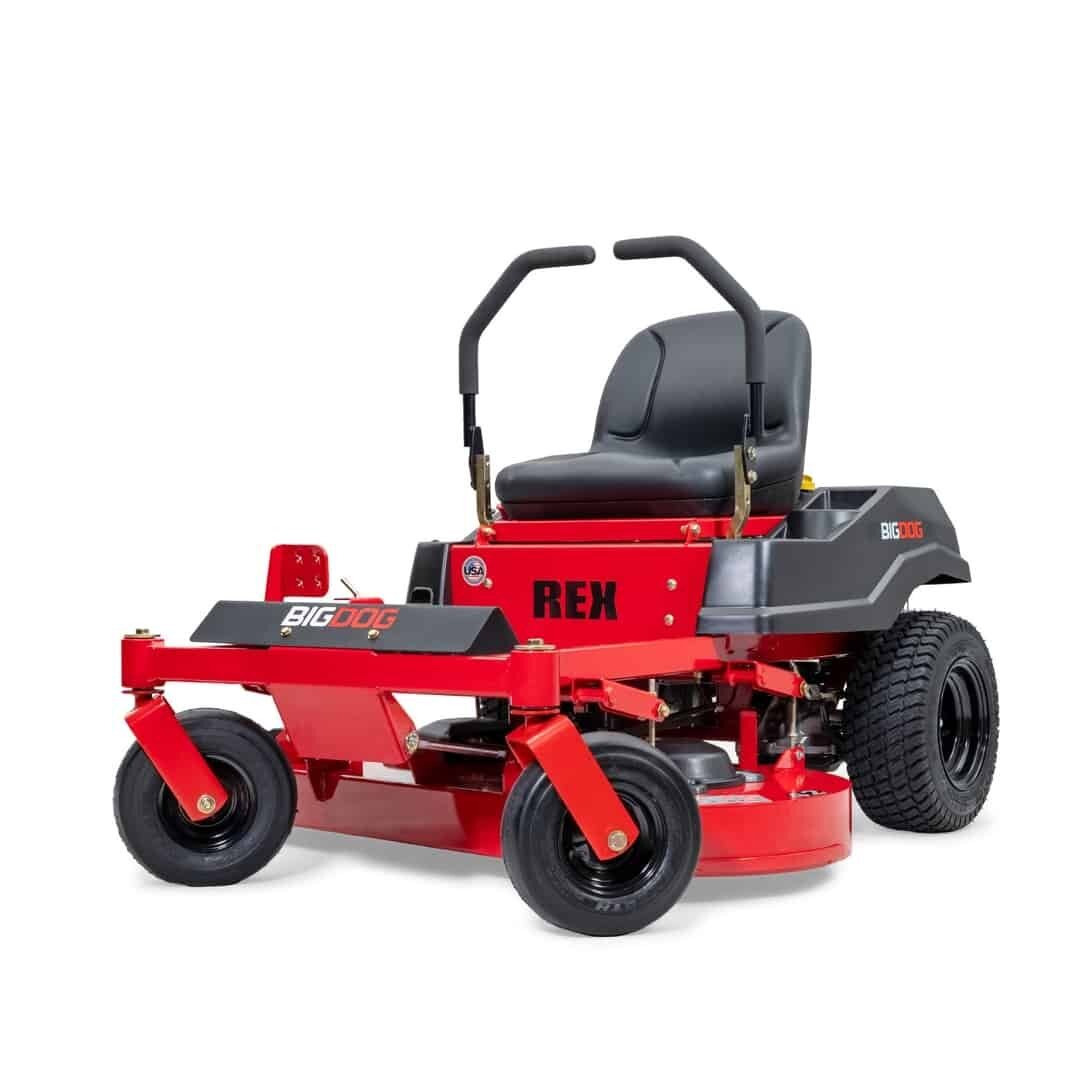

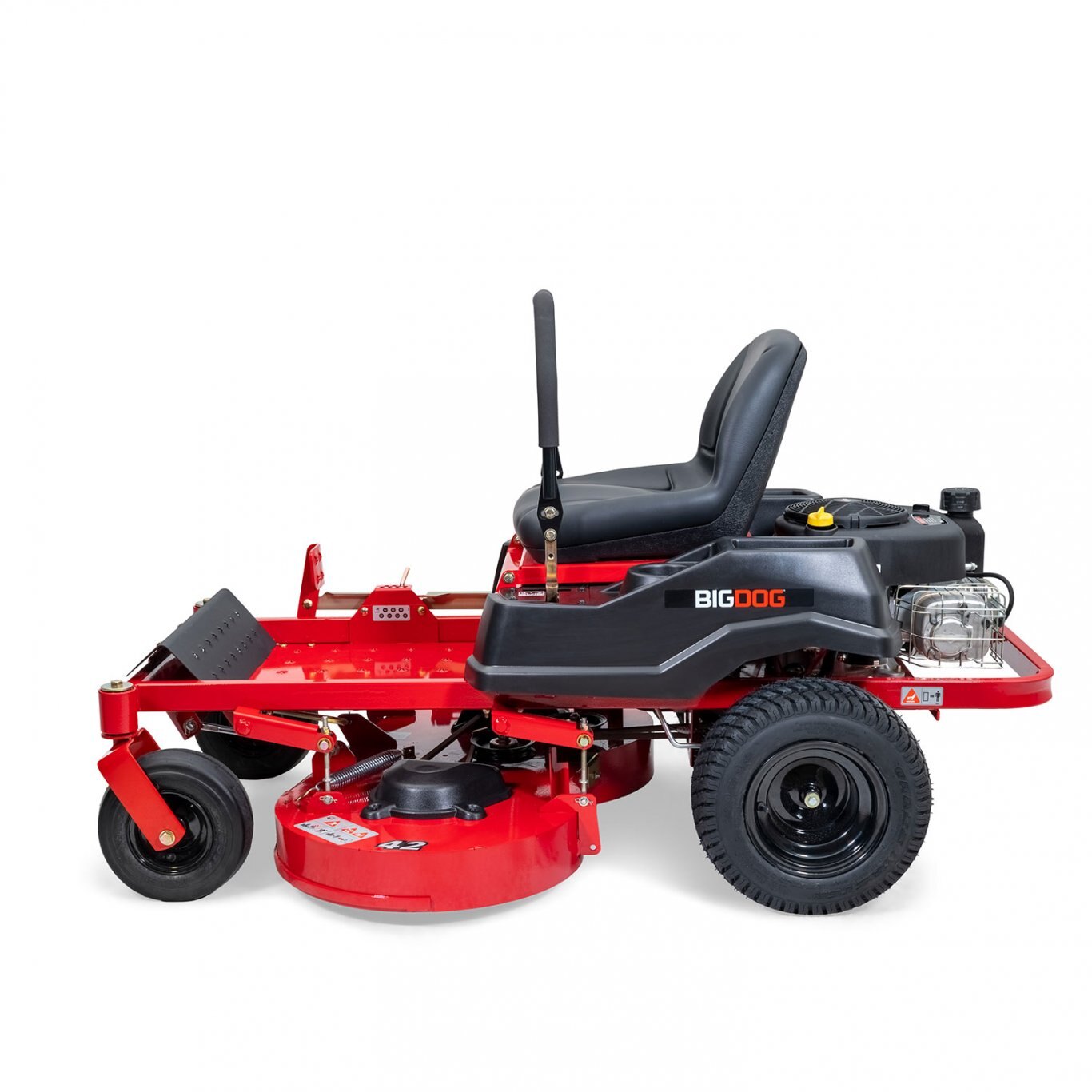

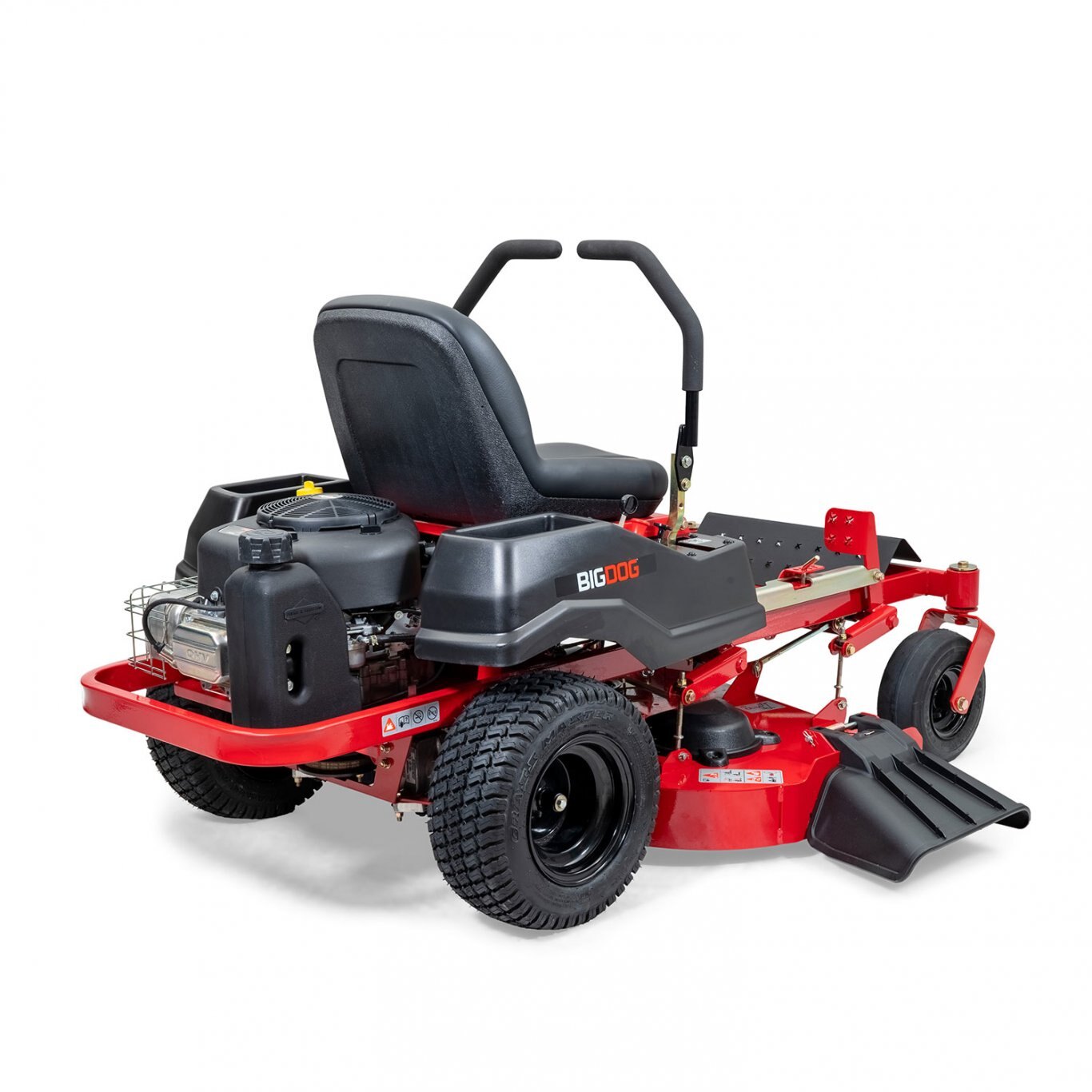

Big Dog -Rex 42

  • Big Dog Rex 42
  • Big Dog Rex 42
  • Big Dog Rex 42
  • Big Dog Rex 42
  • Big Dog Rex 42
  • Big Dog Rex 42
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 10.5hp Briggs & Stratton Engine

  • 34” & 42” decks

  • 5mph mowing speed

  • 7-year / 100 hour limited warranty

A Small Yard Champion

The Rex® zero-turn is a compact residential mower (34" and 42" deck sizes available) designed to fit thru most gates and in garage spaces easily. The Rex also sports a welded-steel deck and a foot-operated deck lift.



Specifications
Model
Rex
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
10.5HP - Briggs & Stratton PowerBuilt
Deck Sizes
42
features

Foot-Operated Deck Lift

Easily adjusts deck height.Big Dog Rex 42

Welded Fully Tubular Frame

Heavy-duty welded 1" x 2" fully tubular frame for unmatched durability.Big Dog Rex 42

Welded Steel Deck

Heavy-duty design for unmatched durability. Up to 42" deck size available.Big Dog Rex 42



key specs
WARRANTY
7 Year/100 hour Limited
DRIVE TIRE
16 X 6.5-8
FRONT TIRE
11 X 4
TRANSMISSION
Hydro-Gear® ZT-1800
CUTTING WIDTH
42
FUEL CAPACITY
2.8 qts
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
10.5
GROUND SPEED (FWD)
Up to 5 mph
ENGINE MANUFACTURER
Briggs & Stratton PowerBuilt
engine
COOLING
Air Cooled
DISPLACEMENT
344cc
ENGINE WARRANTY
2 Year Warranty
ENGINE HORSEPOWER
10.5
ENGINE MANUFACTURER
Briggs & Stratton PowerBuilt
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear® ZT-1800
FUEL CAPACITY
2.8 qts
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 5 mph
deck
SPINDLES
Aluminum w/ 3/4" steel shafts and sealed ball bearings with triple protection seals
DECK LIFT
Foot Operated
DECK DEPTH
4.1
BLADE LENGTH
20.5
CUTTING WIDTH
42
DECK MATERIAL
11 ga. fabricated steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 14 ga. steel
BLADE TIP SPEED
16,700
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
2
IMPANCT TRIM AREA
1/4" x 3/4" steel bar
accessories

Side Grass Bagger

Mesh side-bagger holds 2 bushels.Big Dog Rex 42

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Rex 42

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.Big Dog Rex 42

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.Big Dog Rex 42

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Rex 42



construction
FRAME
1" X 2" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 1/4" steel
FRONT CASTER WHEEL
Sealed ball bearings
general
SEAT
Molded vinyl seat
CUP HOLDER
dimensions
WEIGHT (LBS)
400
HEIGHT (INCHES)
38
LENGTH (INCHES)
65.5
DRIVE TIRE (INCHES)
16 X 6.5-8
FRONT TIRE (INCHES)
11 X 4
WIDTH W/ CHUTE UP (INCHES)
37.5
TIRE-TO-TIRE WIDTH (INCHES)
35.8
PRODUCTIVITY (ACRES PER HOUR)
2.03
warranty
WARRANTY
7 Year/100 hour Limited
dimensions with catcher
CATCHER STYLE
Side Catcher
CATCHER CAPACITY
2 bushel
POWERED / NON-POWERED
Non-powered
MOWER WIDTH W/ CATCHER
56
MOWER LENGTH W/ CATCHER
65.5
literature
Name Link
Brochure PDF Download
Spec Sheet PDF Download
