ID # 23902014

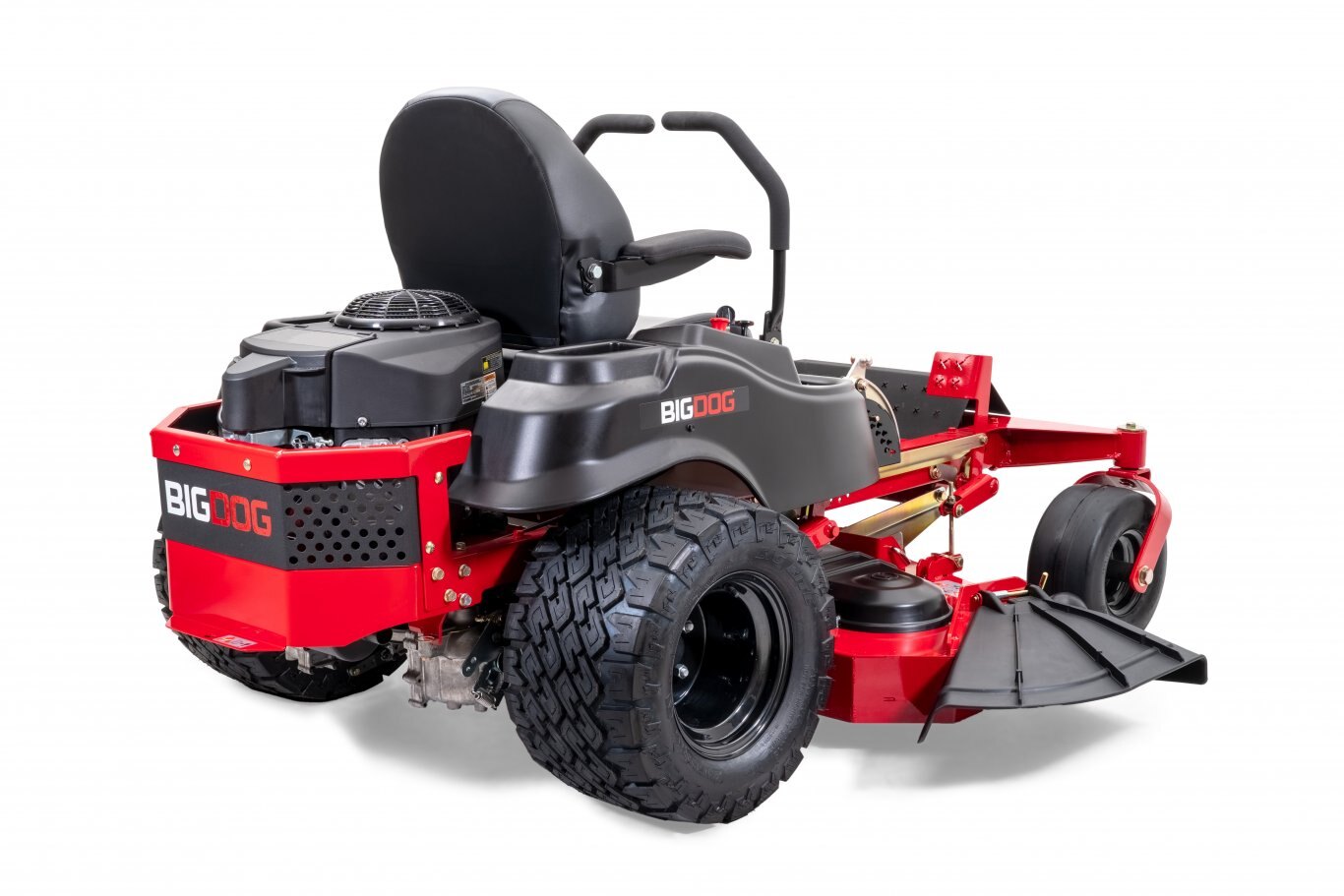

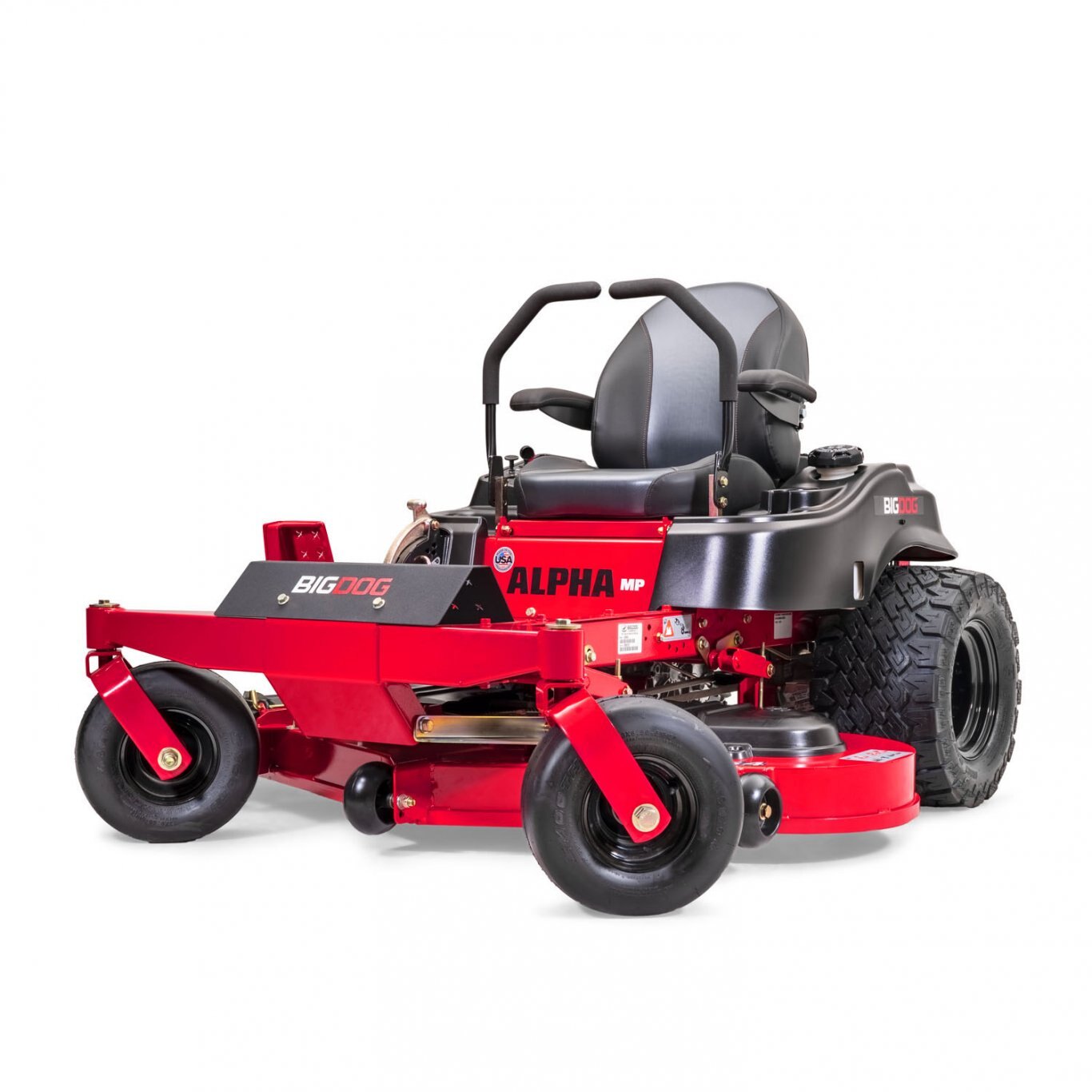

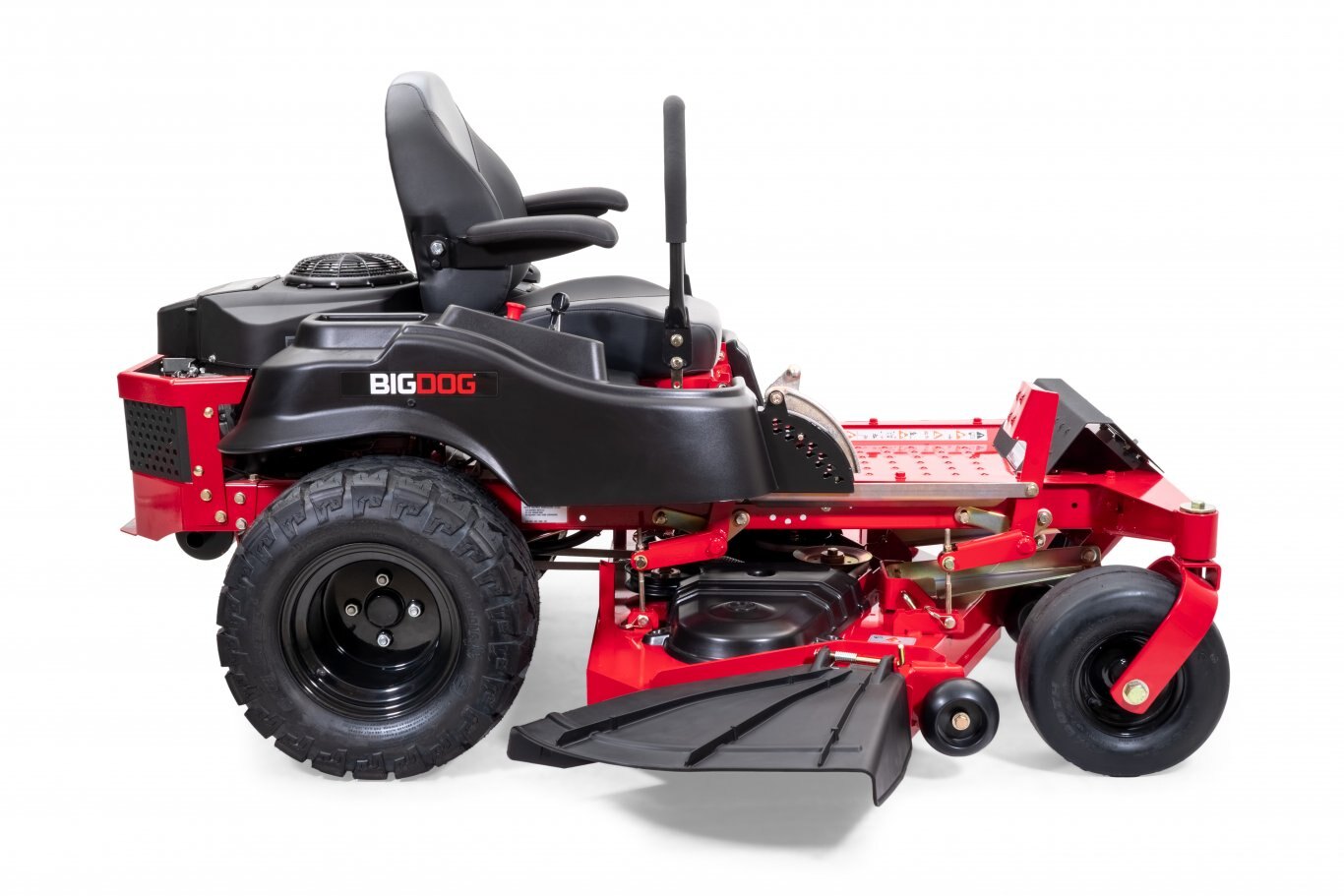

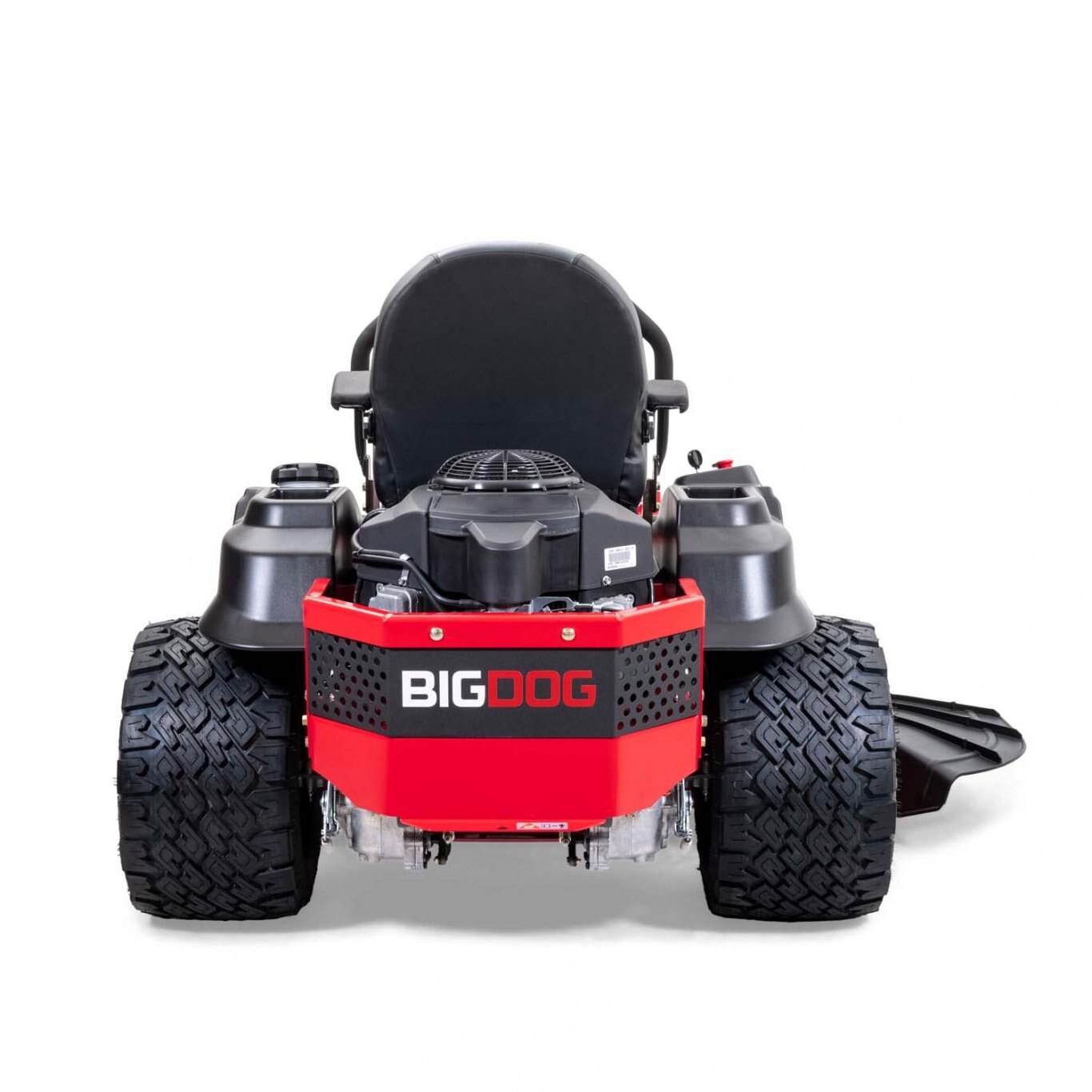

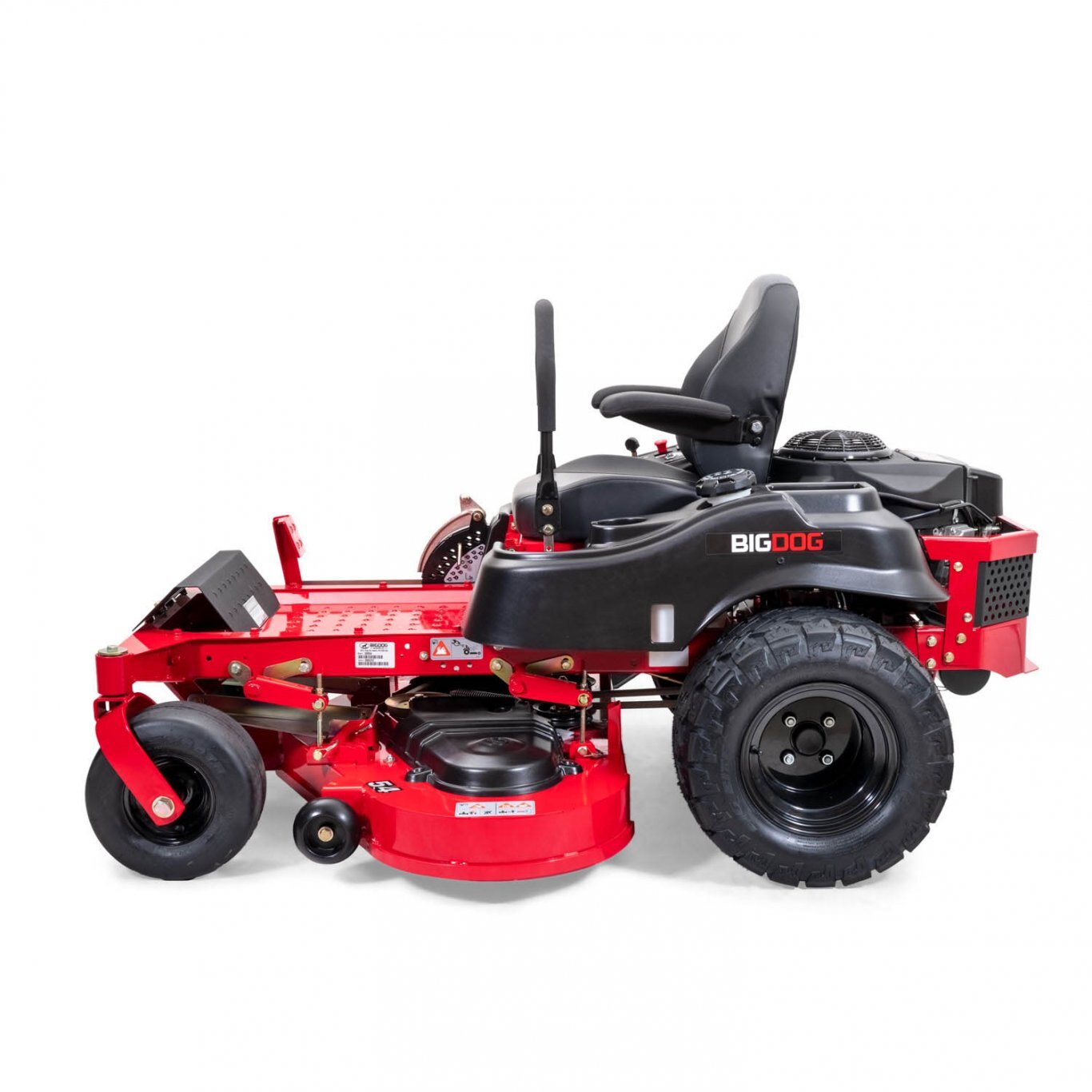

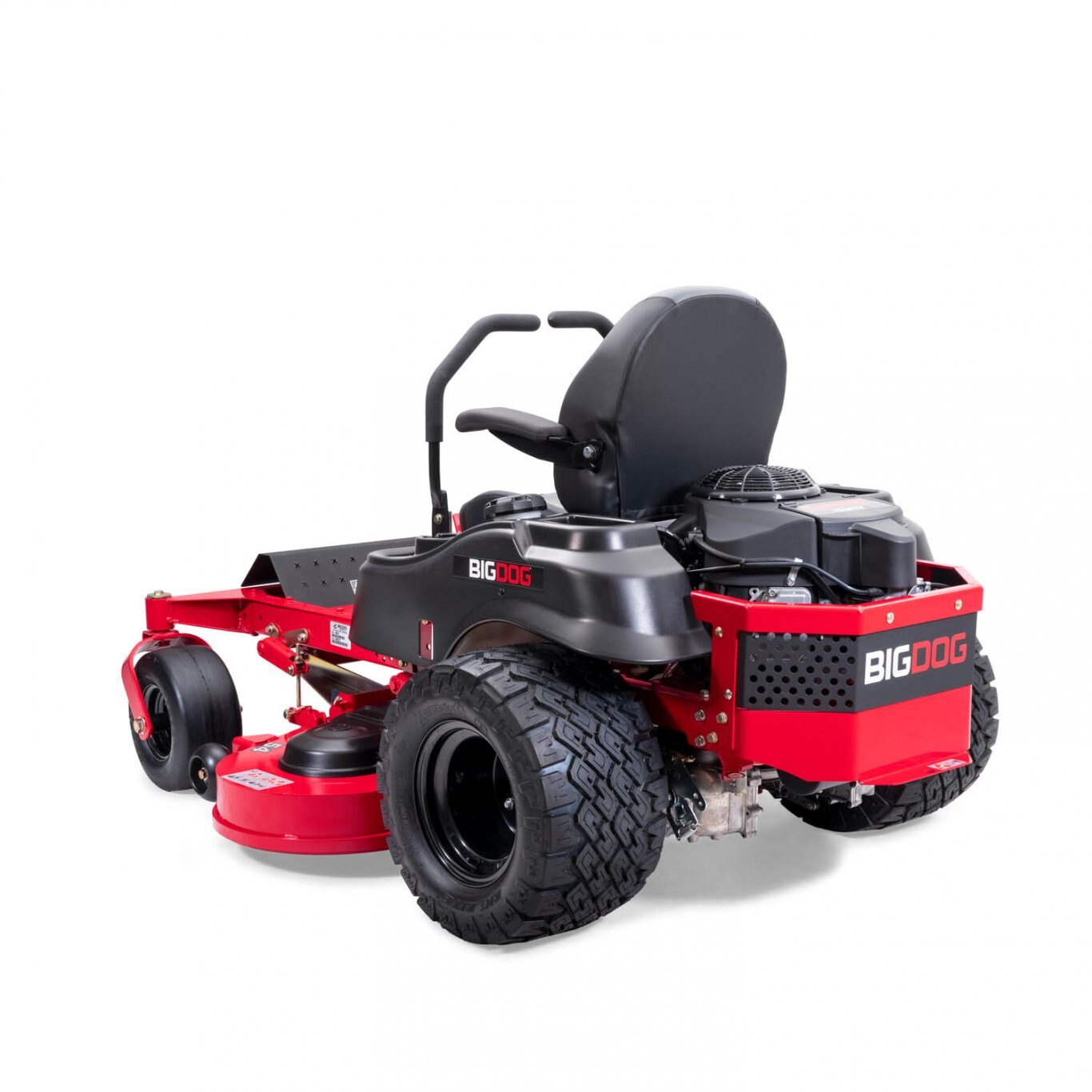

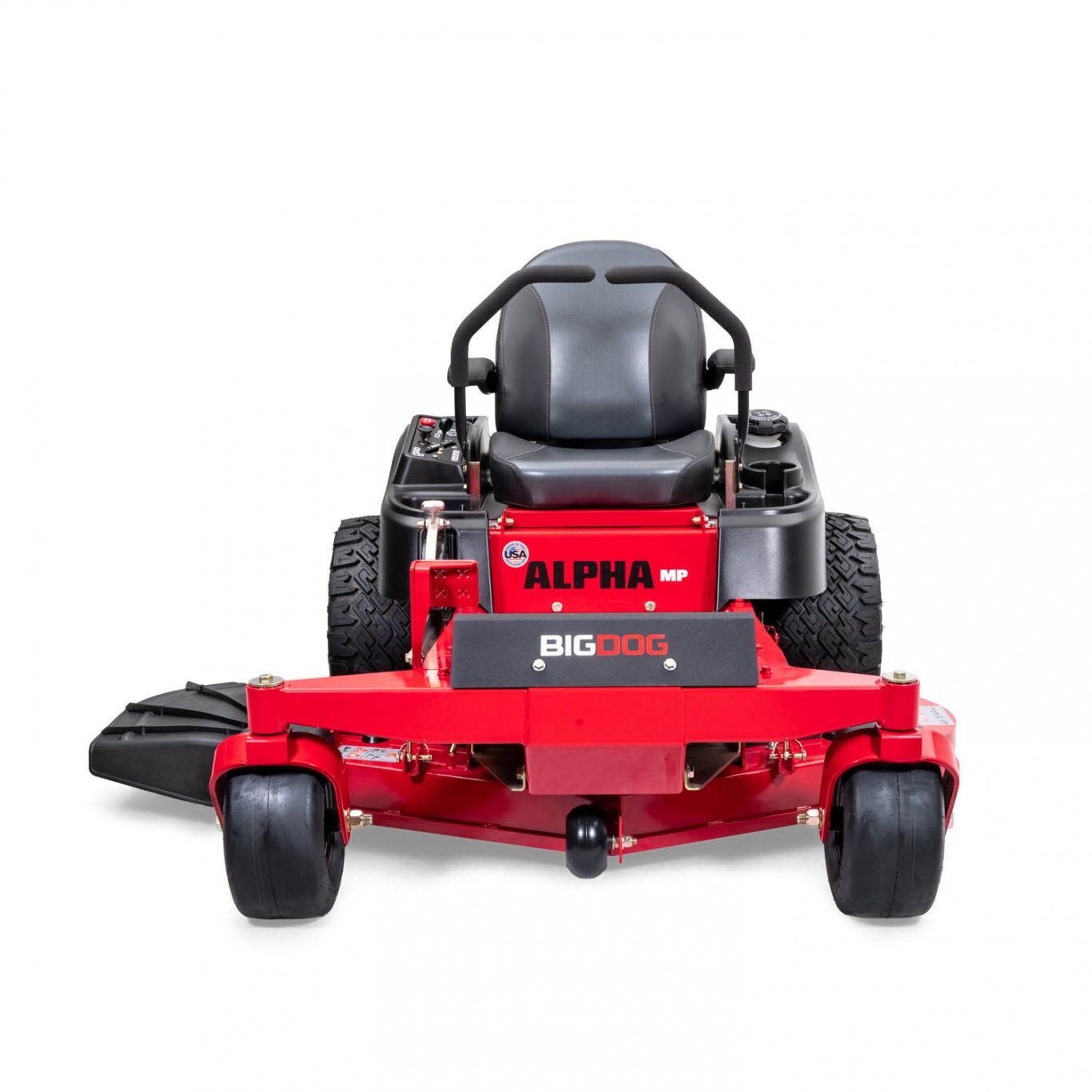

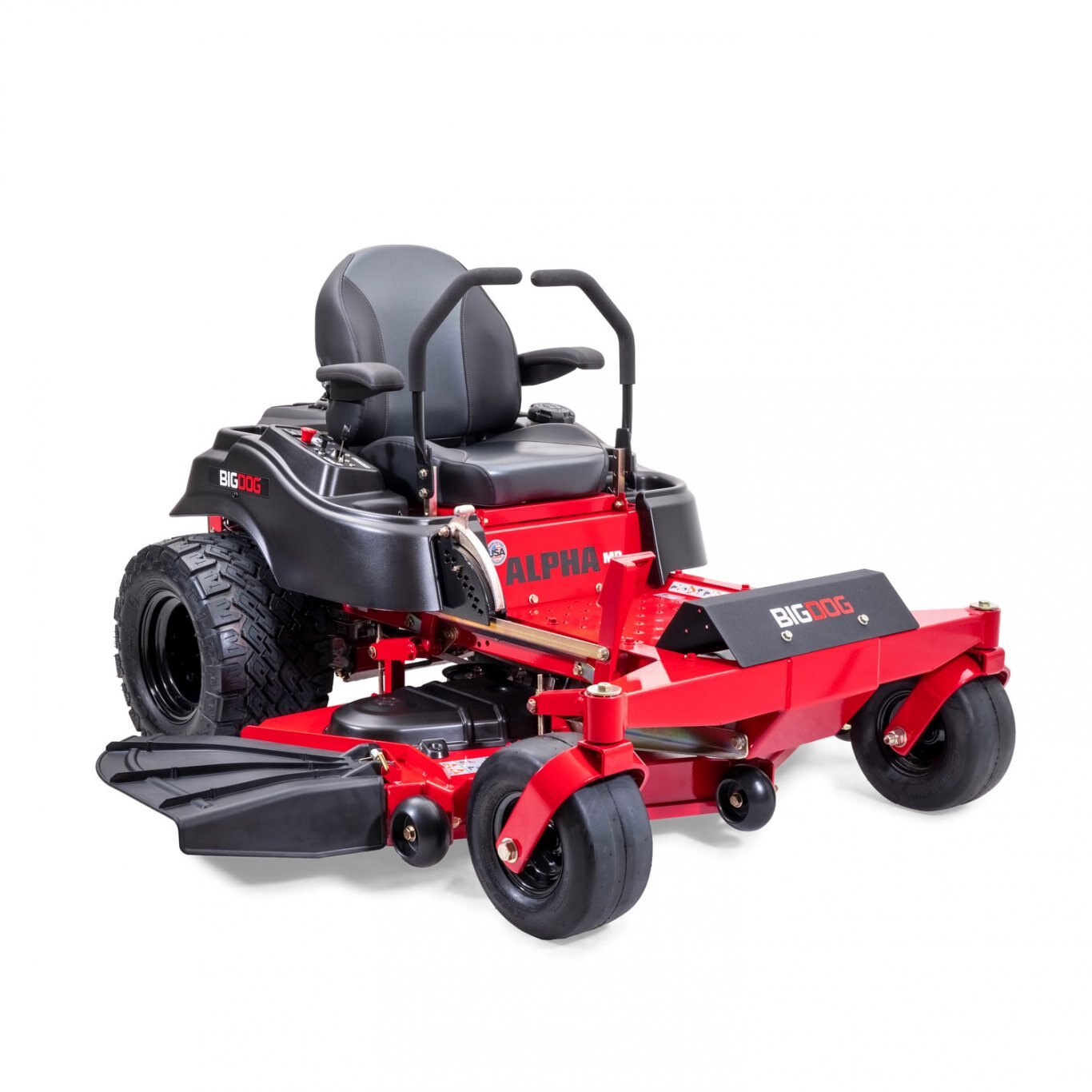

Big Dog -Alpha MP 36

  • Big Dog Alpha MP 36
  • Big Dog Alpha MP 36
  • Big Dog Alpha MP 36
  • Big Dog Alpha MP 36
  • Big Dog Alpha MP 36
  • Big Dog Alpha MP 36
  • Big Dog Alpha MP 36
  • Big Dog Alpha MP 36
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 20hp, 23hp, 25hp Briggs&Stratton

  • 36”, 42” 48", 54" & 60” decks

  • 7.5mph mowing speed

  • 7-year / 300 hour limited warranty

Ready to work

Who knew a mower could look so good? Get all the power and speed you will ever need with the Alpha MP. The Alpha MP provides maximum style and performance standard with a Briggs & Stratton PXi engine, premium seat and a rugged engine guard.



Specifications
Model
Alpha MP
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
25HP - Briggs & Stratton PXi
Deck Sizes
36
features

Large Front Tires

Large 13 inch smooth tread front caster tires.Big Dog Alpha MP 36

Comfortable Seat

Features a premium high back seat with armrests and suspension springsBig Dog Alpha MP 36

BigBite Drive Tires

Large BigBite™ drive tires provide a smooth ride and enhanced traction. The Alpha MP offers 20" drive tires.Big Dog Alpha MP 36



key specs
WARRANTY
7 Year/300 hour Limited
DRIVE TIRE
20 x 6.5-10, BigBite
FRONT TIRE
13 x 5, smooth tread
TRANSMISSION
Hydro-Gear® ZT-2800
CUTTING WIDTH
36
FUEL CAPACITY
3 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
20
GROUND SPEED (FWD)
Up to 7.5 mph
ENGINE MANUFACTURER
Briggs & Stratton PXi
engine
COOLING
Air Cooled
DISPLACEMENT
656cc
ENGINE WARRANTY
2 Year Warranty
ENGINE HORSEPOWER
20
ENGINE MANUFACTURER
Briggs & Stratton PXi
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear® ZT-2800
FUEL CAPACITY
3 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 7.5 mph
deck
SPINDLES
Aluminum with 1" steel shafts and sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
4.5
BLADE LENGTH
17.86
CUTTING WIDTH
36
DECK MATERIAL
11 ga. fabricated steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 7 ga.
BLADE TIP SPEED
18,400
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
2
IMPANCT TRIM AREA
3/8" x 1" steel bar
accessories

Side Grass Bagger

Mesh side-bagger holds 2 bushels.Big Dog Alpha MP 36

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Alpha MP 36

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.Big Dog Alpha MP 36

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.Big Dog Alpha MP 36

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Alpha MP 36



construction
FRAME
1.5" X 3.25" 11 ga. steel C-channel
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 3/8" steel
FRONT CASTER WHEEL
Sealed ball bearings
general
SEAT
Premium high back w/ armrests and suspension springs
CUP HOLDER
dimensions
WEIGHT (LBS)
577
HEIGHT (INCHES)
42
LENGTH (INCHES)
73
DRIVE TIRE (INCHES)
20 x 6.5-10, BigBite
FRONT TIRE (INCHES)
13 x 5, smooth tread
WIDTH W/ CHUTE UP (INCHES)
37.7
TIRE-TO-TIRE WIDTH (INCHES)
38.3
PRODUCTIVITY (ACRES PER HOUR)
2.18
warranty
WARRANTY
7 Year/300 hour Limited
dimensions with catcher
CATCHER STYLE
2-bag
CATCHER CAPACITY
5.4 bushel
POWERED / NON-POWERED
Non-powered
MOWER WIDTH W/ CATCHER
47.85"
MOWER LENGTH W/ CATCHER
95.75"
