ID # 23902006

Big Dog -BlackJack 48

  • Big Dog BlackJack 48
  • Big Dog BlackJack 48
  • Big Dog BlackJack 48
  • Big Dog BlackJack 48
  • Big Dog BlackJack 48
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 23hp KOHLER Engine

  • 48" & 54” decks

  • 7mph mowing speed

  • 7-year / 300 hour limited warranty

Automatically raise, lower, adjust deck height

Our innovative flip deck mower with a KOHLER engine powered by an innovative electric/hydraulic actuated lift deck technology. The BlackJack is your way to feel like a high roller out in your yard.



Specifications
Model
BlackJack
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
23HP - Briggs & Stratton Commercial
Deck Sizes
48
features

20" High-back Seat

Premium bolstered seat with armrests and built-in lumbar supportBig Dog BlackJack 48

Automated Deck Height Adjustment

Raise or lower the deck with ease with an electric/hydraulic actuator.Big Dog BlackJack 48

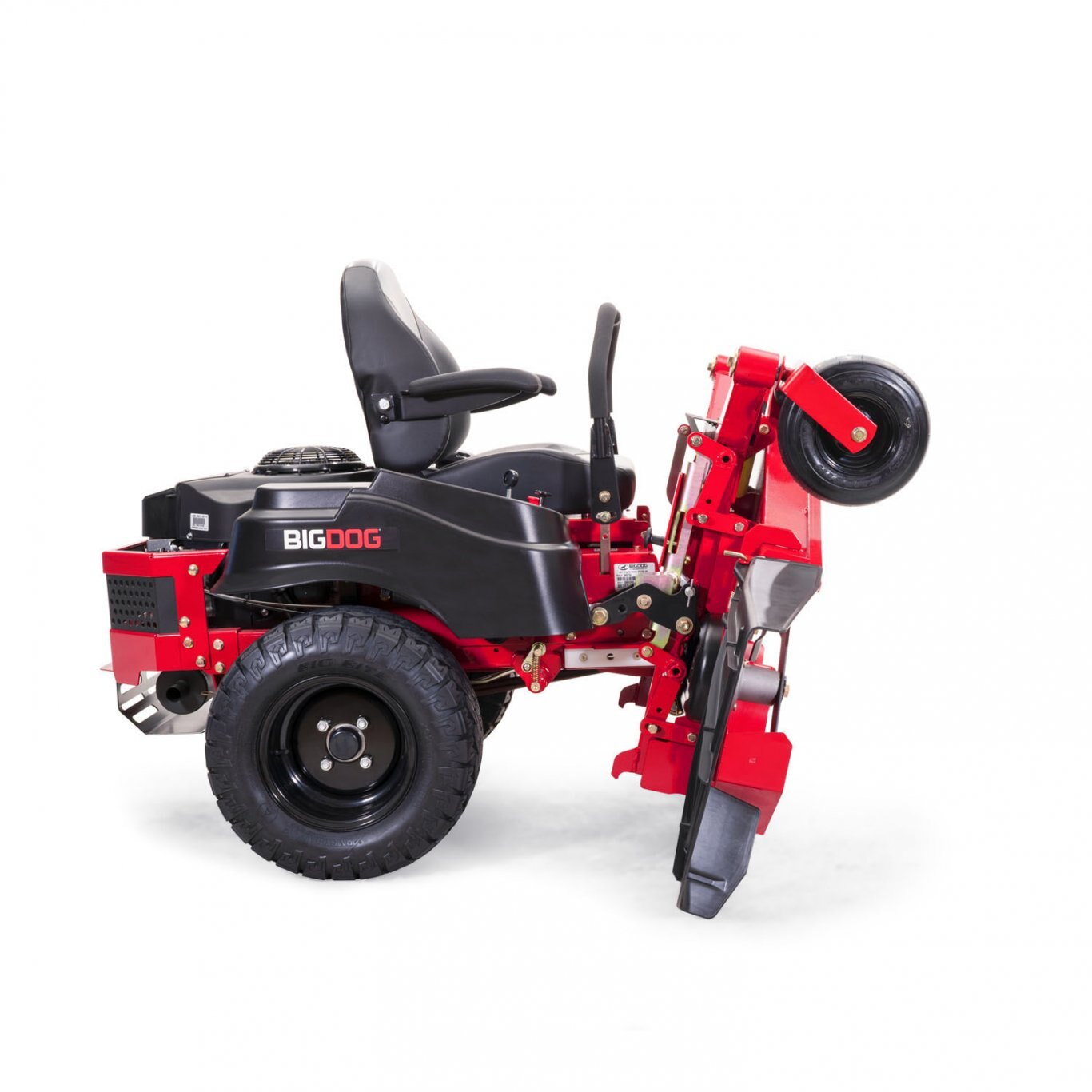

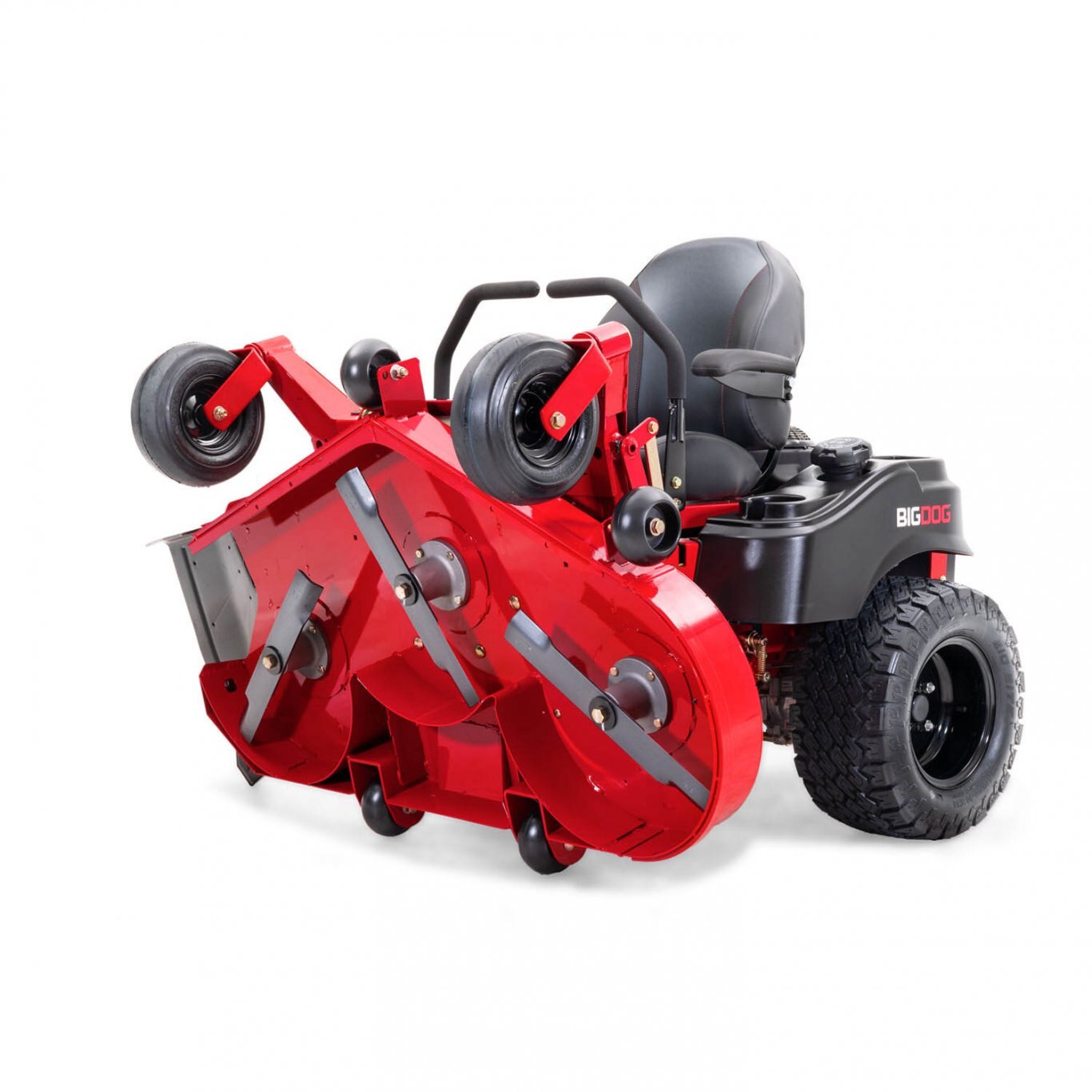

Push Button Deck Lift

Effortless cleaning and blade changing at the push of a button.Big Dog BlackJack 48





key specs
WARRANTY
7 Year/300 hour Limited
DRIVE TIRE
20 x 8-10, BigBite
FRONT TIRE
11" pneumatic
TRANSMISSION
Hydro-Gear® ZT-2800®
CUTTING WIDTH
48
FUEL CAPACITY
3 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
23
GROUND SPEED (FWD)
Up to 7 mph
ENGINE MANUFACTURER
KOHLER 7000 Pro
engine
COOLING
Air Cooled
DISPLACEMENT
725cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
23
ENGINE MANUFACTURER
KOHLER 7000 Pro
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear® ZT-2800®
FUEL CAPACITY
3 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 7 mph
deck
SPINDLES
Aluminum w/1" shaft and double lip sealed ball bearings
DECK LIFT
Electric/Hydraulic Actuated
DECK DEPTH
4.5
BLADE LENGTH
16.5
CUTTING WIDTH
48
DECK MATERIAL
11 ga. fabricated steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 7 ga. steel
BLADE TIP SPEED
18,500
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
3
IMPANCT TRIM AREA
3/8" x 1" steel bar
accessories

2-Bag Non-Powered Bagger

Easy-on, easy-off hopper assemblies. The bagger holds 5.4 bushels.Big Dog BlackJack 48

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog BlackJack 48

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.Big Dog BlackJack 48

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.Big Dog BlackJack 48



construction
FRAME
1.5" X 1.5" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 1/4" steel
FRONT CASTER WHEEL
Sealed ball bearings
general
SEAT
Premium bolstered seat with armrests and built-in lumbar support
CUP HOLDER
dimensions
WEIGHT (LBS)
755
HEIGHT (INCHES)
42.7
LENGTH (INCHES)
69.4
DRIVE TIRE (INCHES)
20 x 8-10, BigBite
FRONT TIRE (INCHES)
11" pneumatic
WIDTH W/ CHUTE UP (INCHES)
48.8
TIRE-TO-TIRE WIDTH (INCHES)
44.5
PRODUCTIVITY (ACRES PER HOUR)
2.71
warranty
WARRANTY
7 Year/300 hour Limited
dimensions with catcher
CATCHER STYLE
2-bag
CATCHER CAPACITY
5.4 bushel
POWERED / NON-POWERED
NON-POWERED
MOWER WIDTH W/ CATCHER
56.8
MOWER LENGTH W/ CATCHER
89
literature
Name Link
Brochure PDF Download
Spec Sheet PDF Download
