ID # 23902003

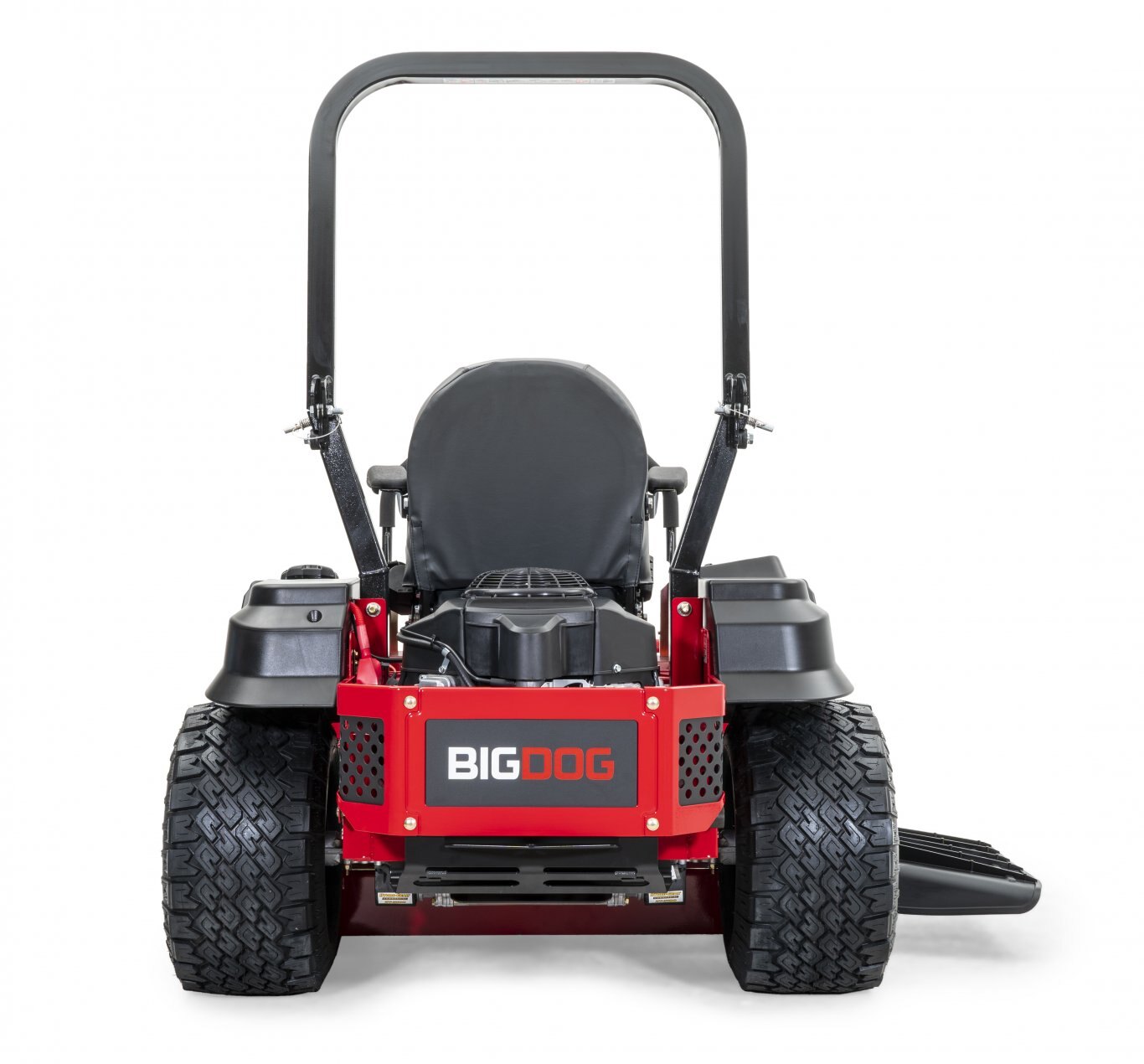

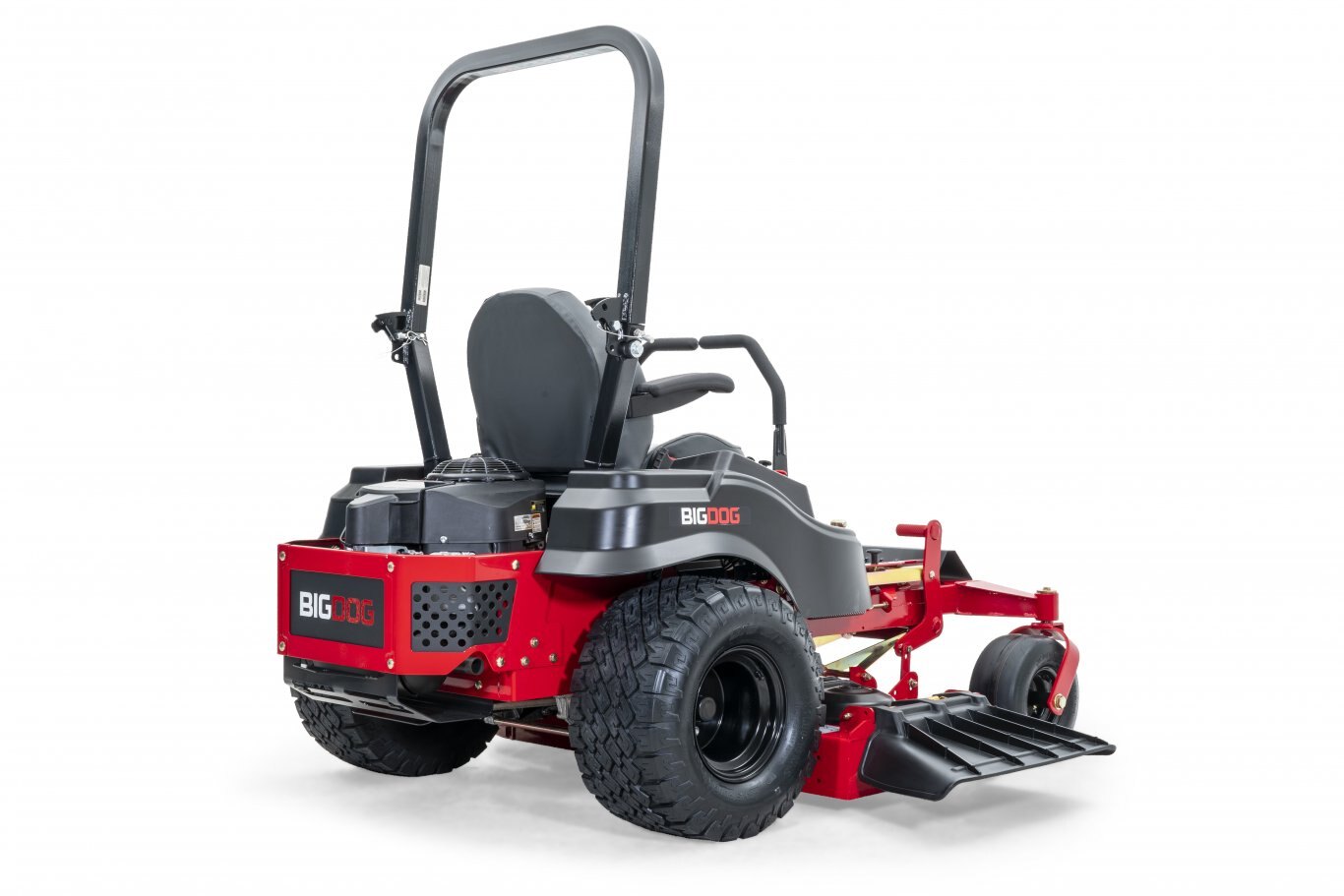

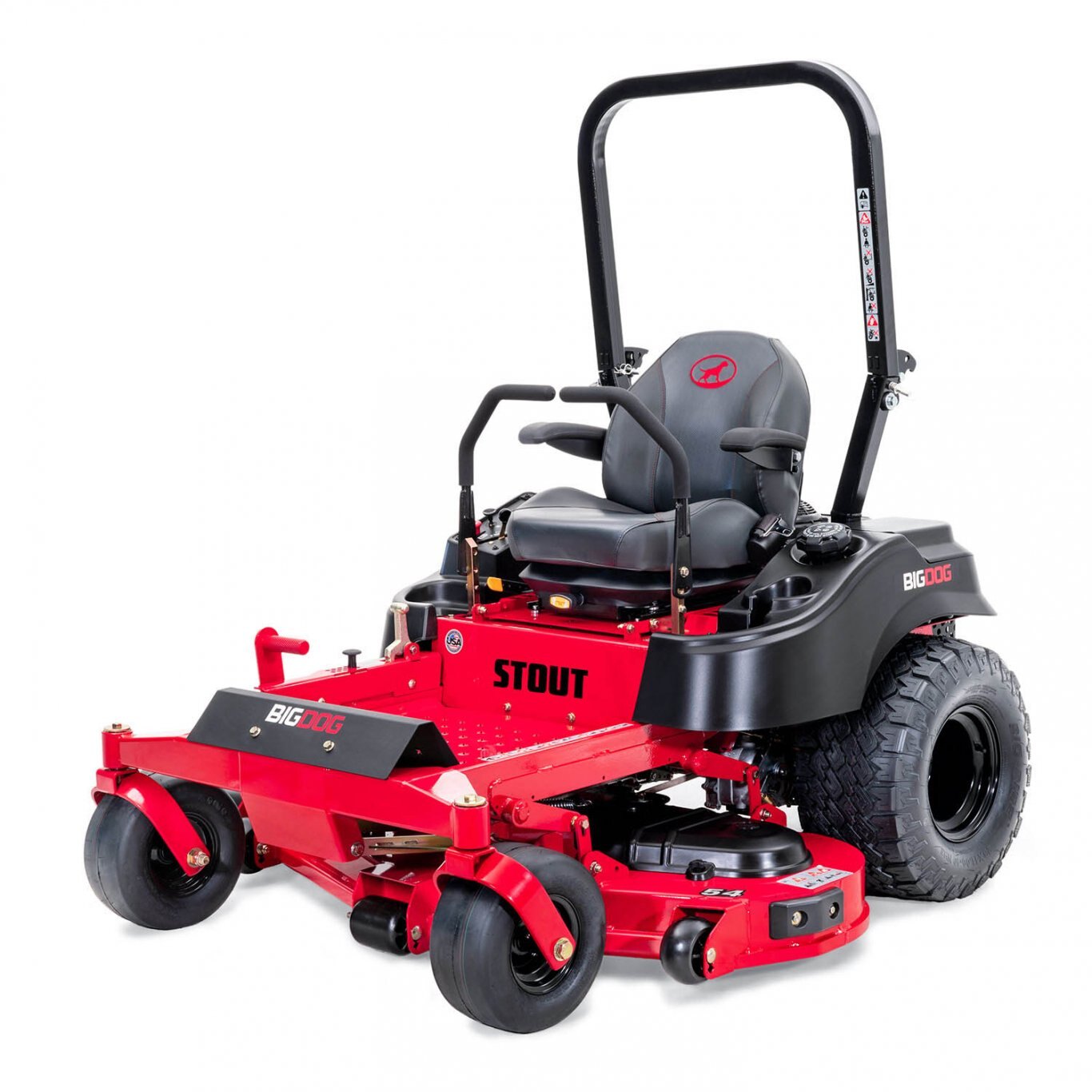

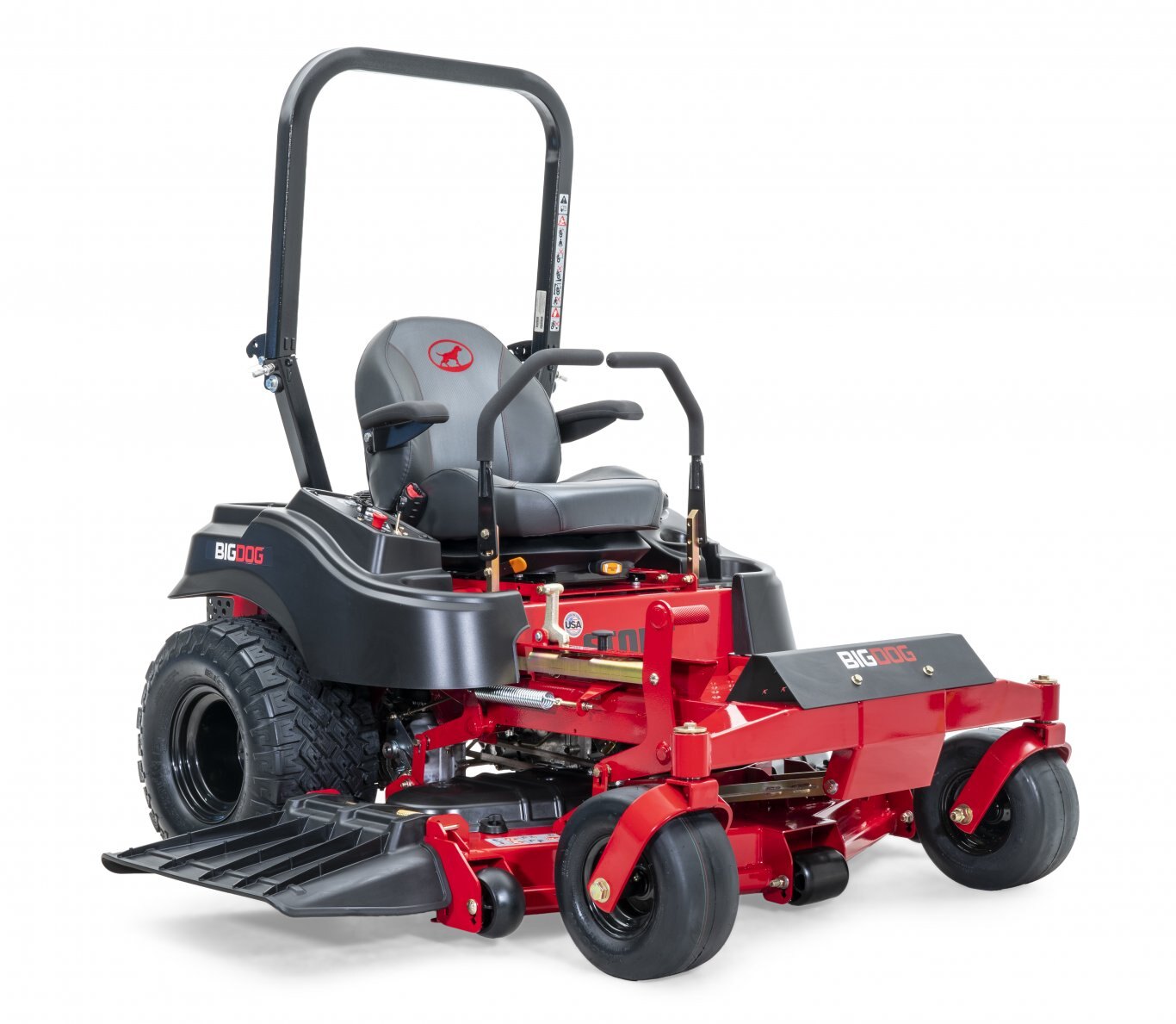

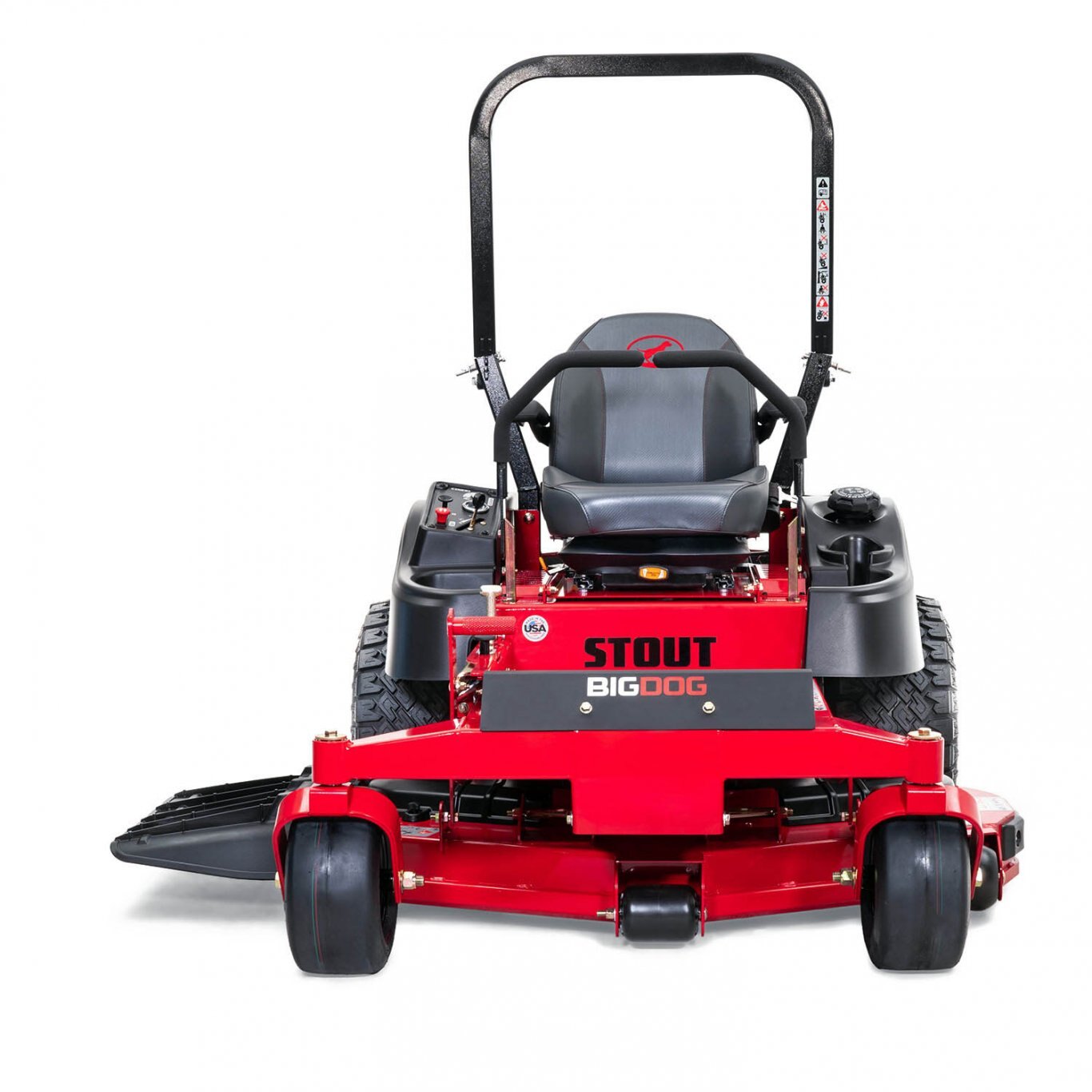

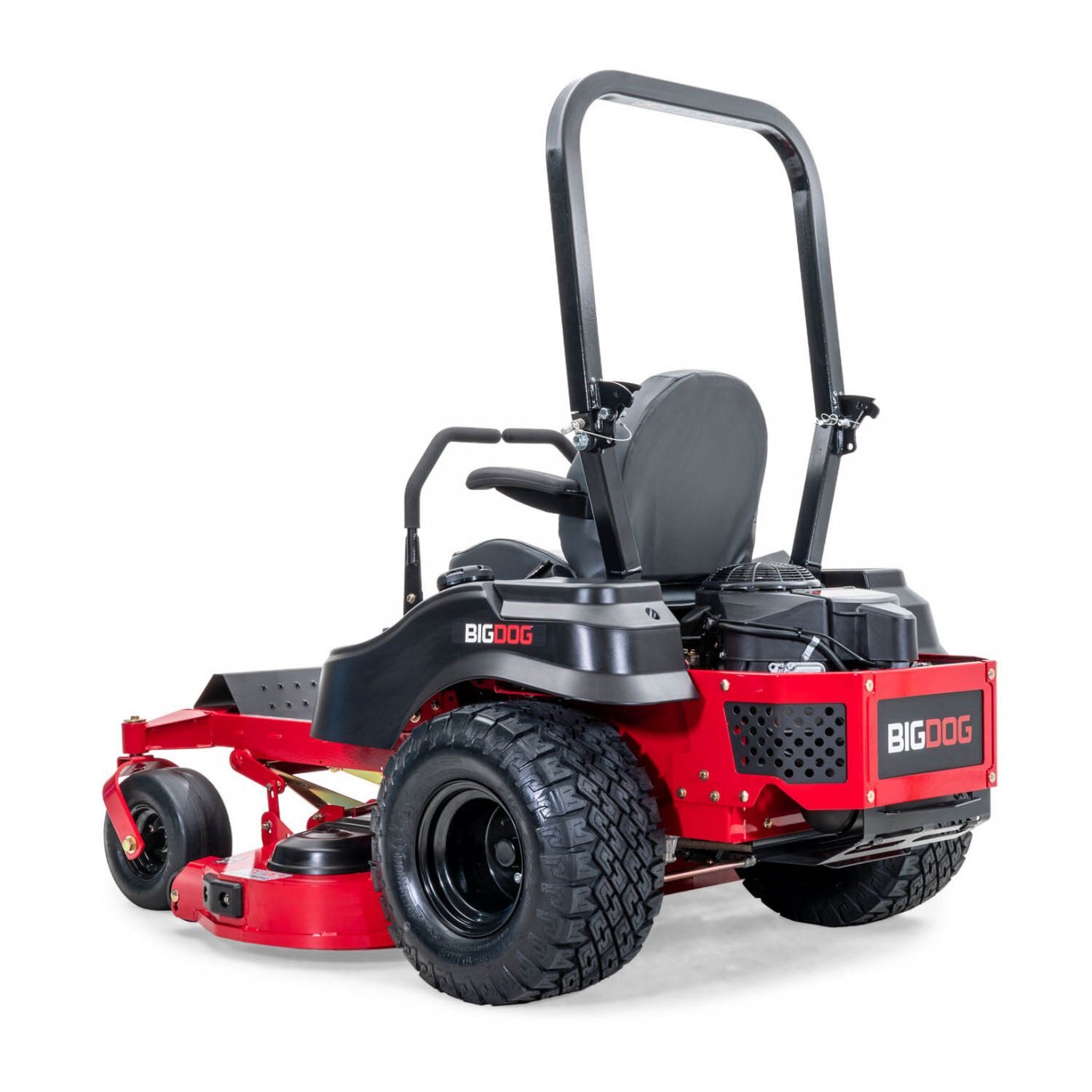

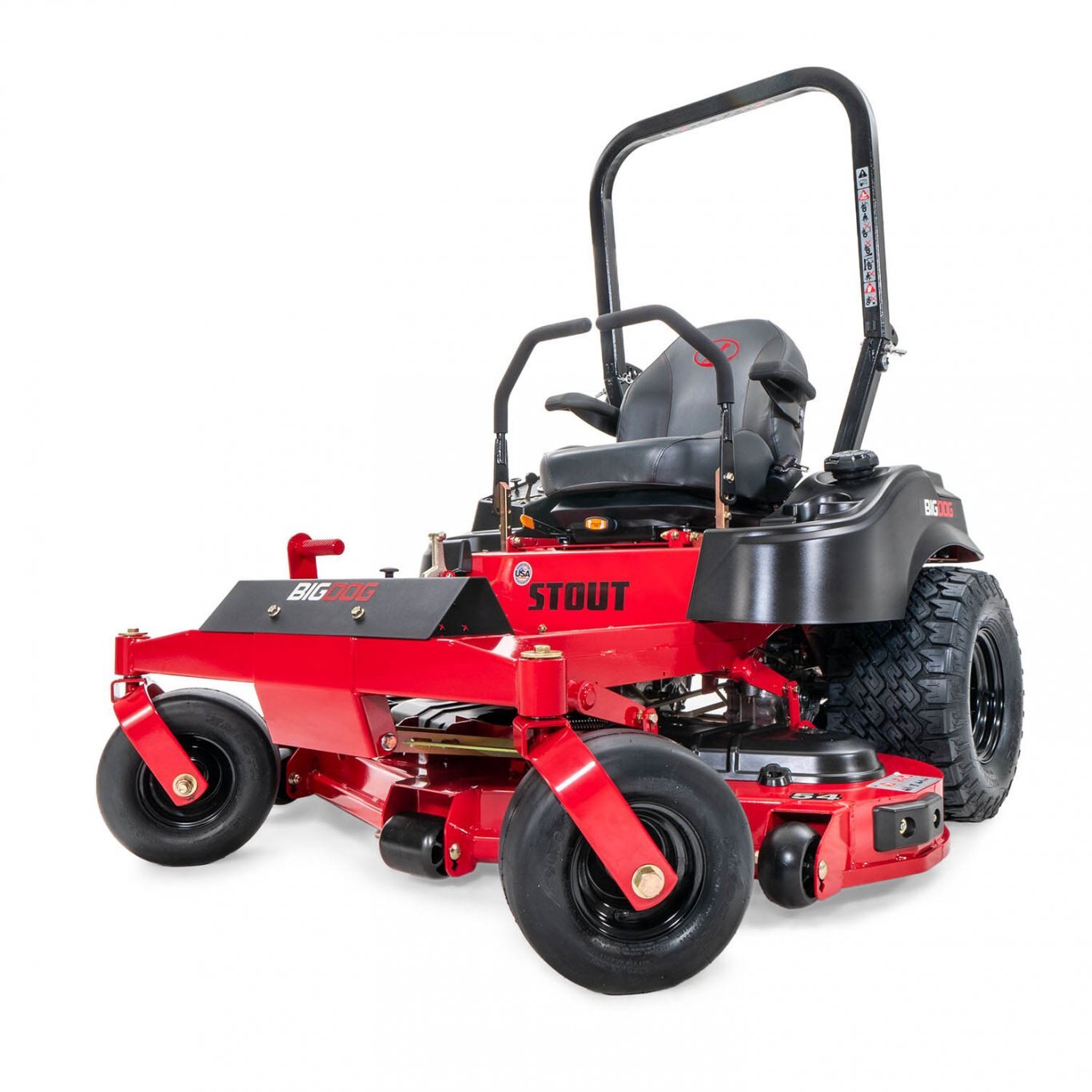

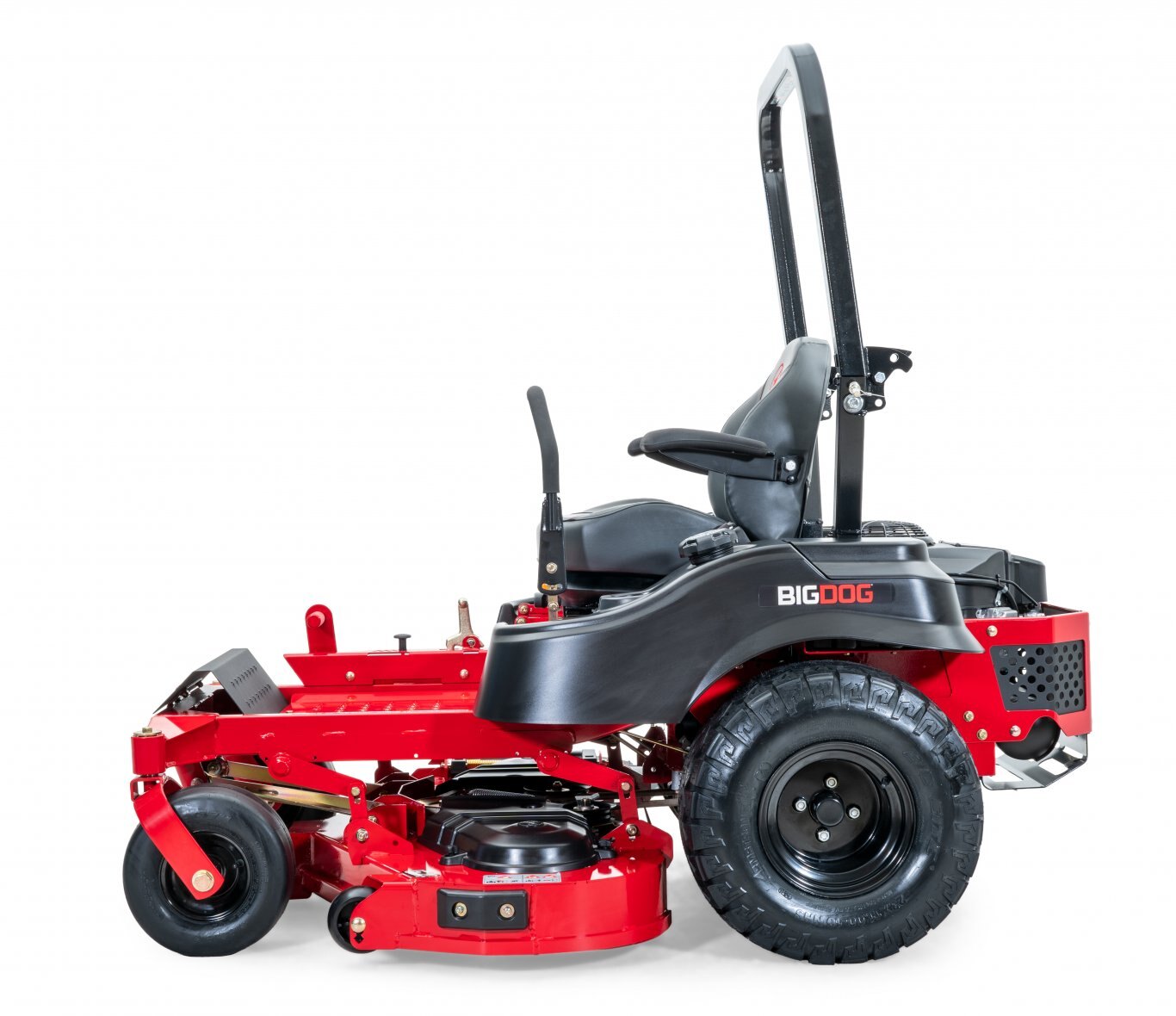

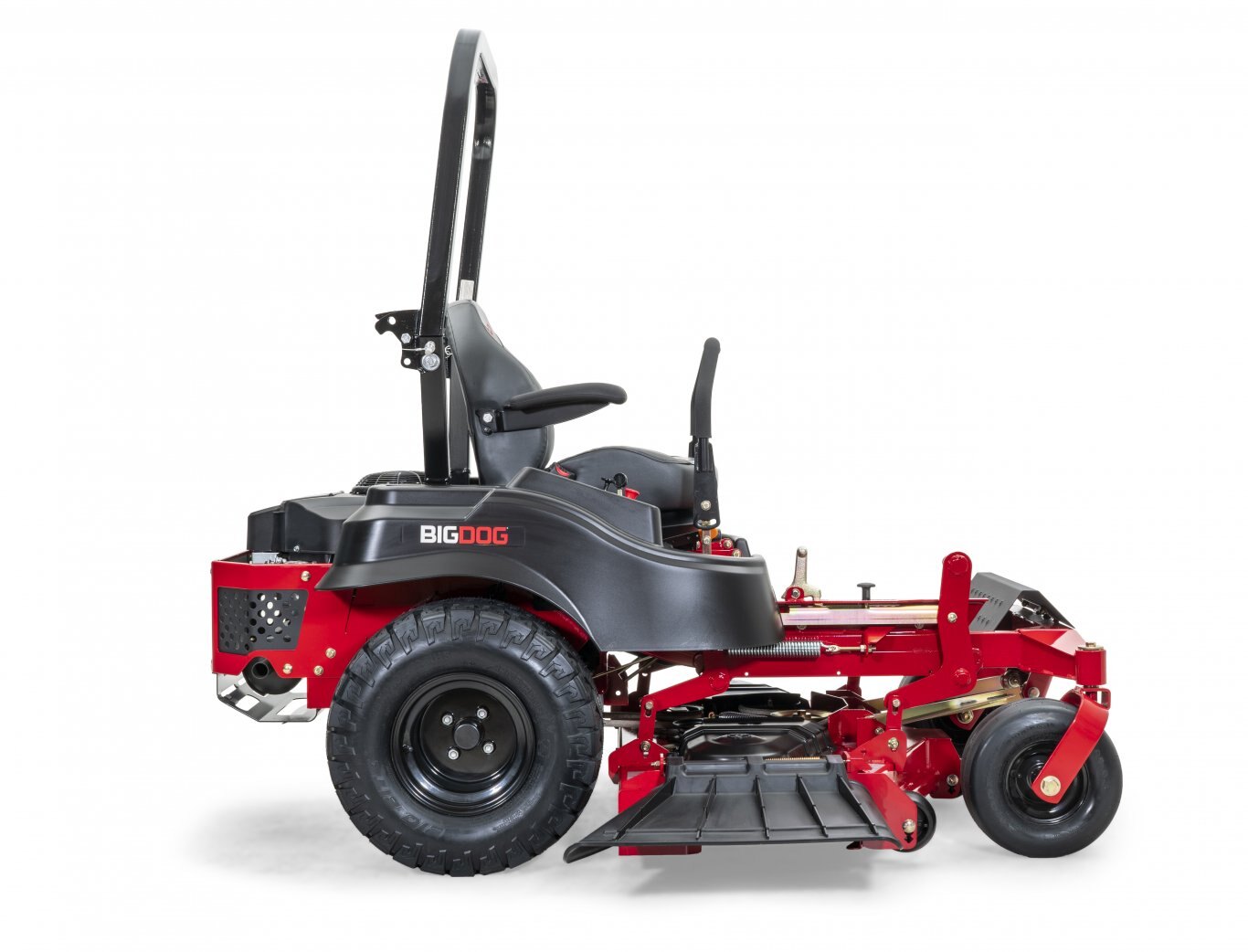

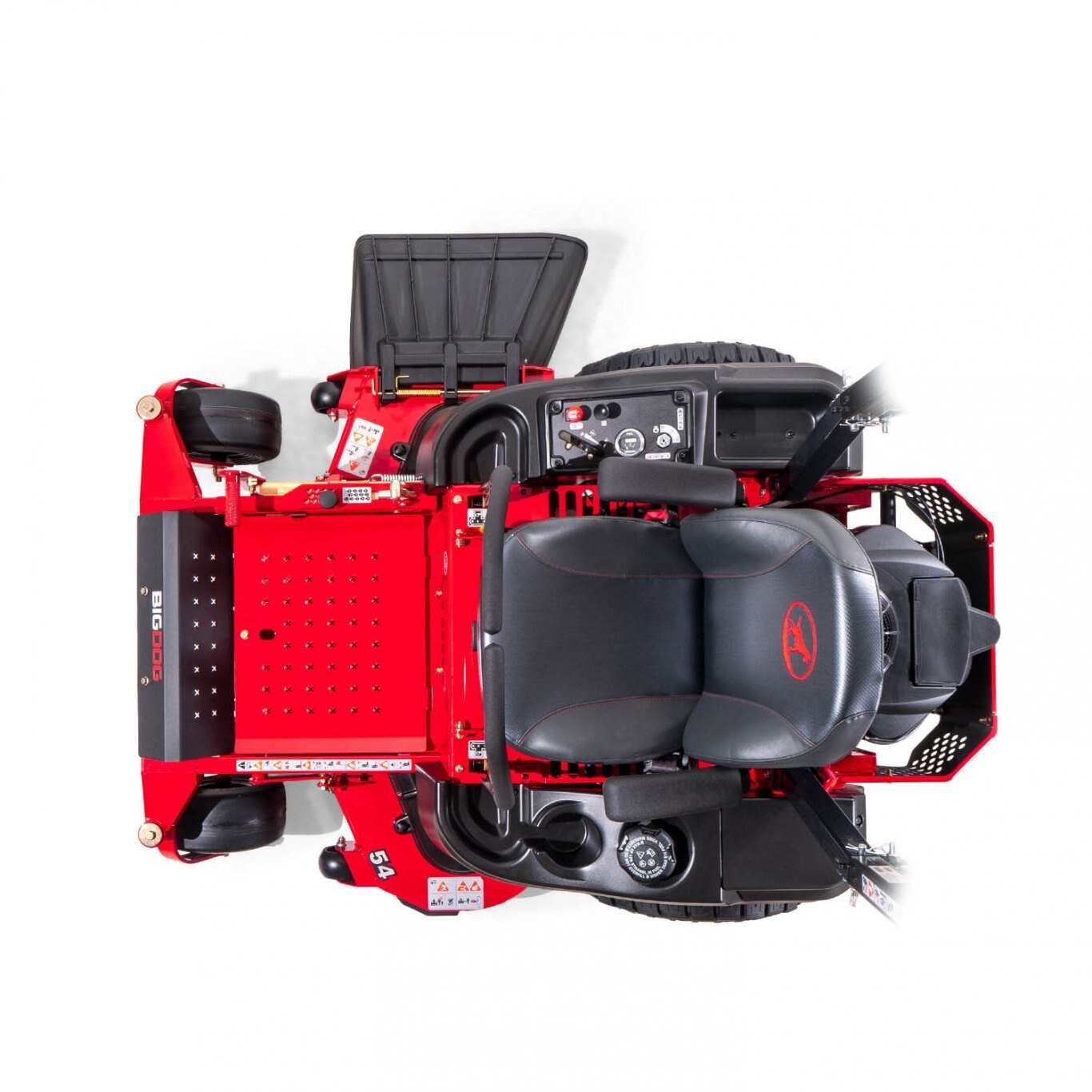

Big Dog -Stout 48

  • Big Dog Stout 48
  • Big Dog Stout 48
  • Big Dog Stout 48
  • Big Dog Stout 48
  • Big Dog Stout 48
  • Big Dog Stout 48
  • Big Dog Stout 48
  • Big Dog Stout 48
  • Big Dog Stout 48
  • Big Dog Stout 48
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 23hp - 24hp KOHLER Engines

  • 48", 54" & 60” decks

  • 8mph mowing speed

  • 7-year / 500 hour limited warranty

Ain't afraid to get dirty

Standard with the KOHLER 7000 Pro engine, a welded steel deck, plus foldable side-discharge/mulching decks—as the name implies, there’s nothing the Stout can’t handle.



Specifications
Model
Stout
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
60
Deck Sizes
48
features

Premium Seat

20" mid-back seat with full mechanical suspension to shield the operator from bumps and EVC cushion to take pressure off tail bone and lower back.Big Dog Stout 48



Heavy-Duty Decks

Welded commercial-style decks. Up to 60" deck size available.

Big Dog Stout 48

Removable Floor Pan

Features a removable floor pan for ease of maintenance.

Big Dog Stout 48





key specs
WARRANTY
7 Year/500 hour Limited
DRIVE TIRE
23 x 9.5-10, BigBite
FRONT TIRE
13 x 5-6, smooth tread
TRANSMISSION
Hydro-Gear® ZT-3100
CUTTING WIDTH
48
FUEL CAPACITY
5 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
23
GROUND SPEED (FWD)
GROUND SPEED (FWD)
ENGINE MANUFACTURER
KOHLER 7000 Pro
engine
COOLING
Air Cooled
DISPLACEMENT
725cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
23
ENGINE MANUFACTURER
KOHLER 7000 Pro
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear® ZT-3100
FUEL CAPACITY
5 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 8 mph
deck
SPINDLES
Aluminum casting with steel shafts and sealed ball bearings.
DECK LIFT
Foot Operated
DECK DEPTH
5
BLADE LENGTH
16.50"
CUTTING WIDTH
48
DECK MATERIAL
10 ga. fabricated steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 11 ga.
BLADE TIP SPEED
18,600
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
3
IMPANCT TRIM AREA
11 ga. formed channel with rolled edge
accessories

2-Bag Non-Powered Bagger

Easy-on, easy-off hopper assemblies. The bagger holds 5.4 bushels.Big Dog Stout 48

Mesh Side Bagger

Big Dog Stout 48Easy-on, easy-off bagger has a 3-bushel capacity.

Metal Side Bagger

Easy-on, easy-off bagger has a 3.5 bushel capacity.Big Dog Stout 48

Big Dog Stout 48

Flex Forks®

Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds. (only on 36"&42" decks on Alpha.)

High Vacuum Deck Kit

Improves vacuum and cut quality while reducing blowout in thin/dry grass conditions.Big Dog Stout 48

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Stout 48

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.Big Dog Stout 48

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.Big Dog Stout 48

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Stout 48



construction
FRAME
1.5" X 3" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 3/8" steel
FRONT CASTER WHEEL
Heavy duty ball bearings - greasable
general
SEAT
Mid-back suspension seat
CUP HOLDER
dimensions
WEIGHT (LBS)
855
HEIGHT (INCHES)
45.5
LENGTH (INCHES)
76
DRIVE TIRE (INCHES)
23 x 9.5-10, BigBite
FRONT TIRE (INCHES)
13 x 5-6, smooth tread
WIDTH W/ CHUTE UP (INCHES)
49.1
TIRE-TO-TIRE WIDTH (INCHES)
47.5
PRODUCTIVITY (ACRES PER HOUR)
3.1
warranty
WARRANTY
7 Year/500 hour Limited
dimensions with catcher
CATCHER STYLE
2-bag
CATCHER CAPACITY
7.2 bushel
POWERED / NON-POWERED
Powered
MOWER WIDTH W/ CATCHER
58
MOWER LENGTH W/ CATCHER
103.4
literature
Name Link
Brochure PDF Download
Spec Sheet PDF Download
