ID # 23900854

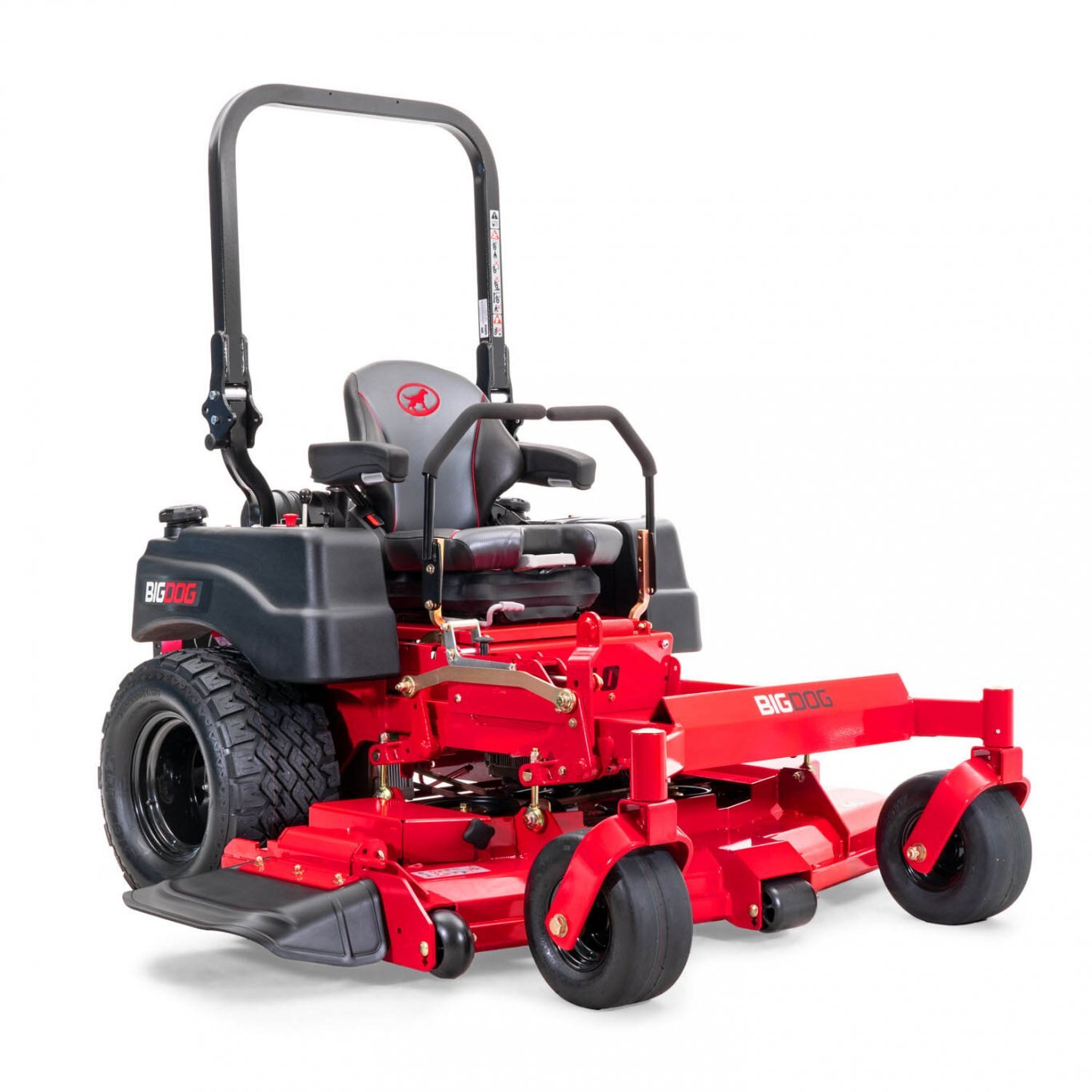

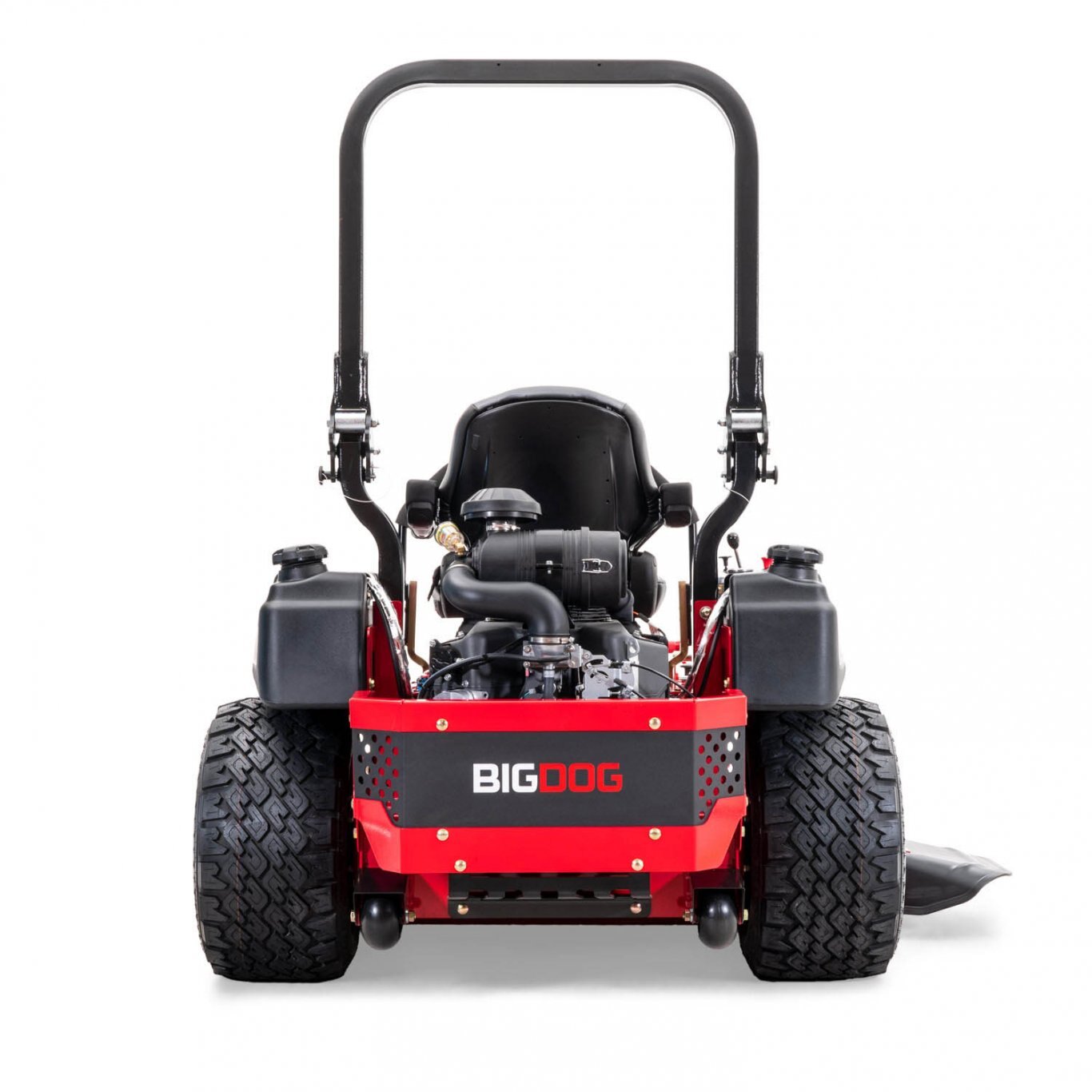

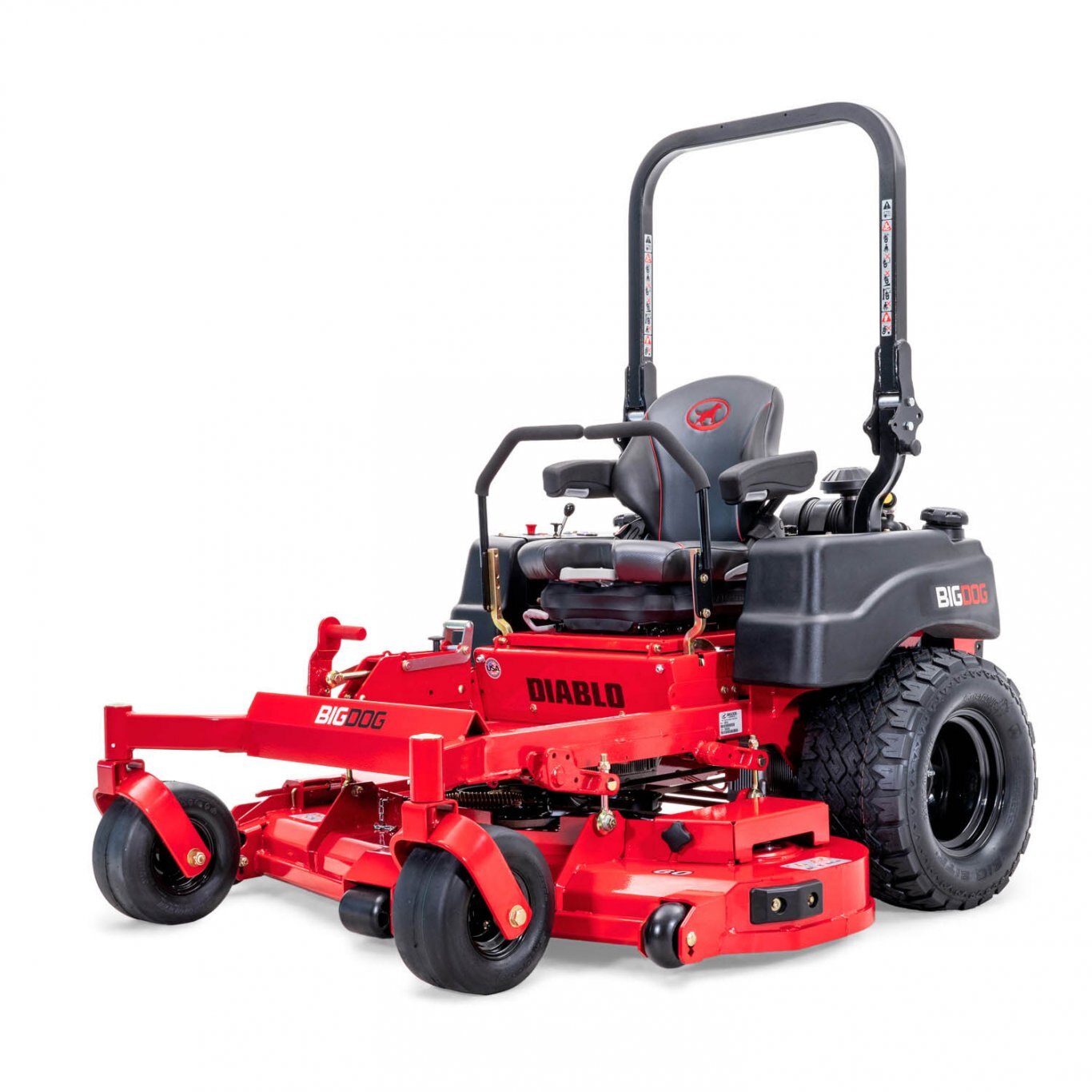

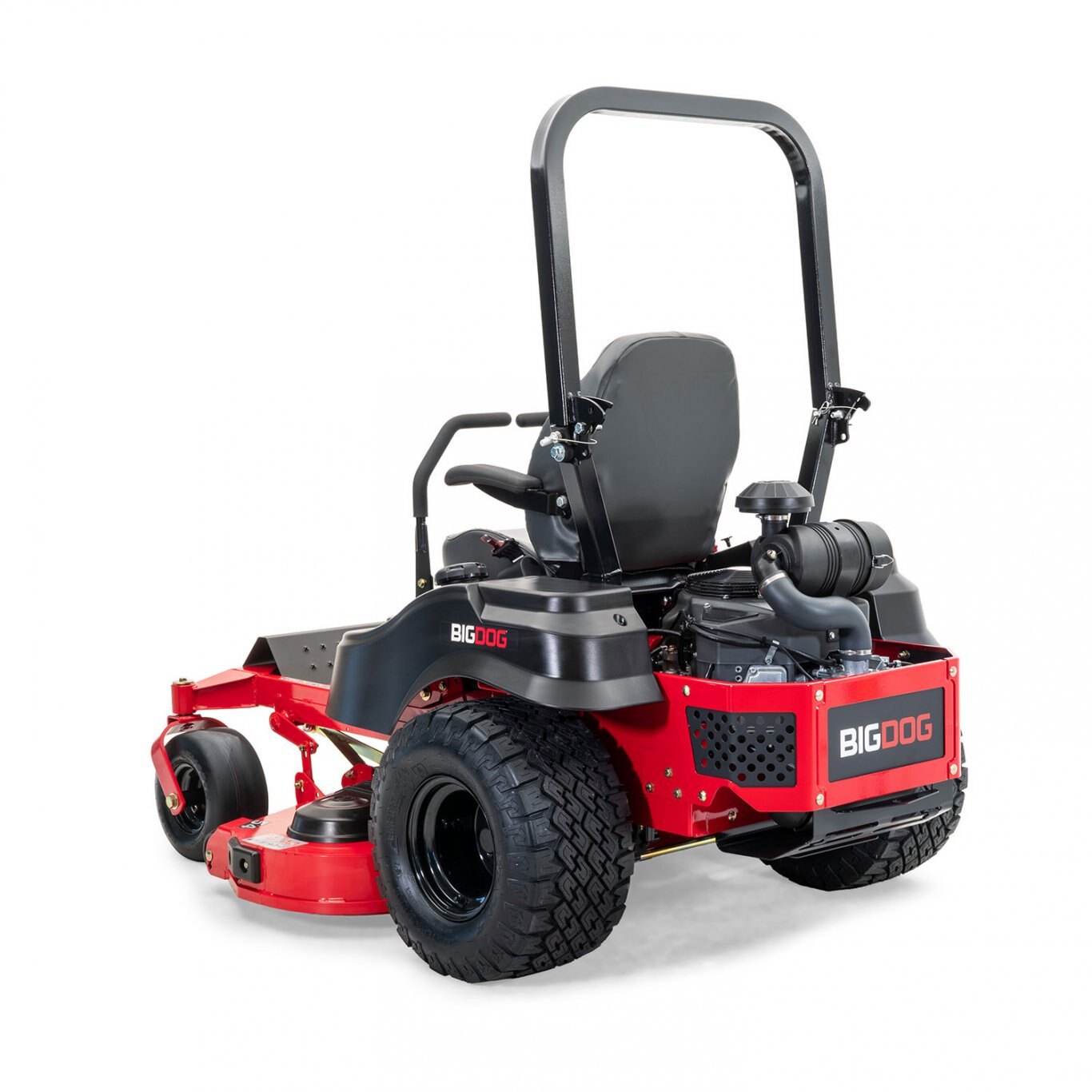

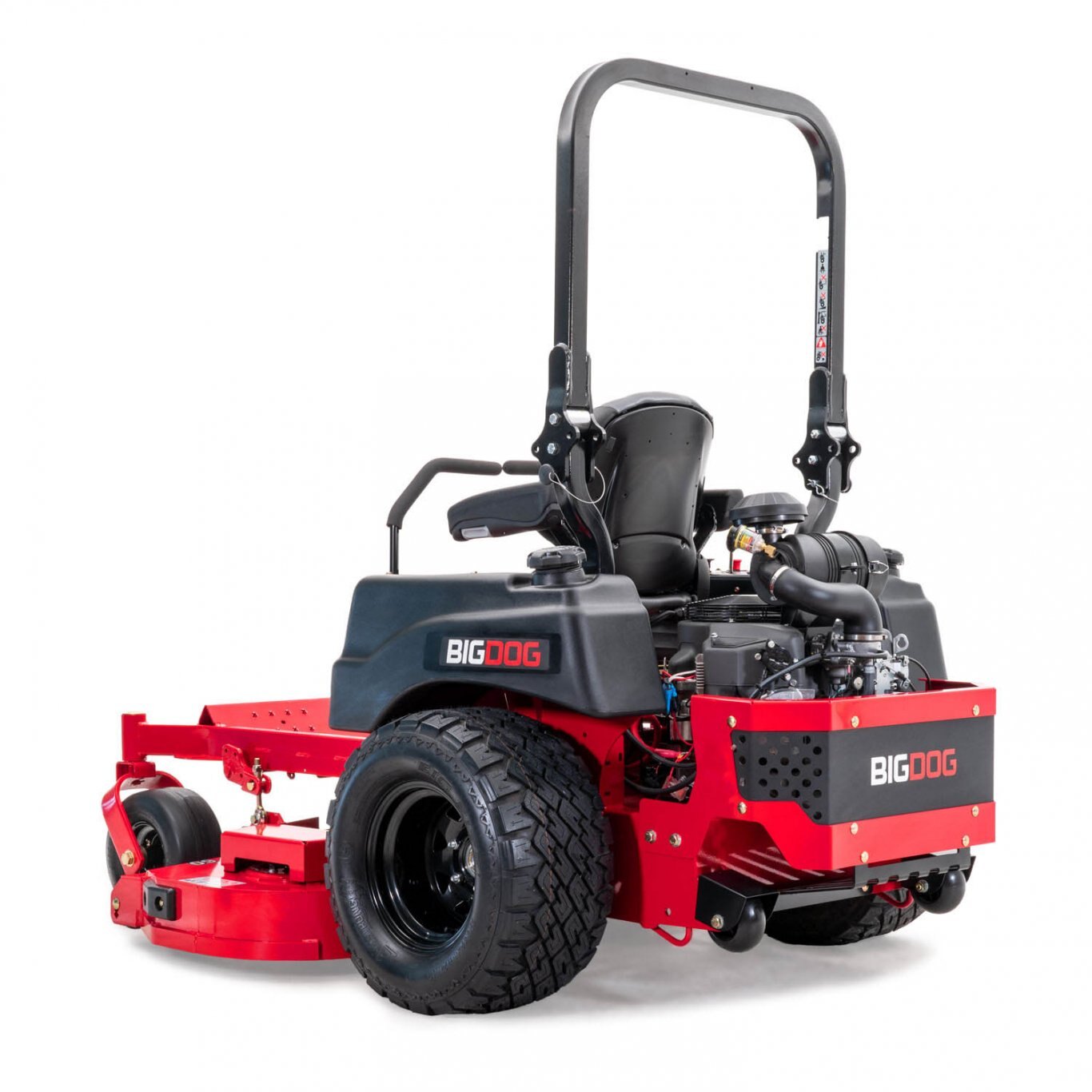

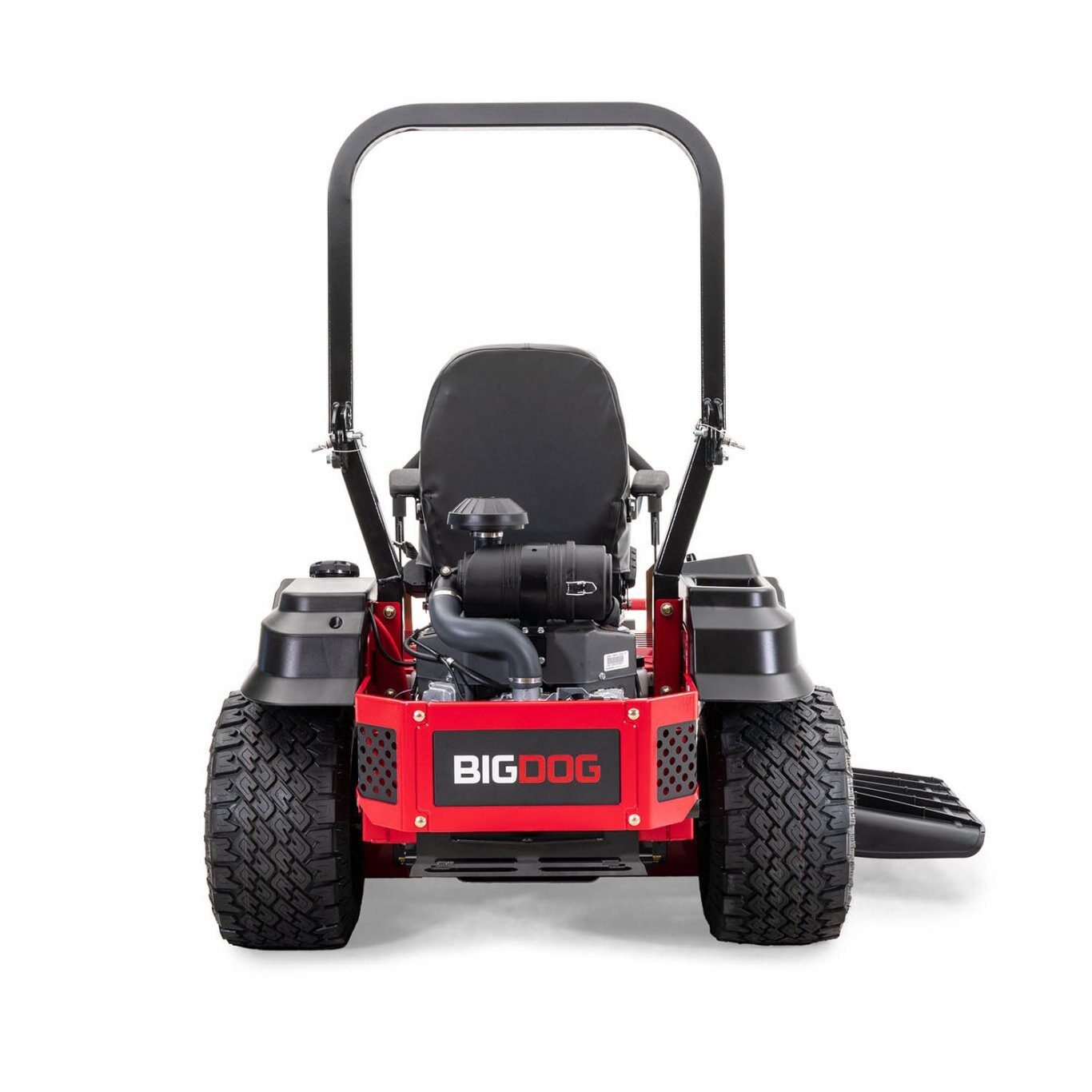

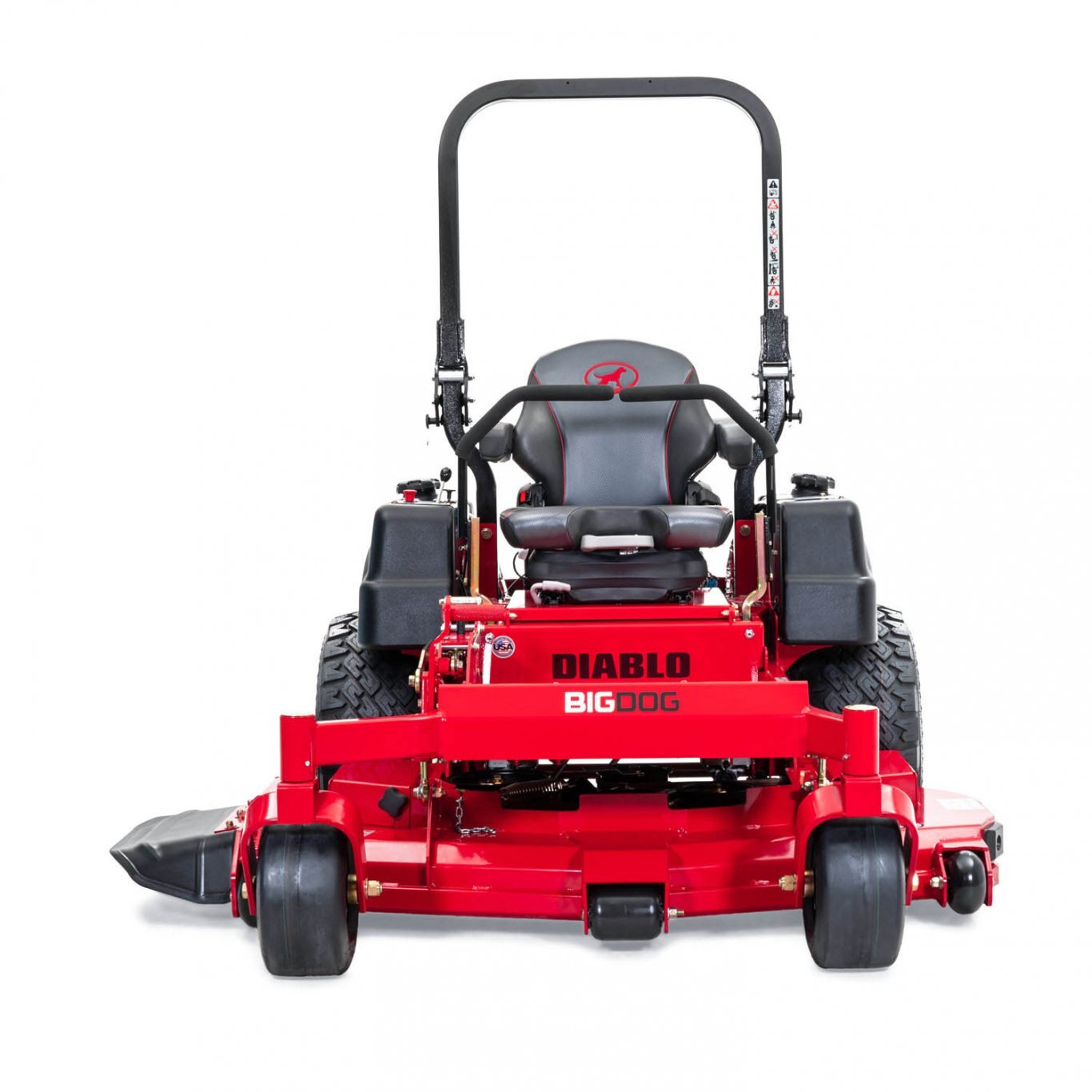

Big Dog -Diablo 52

  • Big Dog Diablo 52
  • Big Dog Diablo 52
  • Big Dog Diablo 52
  • Big Dog Diablo 52
  • Big Dog Diablo 52
  • Big Dog Diablo 52
  • Big Dog Diablo 52
  • Big Dog Diablo 52
  • Big Dog Diablo 52
  • Big Dog Diablo 52
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 25hp-26hp Kohler & Vanguard Engines

  • 52”, 60" & 72” decks

  • 10.5mph mowing speed

  • 7-year / 1500 hour limited warranty

The Devil is in the Details

Built for speed and ready to work, the Diablo boasts a top speed of 10mph and a perfect cut every time. Powered with Vanguard 810cc or the Kohler Command Pro Engines. Commercial grade heavy-duty unitized 12cc pump transmission by Parker. Welded steel frame and optimized center of gravity produce speed gives you the efficiency for the job!



Specifications
Model
DIABLO
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
26HP - Vanguard 810cc
Deck Sizes
52
features

Premium Seat

20" mid-back seat with full mechanical suspension to shield the operator from bumps and EVC cushion to take pressure off tail bone and lower back.Big Dog Diablo 52



BigBite™ Rear Tires

24" BigBite™ rear tires provide a smooth ride and enhanced traction.Big Dog Diablo 52



Incredible Power

Power through with Parker unitized 12cc/rev pumps. Finish fast with a choice of engine sizes.Big Dog Diablo 52





key specs
WARRANTY
7 Year/1500 hour Limited.
DRIVE TIRE
24 x 9.5-12, BigBite
FRONT TIRE
13 x 6.5-6
TRANSMISSION
Parker unitized 12cc pump with 15.9ci wheel motors
CUTTING WIDTH
52
FUEL CAPACITY
12 gal.
CUTTING HEIGHT
1.5" to 5.5"
ENGINE HORSEPOWER
25, 26
GROUND SPEED (FWD)
Up to 10.5 mph
ENGINE MANUFACTURER
KOHLER Command Pro, Vanguard 810cc
engine
COOLING
Air Cooled
DISPLACEMENT
747cc, 810cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
25, 26
ENGINE MANUFACTURER
KOHLER Command Pro, Vanguard 810cc
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Parker unitized 12cc pump with 15.9ci wheel motors
FUEL CAPACITY
12 gal.
PARKING BRAKE
Integrated with steering levers
HYDRAULIC COOLING
Transmission mounted fan
GROUND SPEED (FWD)
Up to 10.5 mph
deck
SPINDLES
Ductile cast iron with steel shafts and sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
5.5
BLADE LENGTH
17.86
CUTTING WIDTH
52
DECK MATERIAL
7 ga. fabricated with 7 ga. wrappers
CUTTING HEIGHT
1.5" to 5.5"
SPINDLE MOUNTS
Reinforced 7 ga. stamped disc
BLADE TIP SPEED
17,700
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
3
IMPANCT TRIM AREA
11 ga. formed channel with rolled edge
accessories

3-Bag Non-Powered Bagger

Easy-on, easy-off hopper assemblies. The bagger holds 5.4 bushels.Big Dog Diablo 52

Mesh Side Bagger

Big Dog Diablo 52Easy-on, easy-off bagger has a 3-bushel capacity.

Metal Side Bagger

Easy-on, easy-off bagger has a 3.5 bushel capacity.Big Dog Diablo 52

Big Dog Diablo 52

Flex Forks®

Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds. (only on 36"&42" decks on Alpha.)

High Vacuum Deck Kit

Improves vacuum and cut quality while reducing blowout in thin/dry grass conditions.Big Dog Diablo 52

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Diablo 52

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.Big Dog Diablo 52

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.Big Dog Diablo 52

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Diablo 52

Semi-Pneumatic Front Tires

Flat-free front tire option.Big Dog Diablo 52



MICHELIN® X® TWEEL® TURF CASTER

The MICHELIN® X® TWEEL® TURF Caster replaces the current front tire/wheel assembly on zero turn radius mowers, and offers the same trouble-free benefits.Big Dog Diablo 52

BacVac Bagger

Electric-accuated DFS bagger system. Easy-on, easy-off versatility with a 10-bushel capacity.

Big Dog Diablo 52

MICHELIN® X® TWEEL® TURF

The MICHELIN® X® TWEEL® TURF airless radial tire is designed to help zero turn radius mowers achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads. 24" x 12" tire. (Not available on 52" Diablo models)

Big Dog Diablo 52

Electric Deck Lift

Big Dog Diablo 52

Raise and lower the deck with the flip of a switch. This electric lift kit consists of simple bolt on hardware and switch installation.



construction
FRAME
1.5” x 3” steel tubing
FRONT AXLE
Fabricated with tapered roller bearings
FRONT CASTER FORK
Fabricated 1/2" steel
FRONT CASTER WHEEL
Tapered wheel bearings and debris cap
general
SEAT
Custom Grammer full suspension seat with sliding adjustment
CUP HOLDER
dimensions
WEIGHT (LBS)
1255
HEIGHT (INCHES)
47" (72.5 with ROPS up)
LENGTH (INCHES)
80.2
DRIVE TIRE (INCHES)
24 x 9.5-12, BigBite
FRONT TIRE (INCHES)
13 x 6.5-6
WIDTH W/ CHUTE UP (INCHES)
54.4
TIRE-TO-TIRE WIDTH (INCHES)
51
PRODUCTIVITY (ACRES PER HOUR)
5.52
warranty
WARRANTY
7 Year/1500 hour Limited
dimensions with catcher
CATCHER STYLE
3-bag
CATCHER CAPACITY
12 bushel
POWERED / NON-POWERED
POWERED
MOWER WIDTH W/ CATCHER
58.9
STYLE 2: CATCHER STYLE
BAC-VAC
MOWER LENGTH W/ CATCHER
109.1
STYLE 2: CATCHER CAPACITY
10 bushel
STYLE 2: POWERED / NON-POWERED
POWERED .
STYLE 2: MOWER WIDTH W/ CATCHER
58.9
STYLE 2: MOWER LENGTH W/ CATCHER
106.3
