ID # 23900853

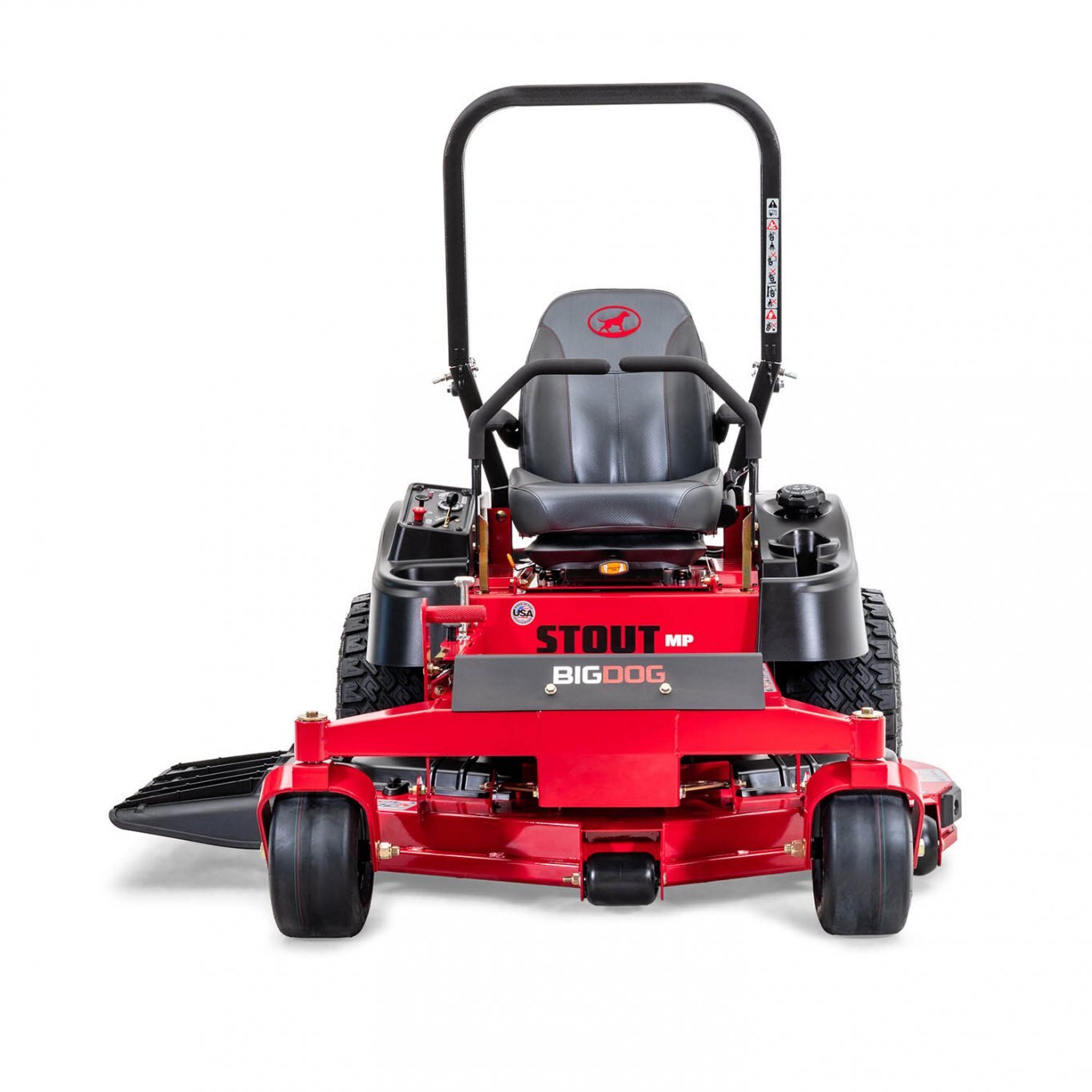

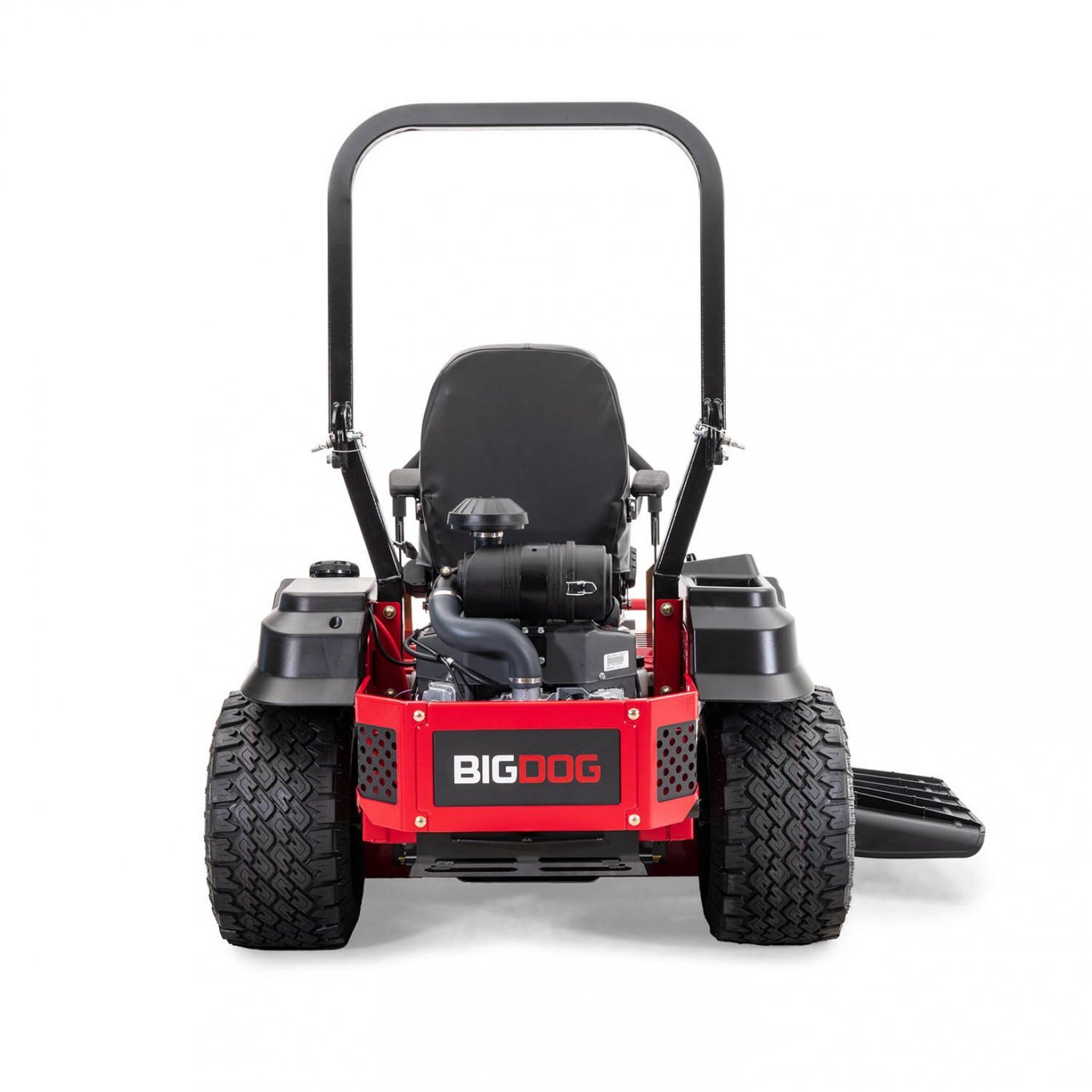

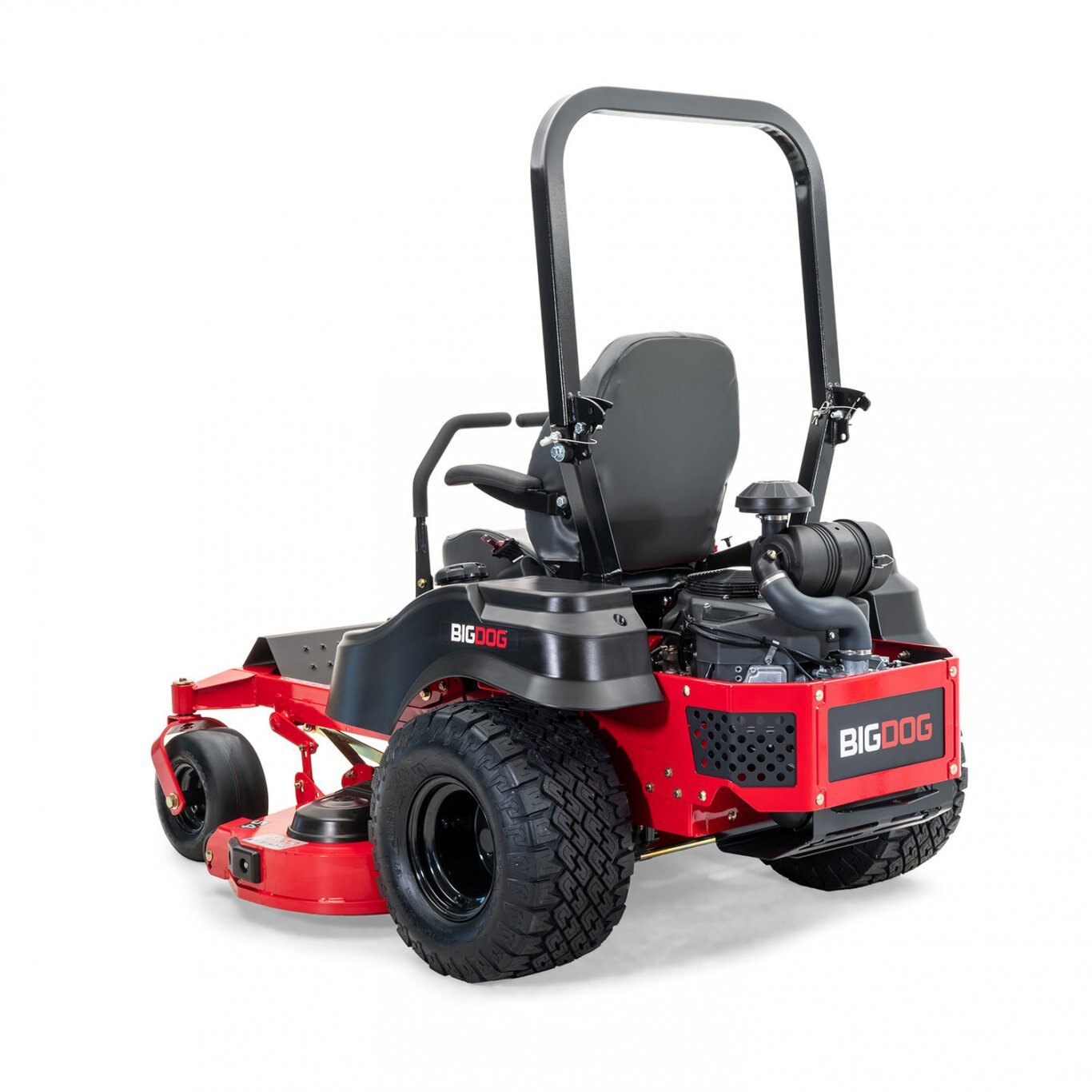

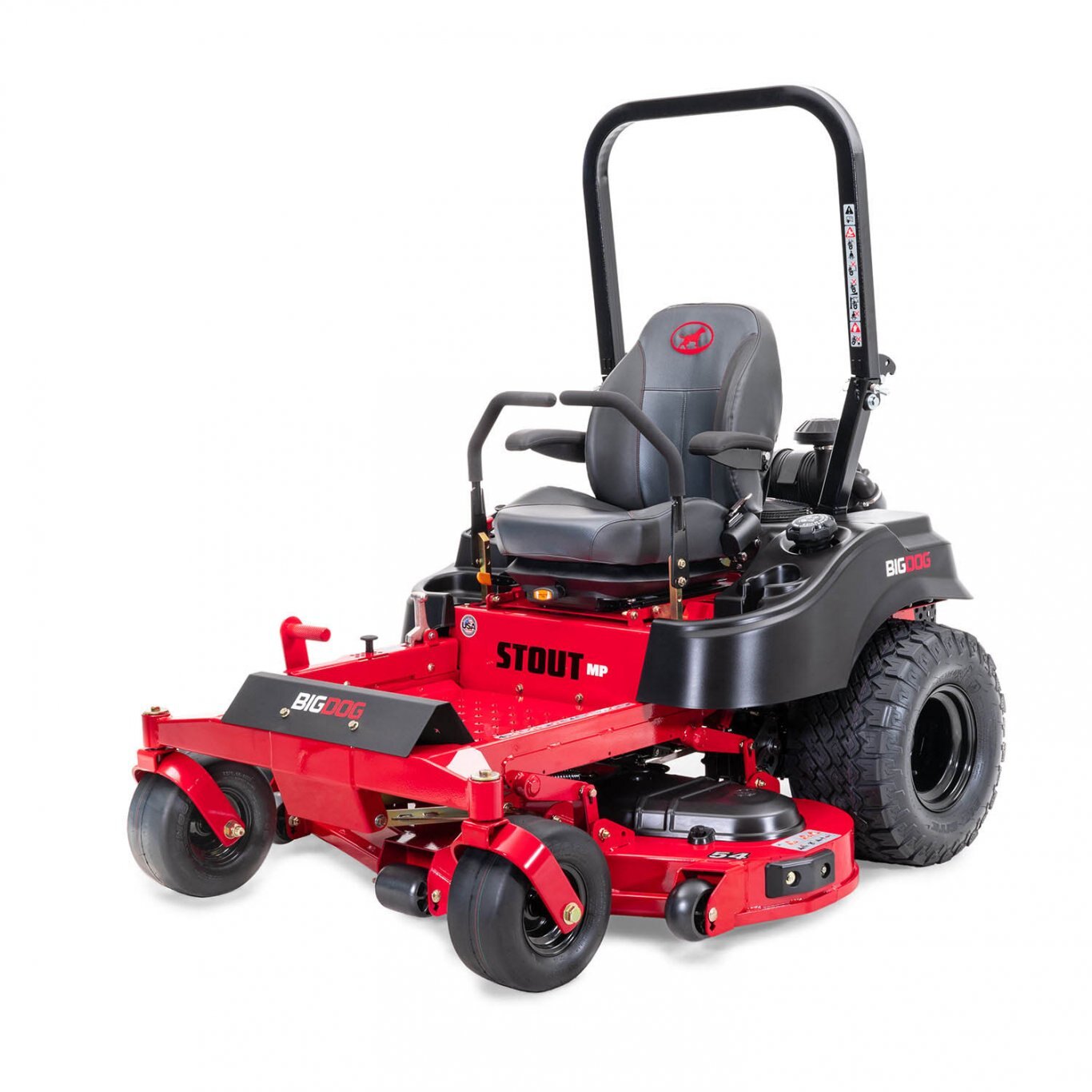

Big Dog -Stout MP 60

  • Big Dog Stout MP 60
  • Big Dog Stout MP 60
  • Big Dog Stout MP 60
  • Big Dog Stout MP 60
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 23hp, 25hp KOHLER Engines

  • 48”, 54” & 60” decks

  • 9mph mowing speed

  • 7-year / 1000 hour limited warranty

Cut through any tough job

Maximum Performance for the prosumer. Get the productivity you need at the value you need with a commercial grade KOHLER Confidant engine and Hydro Gear's ZT-3400. Backed by a 7-year (1000 hours) limited warranty, this mower is ready to work.



Specifications
Model
Stout MP
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
25HP - KOHLER Confidant
Deck Sizes
60
features

Serviceable Commercial-Grade Transmissions

Built with Hydro-Gear's commercial-grade serviceable transmissions.Big Dog Stout MP 60



Full Suspension Seat

Features an extra high back, an industrial tubular frame, and armrests. Additional bolstering for better side-to-side support, and internal suspension to absorb bumps. Engineered cushions add extra support and protection to relieve pressure on your spine and lower back.

Big Dog Stout MP 60



Remote Cannister Air Cleaner

Keep your engine cooler and healthier with the protection a commercial mower needs to operate at peak efficiency.Big Dog Stout MP 60



key specs
WARRANTY
7 Year/1000 hour Limited
DRIVE TIRE
23 x 11-10, BigBite
FRONT TIRE
13 x 6.5-6
TRANSMISSION
Hydro-Gear® ZT-3400
CUTTING WIDTH
60
FUEL CAPACITY
5 gal.
CUTTING HEIGHT
1.5" to 4.5".
ENGINE HORSEPOWER
25
GROUND SPEED (FWD)
Up to 9 mph
ENGINE MANUFACTURER
KOHLER Confidant
engine
COOLING
Air Cooled
DISPLACEMENT
747cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
25
ENGINE MANUFACTURER
KOHLER Confidant
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear® ZT-3400
FUEL CAPACITY
5 gal.
PARKING BRAKE
Integrated with steering levers
GROUND SPEED (FWD)
Up to 9 mph
deck
SPINDLES
Aluminum casting with steel shafts and sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
5
BLADE LENGTH
20.5
CUTTING WIDTH
60
DECK MATERIAL
10 ga. fabricated steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 11 ga.
BLADE TIP SPEED
18,400
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
3
IMPANCT TRIM AREA
11 ga. formed channel with rolled edge
accessories

2-Bag Non-Powered Bagger

Easy-on, easy-off hopper assemblies. The bagger holds 5.4 bushels.Big Dog Stout MP 60

Mesh Side Bagger

Big Dog Stout MP 60Easy-on, easy-off bagger has a 3-bushel capacity.

Metal Side Bagger

Easy-on, easy-off bagger has a 3.5 bushel capacity.Big Dog Stout MP 60

Big Dog Stout MP 60

Flex Forks®

Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds. (only on 36"&42" decks on Alpha.)

High Vacuum Deck Kit

Improves vacuum and cut quality while reducing blowout in thin/dry grass conditions.Big Dog Stout MP 60

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Stout MP 60

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.Big Dog Stout MP 60

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.Big Dog Stout MP 60

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Stout MP 60



construction
FRAME
1.5" X 3" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
FRONT CASTER FORK
Fabricated 3/8" steel
FRONT CASTER WHEEL
Heavy duty ball bearings - greasable
general
SEAT
High-back suspension seat.
CUP HOLDER
dimensions
WEIGHT (LBS)
916
HEIGHT (INCHES)
48.9
LENGTH (INCHES)
73.6
DRIVE TIRE (INCHES)
23 x 11-10, BigBite
FRONT TIRE (INCHES)
13 x 6.5-6
WIDTH W/ CHUTE UP (INCHES)
61.1
TIRE-TO-TIRE WIDTH (INCHES)
51.5
PRODUCTIVITY (ACRES PER HOUR)
4.36
warranty
WARRANTY
7 Year/1000 hour Limited
dimensions with catcher
CATCHER STYLE
2-bag
CATCHER CAPACITY
7.2 bushel
POWERED / NON-POWERED
POWERED
MOWER WIDTH W/ CATCHER
70
MOWER LENGTH W/ CATCHER
103.4
