ID # 23900848

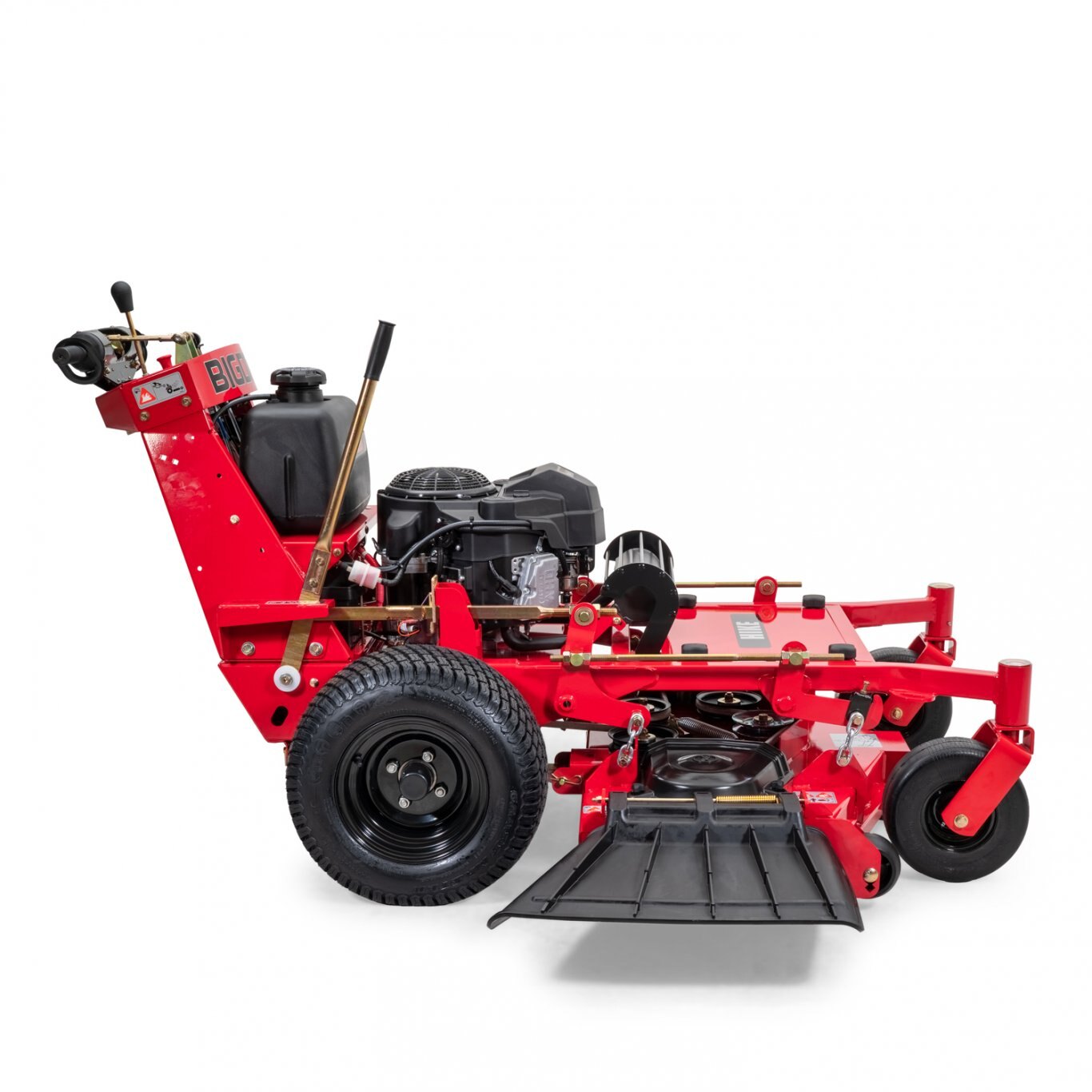

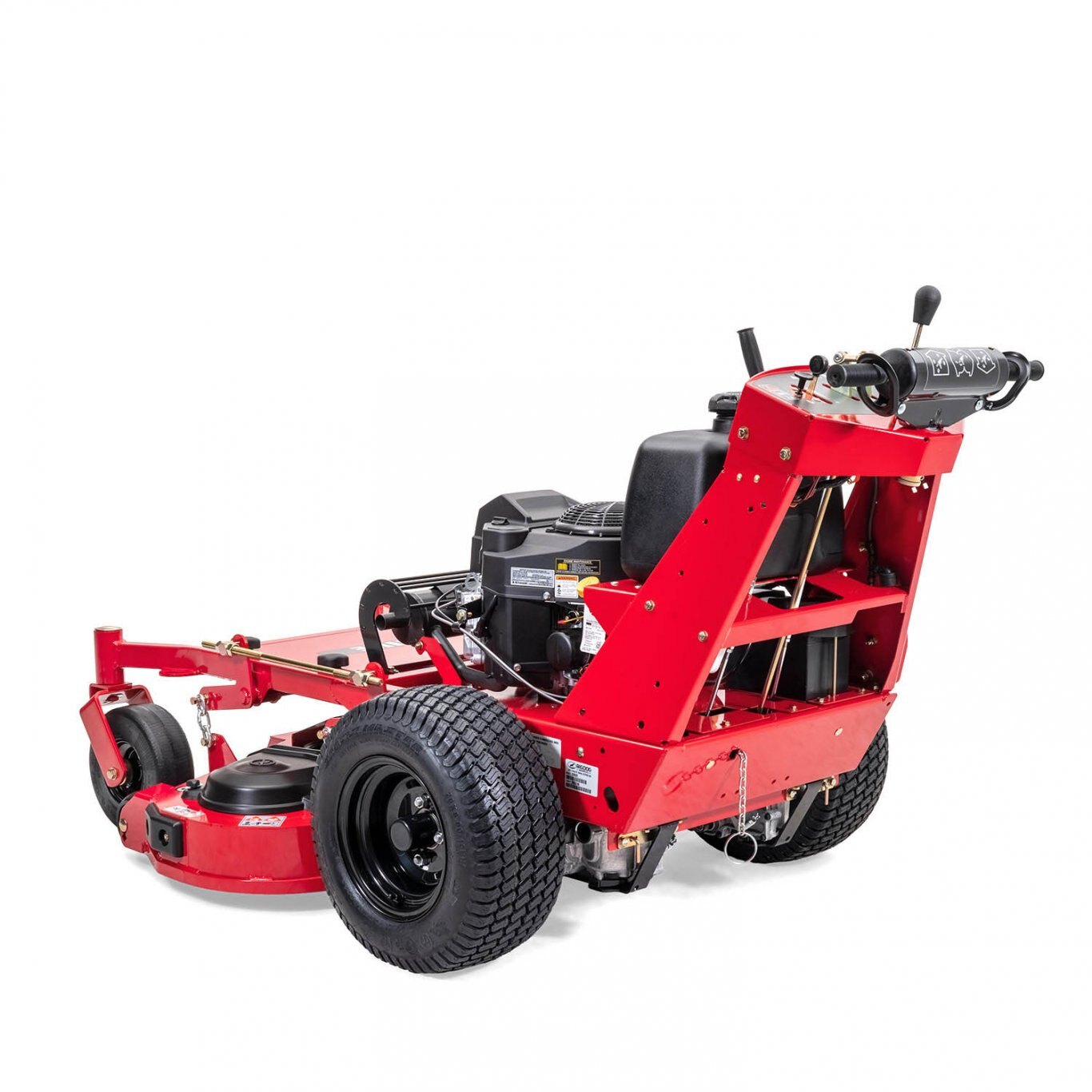

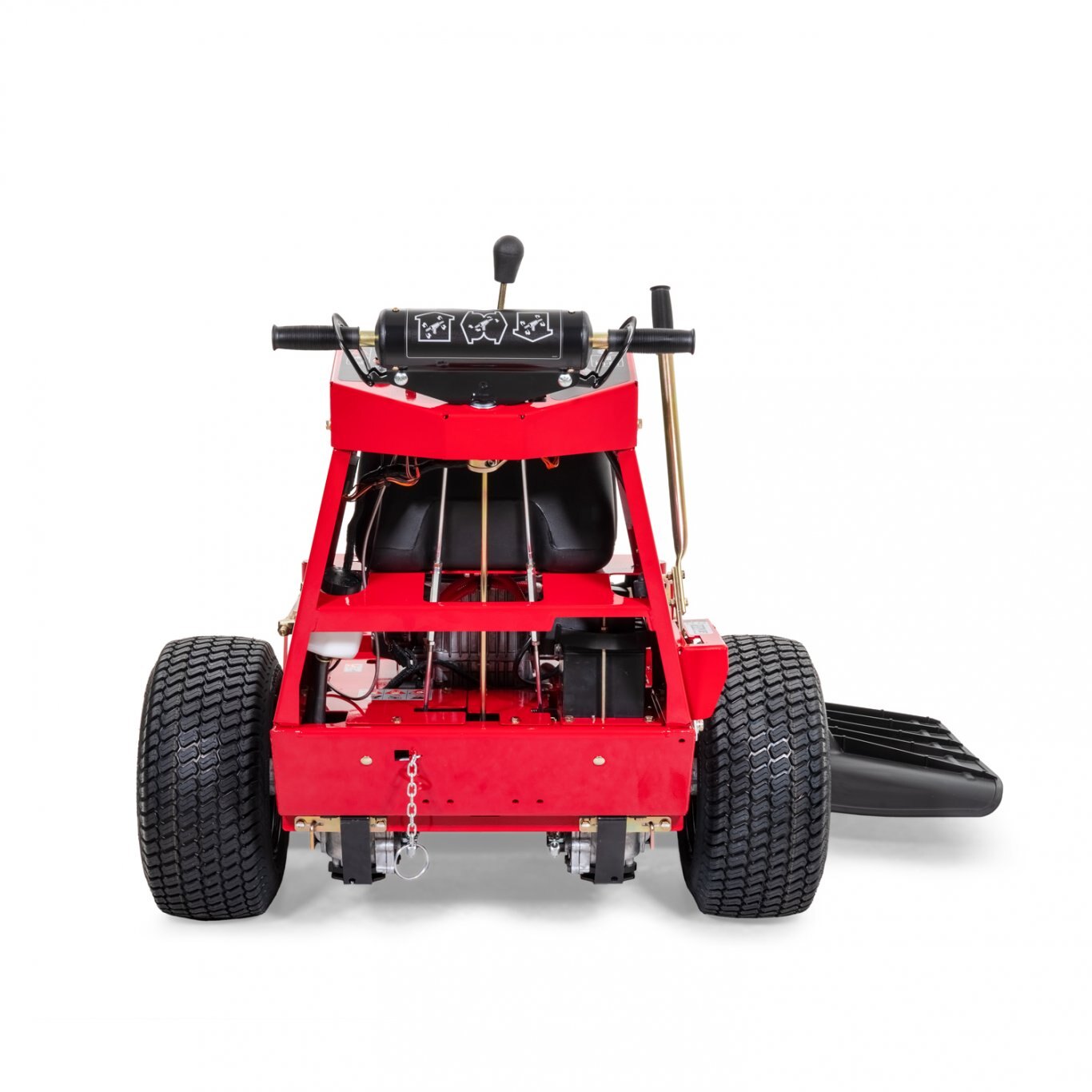

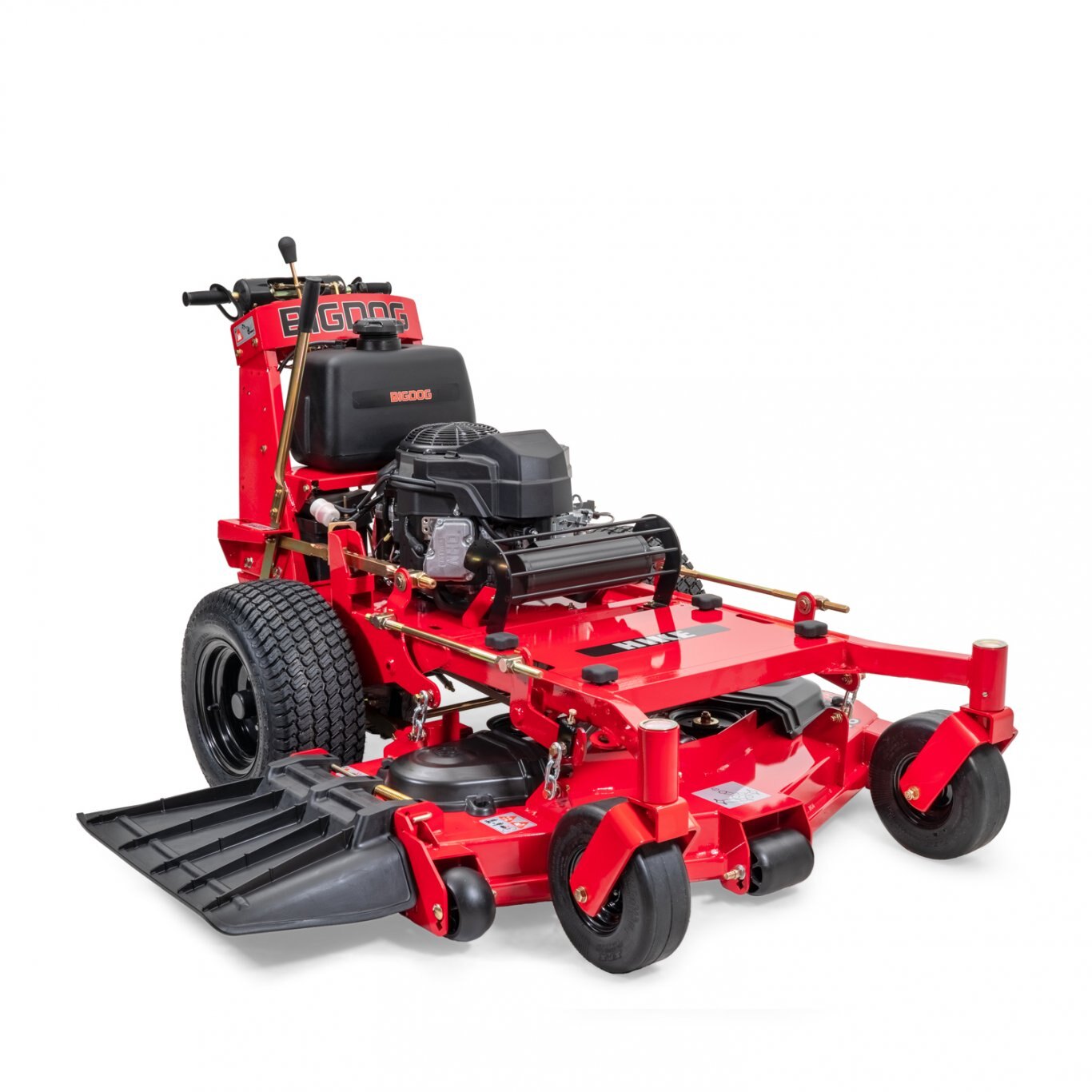

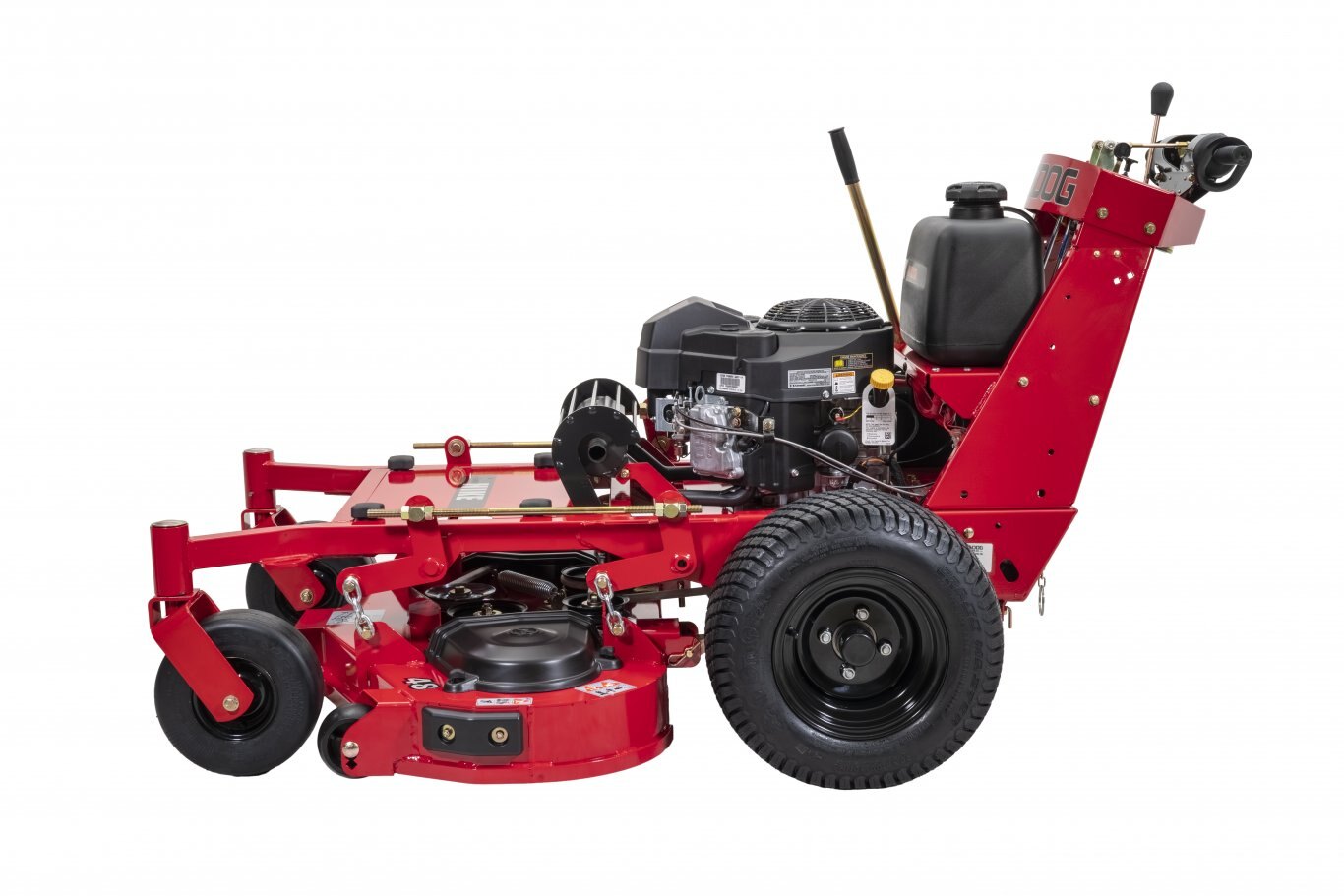

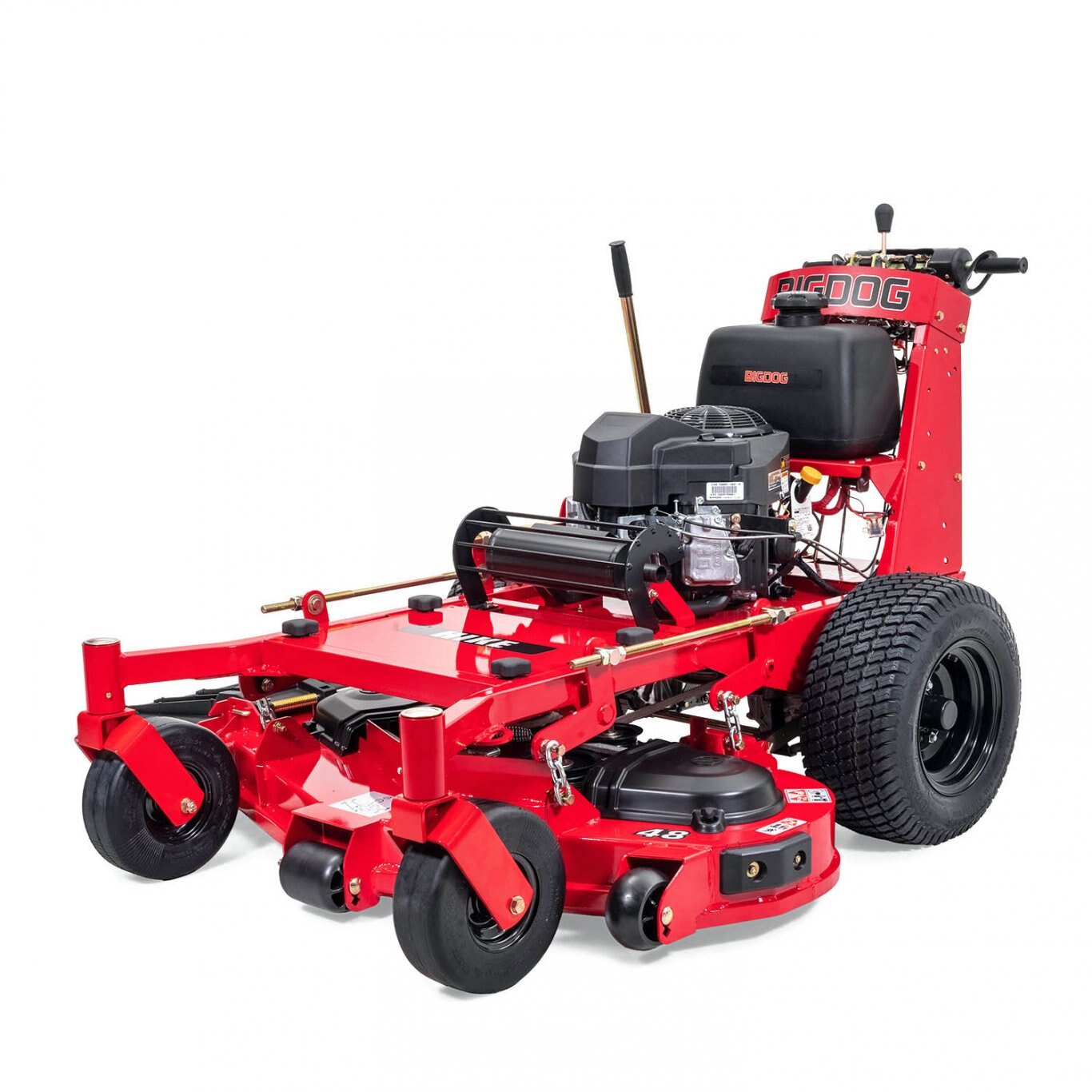

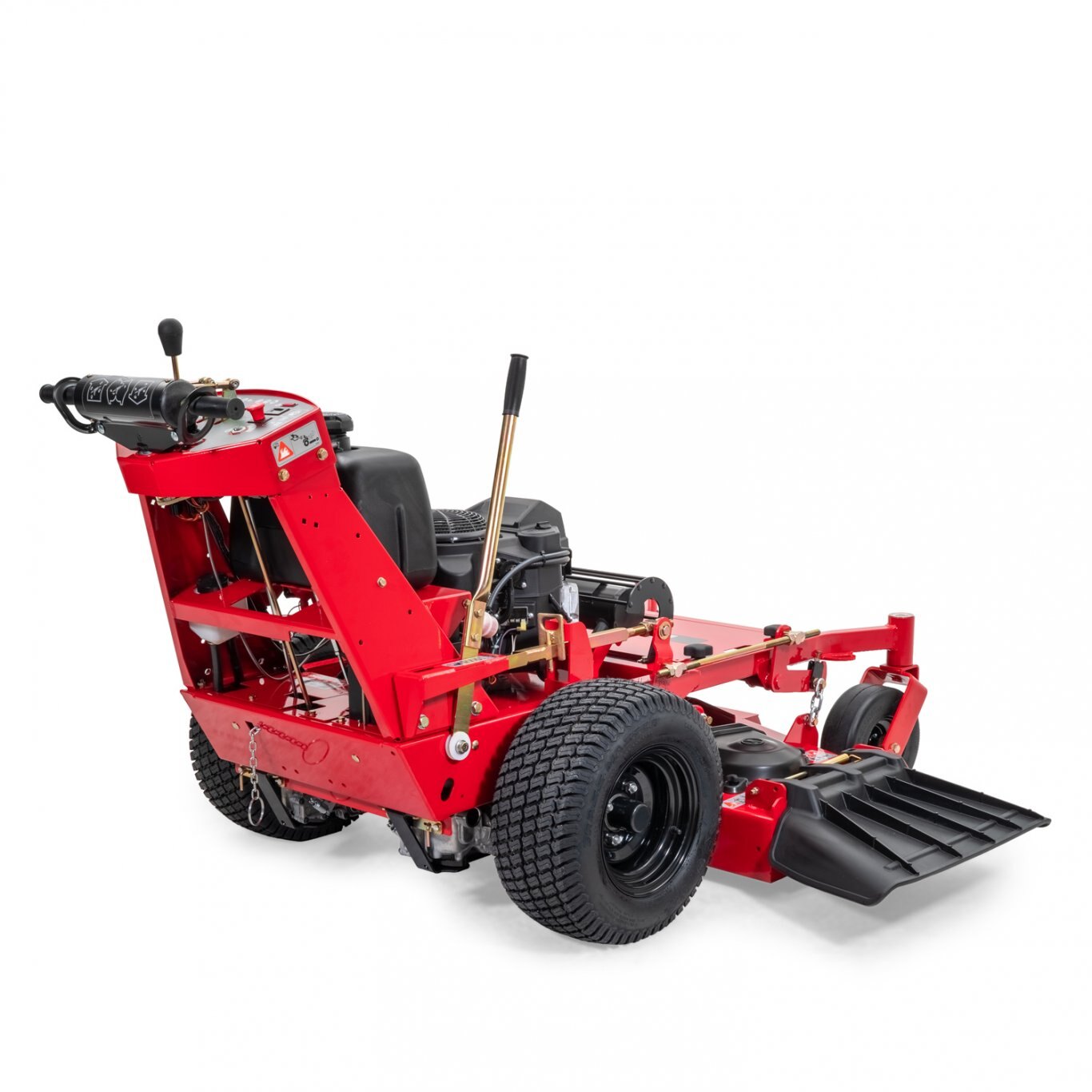

Big Dog -Hike 36

  • Big Dog Hike 36
  • Big Dog Hike 36
  • Big Dog Hike 36
  • Big Dog Hike 36
  • Big Dog Hike 36
  • Big Dog Hike 36
  • Big Dog Hike 36
  • Big Dog Hike 36
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 19hp - 25hp KOHLER Engines

  • 36", 48", 54” & 60” decks

  • Up to 6.3mph mowing speed

  • 7-year / 1500 hour limited warranty

Made to Perform

The classic Hike® offers a superior quality cut every time. With its wide stance, sturdy drive system, and power-bar steering, the Hike is the easiest to learn — easiest to use — walk-behind steering system in its class.



Specifications
Model
Hike
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
23HP - KOHLER Confidant
Deck Sizes
36
features

Dual Hydro System

Heavy-duty traction and performance.Big Dog Hike 36

Deck Lift

Easy-to-operate deck lift makes deck height adjustment a breeze.Big Dog Hike 36

PowerBar® Steering

PowerBar steering is the easiest-to-use walk-behind system in the field, reducing operator fatigue.Big Dog Hike 36



key specs
WARRANTY
7 Year/1500 hour Limited
DRIVE TIRE
20 x 6.5-10
FRONT TIRE
11 x 4, semi pneumatic
TRANSMISSION
Hydro-Gear® ZT-2800
CUTTING WIDTH
36
FUEL CAPACITY
3.4 gal.
CUTTING HEIGHT
1.5" to 4.5"
ENGINE HORSEPOWER
19
GROUND SPEED (FWD)
Up to 6.3 mph
ENGINE MANUFACTURER
KOHLER Confidant
engine
COOLING
Air Cooled
AIR CLEANER
Oval canister, dual element
DISPLACEMENT
725cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
19
ENGINE MANUFACTURER
KOHLER Confidant
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear® ZT-2800
FUEL CAPACITY
3.4 gal.
PARKING BRAKE
Internal transmission mechanical brake
HYDRAULIC COOLING
Pump mounted fan
GROUND SPEED (FWD)
Up to 6.3 mph
RESERVOIR CAPACITY
2 qts per side
deck
SPINDLES
Aluminum with steel shaft and sealed ball bearings
DECK LIFT
Hand Operated
DECK DEPTH
5
BLADE LENGTH
17.86"
CUTTING WIDTH
36
DECK MATERIAL
7 ga. + 11 ga. reinforced steel
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 11 ga.
BLADE TIP SPEED
18,400
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
2
IMPANCT TRIM AREA
11 ga. formed channel rolled edge
accessories

Mesh Side Bagger

Big Dog Hike 36Easy-on, easy-off bagger has a 3-bushel capacity.

Metal Side Bagger

Easy-on, easy-off bagger has a 3.5 bushel capacity.Big Dog Hike 36

High Vacuum Deck Kit

Improves vacuum and cut quality while reducing blowout in thin/dry grass conditions.Big Dog Hike 36

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Hike 36

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Hike 36



construction
FRAME
1.5" x 2" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings.
FRONT CASTER FORK
Fabricated 3/8" steel
FRONT CASTER WHEEL
Tapered wheel bearings and debris cap
general
CUP HOLDER
dimensions
WEIGHT (LBS)
560
HEIGHT (INCHES)
42.55
LENGTH (INCHES)
76.7
DRIVE TIRE (INCHES)
20 x 6.5-10
FRONT TIRE (INCHES)
11 x 4, semi pneumatic
WIDTH W/ CHUTE UP (INCHES)
37
TIRE-TO-TIRE WIDTH (INCHES)
35
PRODUCTIVITY (ACRES PER HOUR)
1.88
warranty
WARRANTY
7 Year/1500 hour Limited
dimensions with catcher
CATCHER STYLE
Side Catcher
CATCHER CAPACITY
3.5 bushel
POWERED / NON-POWERED
Non-powered
MOWER WIDTH W/ CATCHER
56.7
MOWER LENGTH W/ CATCHER
74.55"
literature
Name Link
Brochure PDF Download
Spec Sheet PDF Download
