ID # 23900847

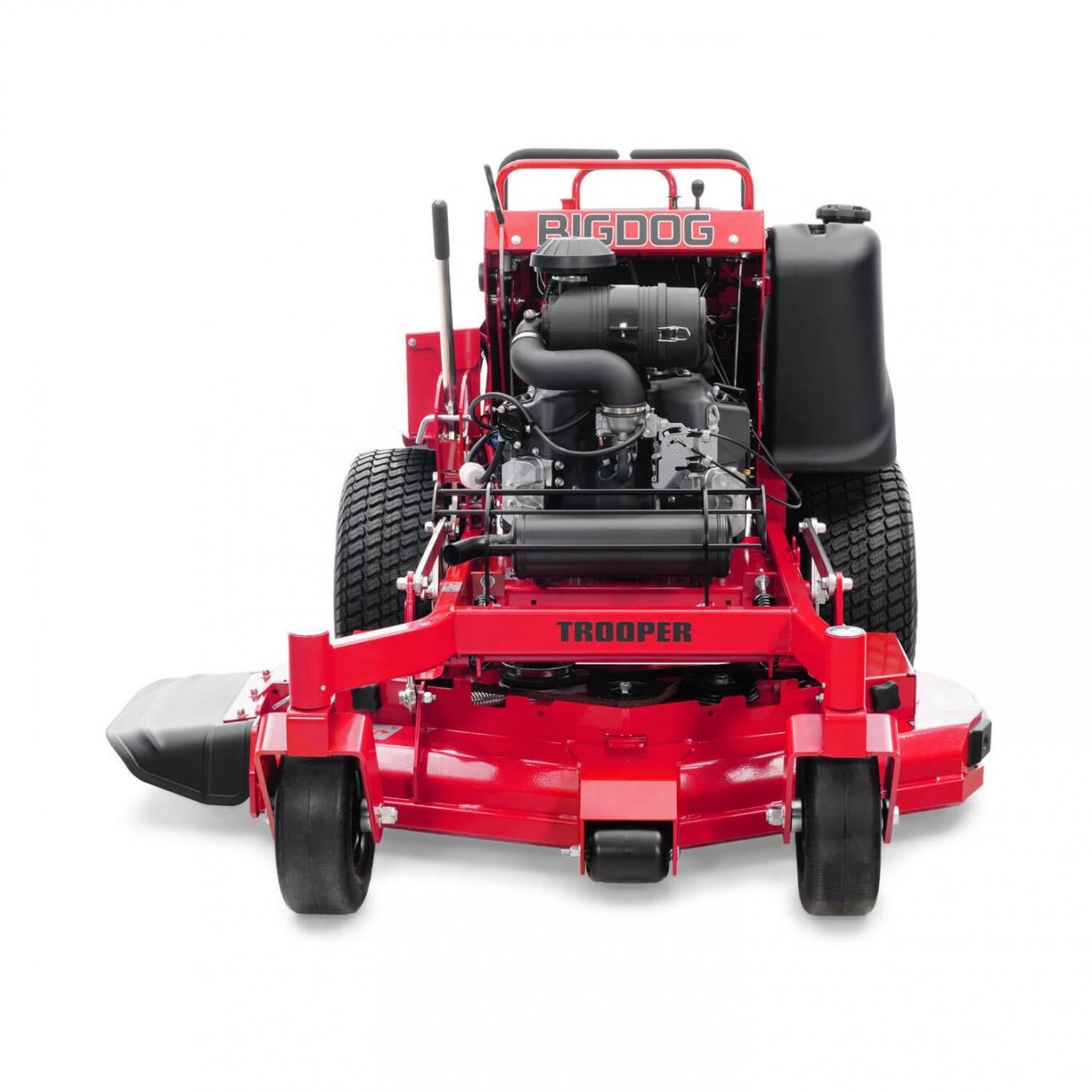

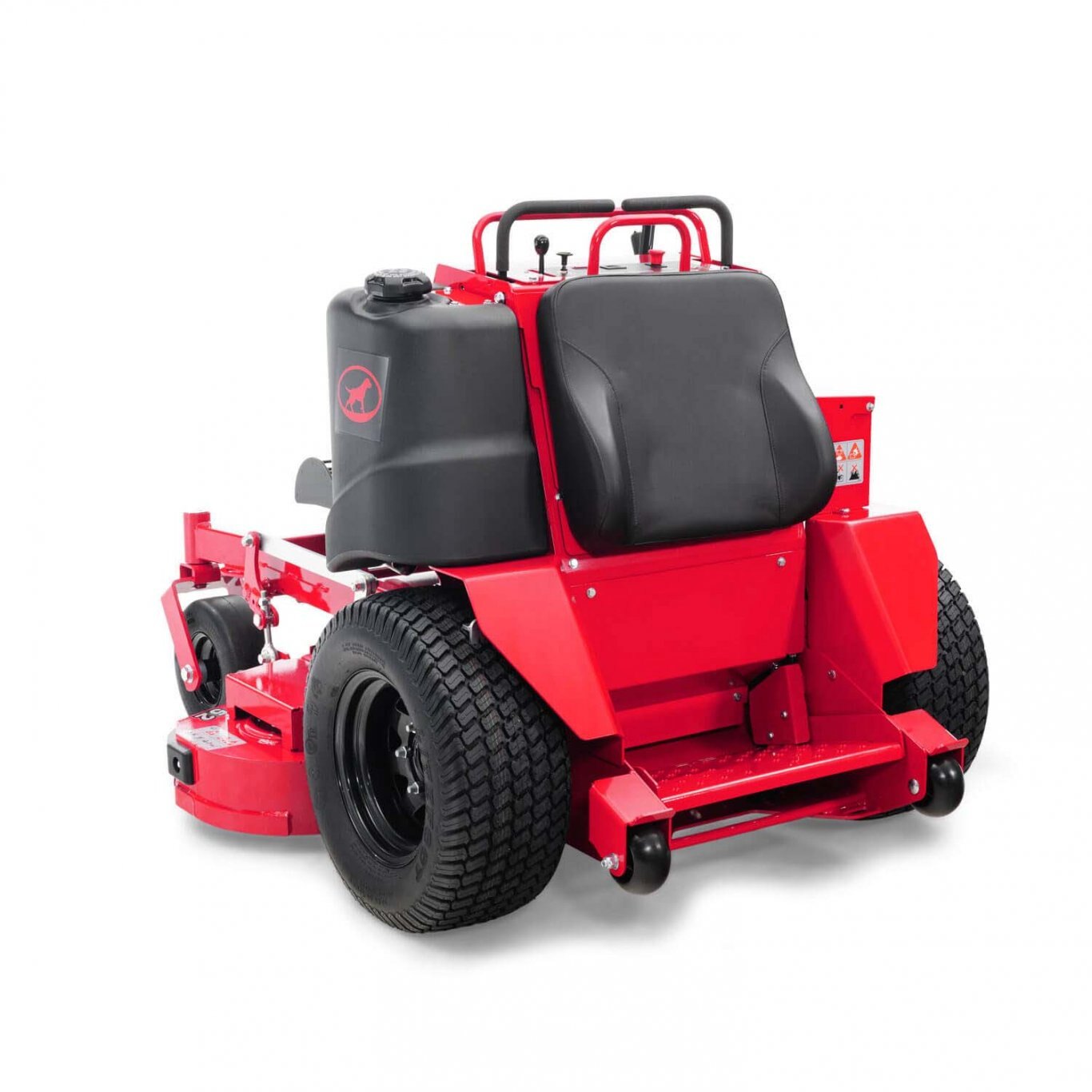

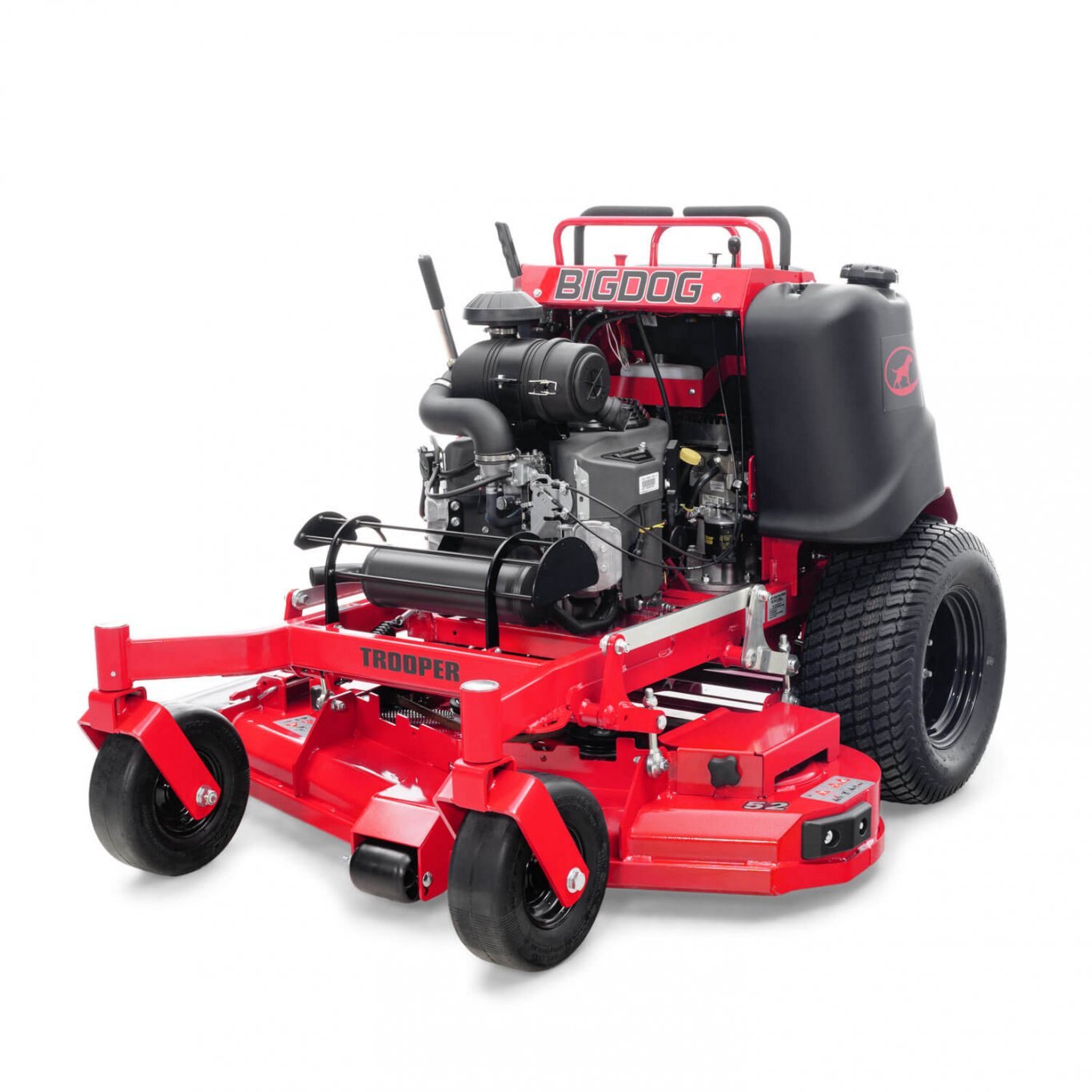

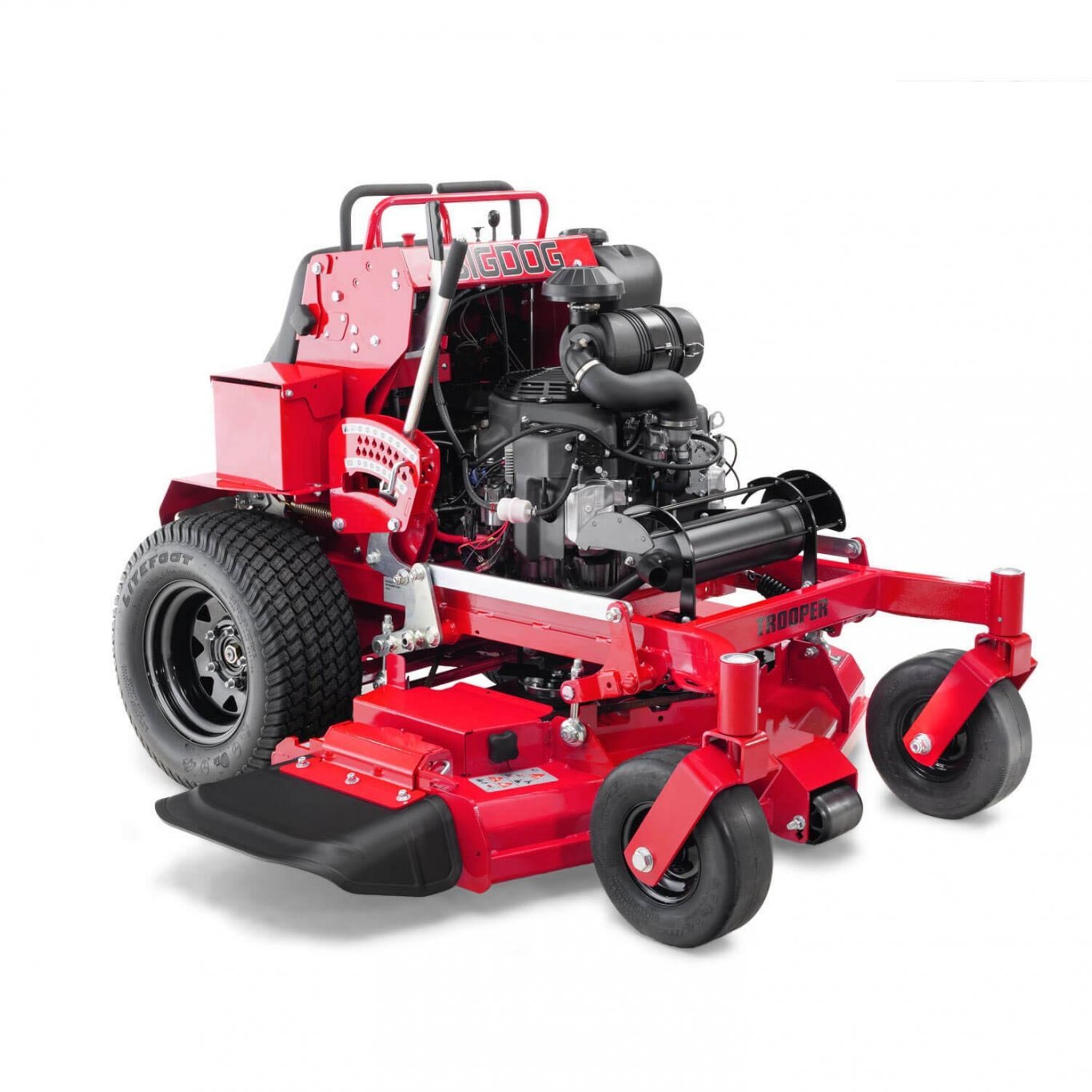

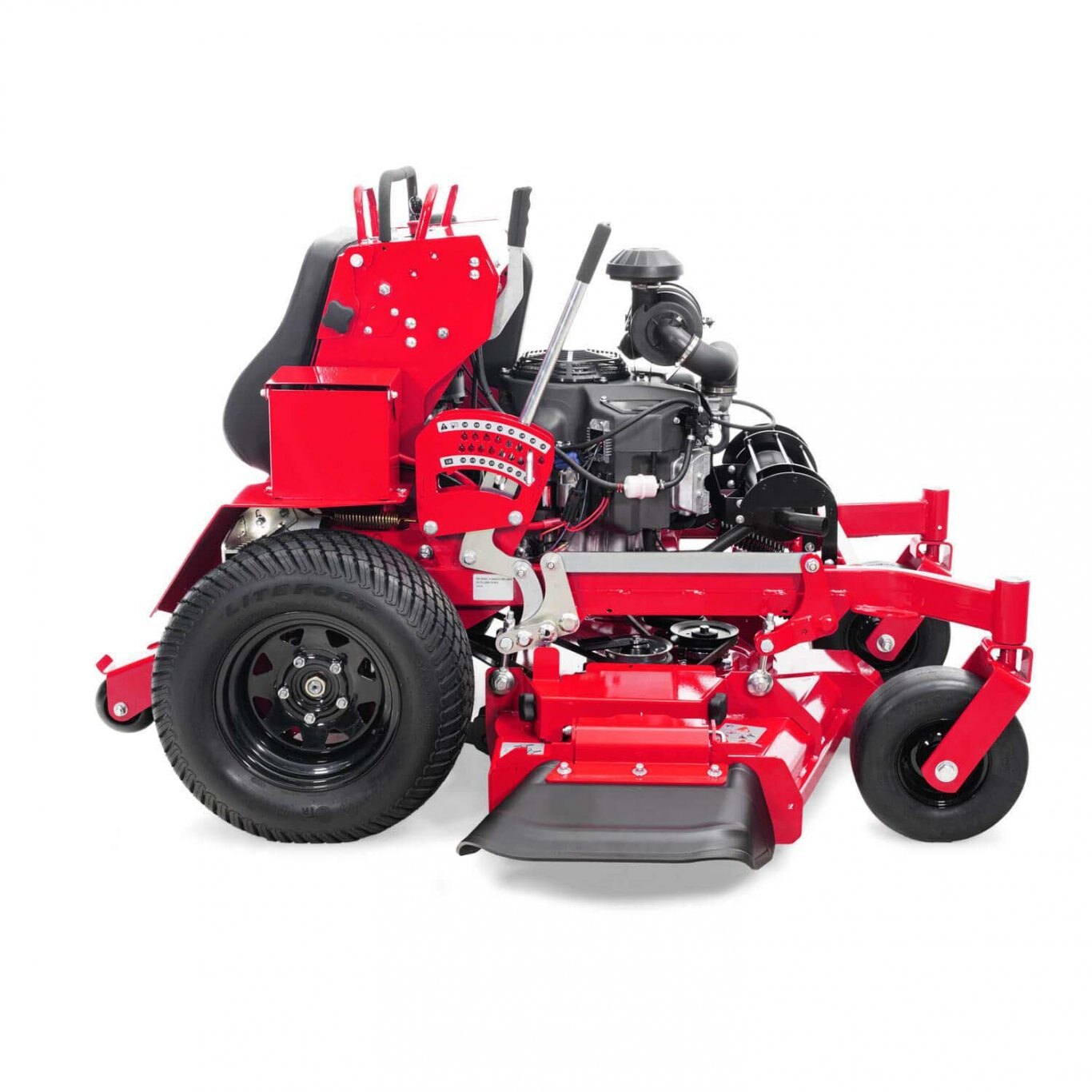

Big Dog -Trooper 48

  • Big Dog Trooper 48
  • Big Dog Trooper 48
  • Big Dog Trooper 48
  • Big Dog Trooper 48
  • Big Dog Trooper 48
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 19hp - 25hp KOHLER Engines

  • 36”, 48” 52" & 60” decks

  • Up to 8mph

  • 7-year / 1500 hour limited warranty

The BigDog Trooper is a versatile stand-on mower. With 4 optional deck sizes from 36" - 60", the Trooper can handle almost any obstacle on any terrain.



Specifications
Model
Trooper
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
25HP - KOHLER Confidant
Deck Sizes
48
features

Compact Design

Small footprint, can go where other machines can't.

Big Dog Trooper 48

Ergonomic Controls

Provides less operator fatigue, easy to handle.Big Dog Trooper 48

Operator Comfort

Features exceptional operator positioning for all-day comfort.Big Dog Trooper 48



key specs
WARRANTY
7 Year/1500 hour Limited
DRIVE TIRE
24 x 9.5 - 10
FRONT TIRE
13 x 5-6 semi pneumatic
TRANSMISSION
Hydro-Gear 10cc pump with Parker TL0195 wheel motors
CUTTING WIDTH
48
FUEL CAPACITY
7.3 gal.
CUTTING HEIGHT
1.5" to 5.5"
ENGINE HORSEPOWER
23
GROUND SPEED (FWD)
Up to 8 mph
ENGINE MANUFACTURER
KOHLER Confidant
engine
COOLING
Air Cooled
AIR CLEANER
Heavy duty canister
DISPLACEMENT
747cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
23
ENGINE MANUFACTURER
KOHLER Confidant
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear 10cc pump with Parker TL0195 wheel motors
FUEL CAPACITY
7.3 gal.
PARKING BRAKE
Hand Operated
GROUND SPEED (FWD)
Up to 8 mph
deck
SPINDLES
Ductile cast iron with steel shaft and sealed ball bearings
DECK LIFT
Hand Operated
DECK DEPTH
5.5
BLADE LENGTH
16.50"
CUTTING WIDTH
48
DECK MATERIAL
7 ga. with 7 ga. wrappers
CUTTING HEIGHT
1.5" to 5.5"
SPINDLE MOUNTS
7 ga. w/ 11 ga. doubler
BLADE TIP SPEED
18,500
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
3
IMPANCT TRIM AREA
11 ga. formed channel rolled edge
accessories

Mesh Side Bagger

Big Dog Trooper 48Easy-on, easy-off bagger has a 3-bushel capacity.

Metal Side Bagger

Easy-on, easy-off bagger has a 3.5 bushel capacity.Big Dog Trooper 48

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.

Big Dog Trooper 48

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Trooper 48

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Trooper 48



construction
FRAME
1.5" x 2" steel tubing
FRONT AXLE
Fabricated with tapered roller bearings
ENGINE PLATE
7 gauge with 11 gauge Jackshaft doubler
FRONT CASTER FORK
Fabricated 3/8" steel
OPERATOR PLATFORM
7 gauge with embosed tread pattern
FRONT CASTER WHEEL
Tapered wheel bearings and debris cap
general
SEAT
Bolstered operator pad
dimensions
WEIGHT (LBS)
1144
HEIGHT (INCHES)
47.83
LENGTH (INCHES)
68
DRIVE TIRE (INCHES)
24 x 9.5 - 10
FRONT TIRE (INCHES)
11 x 4-5, semi pneumatic
WIDTH W/ CHUTE UP (INCHES)
49.3
TIRE-TO-TIRE WIDTH (INCHES)
45.8
PRODUCTIVITY (ACRES PER HOUR)
3.49
warranty
WARRANTY
7 Year/1500 hour Limited
dimensions with catcher
CATCHER STYLE
Side Catcher
CATCHER CAPACITY
3.5 bushel
POWERED / NON-POWERED
Non-powered
MOWER WIDTH W/ CATCHER
68
MOWER LENGTH W/ CATCHER
64
literature
Name Link
Brochure PDF Download
Spec Sheet PDF Download
