ID # 23900843

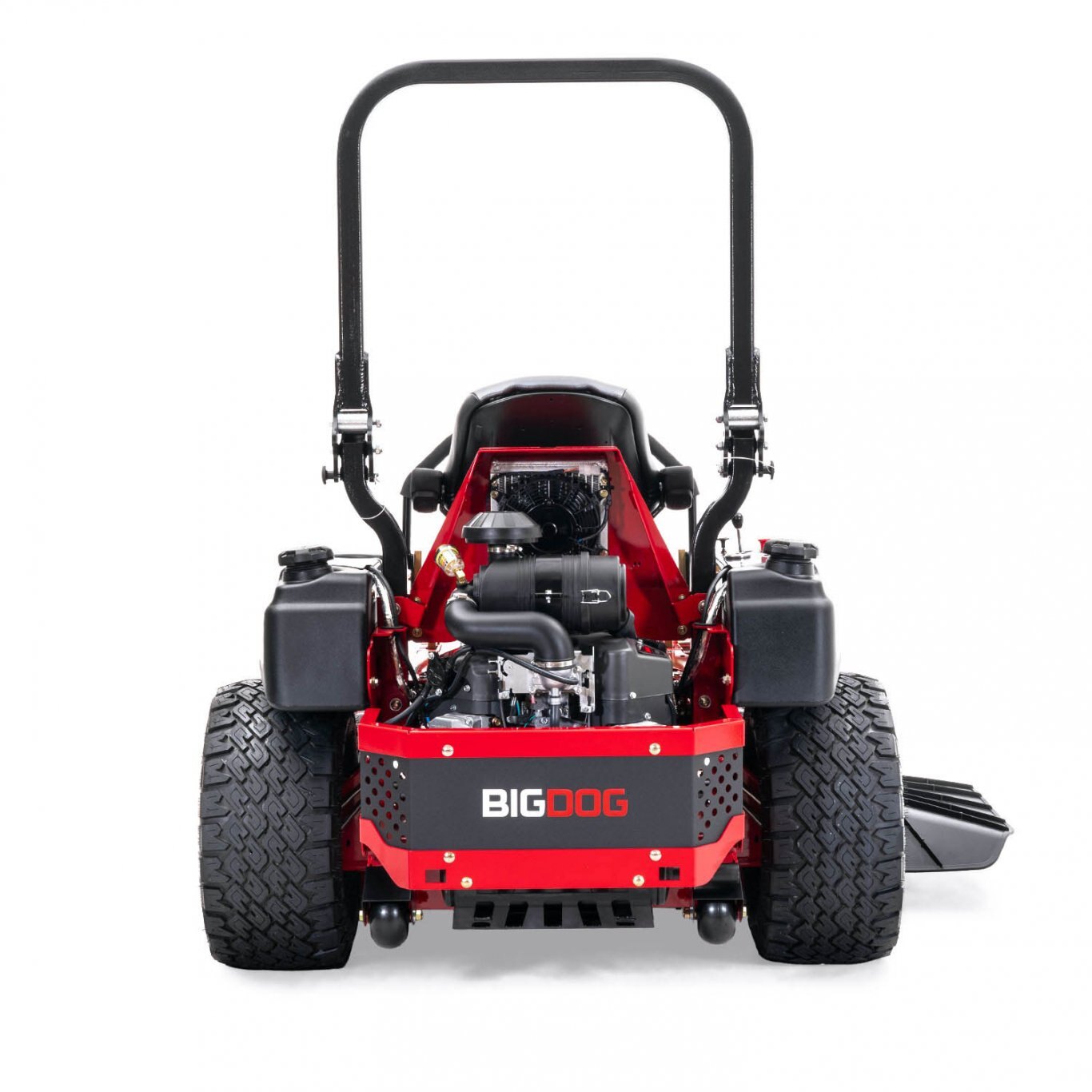

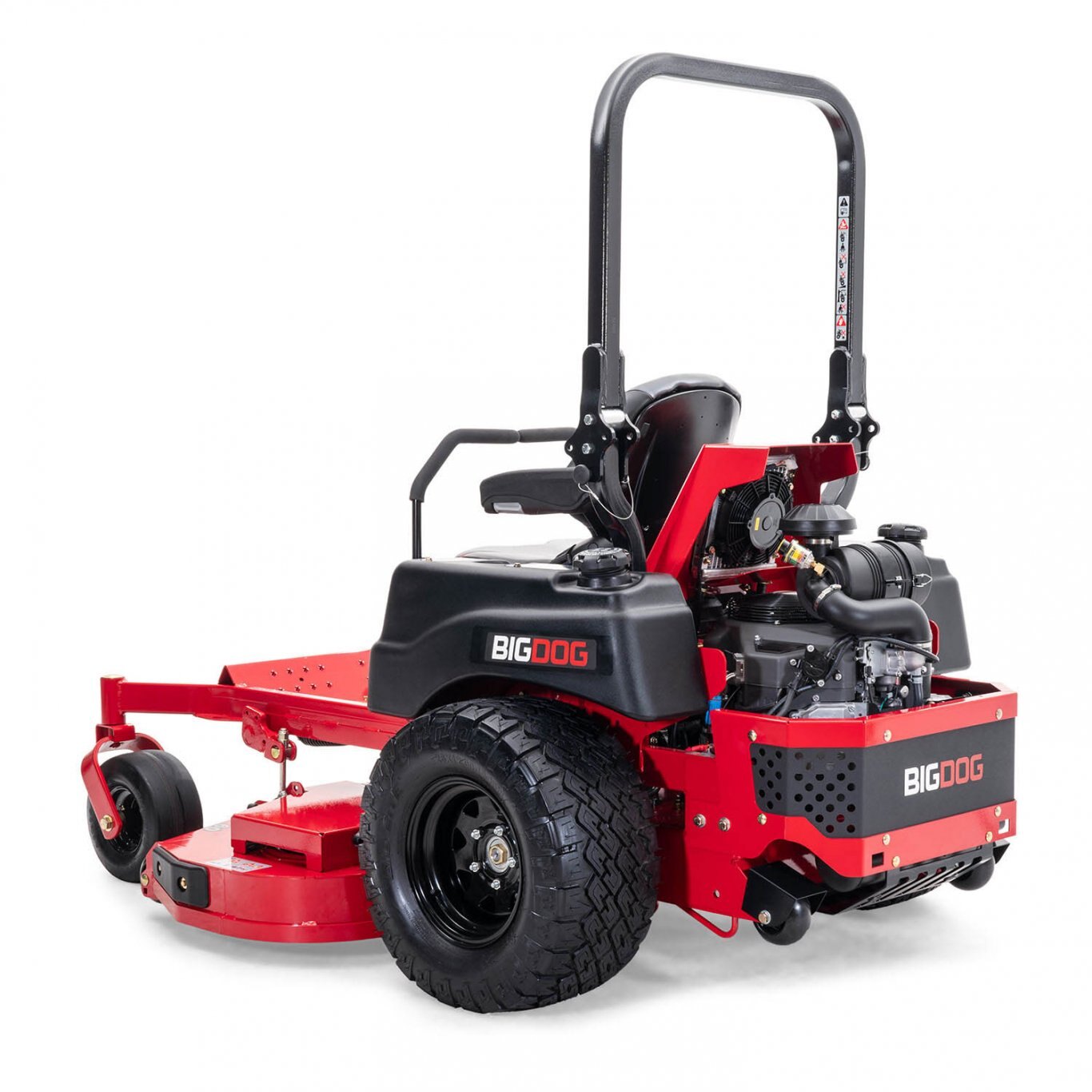

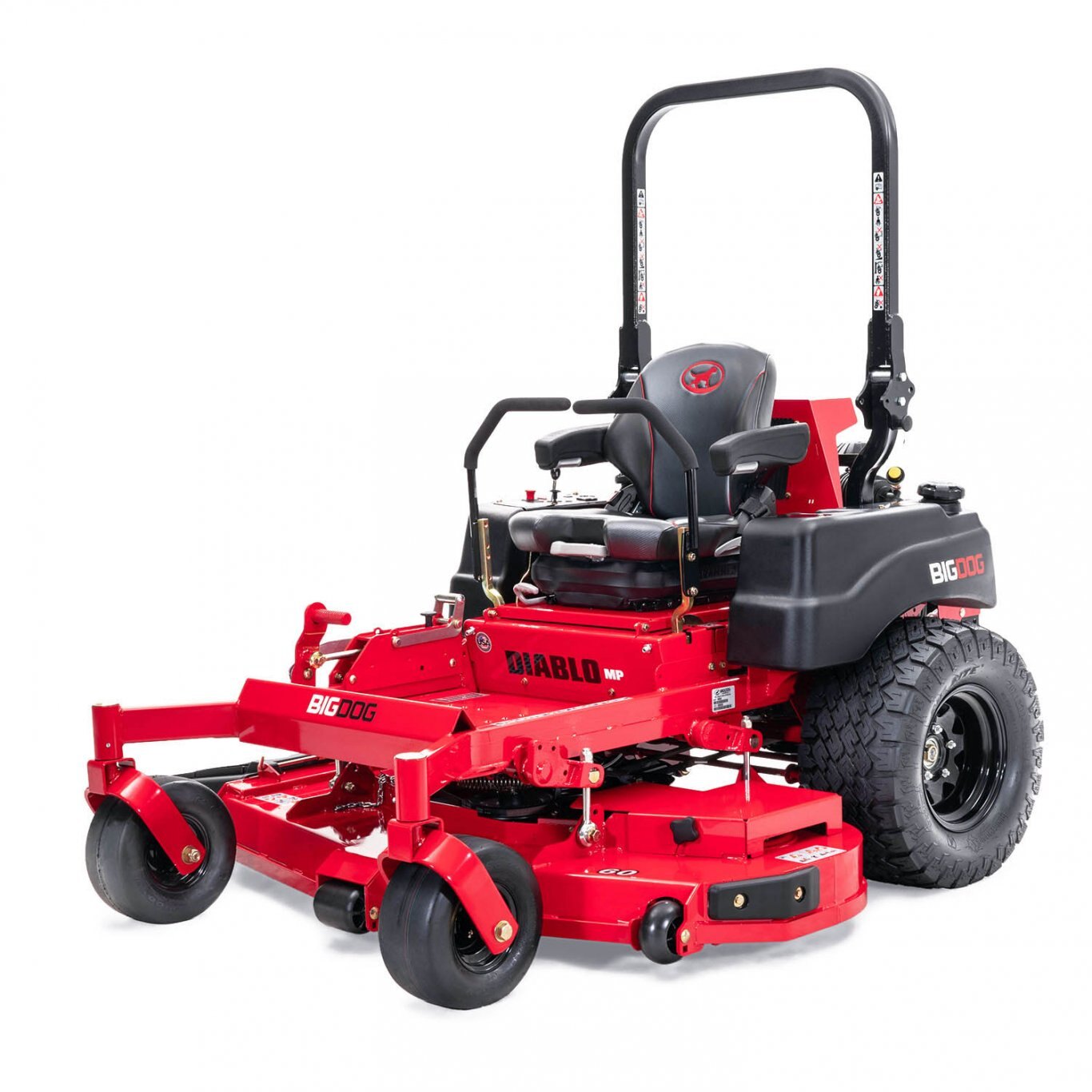

Big Dog -Diablo MP 72

  • Big Dog Diablo MP 72
  • Big Dog Diablo MP 72
  • Big Dog Diablo MP 72
  • Big Dog Diablo MP 72
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

  • 36hp Vanguard Big Block Engines

  • 60” & 72” decks

  • 14mph mowing speed

  • 7-year / 1500 hour limited warranty

The Top Dog

Demand speed and maximum performance! The Diablo MP is the fastest mower in our line with a top speed of up to 14mph powered by Vanguard Big Block™ engines. Plus, the Diablo MP features a welded steel deck, rugged engine guard, and a quality suspension embroidered seat.



Specifications
Model
Diablo MP
Category Name
Lawn / Garden
Year
2022
Sale Type
New
Manufacturer
Big Dog
Engine
36HP - Vanguard Big Block
Deck Sizes
72
features

Big Dog Diablo MP 72

Unmatched Hydraulics

Heavy-duty hydraulics deliver more power, torque than many other machines.



Premium Seat

20" mid-back seat with full mechanical suspension to shield the operator from bumps and EVC cushion to take pressure off tail bone and lower back.Big Dog Diablo MP 72



Welded Deck

Engineered for a perfect cut every time.Big Dog Diablo MP 72



BigBite™ Rear Tires

26" BigBite™ rear tires provide a smooth ride and enhanced traction.Big Dog Diablo MP 72



key specs
WARRANTY
7 Year/1500 hour Limited
DRIVE TIRE
26 x 12-12, BigBite
FRONT TIRE
13 x 6.5-6
TRANSMISSION
Hydro-Gear 21cc PY pumps with Parker TG310 wheel motors
CUTTING WIDTH
72
FUEL CAPACITY
12 gal.
CUTTING HEIGHT
1.5" to 5.5"
ENGINE HORSEPOWER
36
GROUND SPEED (FWD)
Up to 14 mph
ENGINE MANUFACTURER
Vanguard Big Block
engine
COOLING
Air Cooled
DISPLACEMEN
993cc
ENGINE WARRANTY
3 Year Warranty
ENGINE HORSEPOWER
36
ENGINE MANUFACTURER
Vanguard Big Block
drive system
TYPE
Dual Hydrostatic
TRANSMISSION
Hydro-Gear 21cc PY pumps with Parker TG310 wheel motors
FUEL CAPACITY
12 gal.
PARKING BRAKE
Integrated with steering levers
HYDRAULIC LINES
Stainless Parker Seal-Loc Technology
HYDRAULIC COOLING
Oil Cooler w/8" fan
GROUND SPEED (FWD)
Up to 14 mph
RESERVOIR CAPACITY
3 gallons
deck
SPINDLES
Ductile cast iron with steel shafts and sealed ball bearings
DECK LIFT
Foot Operated
DECK DEPTH
5.5
BLADE LENGTH
24.5
DEC MATERIAL
7 ga. fabricated with 7 ga. wrappers
CUTTING WIDTH
72
CUTTING HEIGHT
1.5" to 4.5"
SPINDLE MOUNTS
Reinforced 7 ga. stamped disc
BLADE TIP SPEED
18,500
DECK ENGAGEMENT
Electric PTO Clutch
NUMBER OF BLADES
3
IMPANCT TRIM AREA
11 ga. formed channel with rolled edge
accessories

3-Bag Non-Powered Bagger

Easy-on, easy-off hopper assemblies. The bagger holds 5.4 bushels.Big Dog Diablo MP 72

Mesh Side Bagger

Big Dog Diablo MP 72Easy-on, easy-off bagger has a 3-bushel capacity.

Metal Side Bagger

Easy-on, easy-off bagger has a 3.5 bushel capacity.Big Dog Diablo MP 72

Big Dog Diablo MP 72

Flex Forks®

Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds. (only on 36"&42" decks on Alpha.)

High Vacuum Deck Kit

Improves vacuum and cut quality while reducing blowout in thin/dry grass conditions.Big Dog Diablo MP 72

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.Big Dog Diablo MP 72

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.Big Dog Diablo MP 72

Always On LED Lights

Extend your productivity into the late hours with our optional light kit.Big Dog Diablo MP 72

Stripe Kit

Helps provide a professional manicured finish to your lawn. (only on 52" decks on Alpha.)Big Dog Diablo MP 72

Semi-Pneumatic Front Tires

Flat-free front tire option.Big Dog Diablo MP 72



MICHELIN® X® TWEEL® TURF CASTER

The MICHELIN® X® TWEEL® TURF Caster replaces the current front tire/wheel assembly on zero turn radius mowers, and offers the same trouble-free benefits.Big Dog Diablo MP 72

BacVac Bagger

Electric-accuated DFS bagger system. Easy-on, easy-off versatility with a 10-bushel capacity.

Big Dog Diablo MP 72

MICHELIN® X® TWEEL® TURF

The MICHELIN® X® TWEEL® TURF airless radial tire is designed to help zero turn radius mowers achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads. 24" x 12" tire. (Not available on 52" Diablo models)

Big Dog Diablo MP 72

Electric Deck Lift

Big Dog Diablo MP 72

Raise and lower the deck with the flip of a switch. This electric lift kit consists of simple bolt on hardware and switch installation.



construction
FRAME
1.5" X 3.25" steel tubing
FRONT AXLE
Fabricated with sealed ball bearings
RONT CASTER FORK
Fabricated 1/2" steel
FRONT CASTER WHEEL
Tapered wheel bearings and debris cap
general
SEAT
Custom Grammer full suspension seat with sliding adjustment
CUP HOLDER
dimensions
WEIGHT (LBS)
1590
HEIGHT (INCHES)
47" (72.5 with ROPS up)
LENGTH (INCHES)
93
DRIVE TIRE (INCHES)
26x 12-12, BigBite
FRONT TIRE (INCHES)
13 x 6.5-6
WIDTH W/ CHUTE UP (INCHES)
75.3
TIRE-TO-TIRE WIDTH (INCHES)4
57
PRODUCTIVITY (ACRES PER HOUR)
8.14
warranty
ARRANTY
7 Year/1500 hour Limited
dimensions with catcher
CATCHER STYLE
3-bag
CATCHER CAPACITY
12 bushel
POWERED / NON-POWERED
POWERED
MOWER WIDTH W/ CATCHER
82.9
STYLE 2: CATCHER STYLE
BAC-VAC
MOWER LENGTH W/ CATCHER
119.2
STYLE 2: CATCHER CAPACITY
10 bushel
STYLE 2: POWERED / NON-POWERED
POWERED
STYLE 2: MOWER WIDTH W/ CATCHER
82.9
STYLE 2: MOWER LENGTH W/ CATCHER
112.7
