ID # 17204036

Bercomac Claw Grapple 56"

  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
  • Bercomac Claw Grapple 56
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

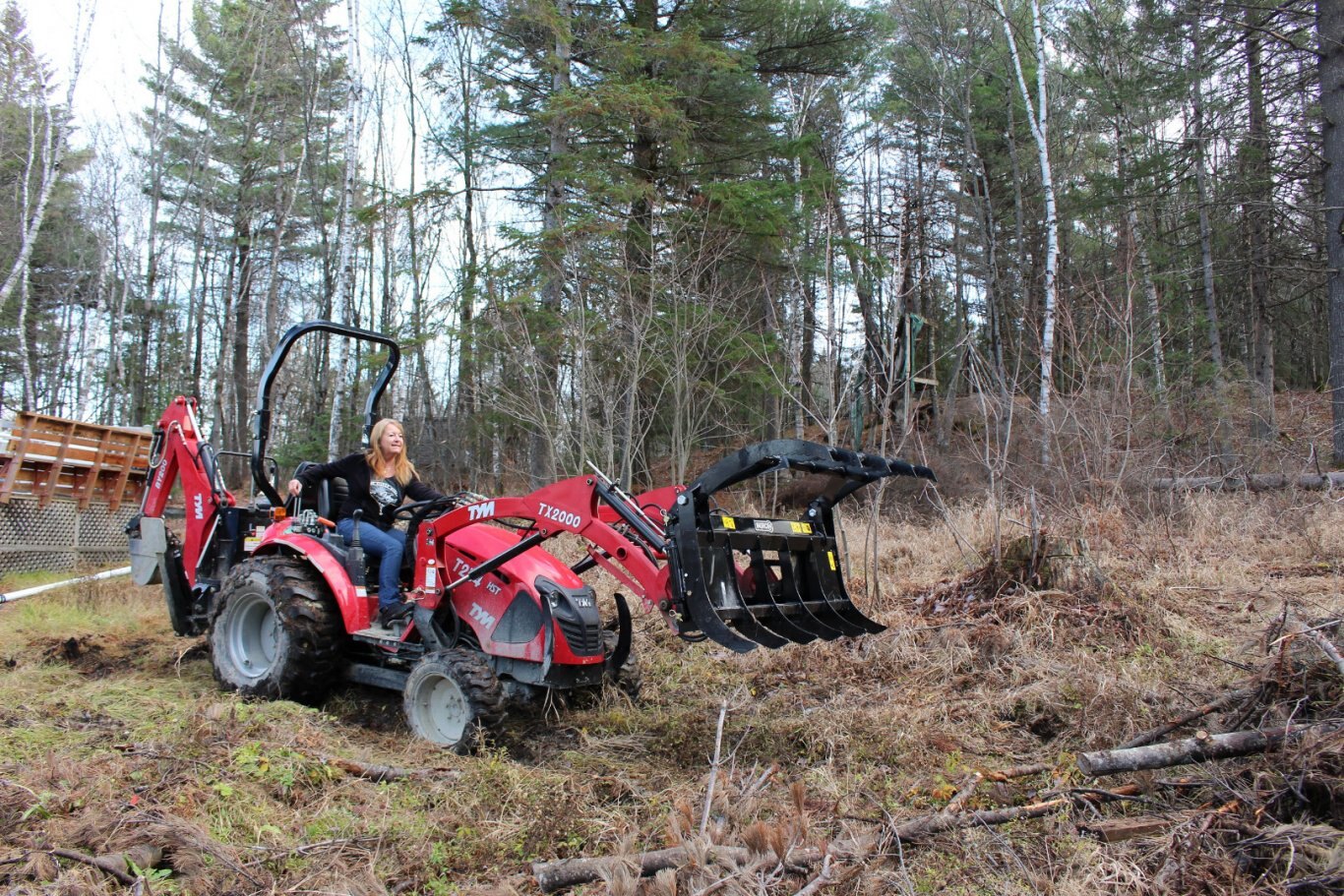

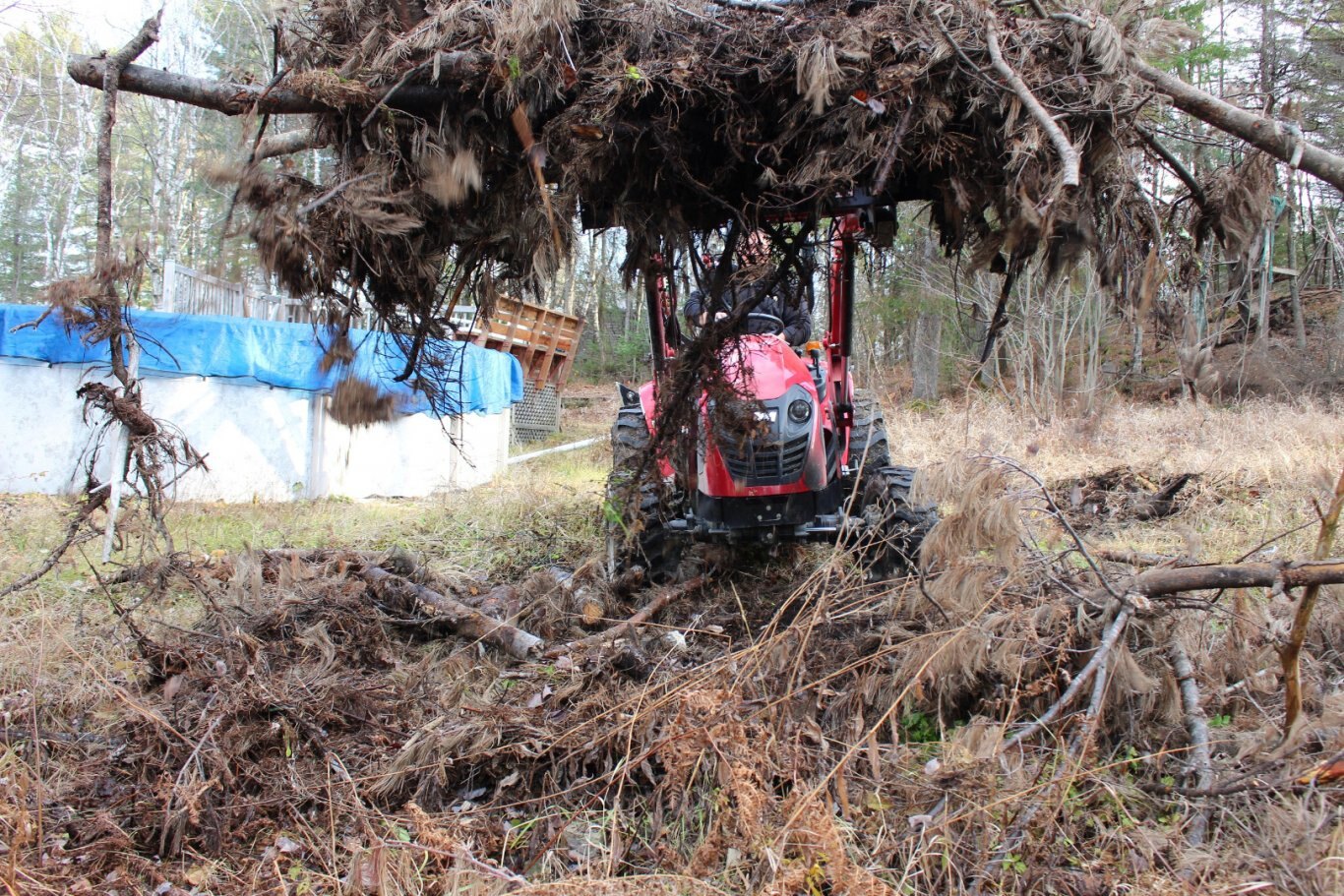

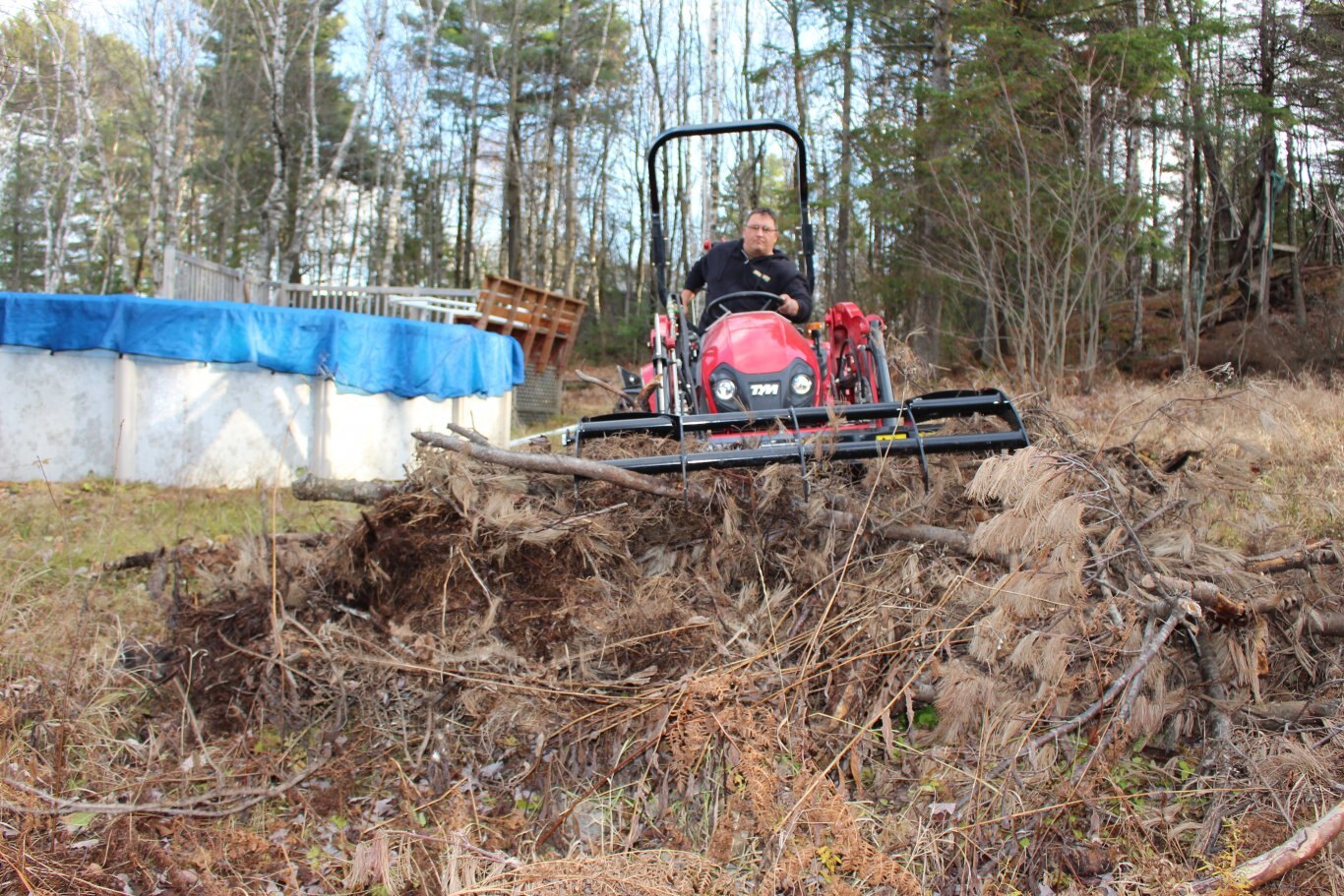

Ideal for all types of clearing jobs on your lot, you may now move rocks, branches easily to clean the area safely and quickly.

This claw grapple will fit onto all tractors equipped with a "skid steer" style attach with a maximum of 28 Hp on the PTO, with 3rd function hydraulic valve and a weight of maximum 3000 lbs.

LIGHTWEIGHT, POWERFUL AND EASY TO USE. THIS CLAW GRAPPLE WILL SIMPLIFY YOUR CHORES.

Universal fit

  • Pre-assesmbled at the factory for fast installation and use.
  • Mounts to iniversal "skid steer" style attach.

Powerful

  • Sturdy yet lightweight allowing to lift heavier loads.*
  • Positioning of hydraulic cylinders increases pressure applied to jaws.

Security

  • Strategic design and size of cylinders will help reduce the risk of damage to the hydraulics.

*Lift capacity is specific to the tractor' capacity less the weight of the grapple of 235 lbs. with a maximum of 1400 lbs.



Warranty  Residential: 1 year Semi-Commercial, Professional or Rental Use : 90 days


 Specifications

6a260a9bff2a44b6d457f287cab0

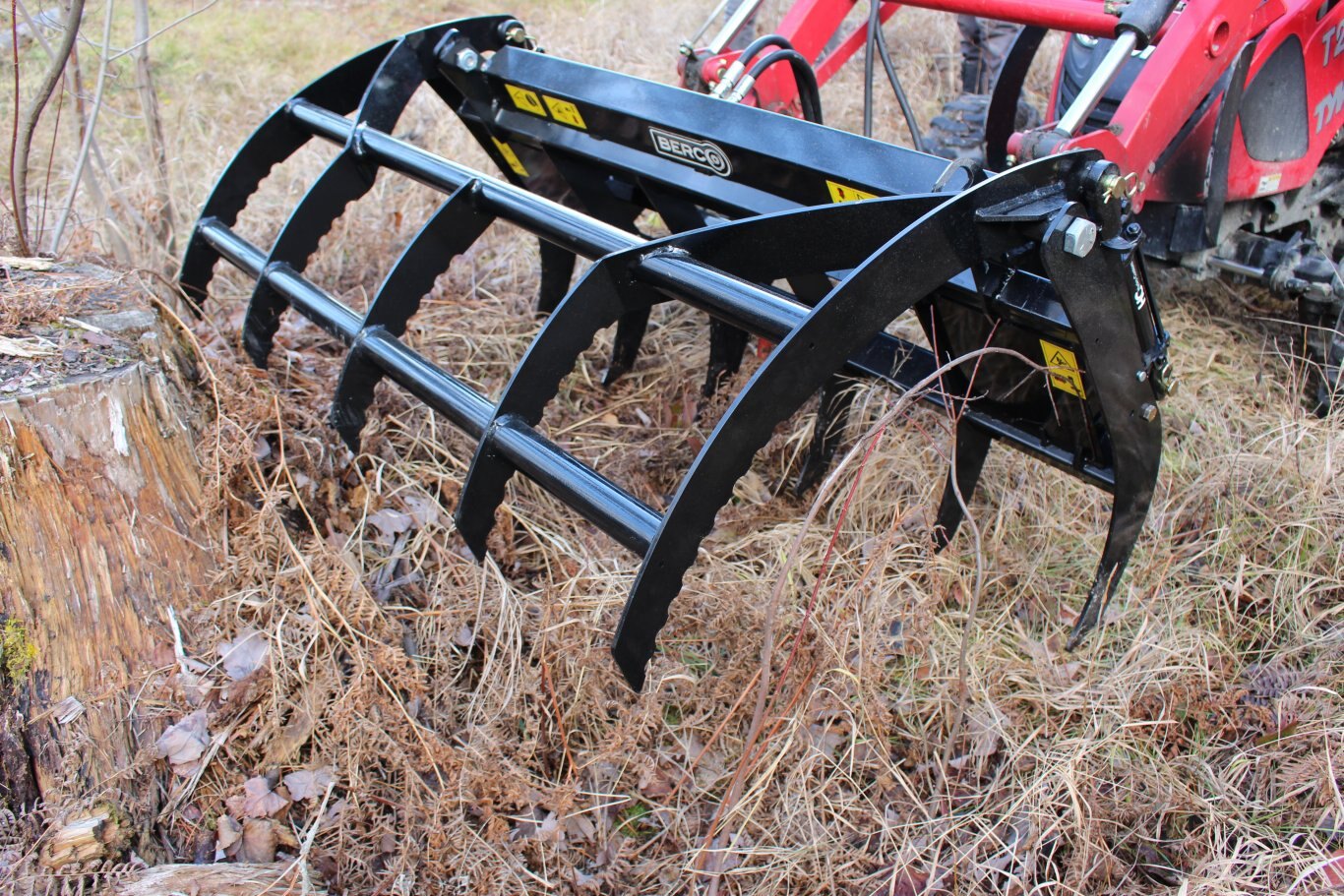

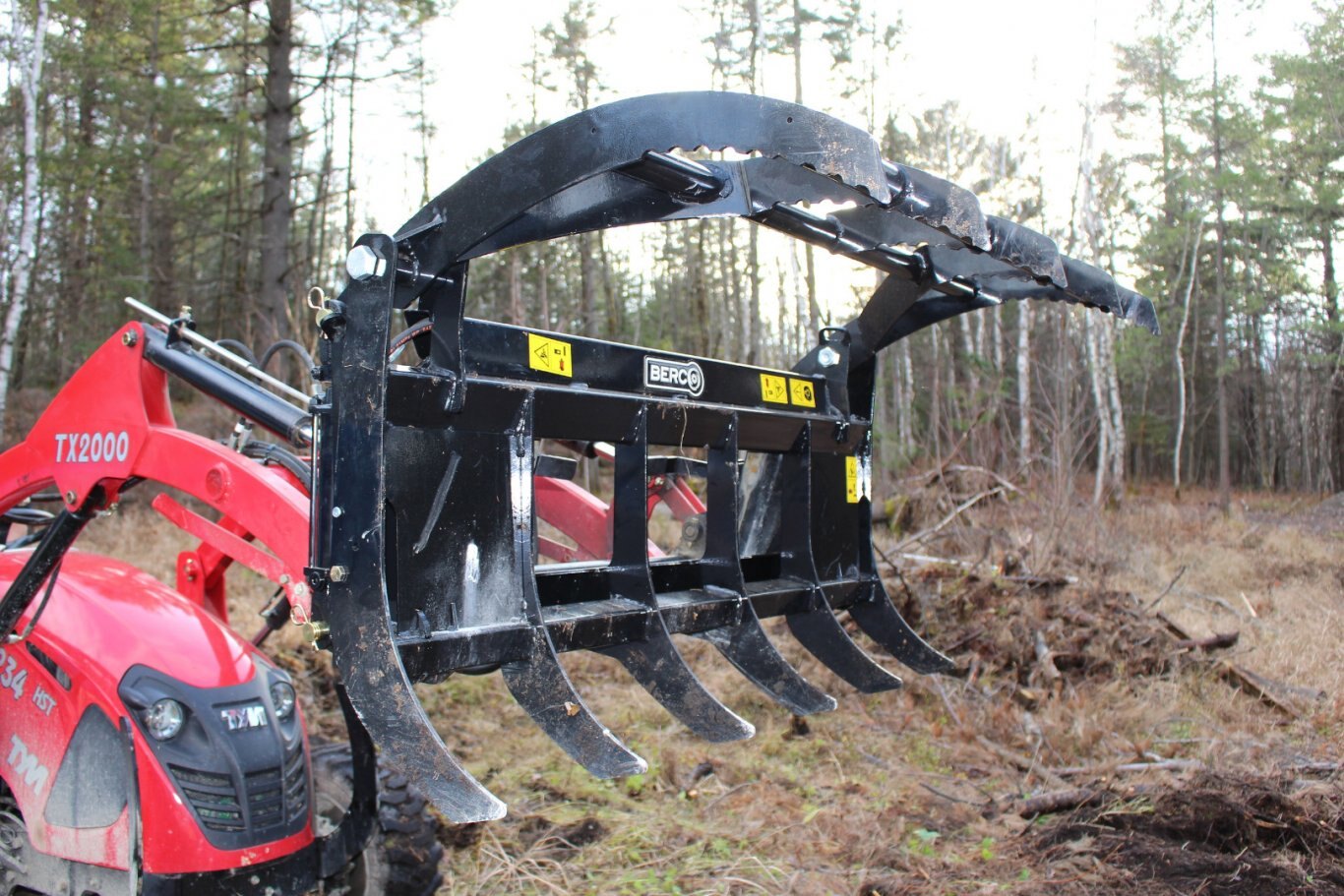

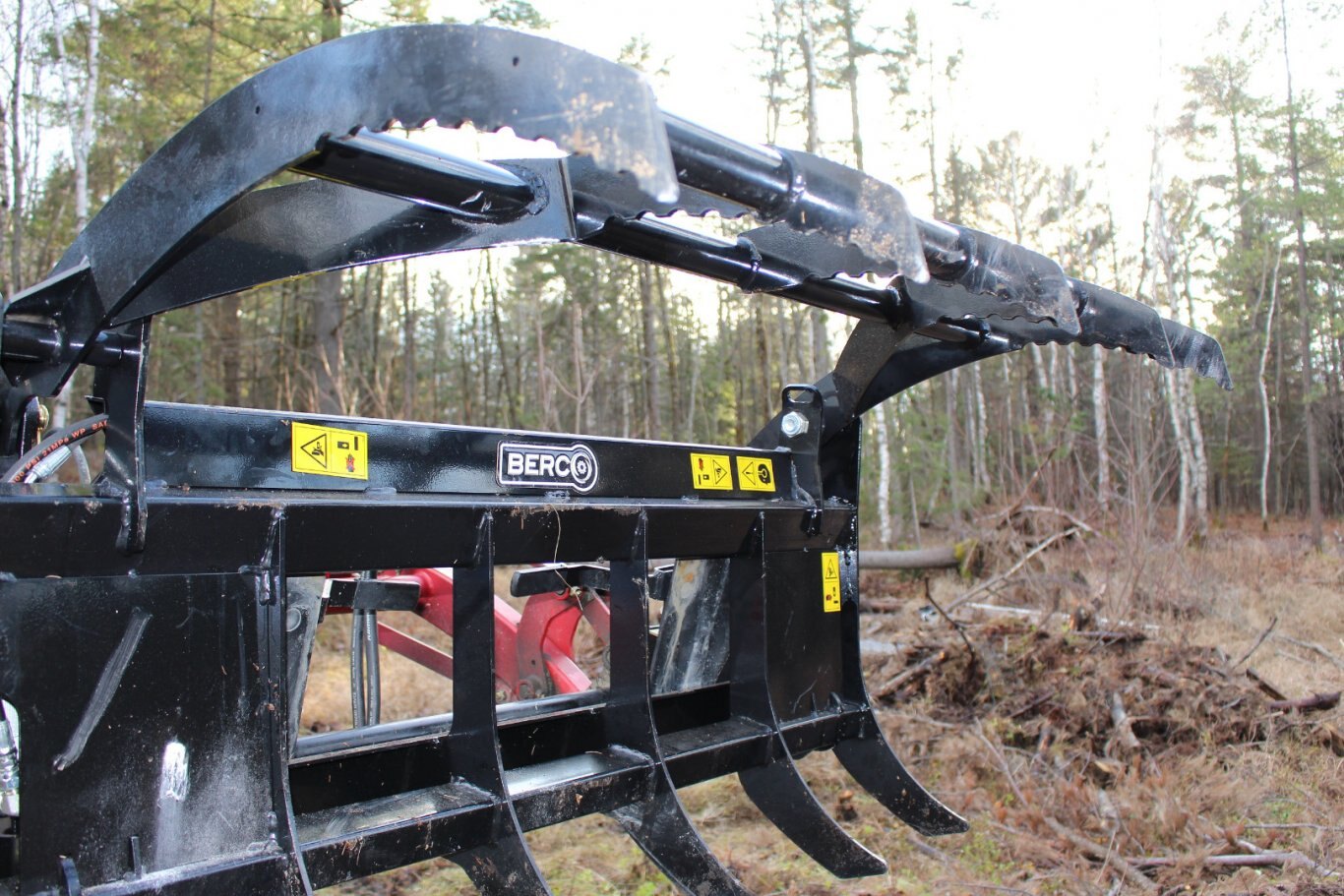

1. Tines are made of CHT-100 steel and are 1/4" thick. 5 tines on top and 6 at the bottom.

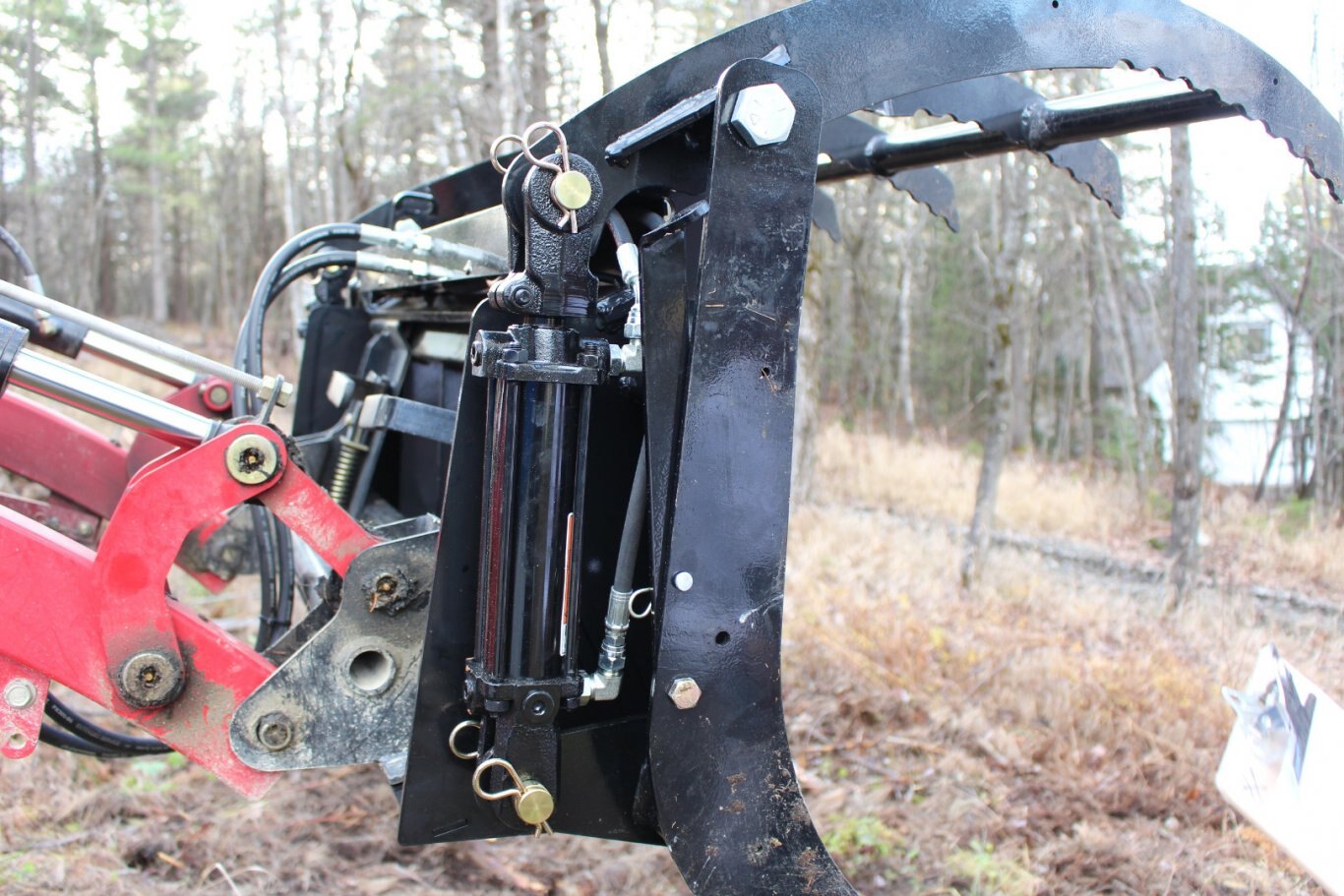

2. Equipped with 2 cylinders of 2" in diameter with 6 inches of stroke allowing the grapple to open up to 30".

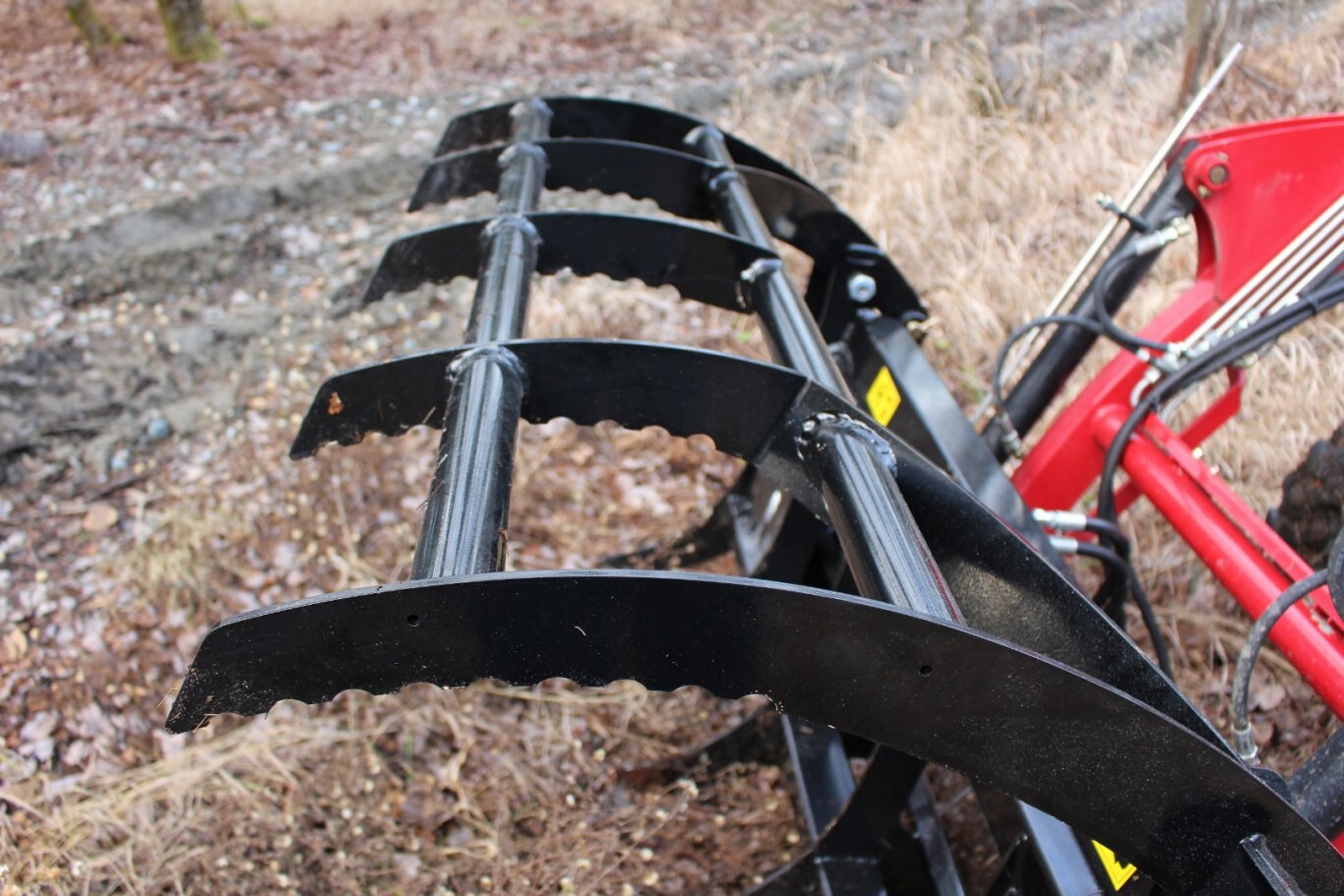

3. The lower claws are smooth to assist in sliding under material and the upper claws are saw tooth to grip into the load.

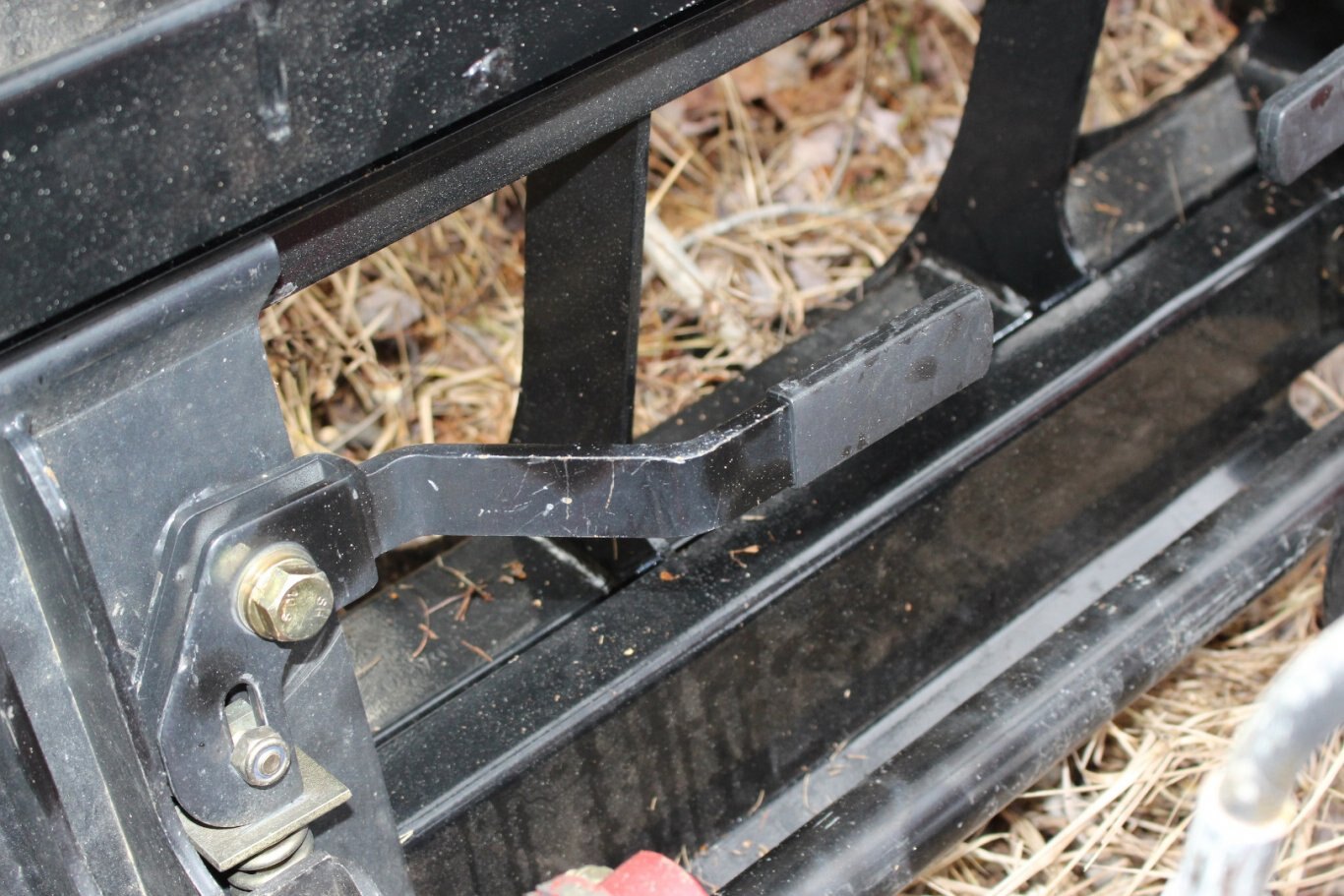

4. Quick attach onto the "skid steer" type of attach.

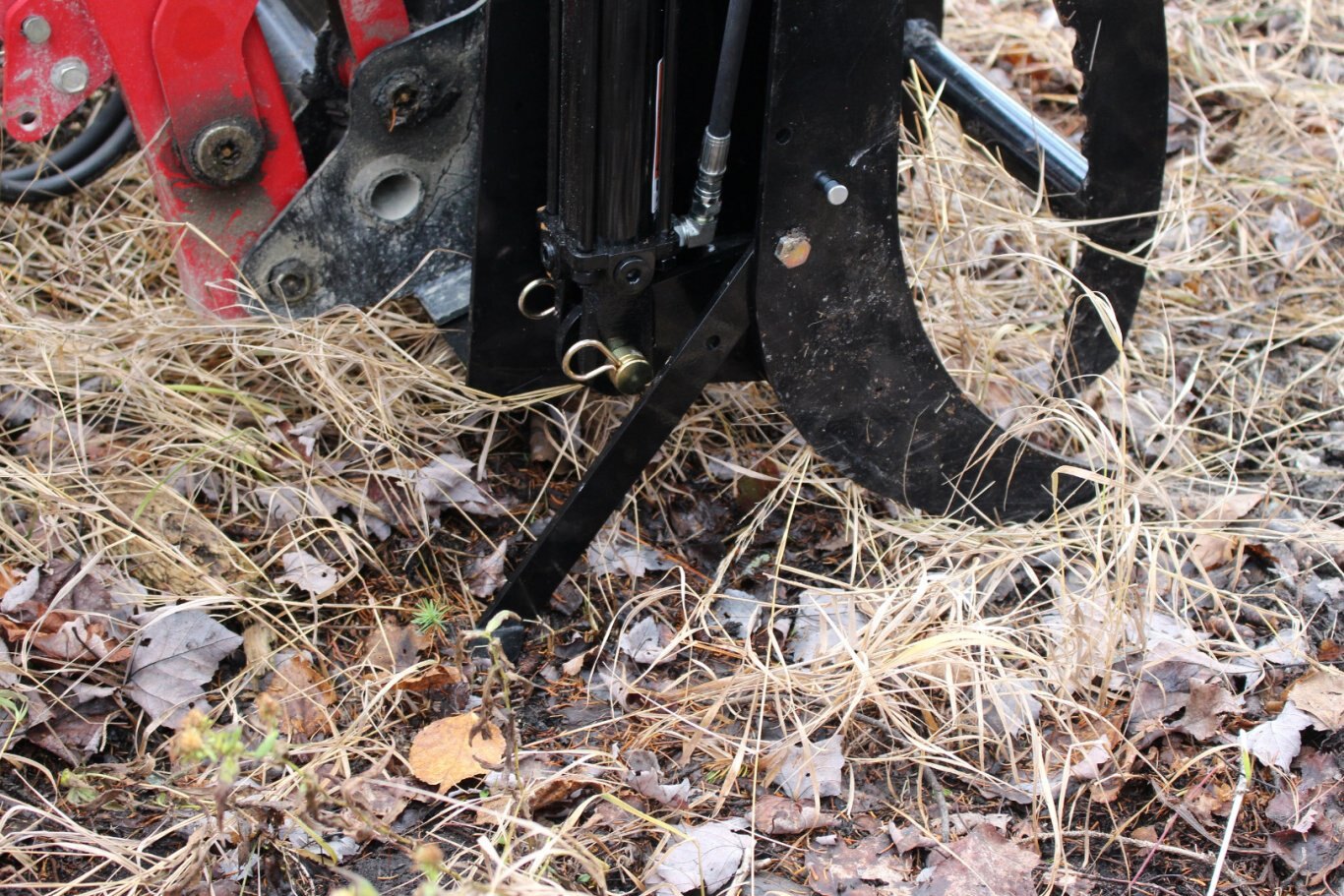

5. Parking stand assists in installing the grapple and is used for storage. Folds up when grapple is being used,.

6. Heavy duty grade mounting pins for secure assembly.

7. Made of CHT-100 steel. Reinforced by beam of 2 x 3 inches.

8. Lateral reinforcements

Specifications
Model
Claw Grapple 56"
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Bercomac
