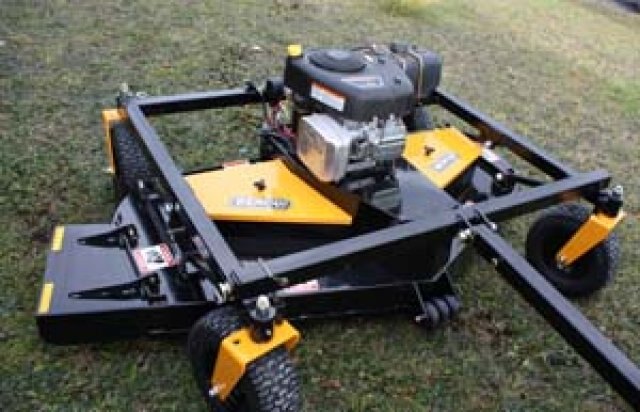

Finish Cut Mower 60'' for Tractors 60" Model - # 700714-1 / 700818
THE ONLY MOWER WHICH IS COMPLETELY CONTROLLED FROM THE DRIVER'S SEAT! This user friendly mower may be controlled totally, 100%, from your seat. You may start the motor and also adjust the cutting height at your fingertips. Your security is of the utmost importance to us, which is why this mower is equipped with an electric clutch which starts and stops the mower instantly. Also incorporated is a safety switch which prevents the motor to start if the mower is in gear.
Requires
2” standard rear ball hitch and battery (not included)
Durability
Made of high grade steel and top quality components
Performance
“Briggs & Stratton” Pro 17.5 HP “Briggs & Stratton” Commercial 20 HP
Installation
Hooks to vehicle's hitch and may be placed in 3 positions: left, right and center
Benefits
100% Fingertip Controls
Motor: Electric start, throttle control and shut down.
Mower: Engage switch
Lift: Uses an electric actuator to adjust the cutting height
100% Safe
Electric clutch: Instantly starts and stops mower
Electric Controls: Controlled from the driver's seat for your comfort and safety
Security switch: Impossible to start the motor when mower is engaged
100% Unique Electric Lift System
Electric actuator: Adjusts cutting height up to 5.5” from the driver's seat
100% Operator Presence Control
For a secure operation: The lanyard is attached to the operator in case the operator falls off the vehicle, the mower will stop instantly.
Weight
700714-1= 510lbs
700818 = 540lbs
Specifications
Construction
Welded frame, made of 10 gauge steel
Warranty
Use Residential: 1 year on mower 2 years on motor Semi-commercial, professional or rental: 90 days
Dimensions
60" cut
Weight
700714-1= 510lbs
700818 = 540lbs
Paint
Powder coat baked on for longer durability
1 Flotation system
Allows the mower to follow the uneven curves of the terrain
2 Electric Lift
Lifts mower from 1.5” to 5” from the driver's seat.
3 Engines
17.5 HP Pro “Briggs & Stratton” 20 HP Commercial “Briggs & Stratton” Electric start and electric clutch
4 Hitch
May be adjusted to 3 different positions: left, right and center. Can be installed with a hitch pin or rear ball hitch (2") May be used on slopes up to 15°
5 Control box
Located at your fingertips to:
Start the motor
Start the mower
Adjust the cutting height
Emergency shut down
6 Operator presence control
The lanyard is attached to the operator in case the operator falls off the vehicle, the mower will stop instantly.
7 Blades
3 blades of 21"
8 Discharge
Side discharge with steel deflector
9 Tires
4 ply, 13 x 5 pneumatic tires Pivoting wheels may be locked in to place with a pin when needed
