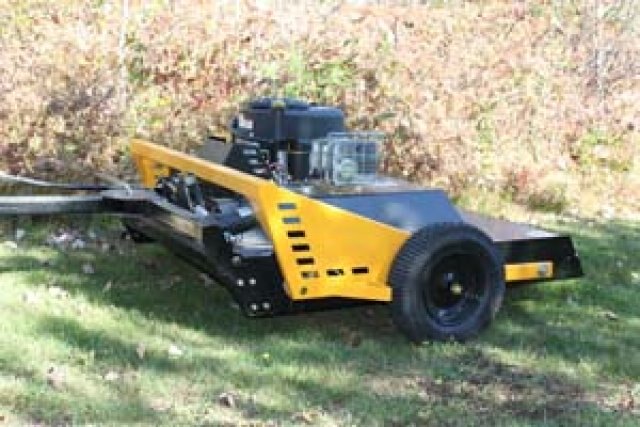

44'' Rough Trail Cutter for ATV 44" model - # 700713-1 / 700817
THE ONLY ROUGH CUT MOWER TO BE COMPLETELY CONTROLLED FROM THE DRIVER'S SEAT! This rough cut mower is so easy to use since all the electric controls are at your fingertips. You may start the cutter and adjust the cutting height as well. Safety first being our prime directive, the Berco rough cut mower is equipped with an electric clutch which starts and stops the heavy duty blades instantly. These blades will cut bushes and tree stems with ease.
Requires
2” standard rear ball hitch and battery (not included)
Durability
Made of high grade steel and top quality components
Performance
“Briggs & Stratton” Pro 17.5 HP “Briggs & Stratton” Commercial 20 HP
Installation

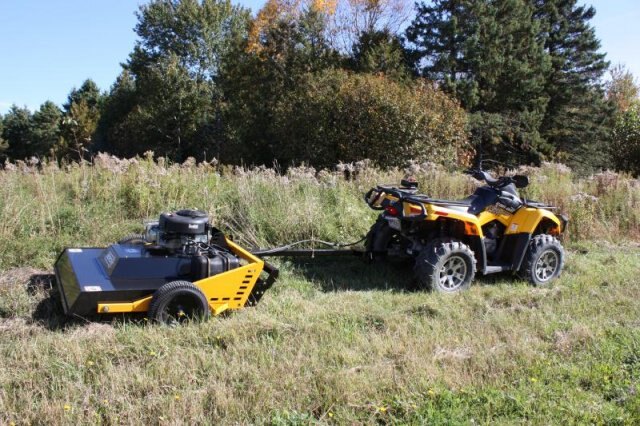

Hooks to vehicle's hitch and may be placed in 3 positions: left, right and center.
Benefits
100% Fingertip Controls
Motor: Electric start, throttle control and shut down switch.
Rough Trail cutter: Engage switch.
Lift: Uses an electric actuator to adjust the cutting height up to 7”.
100% Safe
Electric Clutch: Instantly starts and stops rough trail cutter
100% Operator Presence Control
For secure operation: The lanyard attached on the operator's wrist and on the control box will disconnect itself when the driver leaves his seat.
100% User Friendly
Angling System: Will maintain the mower parallel with ground without having to remove it.
Weight
700313-1= 550lbs
700817 = 570lbs
Specifications
Constuction
Welded frame, made of 10 gauge steel.
Warranty
Use Residential: 1 year on Rough Trail Cutter 2 years on motor Semi-commercial, professional or rental: 90 days
Dimensions
44" cut
Weight
560 lbs approx.
Paint
Powder coat baked on for longer durability.
1 Angling system
Adjust the rough trail cutter parallel with ground without having to remove it.
2 Electric Lift
Lifts rough trail cutter from 3” to 7” from driver's seat.
3 Motors
17.5 HP Pro “Briggs & Stratton” 20 HP Commercial “Briggs & Stratton” Electric start and electric clutch
4 Hitch
May be adjusted to 3 different positions: left, right and center.
5 Control box
Located at your fingertips to:
Start the motor
Start the rough trail cutter
Adjust the cutting height
Emergency shut down
6 Operator presence control
The lanyard attached to the operator's wrist and on the control box will disconnect itself when the driver leaves his seat.
7 Blades
2 x 15” swing blades
8 Stump Jumper
Protects the spindle from potential damage done by an obstacle.
9 Discharge
Rear discharge
10 Reinforcement
Bumpers to protect tires
11 Tires
2 ply 480 x 400-8 pneumatic tires, with tire sealant
