ID # 13555683

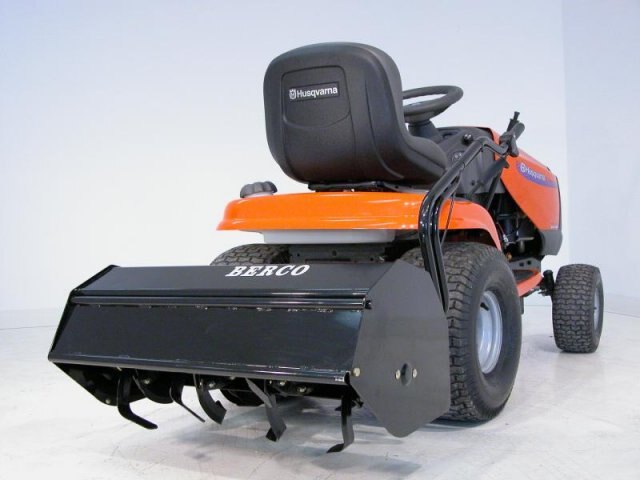

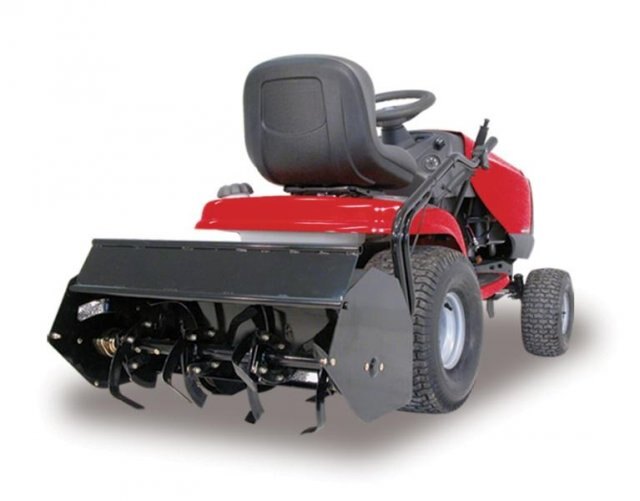

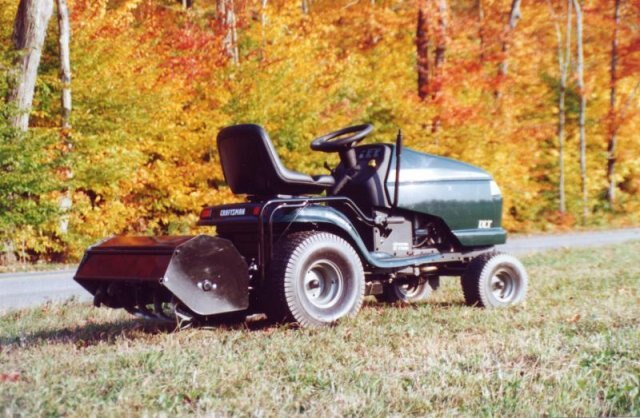

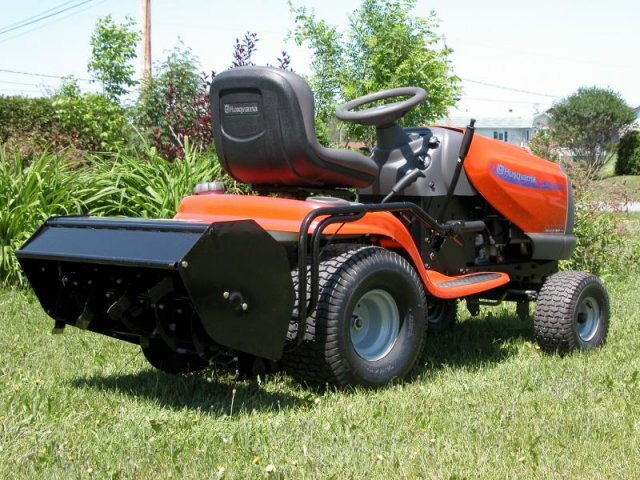

Bercomac Rotary Tiller for Lawn & Garden Tractor

  • Bercomac Rotary Tiller for Lawn & Garden Tractor
  • Bercomac Rotary Tiller for Lawn & Garden Tractor
  • Bercomac Rotary Tiller for Lawn & Garden Tractor
  • Bercomac Rotary Tiller for Lawn & Garden Tractor
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Tiller for Tractors Manual Lift
30'' Model - # 700312-5

GET YOUR TILLING DONE IN RECORD TIME

Get more out of your tractor, get it to till for you as well. Tills through any type of soil with ease, just drop it down and drive off. Gets the soil ready for seeding in no time so you may harvest your rewards sooner.

Requires

  • Fits on most brands of tractors from 14 to 28 HP with vertical engines (mower deck pulley located under the engine) with 20" minimum rear tires. Exception: Will fit Cub Cadet GT & GTX 2000 & 2500 Series with horizontal engines.
  • Tractor must be equipped with a rear transaxle bolt pattern of 16 1/4 inches or 14 inches center to center.
Durability

  • The precision ball bearings are covered for protection from dirt & debris.
  • Heavy gauge steel along with other quality components assure its dependability.
Endurance The double layer housing made of 14 gauge steel protects the outer layer from dents caused by foreign objects.
Performance The tines turn in the same direction as the tractor wheels avoiding any resistance by the tractor. its power will certainly amaze you for years to come.
Installation Easy to install, pre-assembled at the factory:

  • Two brackets under the transaxle and one shoulder bolt on the tractor's frame.
Benefits Controls at your Fingertips

  • Engage the tiller using the same system as the mower deck on your tractor.


Manual Lift



The handle located to the right of the driver will:

  • Lift and lower the tiller;
  • Adjust the depth from 0 to 6'' deep.


Fits Various Tractors

  • Universal mount allows it to fit most brands of lawn & garden tractors with motors between 14 to 28 HP.


No Tire Tracks

  • Offset to the right to eliminate the tire tracks.


Easy Installation

  • Pre-assembled at the factory to facilitate installation.
  Specifications
700312 Boltpattern 20100433104133

Dimensions



  • 30" wide
  • Offset to the right to eliminate the tire tracks.



 Weight

310 lb
Warranty



  • Residential Use : 1 year
  • Semi-commercial, Professional or Rental Use: 90 days



 Lift



  • Using a handle located to the right of the driver.
  • Also used to adjust the depth desired from 0 to 6'' deep.


Powder Coating

Black powder coat is baked on for a long rust free life.

 1 Frame

Double layer housing made of 14 gauge stee.
2 Protective Panel

Protective panel may be raised for access to tines.

 3 Tines

16 tines measure 14" in diameter.
4 Chain

Chain: # RC 50.

 5 Bolt Pattern

Tractor must be equipped with a rear transaxle bolt pattern of 16 1/4 inches or 14 inches center to center.
(See drawing)
Specifications
Model
Rotary Tiller for Lawn & Garden Tractor
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Bercomac
