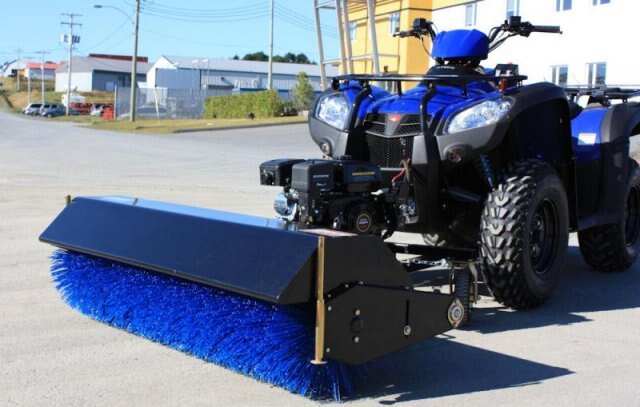

Cleaning, lawn dethatching, snow sweeping, it does it all. Fast hook up so you can use it anytime on your ATV or UTV. Grooms lawns, cleans barns, ice rinks, biking trails. Sweeps parking lots, sidewalks, driveways... and more!
Requires
Requires:
Winch to lift accessory (1000 lb & more)
Rear ball hitch 2"
Please verify measurements of vehicle to ensure proper fit and if optional extension kit for subframe is required.
If the measurement from front of bumper to the rear ball hitch is longer than 99" you will need the subframe extension kit #700475.>
Does not fit on vehicule longer than 143''
Durability
Brush is made of stiff polypropylene for a long life span.
Parking stand used when storing broom to avoid damaging bristles.
Endurance
Frame: 16 gauge steel.
Performance
Equipped with a 7 HP Kohler engine to ensure steady power.
Installation
No more wasted time! This beauty attaches within MINUTES on most major brands of ATVs or UTVs.
The mounting system goes underneath the ATV or UTV and goes all the way to the rear to hook up on the tow hitch. It is adjustable for different lengths of ATVs or UTVs. At the front it hooks up to the front axles with some chains. It's that simple and quick.
ATV or UTV must be equipped with a winch to lift broom.
Fits on ATVs equipped with tracks.
Benefits
Controls at your fingertips
Flip a switch to angle the broom to the left or right.
Motor
Comes complete with 7 HP motor.
One Model Fits Most Majour Brands
Same type as snowblowers.
Uses chains or brackets to hook up to the front axles.
Does the full length of the vehicle to hook up on the rear ball hitch .
On & off in under 4 minutes
Clean Sweep
Dolly wheels located at back of broom allows you to sweep close to curbs and buildings.
Extendible Frame
2'' wide frame is adjustable to different lengths: 67'' to 105''.
Electric Lift
Lift the broom using the vehicle's winch (not included).
Specifications
Brush
Polypropylene
Angle control
Angle control electrically from driver's seat.
Dimensions
The Unit: 19'' x 64''
The Brush: 18'' x 60''
Warranty
Residential Use : 1 year
Semi-commercial, Professional or Rental Use: 90 days
Pressure adjustment
Allows to adjust the pressure on the brush.
Powder Coating
Black powder coat is baked on for a long rust free life.
Weight
540 lb
1 Frame
16 gauge steel.
2 Motor
7 HP Kohler
3 Tension arm
Apply tension to belt drive.
4 Dolly wheels
6 in
5 Socket
Hook up for side wheels for lawn dethatching.
6 Parking stand
Used when storing broom to avoid damaging bristles.
7 Rear View
Quick Hook up
Rear hicth: extendible frame hooks up to the rear ball hitch.
Chains with straps or brackets (brackets stay on permanently) attach to the front axles.
Dolly wheel frame supports the weight of the broom so there is no added weight to the vehicle.
