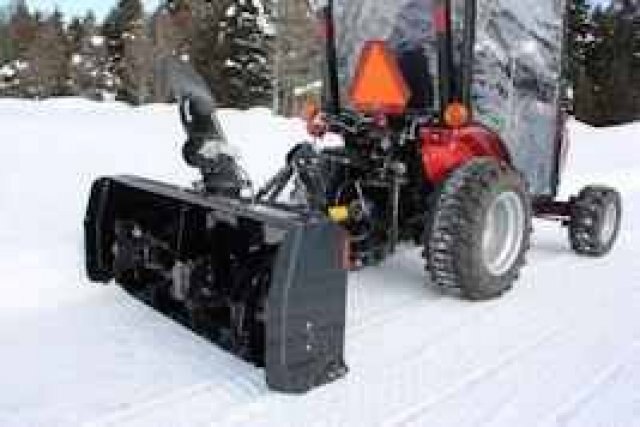

Bercomac 3 Point Hitch Pro Series 1000

  • Bercomac 3 Point Hitch Pro Series 1000

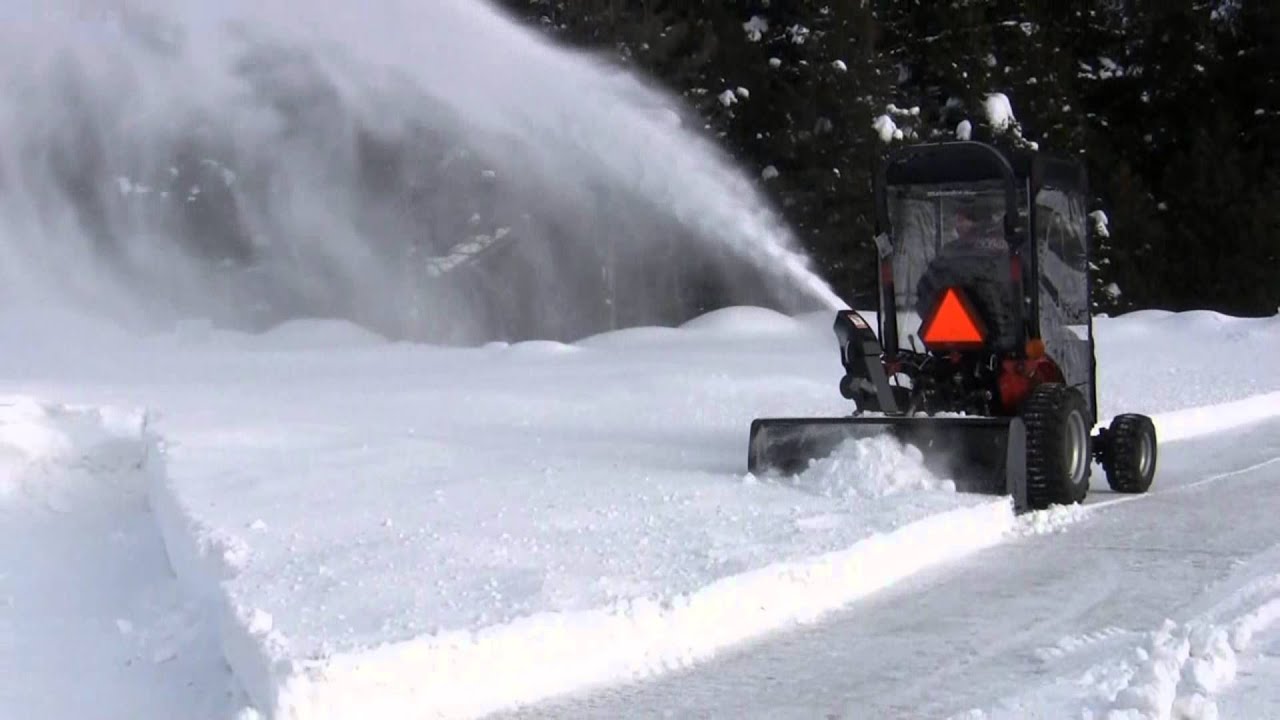

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
 3 Point Hitch
Pro Series 1000
48" Model - # 700586
56" Model - # 700587

Pro Series 1000



Berco Pro Series are designed to overcome any winter, they will impress you with their Innovation, Quality and most of all Hunger to wor
  Requires
3 Points Hitch Category 1



Top link pin is: 3/4'' diameter.

Lift arm pins are: 7/8'' diameter.

Tractors with PTO from 16 to 25 HP.
  Innovation
Low Maintenance

  • Reduction is done by a Heavy Duty Gear Box instead of the standard chains. No chains, no maintenance.
  Durability
Double Life Span



Scraper Bar made of Hardox 400, is reversible and replaceable. Once this bar has worn down, simply unbolt if, flip it over and get a double life span.
  Endurance
It's double layered base along with other reinforcements will help reduce damage if an obstacle is hit.
  Performance

Equipped with a 22.5 HP Kohler engine, it is without a doubt one of the most powerful snowblowers available for ATV's & UTV's on the market, anywhere. No matter what quantity of snow needs to be removed, this is the machine that will do it.

Berco TWO STAGE Performance

  • 1ST STAGE
    Is the powerful saw tooth auger which breaks through any type of snow with ease.
  • 2ND STAGE
    Is the impeller that turns at a high RPM which propels the snow to further distances.
  Installation
3 Points Hitch Category 1



Top link pin is: 3/4'' diameter.

Lift arm pins are: 7/8'' diameter.
  Benefits
Affordable

  • The choice is yours. Hydraulic or Electric chute rotation. Having this choice will render the snowblower even more affordable.
  • Either one you choose they are both user friendly.
Worry Free

  • This new revolutionary belt drive mechanism is adjusted with precision. It will not only last longer but requires no maintenance.
  • This system will also avoid any vibrations making it the quietest snowblower on the market.
  Specifications
700586 87 2 20130134141034



Lift

Our system will hook on directly to the tractor's hydraulic lift mechanism.		 Dimensions

Pro Series 1000 48'': 48'' x 23''
Pro Series 1000 56'': 56'' x 23''

Weight


Pro Series 1000 48'': 285 lb
Pro Series 1000 56'': 300 lb

Warranty

• Semi-commercial Use : 1 year

• Semi-commercial, Professional or Rental Use: 90 days
1  Chute

You have the choice of chute rotation systems

    Choice of:
    700518-1 Electric Chute & Deflector Kit
    700661 Hydraulic Chute Manual Deflector Included		 2  Deflector

Manual Deflector Included

    Options
    700559 Electric Deflector
    700518-1 Electric Chute & Deflector Kit

.
3 Housing10 & 12 gauge

Steel fabrication for durability. Reinforced with a double layered housing to help avoid damage when solid objects are hit accidentally.		 4 Belt Drive

This new revolutionary belt drive mechanism is adjusted with precision. It will not only last longer but requires no maintenance. This system will also avoid any vibrations making it the quietest snowblower on the market
.5 Parking Stand

For storage purposes will also assist in the installation.		 6  Skids Shoes

Skid shoes are made of Hardox 450 for a long hard working life span. They are adjustable and replaceable. By lowering the skid shoes the base of the snowblower is lifted off the ground to avoid picking up gravel and helps avoid digging into the unfrozen ground.
7 Scraper Bar

Double Life Span Scraper bar made of Hardox 400, is reversible and replaceable. Once this bar has worn down, simply unbolt it, flip it over and get a double life span.		 8 Gear Box

Oil bath, maintenace free.

Reduction is done by a Heavy duty gear box instead of the standard chains. No chain, no maintenance
9 Bushings

All rotating components are mounted on bushings to facilitate replacement when needed.

.10 Auger

Saw tooth auger can slice through and break up the snow much easier than the standard auger. Just think of a butter knife as compared to a steak knife.
11 Impeller

High speed impeller (15", 4 blades) propels snow to great distances. Protected by a shear bolt system.

 12 Chute Shovel

Allows cleaning of the chute safely. Always use the shovel NEVER use your hand.
13 Double Layered Base

Reinforces the snowblower against damage if striking obstacles.





Specifications
Model
3 Point Hitch Pro Series 1000
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Bercomac
Videos

Videos

Documents
