ID # 13341082

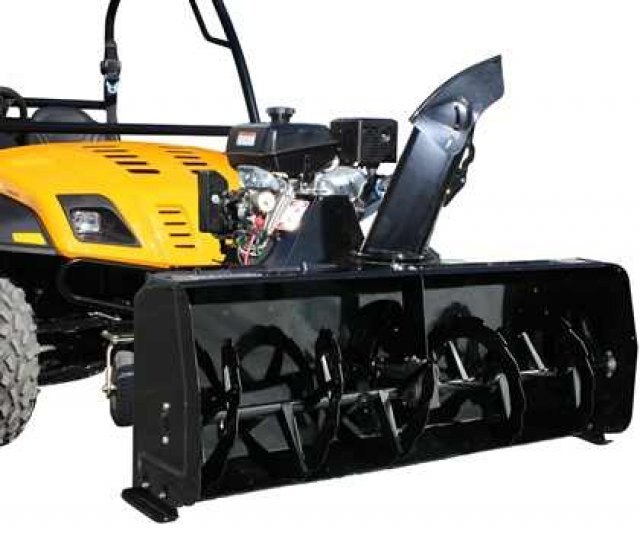

Bercomac VERSATILE PLUS 54

  • Bercomac VERSATILE PLUS 54
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
VERSATILE PLUS 54"
54" Model - # 700582-1

ANOTHER WAY TO ENJOY YOUR VEHICLE IN THE WINTER


Put this snowblower on your ATV or your side by side UTV, it fits them all. Its 54'' size and the fact that it hooks on & off in under 4 minutes will cut down your snow removal time to a fraction of the time it used to take. Take a seat and let the snowblower go through the snow banks with ease. You'll want it to snow so you can go outside and play.
  Requires
  • Engine 15 to 23 HP
  • Winch to lift accessory (1000 lb & more)
  • Rear ball hitch (1 7/8'')
  • Wire connector kit for starter and gas tank kit (see options section for more details).
  • Please verify measurements of vehicle to ensure proper fit and if optional extension kit for subframe is required.
If the measurement from front of bumper to the rear ball hitch is longer than 106" you will need the subframe extension kit #700485
  Innovation

Transfer of power

  • Electromagnetic clutch to start the snowblower instantly.

Reduction

  • A unique Type B belt system assuring reliability and longer life span. Belt tensioner allows changing the belt within 5 minutes, 7/16'' wrench is required to remove the belt guard.

 Mannoeuvrability

  • In order to offer better manoeuvrability when the ground is not frozen, the weight of the snowblower can be transferred to the vehicle's suspension therefore avoiding that the wheels sink in to the ground.
  Durability

HEAVY DUTY Gear Box

  •  Assures performance in any type of snow removal and requires no maintenance.

 Shear Bolts

  • Equipped with shear bolts which is a preventive measure to reduce the risk of damage when a solid object is picked up but vigilance on the part of the operator is your best assurance against accidents or damage.
  Endurance
Built tough with it's double layered base along with other reinforcements will help reduce damage if an obstacle is hit.
  Performance

Equipped with a 22.5 HP Kohler engine, it is without a doubt one of the most powerful snowblowers available for ATV's & UTV's on the market, anywhere. No matter what quantity of snow needs to be removed, this is the machine that will do it.

Berco TWO STAGE Performance

  • 1ST STAGE
    Is the powerful saw tooth auger which breaks through any type of snow with ease.
  • 2ND STAGE
    Is the impeller that turns at a high RPM which propels the snow to further distances.
  Installation
  • No more wasted time! This beauty attaches within MINUTES on most major brands of ATVs & UTVs.
  • The mounting system goes underneath the ATV / UTV and goes all the way to the rear to hook up on the tow hitch. It is adjustable for different lengths of ATVs. At the front it hooks up to the front axles with some chains. It's that simple and quick.
  •  The vehicle must be equipped with a winch to lift snowblower.
  Benefits

Controls at your fingertips

  • Fingertip controls for the snowblower:
  • Pull the red button to start the snowblower;
  • Use the joystick to turn the chute and to adjust the deflector;
  • Push the red button to stop the motor and snowblower.

 Motor

  • Choice of 3 factory installed engines, centrally placed for perfect balance.
  • 14 H and 22.5 HP ''Kohler'' or 20 HP "Honda".
  • You also have the possibility to have a Berco dealer install a engine of your choice according to your needs.
  • Recommended : 13 to 23 Hp engines with a 1'' shaft.

 Adjustable Frame

  • 4.75'' wide frame is adjustable to different lengths: from 73'' to 112''.

 Universal mounting

  • Can be installed on most major brands of A.T.V. in less than 4 minutes.
  • Uses chains with straps or brackets to hook up to the front axle and attaches on to the rear tow hitch ball.

 Electric lift

  • Uses the vehicle's winch (not included).

Dolly wheel


  • Dolly wheel frame supports the weight of the snowblower so there is no added weight to the vehicle.
  Specifications
700460test 20100256142056



Lift

Uses the vehicle's winch (not included).		 Dimensions

54 in x 19 in
Weight

350 lbs

Warranty

• Residential Use : 1 year

• Semi-commercial, Professional or Rental Use: 90 days
1  Deflector

Raises & lowers electrically from the driver's seat.


2  Chute

Turns 210° electrically from the driver's seat.		 3  Frame

Made of 12 & 16 gauge steel assuring a long hard working life.
4  Impeller

High speed impeller (15", 4 blades) propels snow to great distances. Protected by a shear bolt system.

 5  Auger

Powerful saw tooth style slices through any type of snow with ease. Protected by a shear bolt system.
6  Gear Box

No maintenance worm type heavy duty gear box

 7  Bushings

All rotating components are mounted on bushings to facilitate replacement when needed.
8  Motor

Not included. 15 to 23HP engine with horizontal crankshaft of either 1'' or 1 1/8'' for winter use with muffler exhaust directed towards right is recommended.

 9 Scraper Bar

Made of heavy duty steel. Reversible for double life span and replaceable when needed. Protects base of snowblower.
10 base

Double layered to reinforce the snowblower against damage if striking obstacles.

 11  Skid Shoes

Large shoes allow gliding over various terrains with ease. Adjustable and replaceable.

12  Rear View

Quick Hook up

•  Rear hicth: extendible frame hooks up to the rear ball hitch.

• Chains with straps or brackets (brackets stay on permanently) attach to the front axles.

• Dolly wheel frame supports the weight of the snowblower so there is no added weight to the vehicle.





Specifications
Model
VERSATILE PLUS 54
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Bercomac
