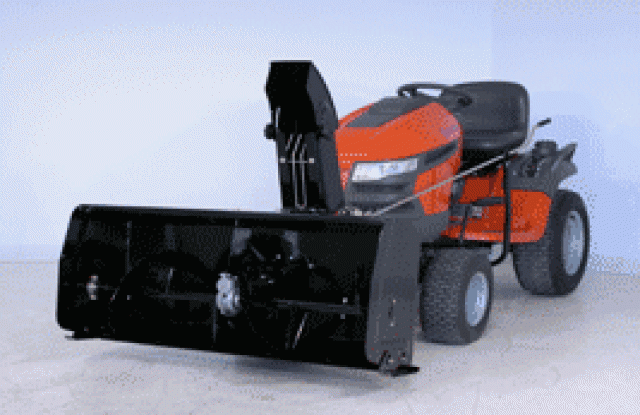

Bercomac NORTHEAST Snowblower Manual Lift

  • Bercomac NORTHEAST Snowblower Manual Lift
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
 NORTHEAST Snowblower Manual Lift
44" Model - # 700374-3
48" Model - # 700378-3

TAKE A SEAT AND LET THE FUN BEGIN, YOU'LL WANT IT TO SNOW.


This snowblower will surprise you to say the least. It is recommended for property owners with long driveways or for areas where snowfall is heavy and abundant. All controls are operated from the driver's seat.

  Requires
Designed for tractors from 16 to 28 HP. Requires a subframe and drive kit. Rear counterweights and tire chains are required for safety and traction (see options section for more details
  Durability

HEAVY DUTY Gear Box

  •  Assures performance in any type of snow removal and requires no maintenance.

 Shear Bolts

  • Equipped with shear bolts which is a preventive measure to reduce the risk of damage when a solid object is picked up but vigilance on the part of the operator is your best assurance against accidents or damage.
  Endurance
Berco snowblowers were designed and built to be run at the speed of the tractor. Its double layered base along with other reinforcements will help reduce damage when an obstacle is hit.
  Performance

Berco TWO STAGE Performance

  • 1ST STAGE
    Is the powerful saw tooth auger which breaks through any type of snow with ease.
  • 2ND STAGE
    Is the impeller that turns at a high RPM which propels the snow to further distances.
  Installation
  • Bolt on the subframe ONCE & FOR ALL
  • Clip on the drive mechanism
  Benefits

Controls at your fingertips

  • Engage the snowblower by activating the same system as the mower deck of the tractor.
  • Turn the chute to the left or right by using the handle located to the left of the driver.

 Manual Lift


  • Lifts easily with lever located to the right of the driver.

  Quick Installation

  • Once the bolt-on-brackets are mounted to the tractor, they may remain on permanently with no interference with the mower deck.

  One Mounting For All

  • Use the same mounting to install the other Berco accessories such as the Rotary Broom and the Blades.
  Specifications
700374e 20100230121130



Lift

Electric This system is activated by an electric winch controlled from the driver''''s seat, included with the subframe.

Dimensions

 44'': 44'' x 21''

48'': 48'' x 21''
Weight

Northeast 44'': 250 lb
Northeast 48'': 290 lb

Warranty

• Residential Use : 1 year

• Semi-commercial, Professional or Rental Use: 90 days
Powder coating

Black powder coat is baked on for a long rust free life.		 1  Spout

Adjustable by simply turning a knob to adjust the height at which snow is projected.
2  Chute

Mounted on anti-friction ring for easy rotation of 237°. Controlled from driver's seat.		 3  Housing

Made of 12 & 16 gauge steel assuring long hard working life span.
4  Impeller

High speed impeller (13?, 4 blades) propels snow to great distances. Protected by a shear bolt system.		 5  Auger

Powerful saw tooth style slices through any type of snow with ease. Protected by a shear bolt system.
6  Scraper

Made of heavy duty steel.
Reversible for double life span and replaceable when needed. Protects base of snowblower.		 7  Base

Double layered to reinforce the snowblower against damage if striking obstacles.
8  Skid Shoes

Large shoes allow gliding over various terrains with ease. Adjustable and replaceable.		 9  Bushings

Bushings have been inserted (plastic on auger shaft) & (brass on the fan shaft) to prevent wear on the rotating parts and to facilitate replacement of parts when necessary.
10 Gear Box

No maintenance worm type heave duty gear box.
11 Rotation Handle

Allows to turn the chute while sitting in the driver's seat.





Specifications
Model
NORTHEAST Snowblower Manual Lift
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Bercomac
