Bear Cat

ID # 13356399

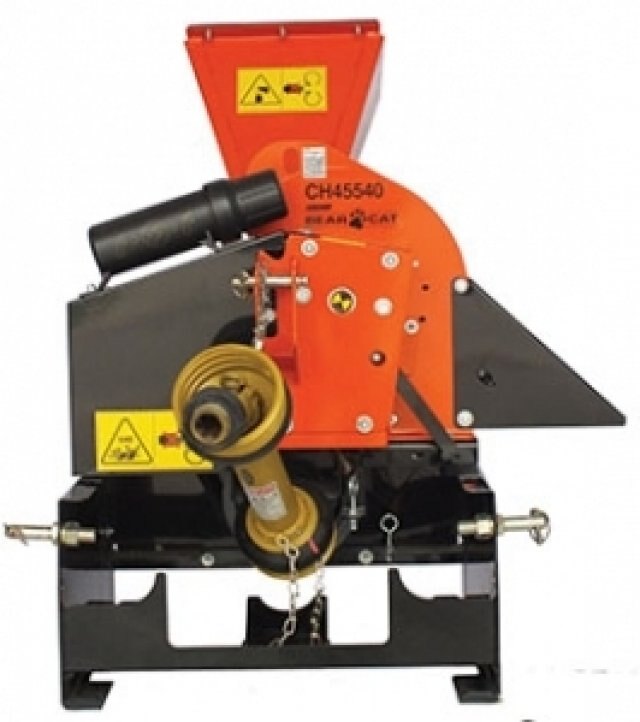

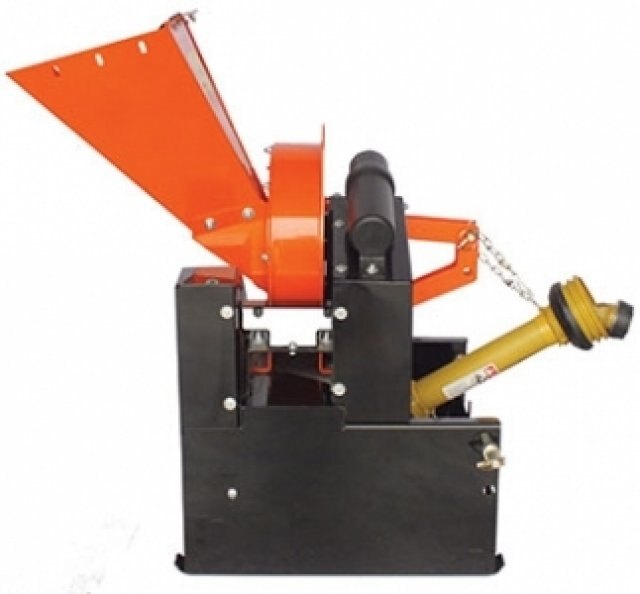

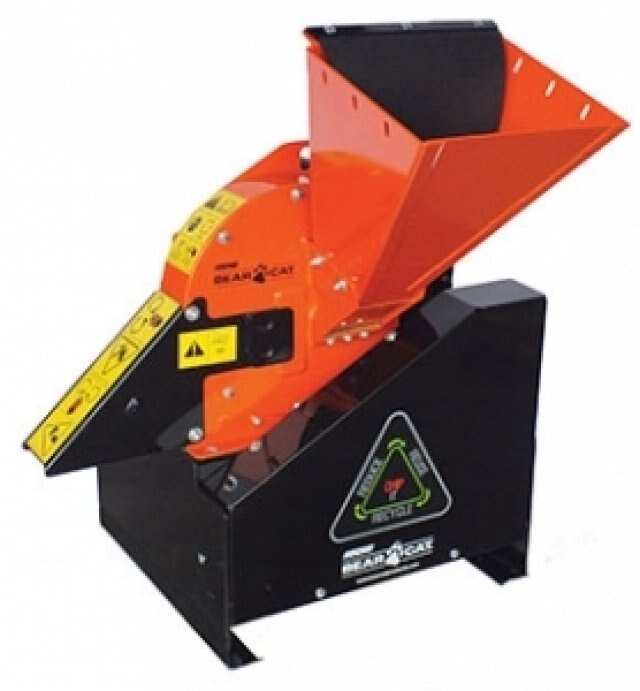

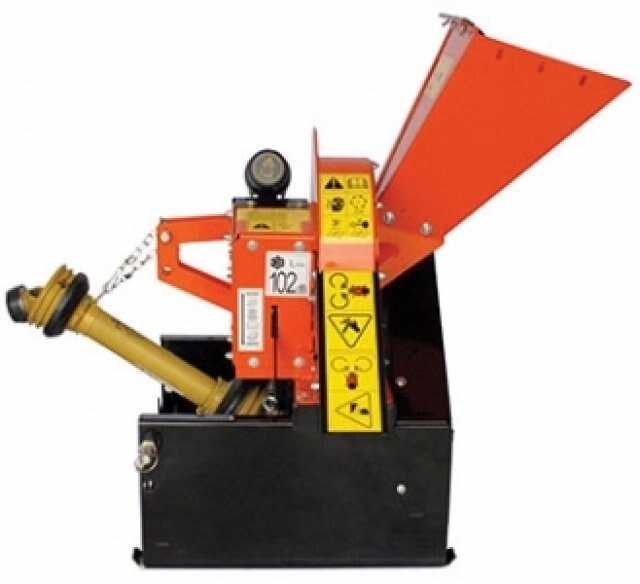

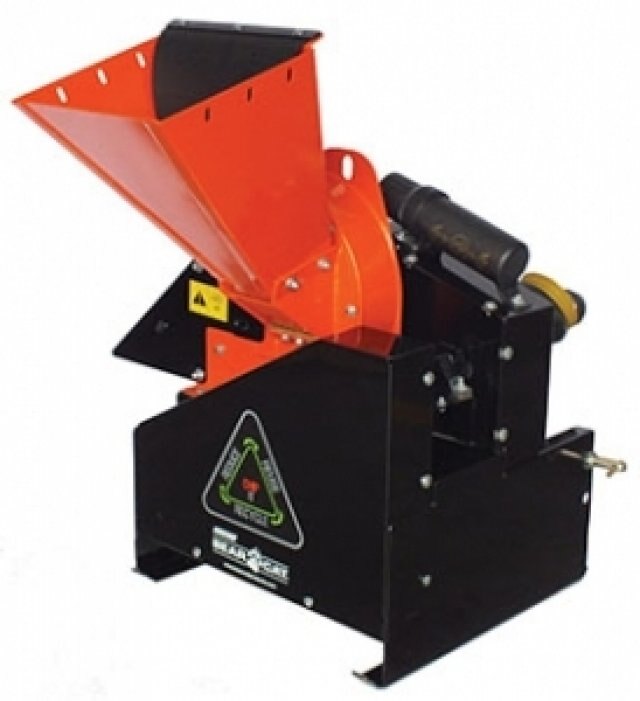

ECHO Bear Cat CH45540 4.5 Inch PTO Chipper

Videos
Call for Price
Overview

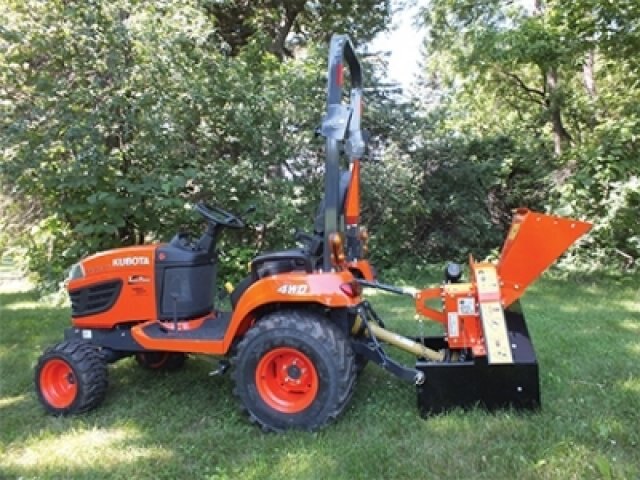

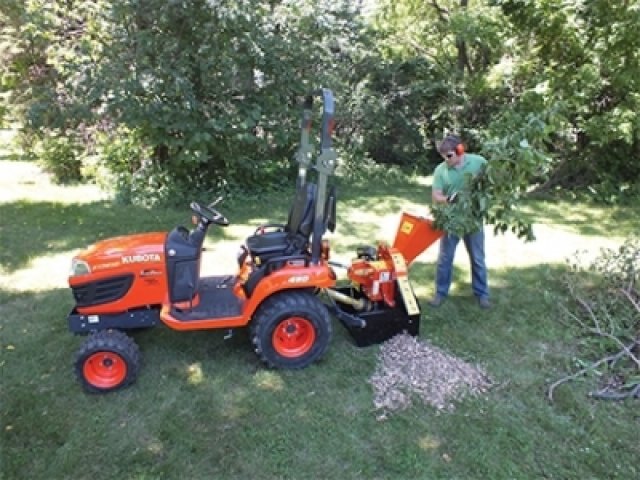

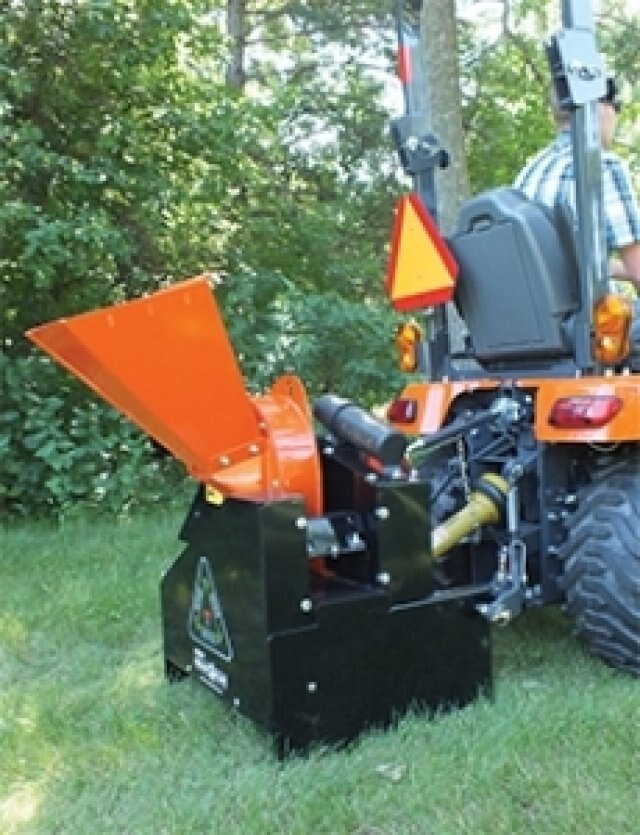

 The ECHO Bear Cat CH45540 is the perfect match for your compact tractor. It's built with heavy-duty, 7-gauge steel. The 14 x 1 inch thick, 49 pound dynamically-balanced rotor utilizes two reversible heat-treated chipper blades and is driven by a double-banded belt for maximum power transfer. The cantilever mounted rotor design helps reduce wrapping while chipping wet, stringy wood types.

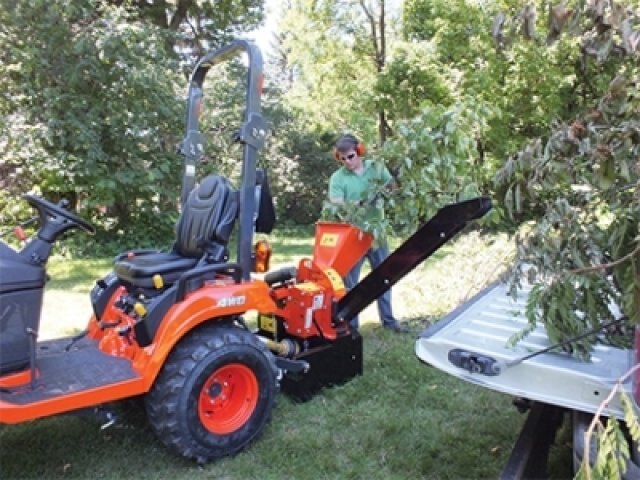

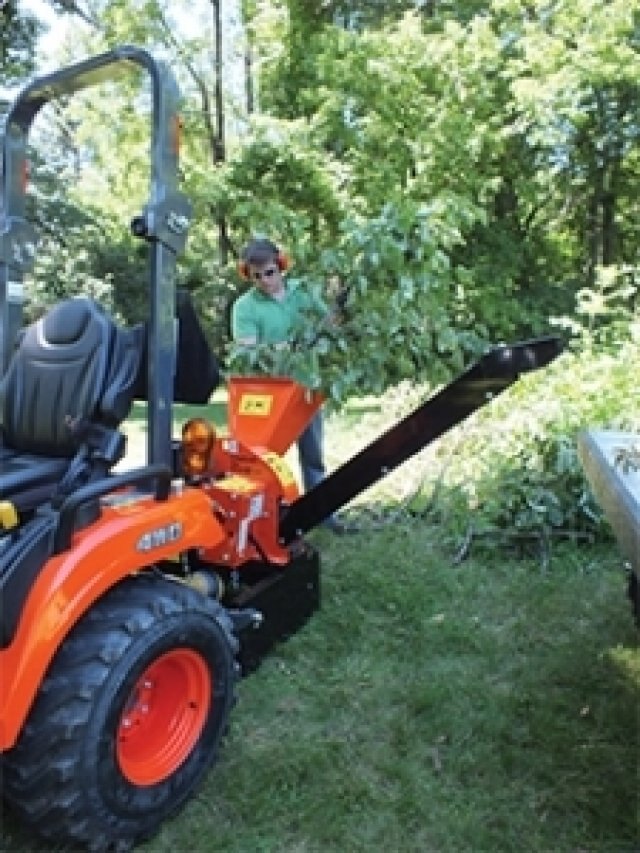

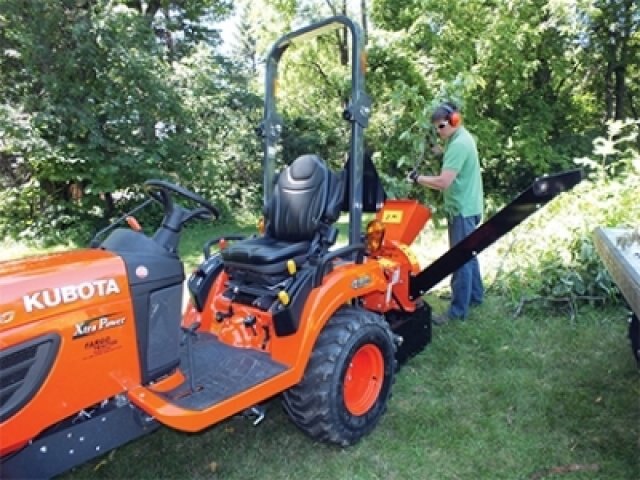

Also available is an optinoal 4.5 x 4.5 inch truckloading discharge chute with deflector cap. This optional chute directs the chips and raises the discharge of chips into the trailer or back of a pickup.
Specifications
Model
CH45540 4.5 Inch PTO Chipper
Category Name
Lawn / Garden
Year
2017
Sale Type
New
Manufacturer
ECHO Bear Cat
Chipper Capacity (in)
4.5
L X W X H (in)
40 x 41 x 44
Weight (lbs)
361
Chipper Disc
Cantilever 14x1/49 lbs., rotates at 2,000 rpm
Feed Opening
4.5 x 5
Feed System
Gravity/Self Feed
Chipper Chute Opening (in)
13 x 14.5
Chipper Blades
2 reversible heat treated steel chipper blades with 4 sided adjustable anvil
Rotor Weight (lbs)
49
PTO HP Required
15-28 HP
Drive Belt
Double-Banded
