Bear Cat

ID # 13355381

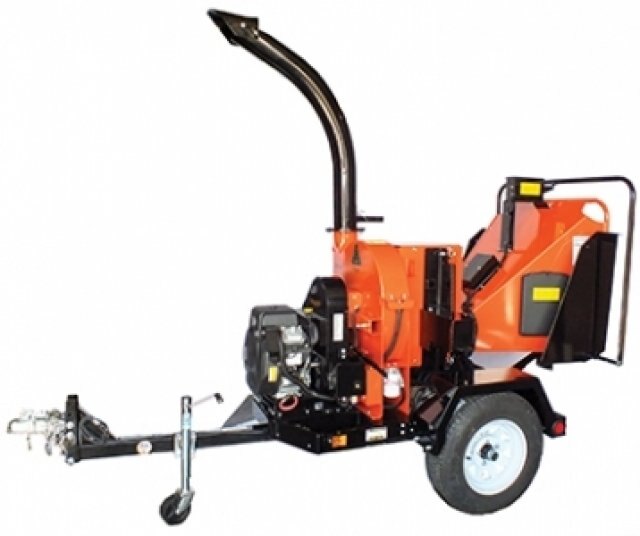

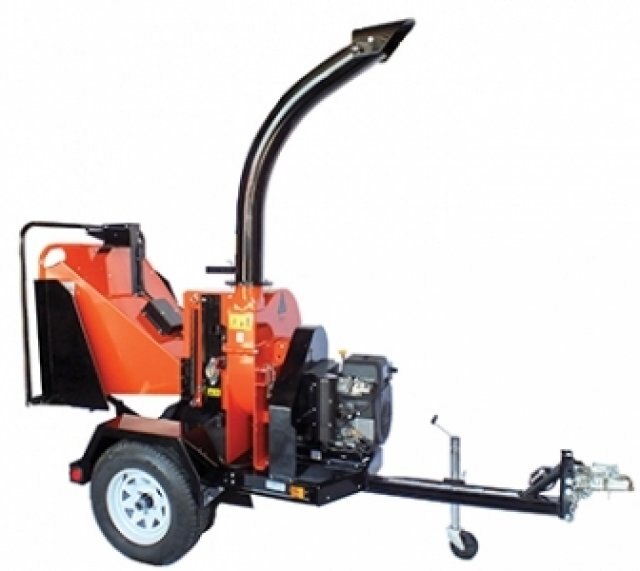

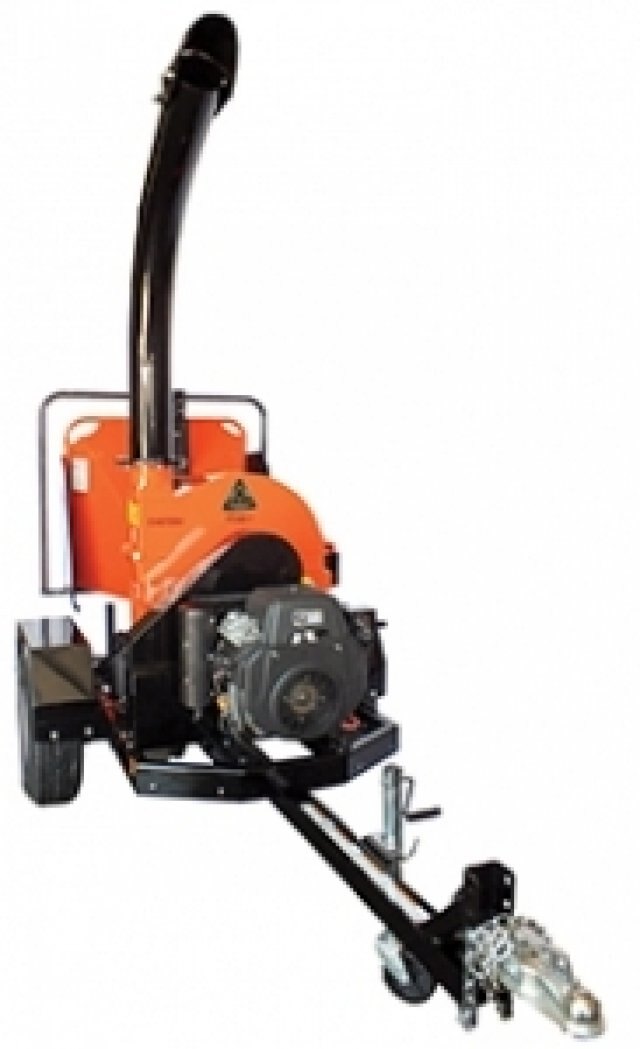

ECHO Bear Cat CH6720H 6 Inch Chipper

Videos
Call for Price
Overview
 This 6" capacity commercial chipper is hydraulically fed and features a distinctive 6.5 x 13 inch wide feed opening to accommodate larger brush and tree trimmings. It is powered by an electric start, 720cc Subaru engine for reliable starting, more horsepower, reduced fuel consumption and long life.

The CH6720H also features a unique cantilever mounted rotor. This “propeller” style mounting design allows a user to chip wet or stringy wood types with less tendency of product twist or wrap.

The chippers’ hydraulic feed system is electronically controlled. If the rotor speed drops below optimal operational RPM range, the controller pauses the feed roller to allow the rotor to regain speed, and then restarts feeding once optimal rotor RPM is achieved. This AutoFeed function allows for less fatigue on wear parts and maximizes efficiency.

The CH6720H’s 165 lb. rotor comes equipped with four reversible, heat-treated steel chipper blades. The four-sided striking anvil is adjustable, allowing for the blades to maintain a sharper cutting edge longer and reduce repairs and blade replacement costs.

The CH6720H is a great fit for tree and landscape service operators as well as the perfect mid-size chipper for municipalities and rental companies.
Specifications
Model
CH6720H 6 Inch Chipper
Category Name
Lawn / Garden
Year
2017
Sale Type
New
Manufacturer
ECHO Bear Cat
Engine Size
720 cc
Chipper Capacity (in)
4-6
L X W X H (in)
126 x 57 x 104
Weight (lbs)
1656
Chipper Disc
Cantilever 26x1/165 lbs., rotates at 1,800 rpm
Feed Opening
6.5 x 13
Chipper Blades
4 reversible heat treated chipper blades with 4 sided adjustable anvil 4
Rotor Weight (lbs)
165
Engine Make
Subaru EH72
Engine Start Type
Electric Start
Drive Belt
Triple-banded
Fuel Capacity
9 gal.
Fuel Type
Gas
Tires
P205-75R14
Wheel Base (in)
50
