Bauma Light

ID # 13812451

Bauma LightS 3-point hitch PT440

Videos
Call for Price
Overview

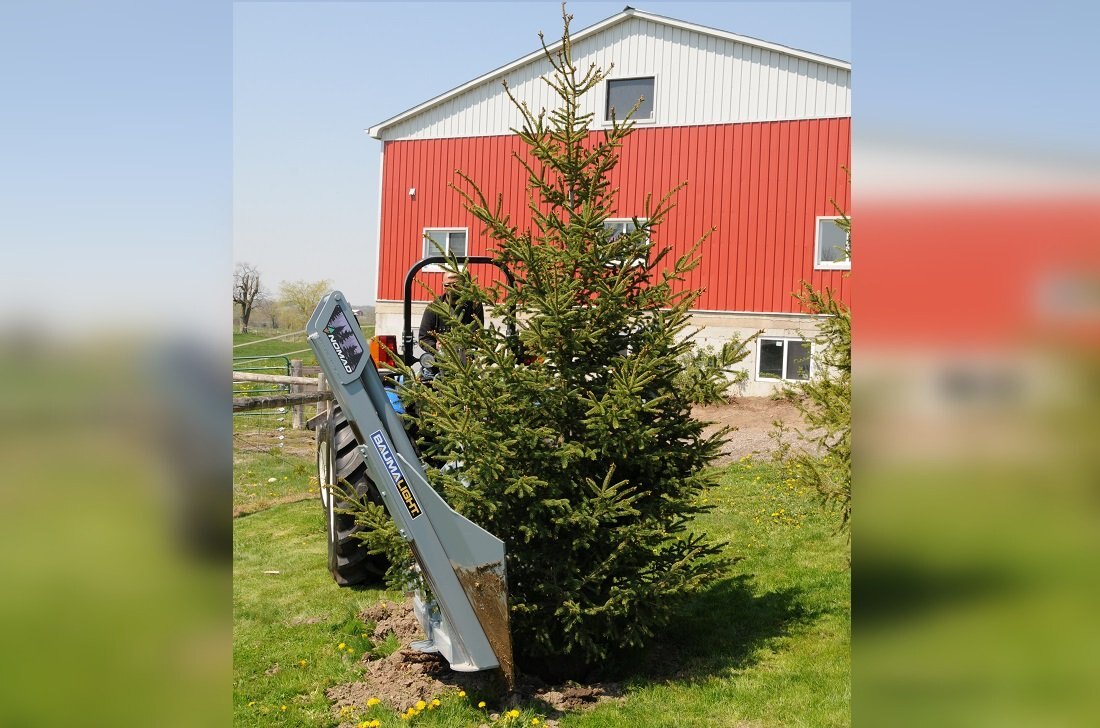

Four blades and dual-hinged outer frame arms immediately make the Nomad PT440 tree spade stand out. The wide blade position gives the operator a comfortable and clear view of the spading action, which is incredibly important when transplanting evergreen trees and minimizing damage to the lower branches. To avoid any unnecessary damage or trauma to the tree, the dual tree hugger hinged frame arms allow the operator to take extra care while positioning the tree spade. The PT440’s spades are made of 1/4" high alloy steel that hardens with use for reliable digging and compacting performance.

AR400 Steel

Nomad PT440

  • 4" Evergreen
  • 3" Hardwood
  • Wheeled Skidsteer - 7000 lbs
  • Tracked Skidsteer - 6500 lbs
  • Wheel Loader - 6000 lbs Min.
  • 3PH - 6000 lbs Min.
  • Tractor Loader - 7800 lbs Min.
  • Backhoe - 6000 lbs
  • Telehandler - 6000 lbs


Power Built-In

The 3-point hitch mount is designed for power and function. Attached to your tractor by a rigid top link and the lower arms in their lowest position, this rugged power house is ready to take on all the heavy lifting and positioning. The built-in hydraulics are designed to provide, tilt for positioning, down pressure to help keep the frame in position and lift to get the Nomad out of the hole. These powerful tools are also field installable, meaning you can add 3PH mount to an existing Nomad.

  Features


AR400 Steel

Anti Slip

Non slip step pads for easy entry.

AR400 Steel

JIC Fittings

Secure hydraulic conectios and easy servicing.

AR400 Steel

Sleeved Hoses

All hoses are sleeved for operator and hose protection.



AR400 Steel

Powder Coat Finish

Heavy-duty construction and a durable powder-coated finish.

AR400 Steel

Lifting Eye

Lifting eyes for easy storage and transport.

AR400 Steel

Semi Truncated Blades

The most utilitarian blade style that provides a narrower bottom cut for the root ball. These blades also provide greater soil penetration in clay with better compression to to hold sandier soils.

AR400 Steel

Cylinders Push for Maximum Efficiency

AR400 Steel

Universal Skidsteer Adaptor

AR400 Steel

Bolt in Tractor Loader Adaptor

Note: Not included in Price of Spade

AR400 Steel

Optional Stabilizer for Various Root Ball Sizes

Can be field installed. Adjustments at 6", 8", and 10".

AR400 Steel

Optional Outrigger for Skidsteer

Ships with weld-on plate.

AR400 Steel

Power Built-In

Attached to your tractor by a rigid top link and lower arms, the built-in hydraulics are designed to provide, tilt for positioning, down pressure to help keep the frame in position and lift to get the Nomad out of the hole.

AR400 Steel

Wide Range of Control Options

Increase the efficiency of your tree spade operation with the Controls line of remotes from Baumalight.

AR400 Steel

HARDENED STEEL BUSHING

Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.

AR400 Steel

Greaseable Pins

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.



Specifications
Model
PT440
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Tree Size (Evergreen)
4''
Tree Size (Hardwood)
3''
Root Ball Diameter
40''
Root Ball Depth
30''
Opening (Width)
52''
Blade Angle (Degrees)
25°
Number Of Blades
4
Slides
Steel
Weight
1934
Weight With Root Ball
3134
