Overview

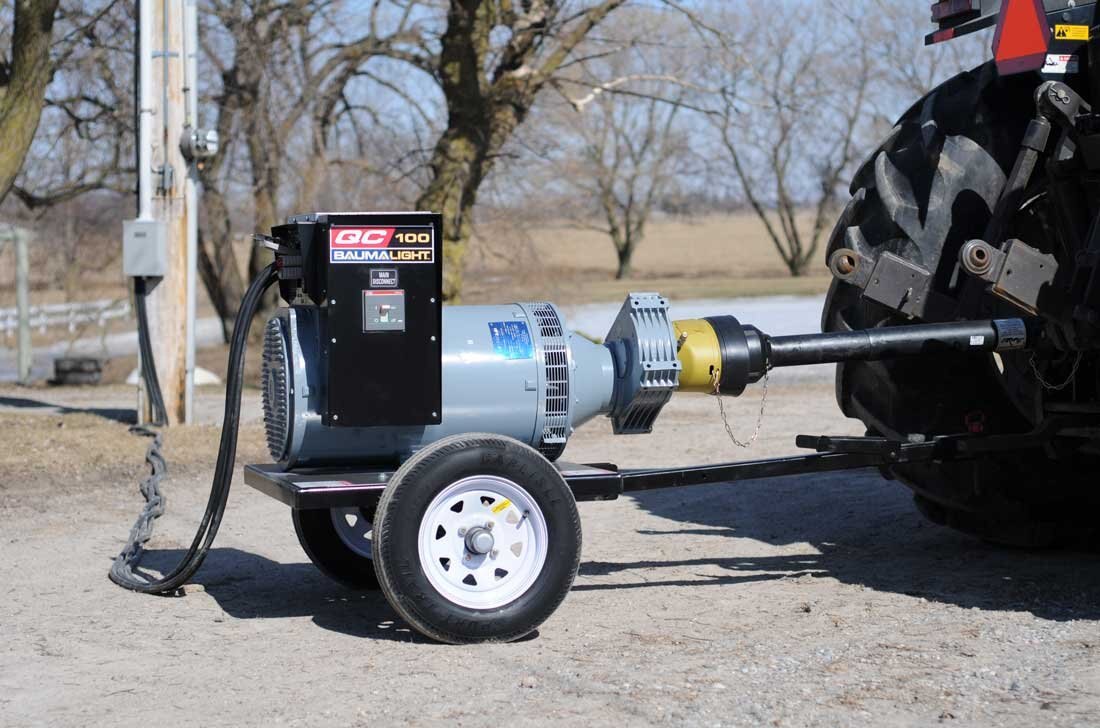

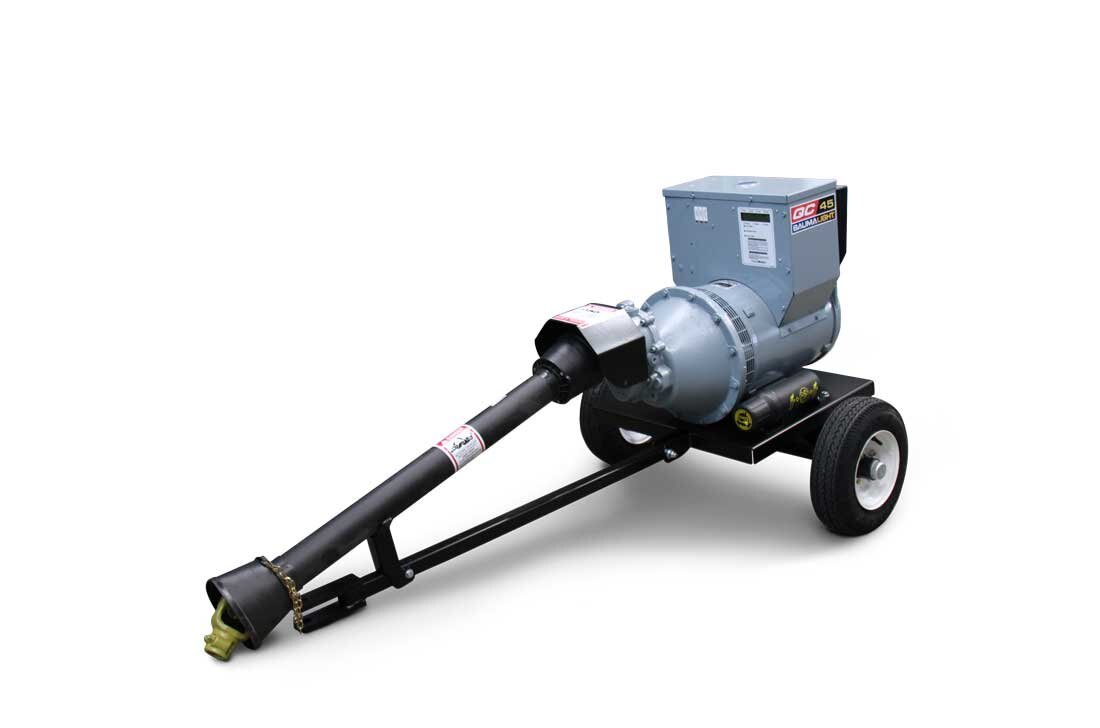

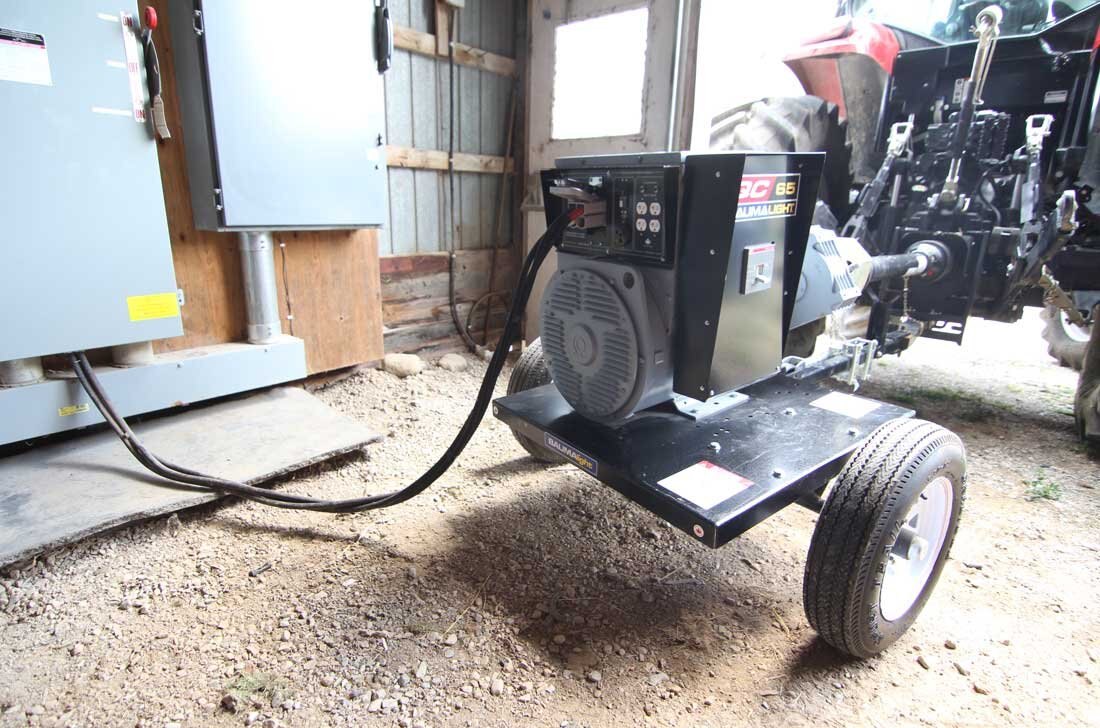

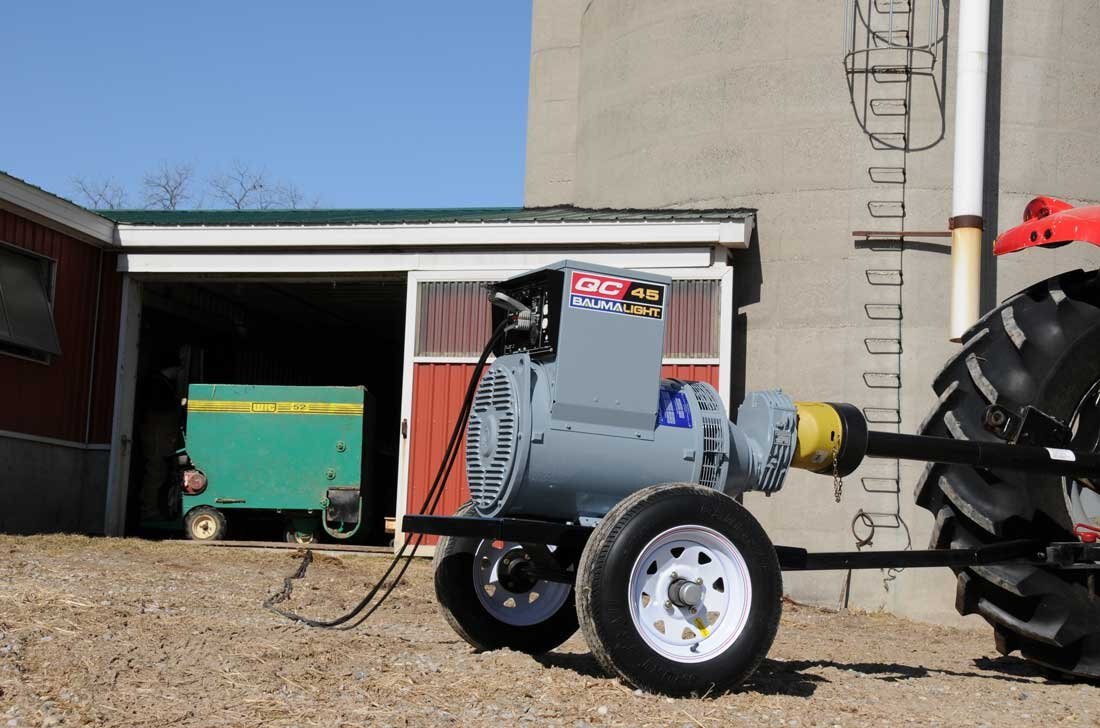

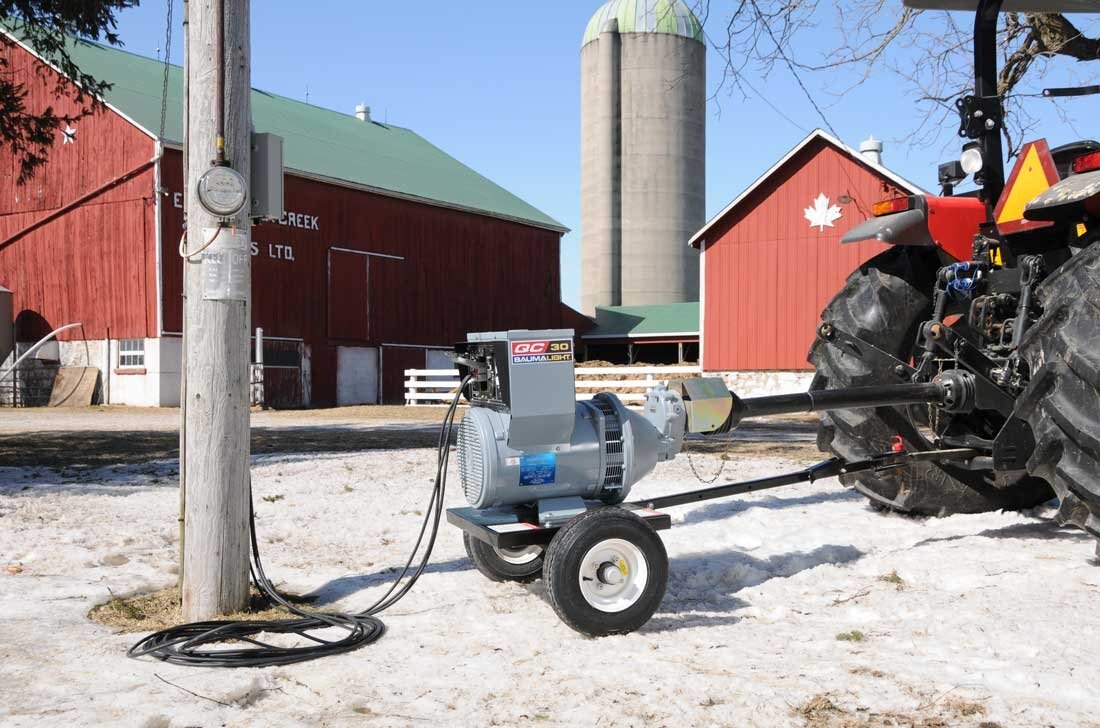

Baumalight Generators put the power in your hands – whenever you need it.

Our extensive line-up of portable QC generators is designed to fit tractors from 20 to 200 horsepower and support power requirements from 12 kilowatts to 100 kilowatts – ideal for powering smaller appliances as well as large equipment motors on your farming operation.
Featuring automatic voltage regulation, 4-pole copper windings and a high momentary surge KW, the QC generator’s large frame and weight allow it to provide outstanding electric motor starting power.
 Features
QC Generators outlets

PLUG IN & POWER UP

QC Generators keep your operation going.
QC Generators outlets

SOURCE FOR POWER

QC Generator connection panels come with Full Load connectors with a lockable cover and multiple receptacles with overload protection for safe, simple operation.
QC Generators outlets

QC PERFORMANCE

Designed to meet the needs of your operation, the QC Generators are built for 24 Hr 7 day a week dependability.
QC Generators outlets

DISPLAYMASTER1

Designed exclusively for Baumalight QC generators, the DisplayMaster1 is your guide for quick, easy setup and an "at a glance" monitor of key performance factors.


QC Generators outlets

Reset circuit breakers

Baumalight’s Reset Circuit Breakers protect against short-circuit damage.
QC Generators outlets

Brushless Design

For improved and reliable performance, the brushless design on your QC generator provides efficient operation with the same power output as conventional brushes, but which are lighter, less noisy and require less maintenance over time without the added risk of sparks
QC Generators outlets

4 oversized Copper Windings

Baumalight QC generators run on four oversized copper windings, reducing the RPM of the unit and increasing the quality and stability of the power – giving you nearly three times the momentary surge capacity over their rated power, with the exception of the QC12 and QC19 models.
QC Generators outlets

Internal speed at load

The durable QC gear box turns the tractor’s PTO RPM into 1,800 RPM internally.
QC Generators outlets

Lower Operating Speed

The QC gear box turns the tractor’s PTO rpm into 1,800 rpm internally. This lower operating speed increases duty cycle and operating life and means less friction, heat, and wear over a longer period of time.
QC Generators outlets

Speed indicating lights

Make set up quick and easy.
QC Generators outlets

Automatic voltage regulation

Our automatic voltage regulation keeps power stable within 1% plus or minus from 64 down to 56 Hz, allowing for near constant voltage in the case of an unexpected load variation. This protects your generator from harm and provides a superior quality of power regardless of your property’s varying power requirements.
QC Generators outlets

High momentary surge

The QC offers high momentary surge capacity up to three times over their rated power.
QC Generators outlets

Full Load Connector with locking cover

The QC Generator connection panel features full load connectors with a lockable cover and multiple receptacles with overload protection for safe and simple operation.
QC Generators outlets

20 amp duplex receptacle

Some models of QC Generators come with 2 x 20 amp duplex receptacle for additional versatility.
QC Generators outlets

50 amp welder receptacle

Some QC generator models come with a 50 amp welder receptacle, allowing you to transport your portable QC generator and plug it into a welder for remote repairs on your farm equipment.
QC Generators outlets

Drip Proof design

The drip-proof design features ventilation on the sides of the generator, allowing air to circulate through the generator but prevents drops of liquid from falling inside.
QC Generators outlets

Limited 2 Year/2000 hour Warranty

All Baumalight QC generators come with a Limited 2 year/2,000 hour warranty.
QC Generators outlets

10Ft cord
QC Generators outlets

Crated
QC Generators outlets

Gearbox
QC Generators outlets

Option to mount on concrete
QC Generators outlets

Powder Coated Trailers
QC Generators outlets

Sheilded PTO
  Specs


Model No. Connection KW Momentary Surge KW 50% Load 100% Load RPM Welder Recept Voltage Volts Full Output Amps Phase Shipping Weight(lbs)
QC 12 Dedicated 12 25 9HP 21HP 540 240 120/240 50 1 645
QC 19 Dedicated 19 35 16HP 34HP 540 240 120/240 90 1 685
QC 30 Dedicated 30 85 20HP 49HP 540 240 120/240 125 1 750
QC 45 Dedicated 45 120 31HP 75HP 540 240 120/240 175 1 941
QC 55 Dedicated 55 150 42HP 89HP 540 240 120/240 225 1 1089
QC 65 Dedicated 65 180 48HP 102HP 540 240 120/240 250 1 1156
QC 80 Dedicated 80 225 55HP 122HP 1000 240 120/240 320 1 1358
QC 100 Dedicated 100 300 71HP 153HP 1000 240 120/240 400 1 1450

QC 30-2 Parallel Low WYE 30 85 20HP 49HP 540 208 120/208 100 3 779
QC 45-2 Parallel Low WYE 45 120 31HP 75HP 540 208 120/208 150 3 980
QC 68-2 Parallel Low WYE 68 190 50HP 105HP 540 208 120/208 250 3 1159
QC 105-2 Parallel Low WYE 105 315 72HP 155HP 1000 208 120/208 400 3 1474

QC 30-3 Series High Delta 30 85 20HP 49HP 540 240 120/240 90 3 779
QC 45-3 Series High Delta 45 120 31HP 75HP 540 240 120/240 150 3 980
QC 68-3 Series High Delta 68 190 50HP 105HP 540 240 120/240 225 3 1159
QC 105-3 Series High Delta 105 315 72HP 155HP 1000 240 120/240 320 3 1474

QC 30-4 Series High WYE 33 85 20HP 49HP 540 n/a 277/480 50 3 779
QC 45-4 Series High WYE 50 120 31HP 75HP 540 n/a 277/480 70 3 980
QC 68-4 Series High WYE 76 190 50HP 105HP 540 n/a 277/480 125 3 1159
QC 105-4 Series High WYE 113 315 72HP 155HP 1000 n/a 277/480 150 3 1474

QC 27-6 Dedicated 27 45 18HP 47HP 540 n/a 347/600 35 3 779
QC 50-6 Dedicated 50 130 35HP 80HP 540 n/a 347/600 60 3 1010
QC 75-6 Dedicated 75 200 52HP 110HP 1000 n/a 347/600 90 3 1175
QC 100-6 Dedicated 100 300 71HP 153HP 1000 n/a 347/600 150 3 1474
