Overview

Attack pruning, trimming and clearing
from a different angle.

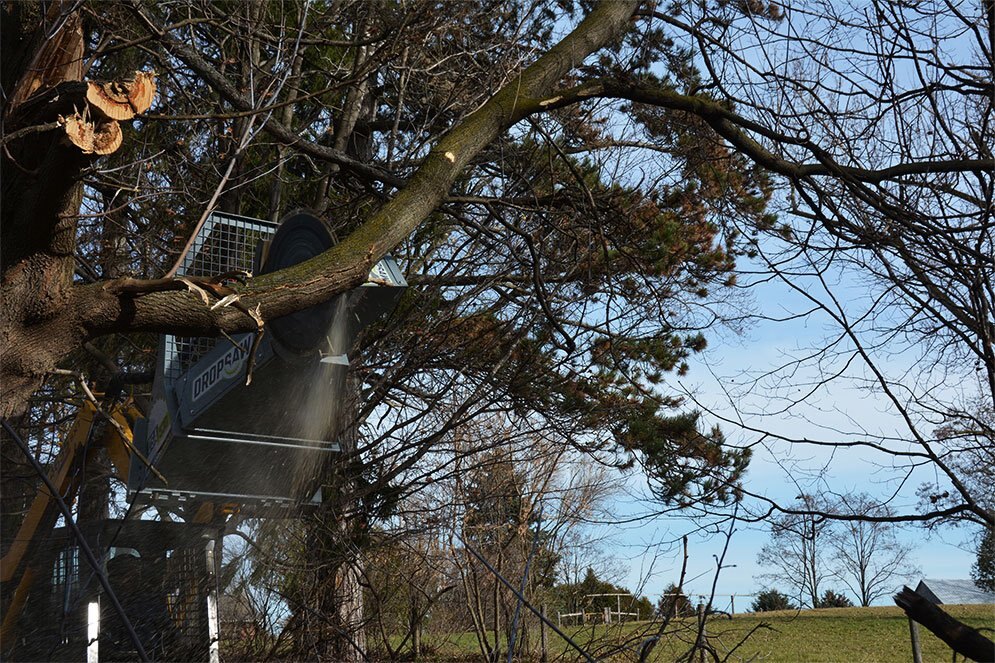

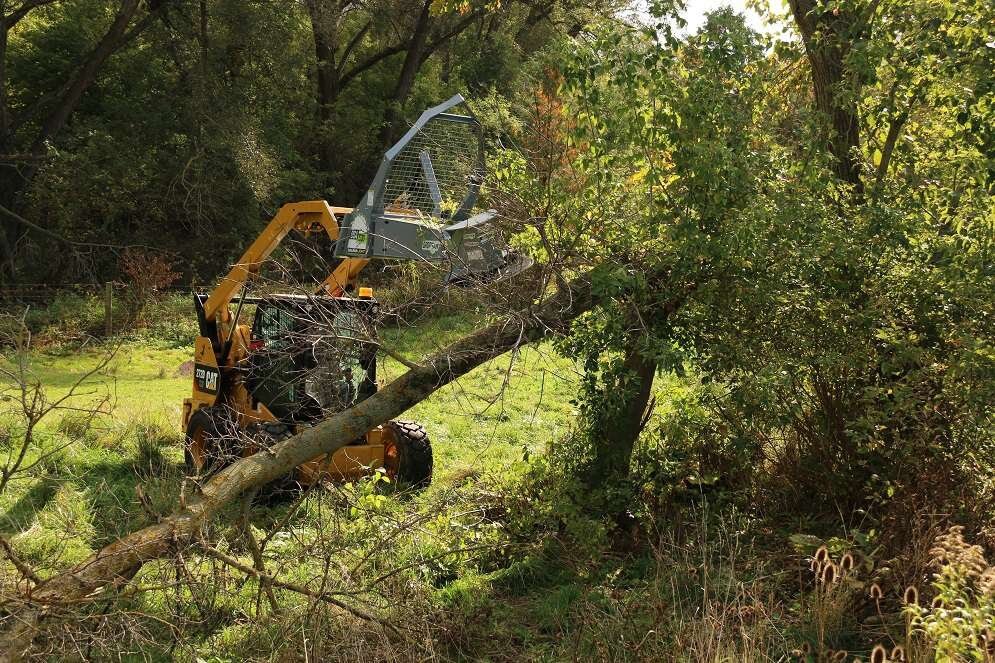

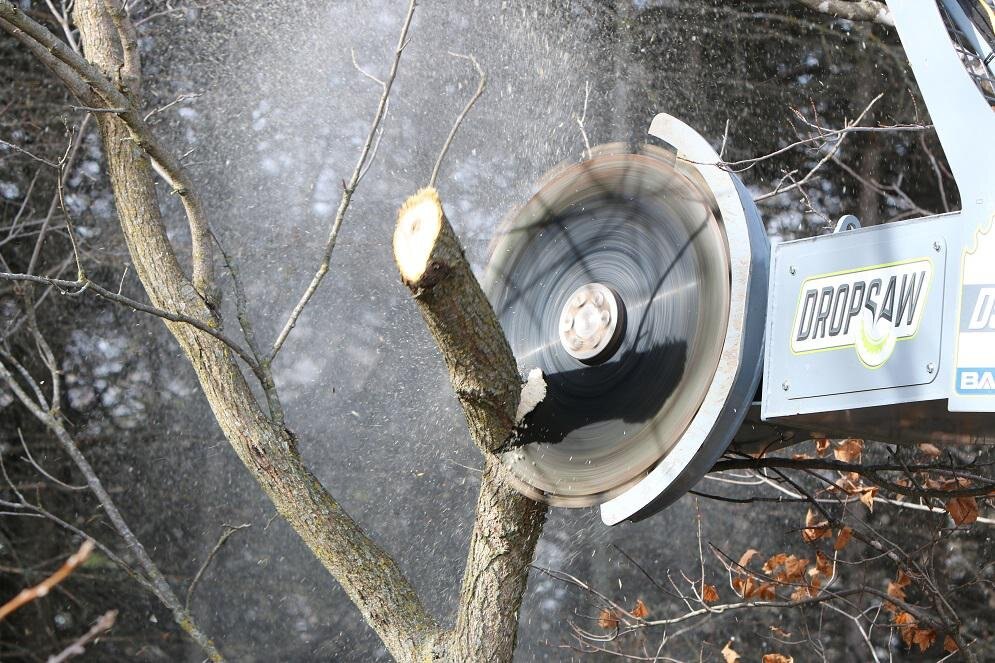

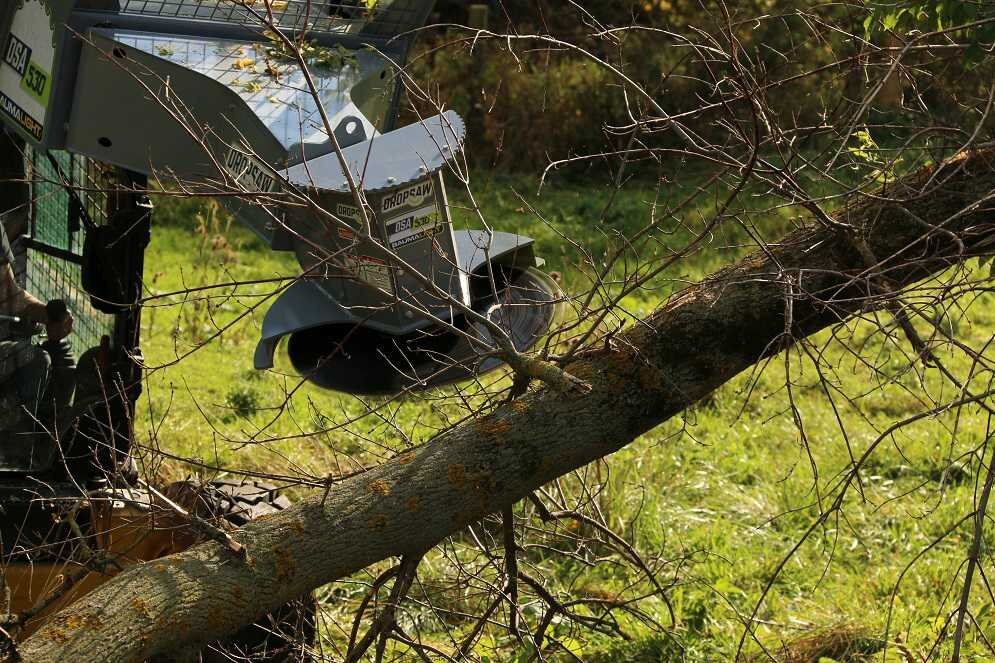

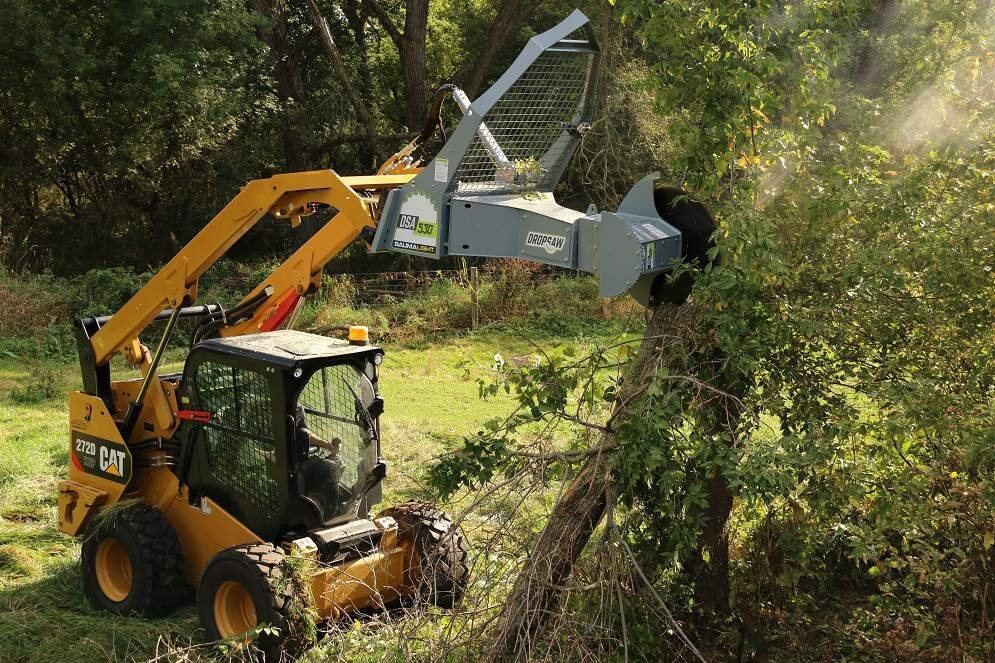

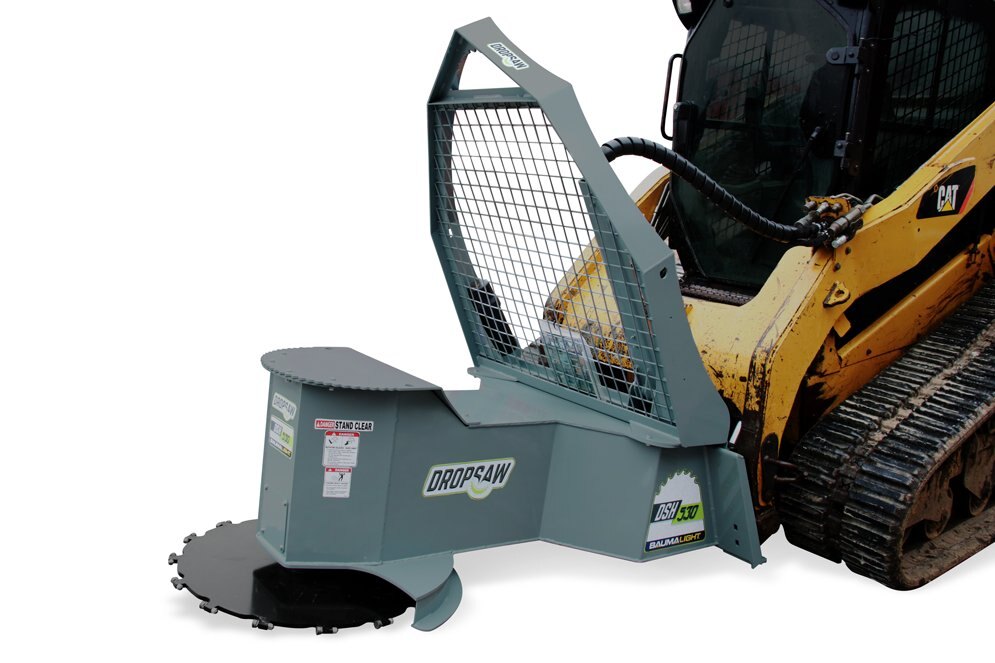

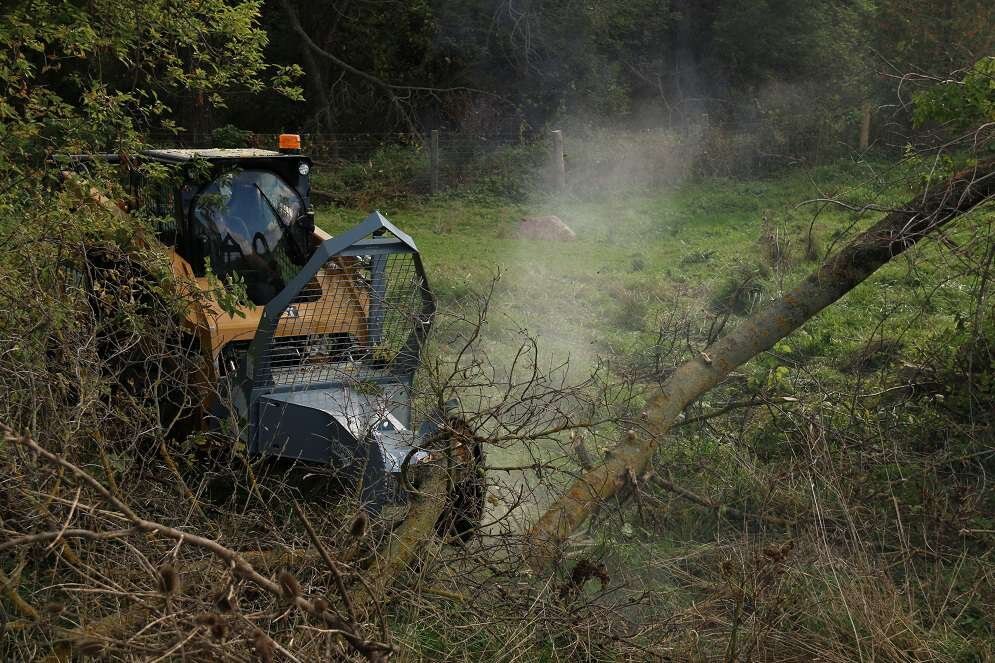

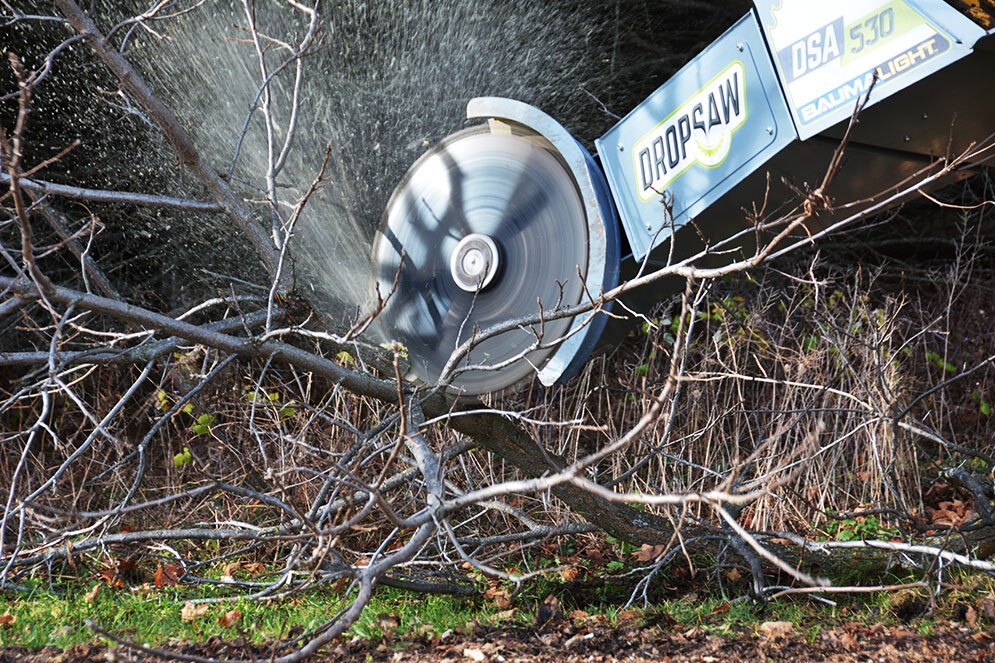

DropSaw is a hydraulic-driven tree saw with a rotating cutting head for your skid steer or excavator. The high-speed circular blade features replaceable carbide teeth for improved durability and precise cuts. The available 180 degree rotating cutting head offers precision and control to make quick and clean work of trimming and limbing. With the blade horizontal, the powerful DropSaw can clear brush and shrubs efficiently and take down small trees with ease. Heavy duty construction and serious hydraulics make DropSaw a fierce tool from any angle.
  Features
Excavator Mount

Bent Axis Piston Motor

Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.

Bent Axis Motor
Armoured and Sleeved Hoses

All hoses are sleeved for operator and hose protection.






Bent Axis Motor
Angled Push Bar with Protective Mesh

The large push bar with integrated safety mesh is angled to help guide any falling debris away from the operator.





More Teeth
AR400 Steel Blade

The DropSaw’s heavy duty circular blade is designed and shaped from AR-400 steel. This abrasion resistant steel is rugged and ready for the abuse of a long service life.



Rotor

Protective Powder Coat Finish

Heavy duty construction and a durable powder coated finish.






More Clearance
Front Push Bar

A solid serrated steel plate up front helps guide limbs, branches and small trees safely away from the operator.






Blast Shield

Anti-Slip Mat for Easy Access to Cab

For ease of entry and exit from the cab an anti-slip strip gives sure footing.






Blast Shield
Internal Hose Routing

All of the hydraulic hoses on the DropSaw are sleeved for operator and hose protection while the connecting hoses are sleeved and wrapped in hose armour for double protection. The hoses are then routed internally, keeping them out of harm’s way. The DropSaw also features a pivoting arm with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.

Blast Shield
Rubber Shock Mounts

The DropSaw features rubber shock mounts that protect the life of the DropSaw’s motor and provides the operator with optimal comfort during operation.



Blast Shield
Green Teeth

The concave shaped carbide tip provides aggressive limb and small tree sawing action by cutting through any type of wood bit by bit. Part of the secret of their performance is always having a sharp edge to make sawing easier. Sharper edges result in aggressive cutting and these round carbide tipped teeth can be rotated up to three times to provide renewed cutting performance. This gives you 3 times the wear, letting you work 3 times longer.



Blast Shield
Easy Teeth Changing

The green teeth design allows for easy rotation and changing of the teeth as needed.



Blast Shield

Rotating Head with Helical Actuator

Available with 180º rotating cutting the head, powered by a rotating helical actuator offers precise control for quick, clean trimming and limbing.

Blast Shield
AUX Electrical Connection for In Cab Control

For simple in cab control, the DSA530 is available with Baumalight's Auxiliary Electrical Connection. This connection gives you simple quick connections and access to all the attachments functions using your machine's own controls.
Blast Shield
Greaseable Pins

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.




Specifications
Model
DSV530
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Number Of Teeth
15
Weight
900 lbs
ADAPTOR
UNIVERSAL SKIDSTEER
Blade Angle
Horizontal
Rotation
Fixed
Actuator
-
GPM
18–35
PSI
4,000
Hydraulic Hose
Supplied
Hydraulic Couplers
Not Supplied
Motor Option
T530
Blade Diameter
30''
Blade Material
AR400
Limb Size
10''
Cut Thickness
3/4''
Type Of Teeth
Green Teeth
Edges Per Tooth
3
