Bauma Light S14

  • Bauma Light S14
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Mini Excavator mounted Stump Grinder - S14

The S14 skid steer stump grinder is designed to go on both mini skidsteers and mini excavators. With a quick pull of two pins, a standard size skidsteer plate can be put on as well. The direct flow hydraulic drive is designed to provide the best torque and RPM to the cutting head as no flow is diverted to a swing cylinder. The S14 features green carbide teeth which can be rotated three times, letting you grind stumps longer. The unique positioning of the rotor allows the operator an excellent view of the stump grinding action, and the heavy duty fixed deflector safely directs the flow of debris. Cutting depth is up to 10" below ground. The S14’s size makes it ideal for grinding in tight areas, and a great choice for smaller carriers.
  Features
Excavator Mount
Excavator Mount

This standard mounting plate is perfect for welding to your skid steer’s unique fitting.

Bent Axis Motor
Green Teeth

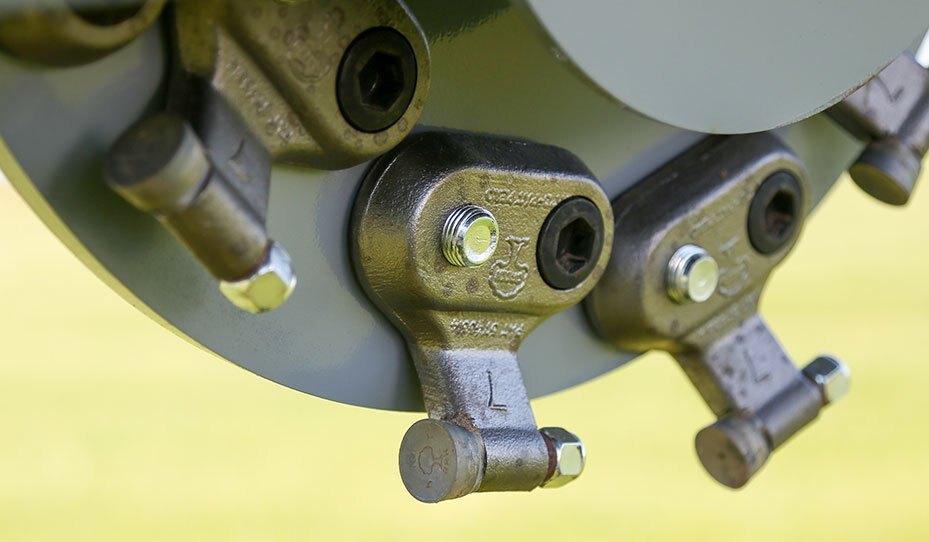

The concave shaped carbide tip provides aggressive brush mulching action by chipping the brush bit by bit. Part of the secret of their performance is always having a sharp edge to make grinding easier. Sharper edges result in aggressive cutting. These round carbide tipped teeth can be rotated up to 3 times to provide renewed cutting performance, giving you 3 times the wear by grinding 3 times longer.



Bent Axis Motor

More Teeth

The high number of teeth means that each tooth needs to do less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of our rugged teeth they last longer and usually only require 2 or 3 replacements at a time. The bolt-on designed teeth allow for straightforward replacement.



More Teeth

Hydraulic Motor

Skid steer mounted Stump Blasters run on hydraulic motors. For best results, match your equipments flow rate to one of our available hydraulic motor options.





Rotor
More Clearance

The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.





More Clearance
Rotor

The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.



Blast Shield
Greaseable Pins

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.




Specifications
Model
S14
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Recommended Carrier Size
1-2 ton
Motor Type
High efficiency bent axis piston
Hydraulic GPM
Check Motor Options
Rotor Size
18''
Number Of Teeth
12
Tooth Construction
Green
Cutting Wheel Speed
Depends on GPM
Cutting Height - Above Ground
No limit
Cutting Depth - Below Ground
6''
Maximum Cutting Depth - Per Pass
2''
Maximum Horizontal Cut
12''
Over Torque Protection
Relieve valve
Hitch
1'' pivot pins
No Of Remotes Required - Hydraulic
1
Unit Weight (Shipping) Lbs
394
