Overview

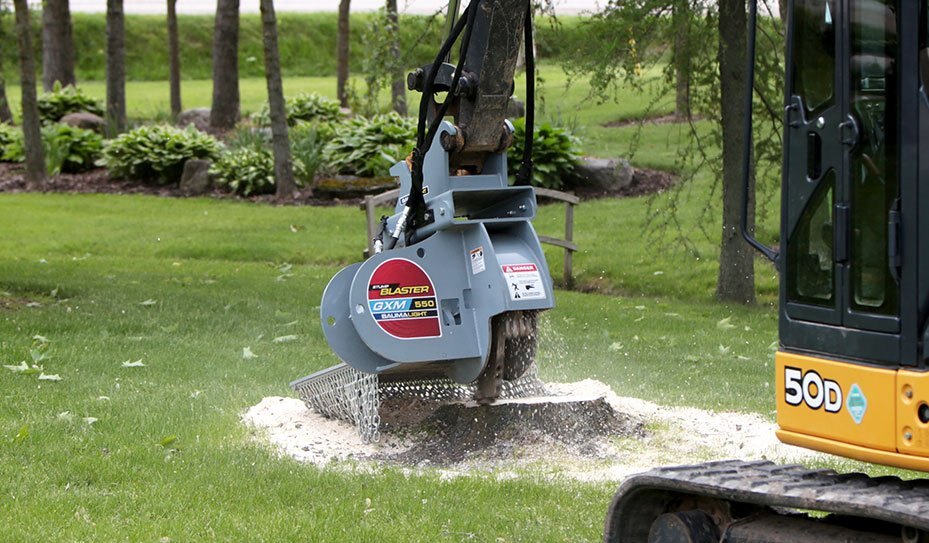

Stump Blaster - GXM550

The GXM550 excavator stump grinder is designed with high performance in mind for 3.5 to 8 ton excavators equipped with 8 to 40 gallons per minute of flow. Featuring 20 green carbide teeth packed in groups of 5 with individual rotating heads to provide three times the wear, letting you grind stumps 3 times longer.  Heavy tooth population makes finer mulch and allows much smoother operation while the blast shield with double row chain curtain ensures debris stays put. The 24" rotor is powered by bent axis piston motor provides ample stump grinding in virtually any location your excavator can reach.
  Features
Excavator Mount Excavator Mount

This standard mounting plate is perfect for welding to your machine’s unique fitting.
Bent Axis Motor
Bent Axis Motor

Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for your brush clearing needs.

Bent Axis Motor
Green Teeth

The concave shaped carbide tip provides aggressive brush mulching action by chipping the brush bit by bit. Part of the secret of their performance is always having a sharp edge to make grinding easier. Sharper edges result in aggressive cutting. These round carbide tipped teeth can be rotated up to 3 times to provide renewed cutting performance, giving you 3 times the wear by grinding 3 times longer.

More Teeth
More Teeth

The high number of teeth means that each tooth needs to do less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of our rugged teeth they last longer and usually only require 2 or 3 replacements at a time. The bolt-on designed teeth allow for straightforward replacement.

Rotor
Rotor

The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.
Rotor

More Clearance

More Clearance

The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.

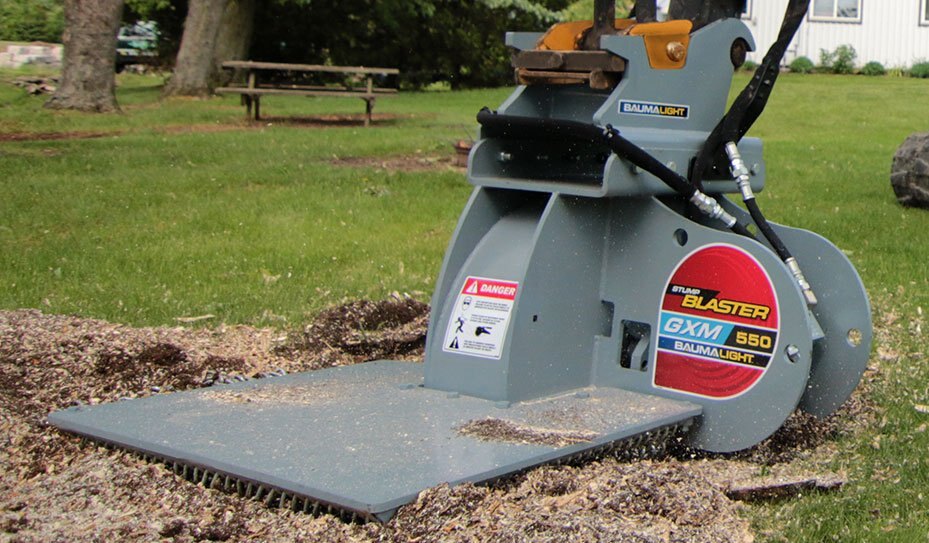

Blast Shield
Blast Shield

The extra-large blast shield provides maximum chip and debris control with a dual row of safety chain curtains. The blast shield can also be used for cleanup and back filling without getting out of your cab.




Specifications
Model
GXM550
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Recommended Carrier Size
3.5-8 ton
Motor Type
High efficiency bent axis piston
Hydraulic GPM
Check Motor Options
Rotor Size
24''
Number Of Teeth
20
Tooth Construction
Green
Cutting Wheel Speed
Depends on GPM
Cutting Height - Above Ground
No limit
Cutting Depth - Below Ground
24''
Maximum Cutting Depth - Per Pass
1''
Maximum Horizontal Cut
22''
Over Torque Protection
Relieve valve
Hitch
Bolt on
No Of Remotes Required - Hydraulic
1
Unit Weight (Shipping) Lbs
822
