Overview

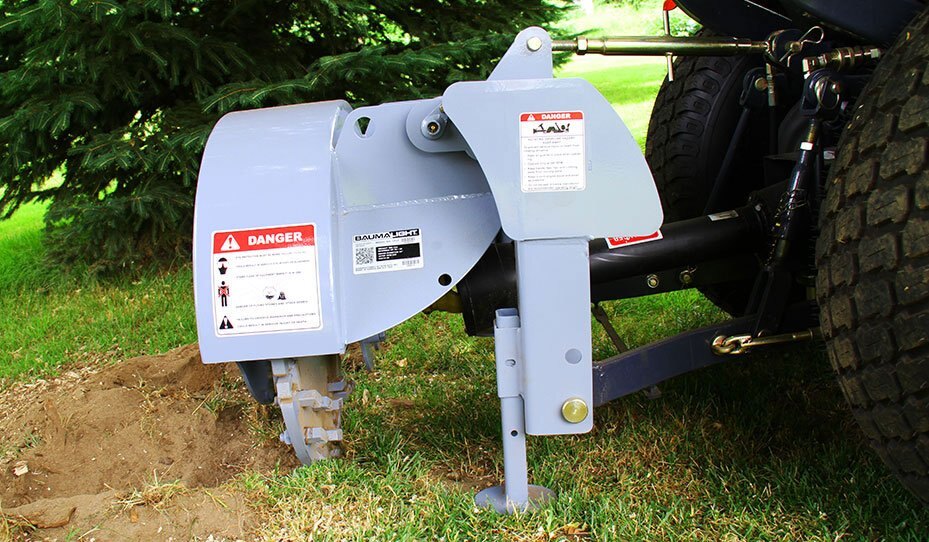

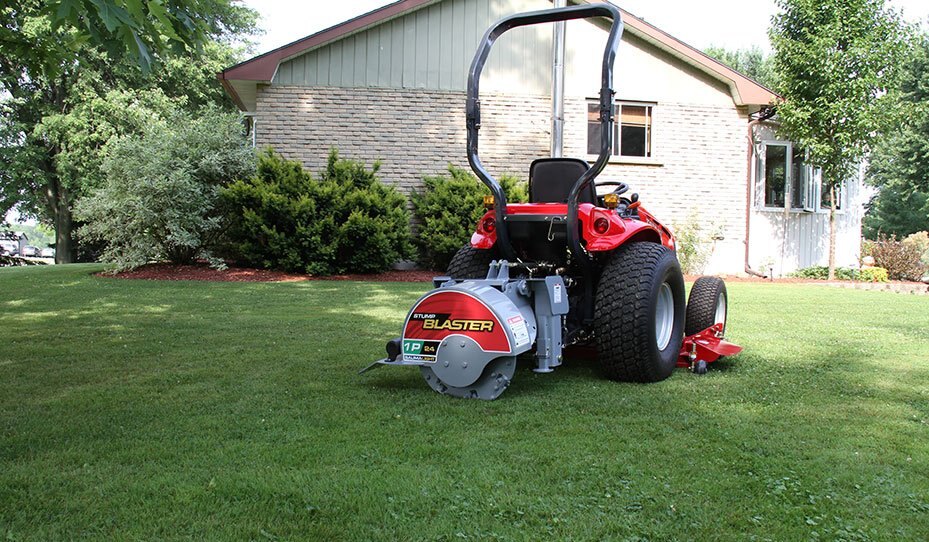

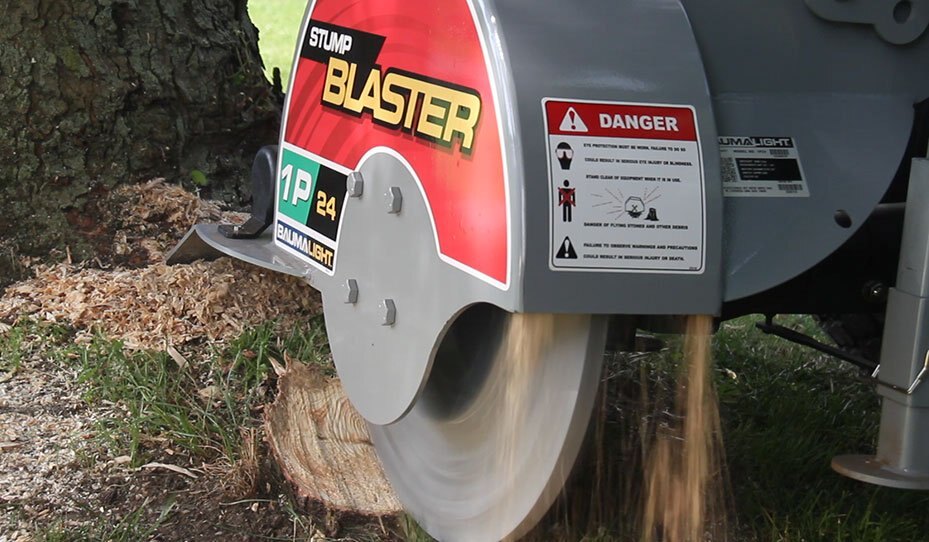

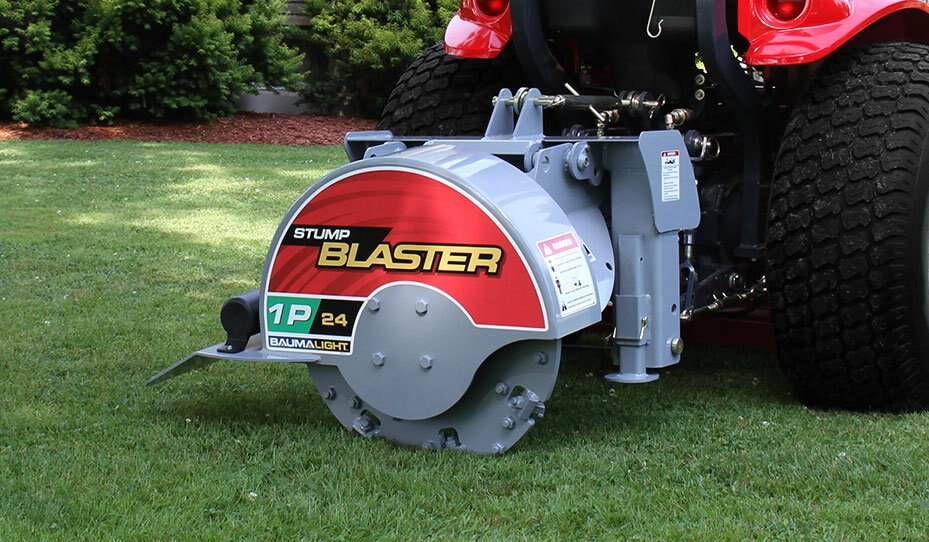

3 Point Hitch Stump Grinder - 1P24

The 1P24 PTO stump grinder is designed for small tractors equipped with hydrostatic drive and Category 1 3PH. This tractor mounted stump grinder model allows you to grind small and midsized stumps efficiently with a 24" Rotor, carrying 34 replaceable carbide teeth and has a cutting depth of 10" above ground and 6" below ground. With no hydraulics required this versatile PTO Stump Grinder is controlled with gravity feed which is ideal for tractors with no hydraulic remotes. All Baumalight stump grinders are made in North America and sold through dealers so you always will have local support to service or support your stump grinder.

  Features
Excavator Mount
Carbide Tipped

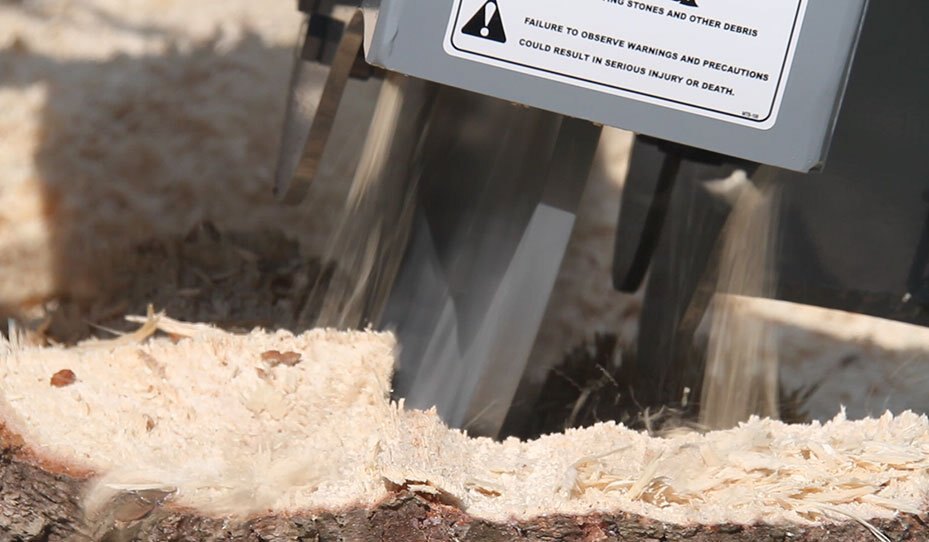

Like the finest saw blades, the cutting teeth on Stump Blasters are carbide tipped. This incredibly hard material ensures reliable cutting performance. When grinding stumps, buried hazards are inevitable; gravel, stones even metal posts are not uncommon to “find”. Our carbide teeth are designed to stand up to this abuse and keep on blasting stumps to dust.



Excavator Mount
More Teeth

Many hands make light work, or in this case fine mulch faster and easier. The high number of teeth means that each tooth does less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of these rugged teeth, which last longer and typically only need 2 or 3 replaced at a time. The bolt-on designed teeth allow for straightforward replacement.


Excavator Mount
Rotor

The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.

Excavator Mount
More Clearance

The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.



Excavator Mount
Greaseable Pins

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.







Specifications
Model
1P24
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Recommended HP Size
20-45
Hydraulic GPM
--
Rotor Size
24''
Number Of Teeth
34
Tooth Construction
Carbide steel bolt-in
Cutting Wheel Speed
540 RPM
Cutting Height - Above Ground
10''
Cutting Depth - Below Ground
6''
Maximum Cutting Depth - Per Pass
5''
Maximum Horizontal Cut
22''
Swing Arc
0°
Hub Torque
803 Ft.-Lbs.
Over Torque Protection
Shear bolt
Hitch
Cat I
Requires 12 Volt DC
No
Unit Weight (Shipping) Lbs
350
Length (Shipping)
48''
Width (Shipping)
48''
Input Speed
540
Maximum PTO HP
40
Maximum Engine HP
50
