Bauma Light

ID # 13784367

Bauma Light iMX960

Call for Price
Overview

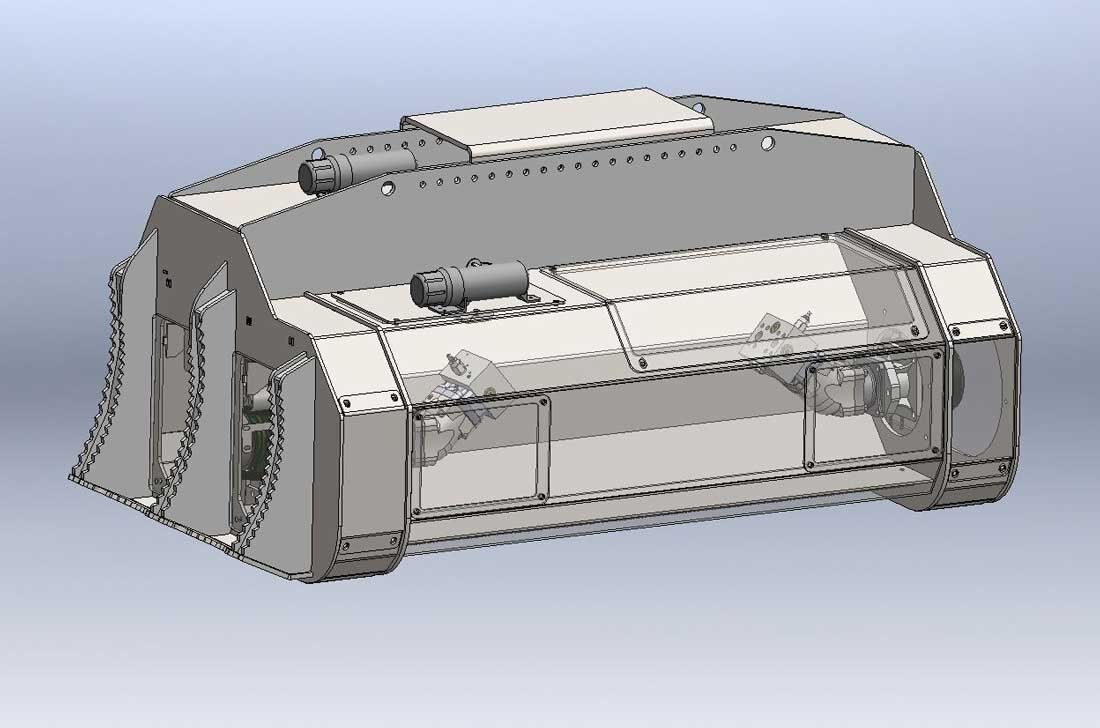

iMX960 Fixed Tooth Mulcher for Excavator, 22-40 Ton

The iMX960 brush mulcher is different in the fact that it takes two motors which take a lot of flow and double the mulching power. The same 700 Series teeth are also available in either Ripper or Planer style. The carbide Ripper tooth is the perfect general use tooth, their v-shaped design shreds through brush unforgivingly and makes them less vulnerable in areas plagued by rocks and debris. The 700 Series Planer style tooth provides the most efficient cutting by smoothly chipping away at the brush. It’s flat profile however makes it vulnerable to shattering on impact with rocks and other debris. See our brush cutting size chart to see how much this excavator mounted forestry mulcher can tear up according to your hydraulic flow. Remember to double the brush size shown.

  FEATURES
Torque tough auger photo
Ripper and Planer teeth

Unique to the 700 Series teeth, is the Cup and Cone mount. Machined into the holder and forged into the teeth. Engineered to take all the strain off the mounting bolt, eliminating shearing forces. Teeth in either Ripper or Planer style are bolted into place, this hungry combination is ready to tear up brush limb from limb. The 700 Series carbide Ripper tooth is the perfect general use tooth. Backed by high efficiency motors and massive rotors, their v-shaped design shreds through brush unforgivingly and makes them less vulnerable in areas plagued by rocks and debris.

The 700 Series Planer style tooth provides the most efficient cutting by smoothly chipping away at the brush. It’s flat profile however makes it vulnerable to shattering on impact with rocks and other debris. So it is only recommended for cutting applications where efficiency is more important than tooth life.


Bolt on bit auger


Reinforced Belt

A heavy duty reinforced belt delivers the force from the gear box to the rotor. Not only does this belt refuse to back down in the face of dense brush, it also offers protection from the shocks inherent in mulching.











Specifications
Model
iMX960
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Bauma Light
Path Width
76''
Rotor Width
60''
Maximum Carrier Ton
40
Minimum Carrier Ton
22
Cutting Depth
Level
Holder Style
Fixed
Cutting Style
Carblt Tapper Fit
Number Of Cutters
78
Rotor Shaft Size
2.5''
Rotor Diameter (tool Tips)
17.25''
Rotor Weight (with Tools)
800 lbs
No Of Motor
2
System Protection
Built-In Rellef
Unit Weight
3600 lbs
